PowerCode

door Mecano

Printbare bestanden (46)

  • stl

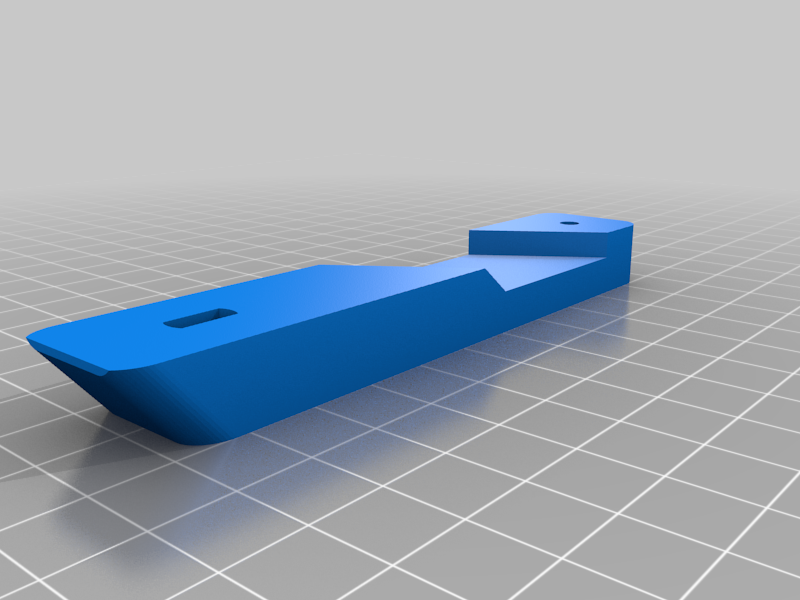

    01_Diagonal.stl

    206 Ko · 847 downloads

    Downloaden
  • stl

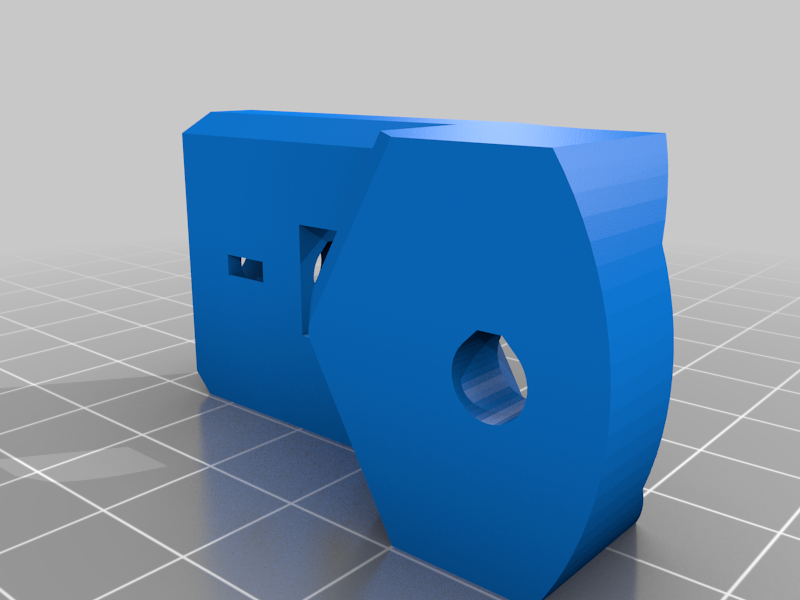

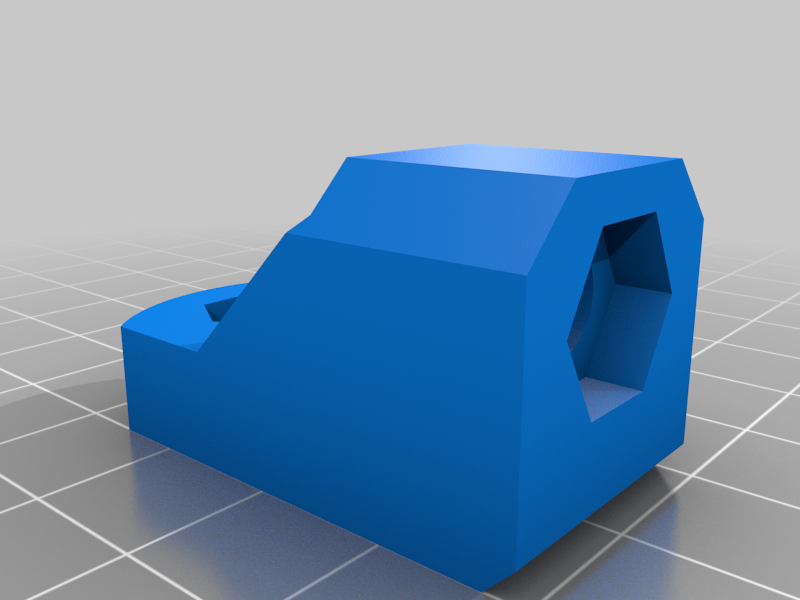

    02_Ycorner.stl

    14 Ko · 815 downloads

    Downloaden
  • stl

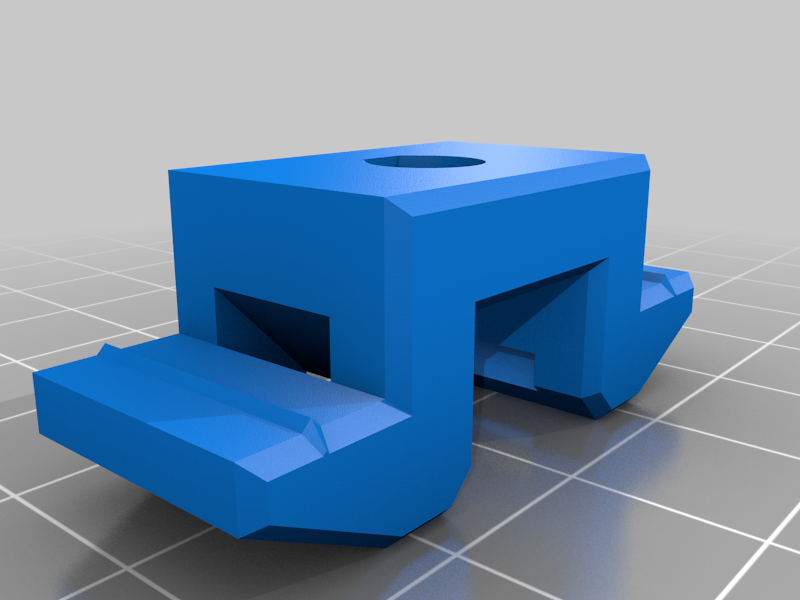

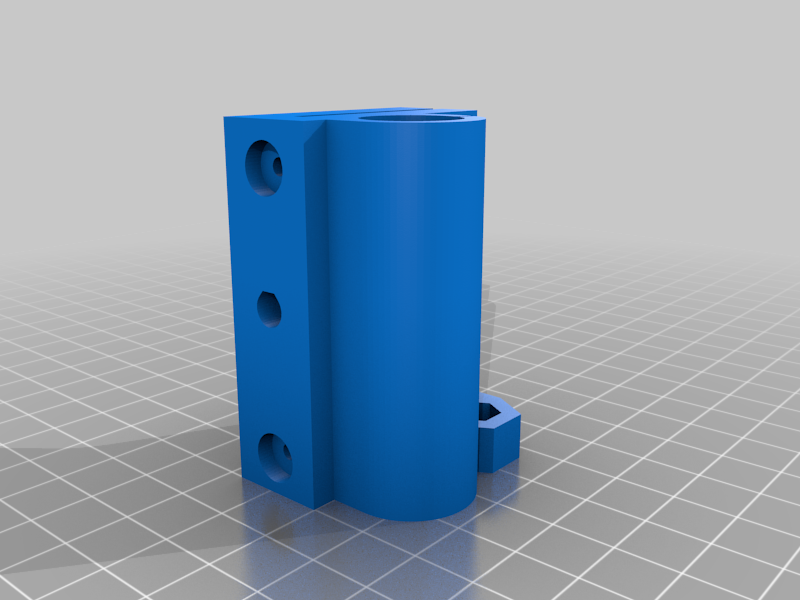

    03_Ybelt_A.stl

    184 Ko · 852 downloads

    Downloaden
  • stl

    04_Ybelt_B.stl

    96 Ko · 847 downloads

    Downloaden
  • stl

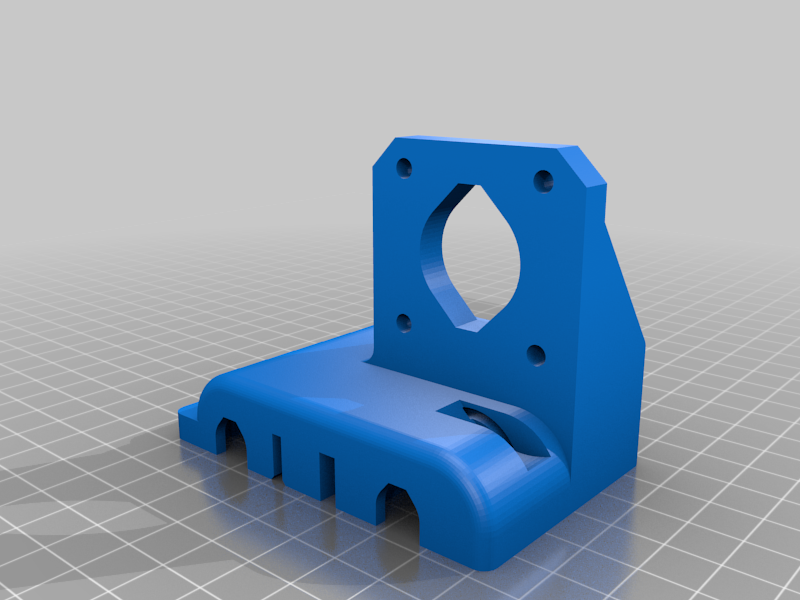

    05_Ymotor.stl

    53 Ko · 815 downloads

    Downloaden
  • stl

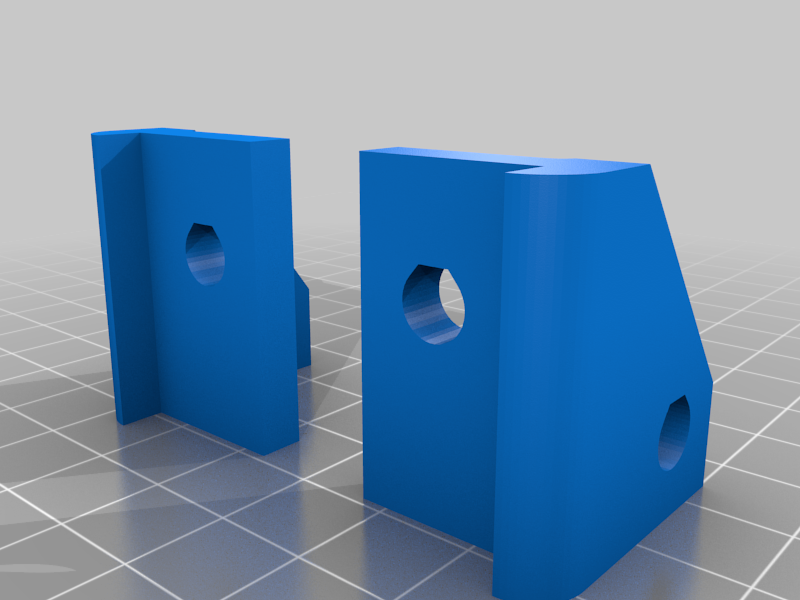

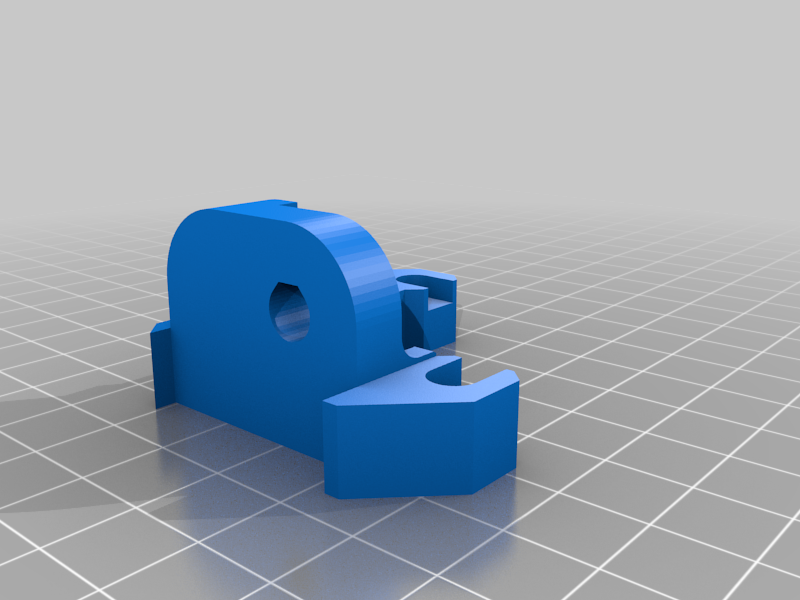

    06_Ytensor.stl

    168 Ko · 854 downloads

    Downloaden
  • stl

    07_Zbotton.stl

    521 Ko · 852 downloads

    Downloaden
  • stl

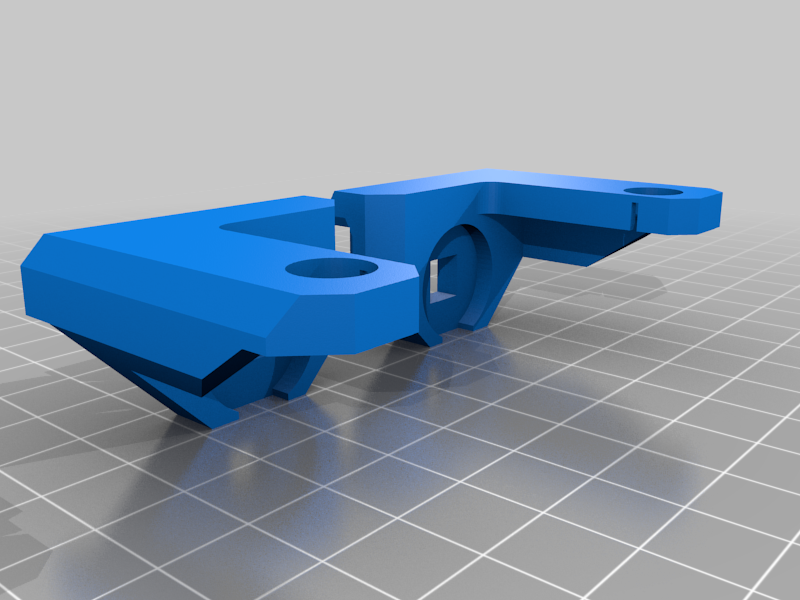

    08_ZTop.stl

    369 Ko · 860 downloads

    Downloaden
  • stl

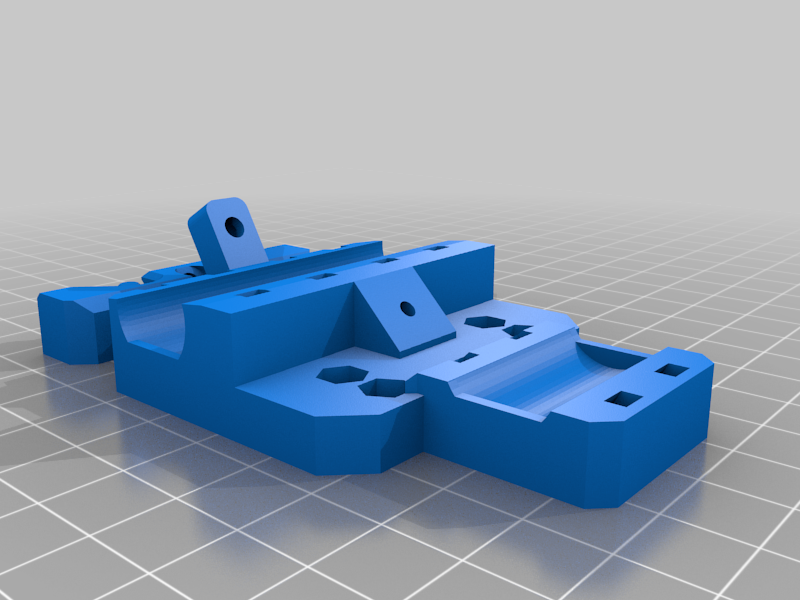

    09_X_Carriage_Titan.stl

    355 Ko · 829 downloads

    Downloaden
  • stl

    09_X_Carriage_BQ.stl

    242 Ko · 814 downloads

    Downloaden
  • stl

    10_XTensor.stl

    240 Ko · 854 downloads

    Downloaden
  • stl

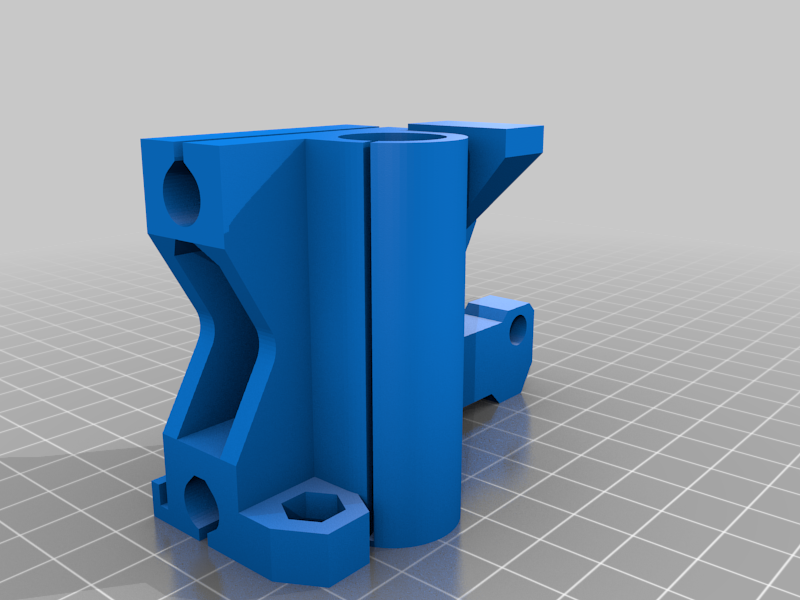

    11_XIdler_-_380.stl

    502 Ko · 853 downloads

    Downloaden
  • stl

    12_XMotor.stl

    584 Ko · 849 downloads

    Downloaden
  • stl

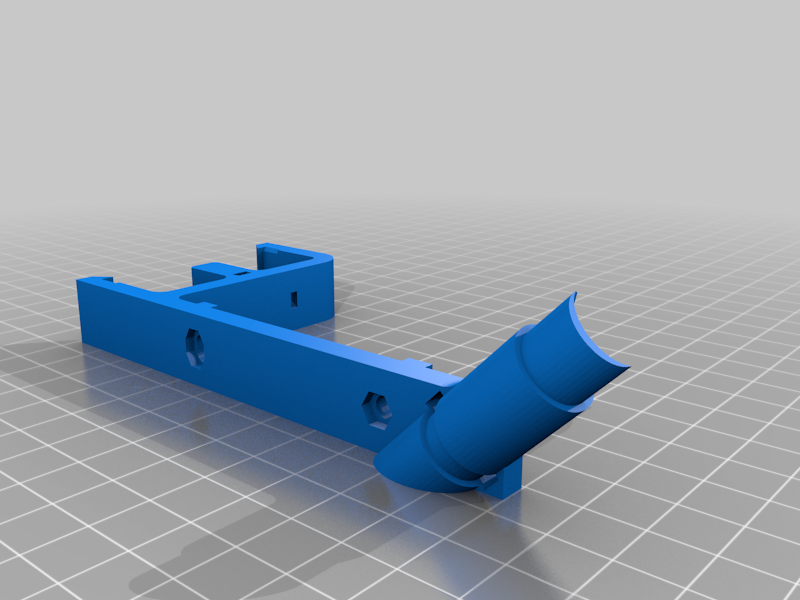

    13_Blower.stl

    446 Ko · 841 downloads

    Downloaden
  • stl

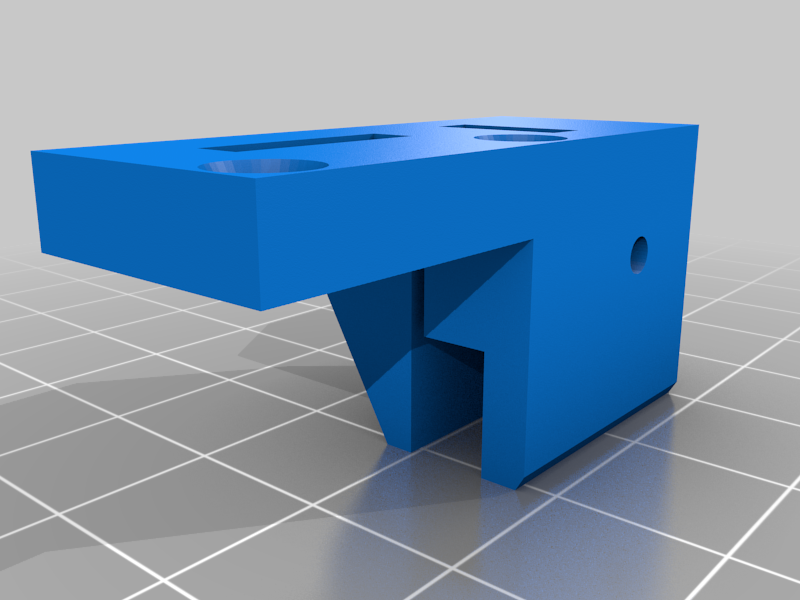

    14_XEndstop.stl

    289 Ko · 852 downloads

    Downloaden
  • stl

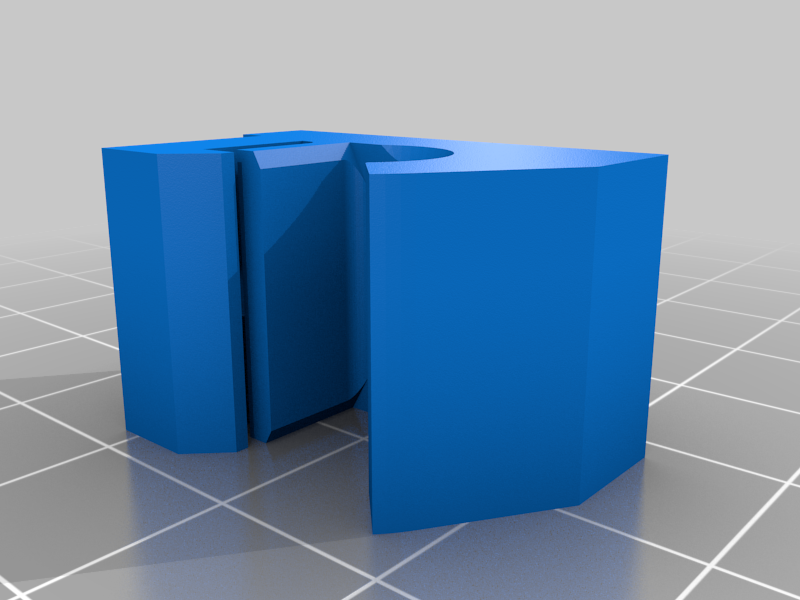

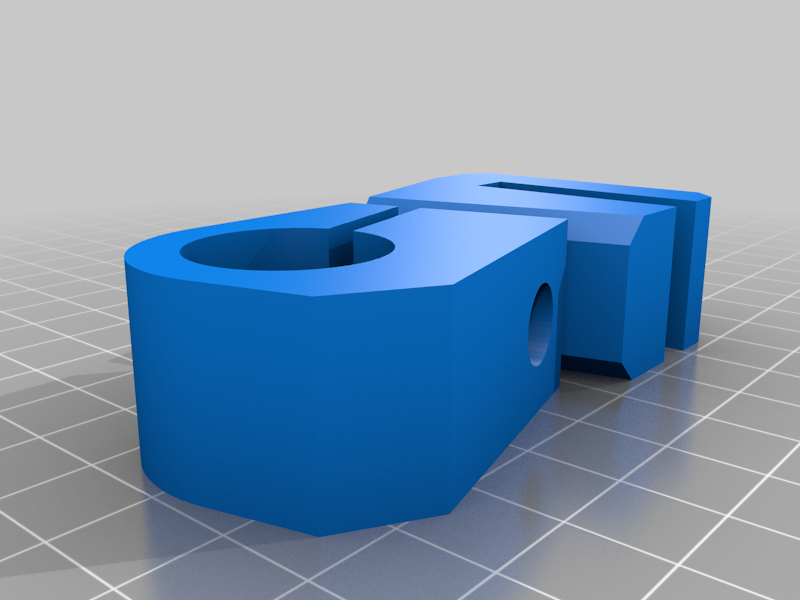

    15_YEndstop.stl

    234 Ko · 847 downloads

    Downloaden
  • stl

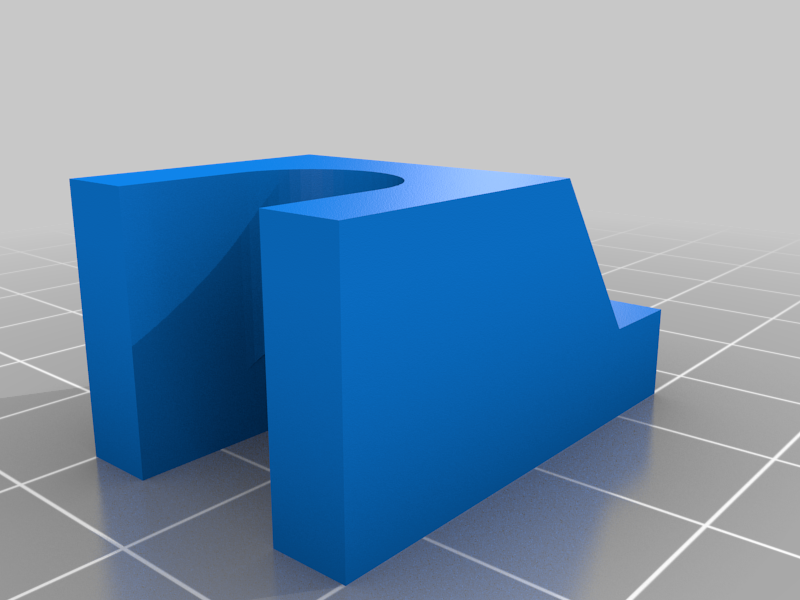

    16_ZEndstop.stl

    293 Ko · 861 downloads

    Downloaden
  • stl

    17_SoporteRollo.stl

    49 Ko · 802 downloads

    Downloaden
  • stl

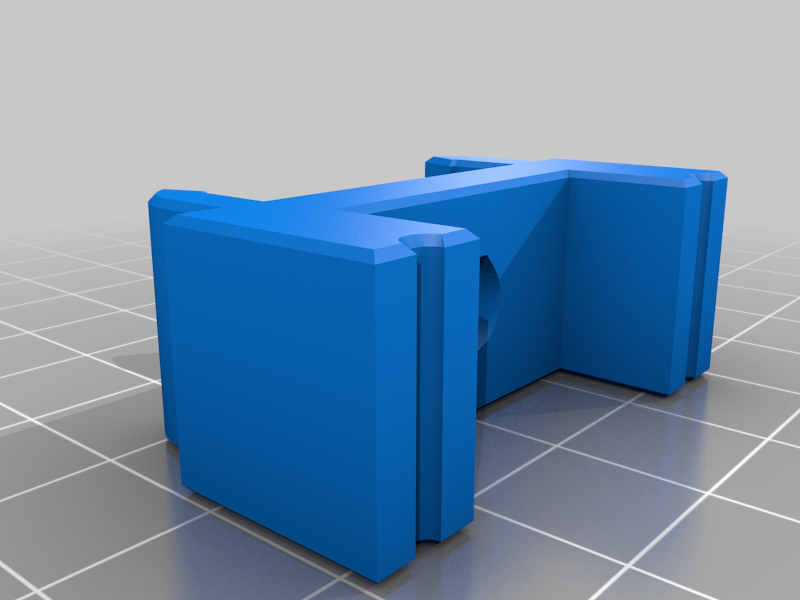

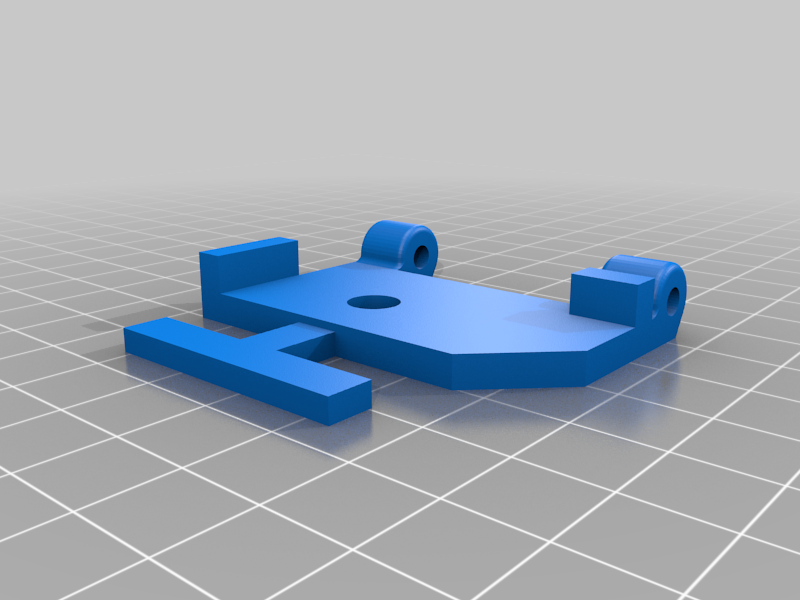

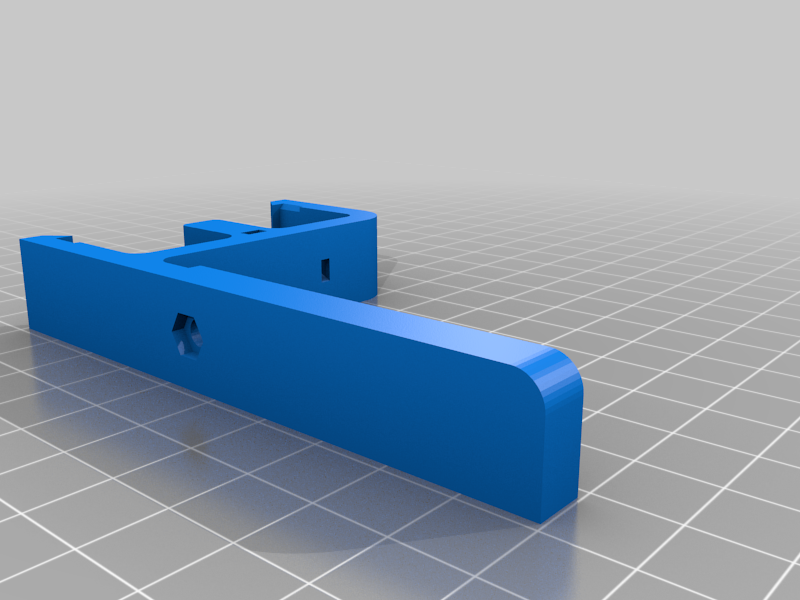

    18_LCD_Hinge.stl

    155 Ko · 815 downloads

    Downloaden
  • stl

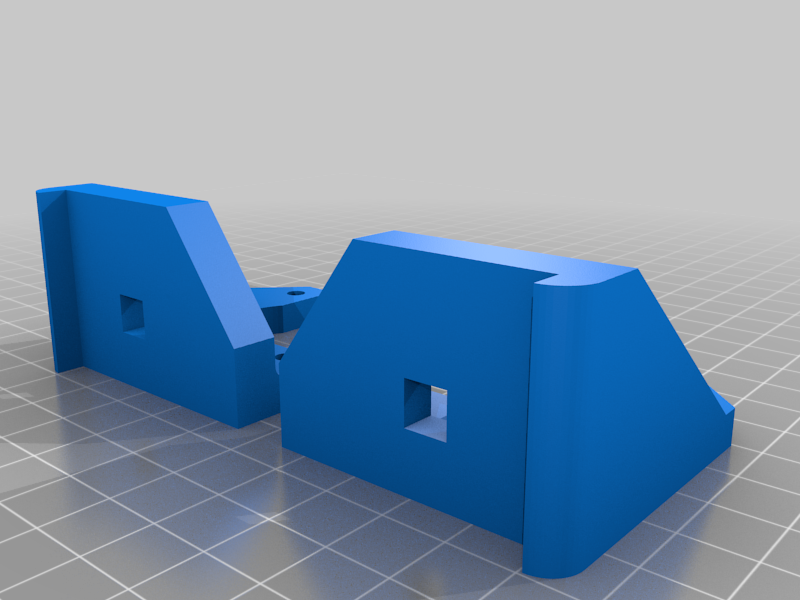

    19_SoporteFuente.stl

    190 Ko · 840 downloads

    Downloaden
  • stl

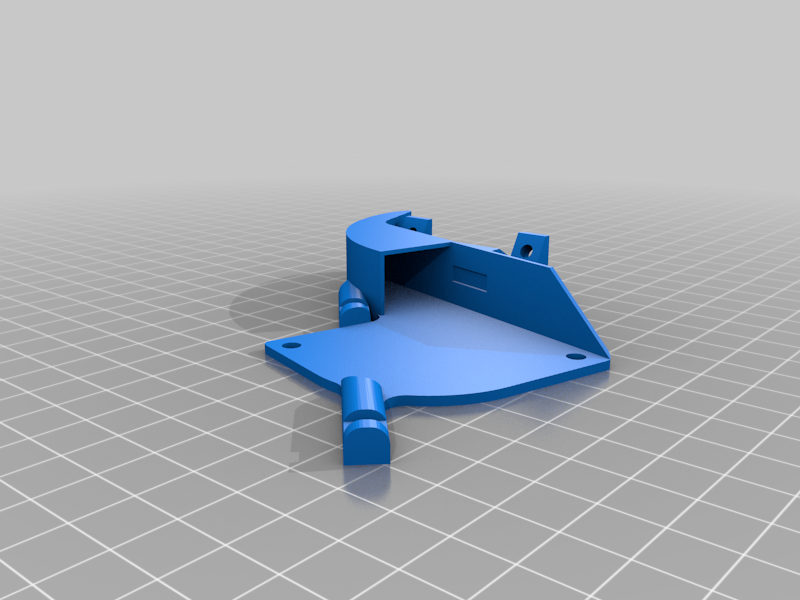

    20_LCD_FullGraphics.stl

    521 Ko · 850 downloads

    Downloaden
  • stl

    20_Lcd_2004.stl

    736 Ko · 845 downloads

    Downloaden
  • stl

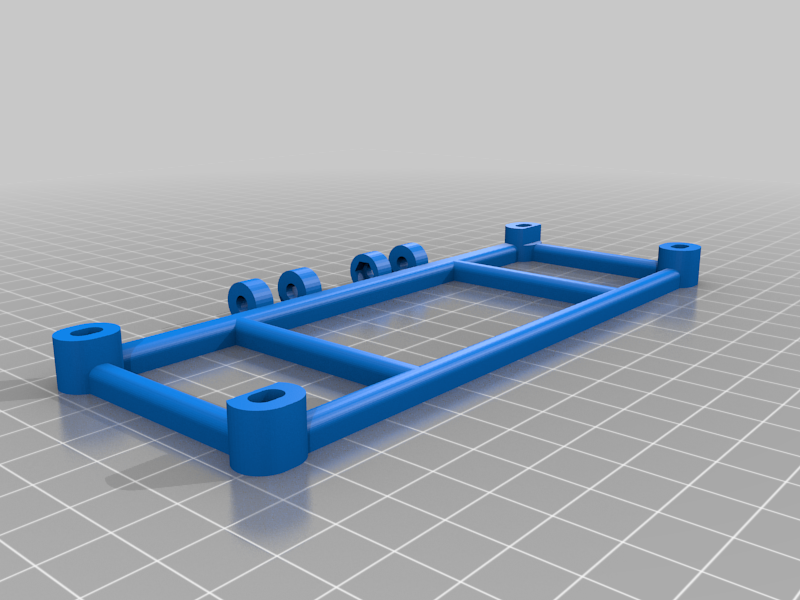

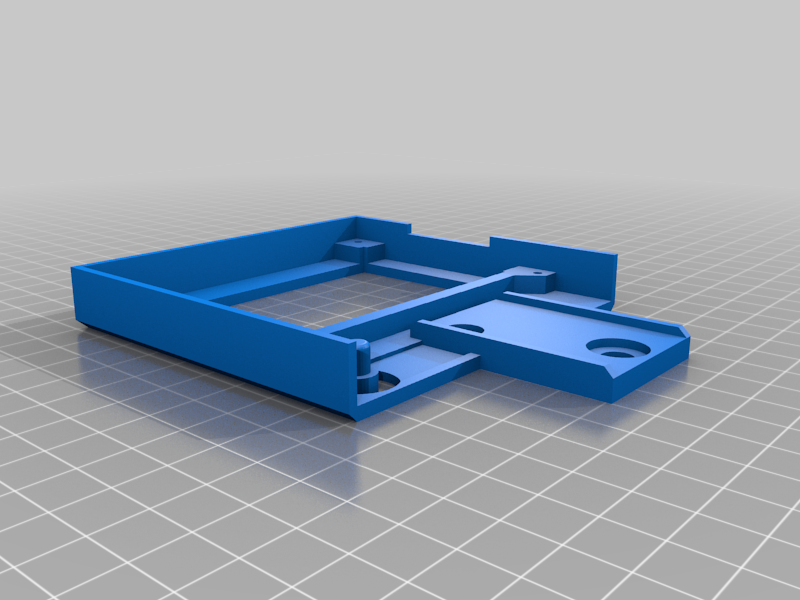

    21_RampsHolder_Abajo.stl

    468 Ko · 847 downloads

    Downloaden
  • stl

    21_RampsHolder_Arriba.stl

    224 Ko · 857 downloads

    Downloaden
  • step

    01_Diagonal.stp

    57 Ko · 787 downloads

    Downloaden
  • step

    02_Ycorner.stp

    36 Ko · 797 downloads

    Downloaden
  • step

    03_YBelt_A.stp

    103 Ko · 794 downloads

    Downloaden
  • step

    04_Ybelt_B.stp

    108 Ko · 789 downloads

    Downloaden
  • step

    05_Ymotor.stp

    82 Ko · 791 downloads

    Downloaden
  • step

    06_YTensor.stp

    63 Ko · 794 downloads

    Downloaden
  • step

    07_ZBotton.stp

    108 Ko · 797 downloads

    Downloaden
  • step

    08_ZTop.stp

    117 Ko · 792 downloads

    Downloaden
  • step

    10_XTensor.stp

    88 Ko · 801 downloads

    Downloaden
  • step

    11_XIdler.stp

    100 Ko · 787 downloads

    Downloaden
  • step

    12_XMotor.stp

    170 Ko · 785 downloads

    Downloaden
  • step

    13_Blower.stp

    154 Ko · 803 downloads

    Downloaden
  • step

    14_XEndstop.stp

    87 Ko · 791 downloads

    Downloaden
  • step

    15_YEndstop.stp

    67 Ko · 793 downloads

    Downloaden
  • step

    16_ZEndstop.stp

    93 Ko · 804 downloads

    Downloaden
  • step

    17_SoporteRollo.stp

    56 Ko · 794 downloads

    Downloaden
  • step

    18_LCD_Hinge.stp

    79 Ko · 817 downloads

    Downloaden
  • step

    19_SoporteFuente.stp

    48 Ko · 784 downloads

    Downloaden
  • step

    20_Lcd_2004.stp

    329 Ko · 793 downloads

    Downloaden
  • step

    20_LCD_FullGraphics.stp

    119 Ko · 805 downloads

    Downloaden
  • step

    21_RampsHolder_Arriba.stp

    113 Ko · 793 downloads

    Downloaden
  • step

    21_RampsHolder_Abajo.stp

    185 Ko · 784 downloads

    Downloaden

Beschrijving

PowerCode 3d printer

https://youtu.be/xFHLTQE7CoU

Bill of materials

Metalic pieces of PowerCode (7 pieces)

1-. Screws box and other little pieces:

1 complete kit of fasteners, see description below.
2 pulleys gt2 20 teeth,
2 couplings 5x5,
11 lineal bearings lm8uu ,
4 twezeers for cristal,
2 bearings 685zz,
20 bridas 2.5 x 100, 4 bridas 3.5x150,
2 belts gt2 (850 mm axis x and 650 mm axis y)

2-. Heated bed platform

1 heated bed platform
1 cristal (see plane)
1 sheet of cork 215 x 215 and piece.
1 cable red-black, thermistor and thermoretractil sheath.

3-. Smooth rods and threated rods

4 smooth chrome plated rod 8 x 380 mm
2 smooth chrome plated rod 8 x 330 mm
2 threated rod m10x390
2 threated rod m5x300

4-. Reel holder

2 roods m8x180,
1 gewis tube 20x220,
4 nuts m8 and
2 M8 washers
Plastic pieces.

5-. Extruder and Hot-end

Titan extruder from E3D + Hotend E3d lite v6.

6-. Stepper Motors:

5 Stepper motors, 200 step per revolution, 4500 kg· cm, with conector and milled axis, 40 mm de length.
5 cables

7-. Power Supply

1 Power Supply 12v 20A,

8-. Power Wiring and USB conection.

1 cable alimentación 230v con enchufe schuco 1m,
1 cable usb 1.8m,
1 cable 12v, 4x1mm 53 cm long.
1 switch

9-. Electrónics

1 RAMPS 1.4sb
1 Arduino Mega 2560 r3,
4 Drivers DRV8825 (32 microsteps) with sink

10-. Display, blower and pcb Endstop.

1 display lcd 20x4
1 radial blower 50x50x15 12v and 1 cable for blower 60 cm,
3 Pcb Endstops with cable 70 cm.

11-. Fasteners for PowerCode 3p extruder e3d+titan

16 screw 3x10 for plastic
12 m3x10 din912
10 m3x16 din912
5 m3x20 din912
10 m3x25 din912

30 nuts m3 din934
30 washers m3 din125

2 screw m5x25 din933
1 screw m5x40 din84
2 rods m5x300

6 nuts m5 din934
2 nuts m5 autobloc din985
10 washers m5 din125
8 washers m5 din9021

13 screws mushroom m6x20 din603
2 screws m6x30 din84
1 tornilo de m6x35 din933
2 esparragos m6

30 nuts m6 din934
2 nuts m6 autobloc din985
20 washers m6 din125
10 washers m6 vuelo din9021

2 rods m10x390
12 nuts m10 din934
8 washers m10 din125
4 washers m10 vuelo din9021

For reel support

2 rods m8x180
4 nuts m8
2 washers m8
1 gewis tube 20x220mm

Based on Prusa I3. Xcarriage based on Girobot desing, lcd suport based on BQ’s Prusa Hephestos

License: Creative commons, Attribution, Share alike.
