basic airsoft gun
par Sarfa
Fichiers imprimables (11)
-

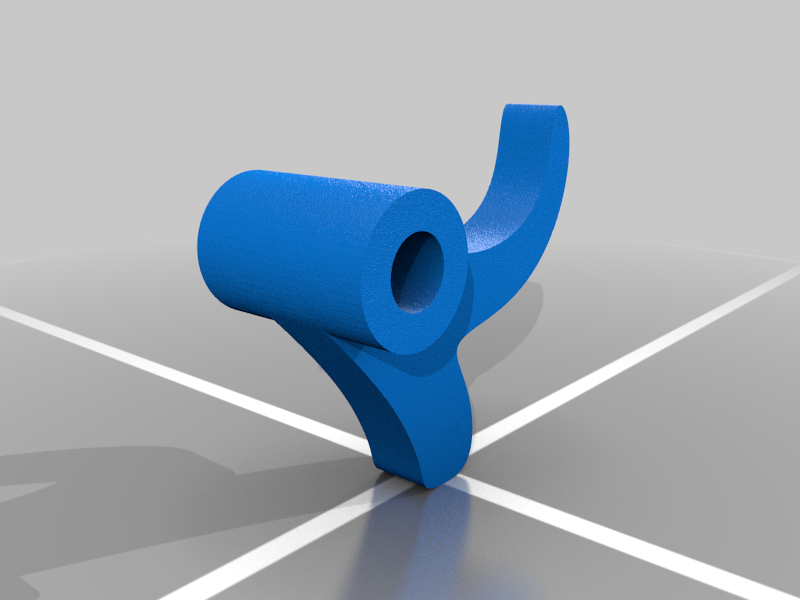

stltrigger_V1.stl
95 Ko · 9 905 téléchargements
-

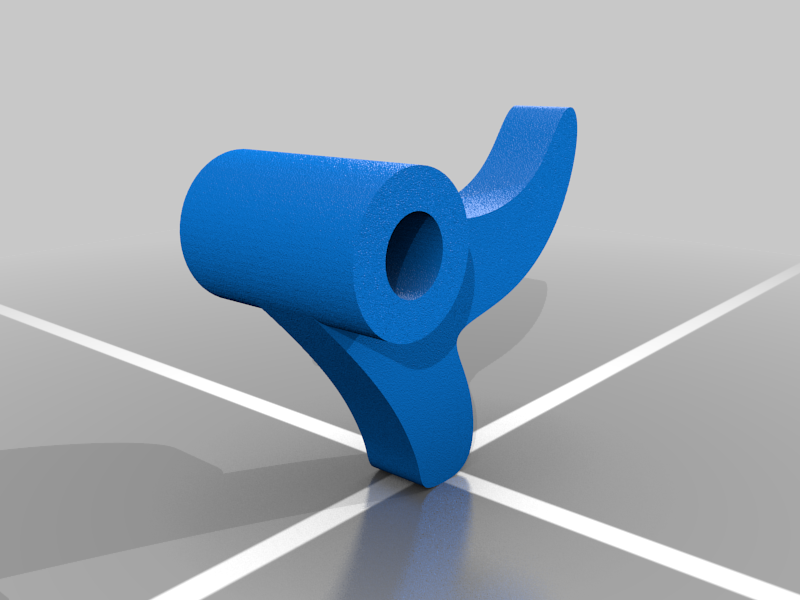

stltrigger_V2.stl
93 Ko · 9 899 téléchargements
-

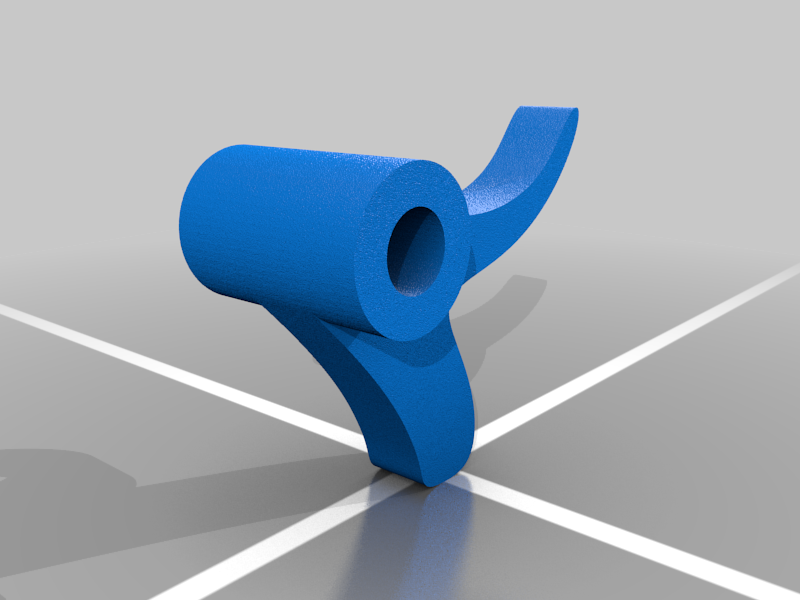

stltrigger_V3.stl
93 Ko · 10 141 téléchargements
-
stlgun_body_V3_tighter_around_cylinder.stl
243 Ko · 10 055 téléchargements
-

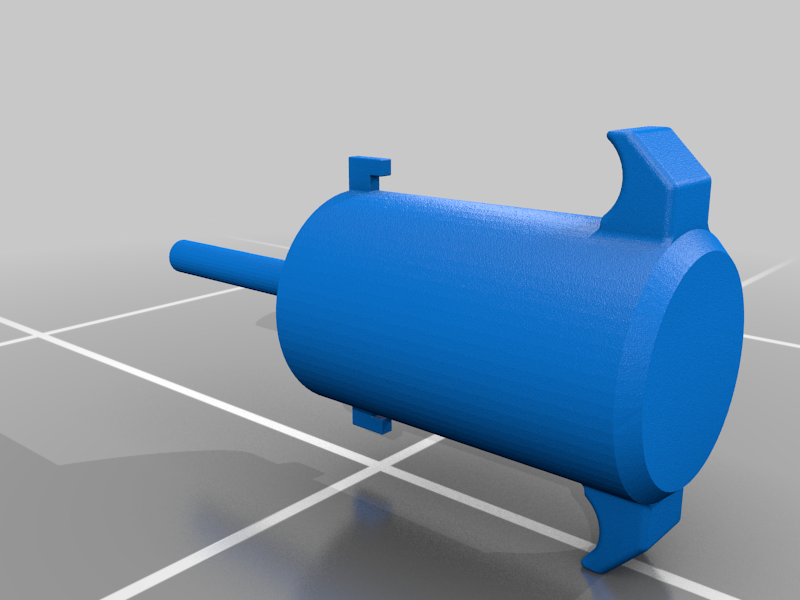

stlcylinder_V2_shorter_stronger__and_looser_tube.stl
572 Ko · 10 054 téléchargements
-

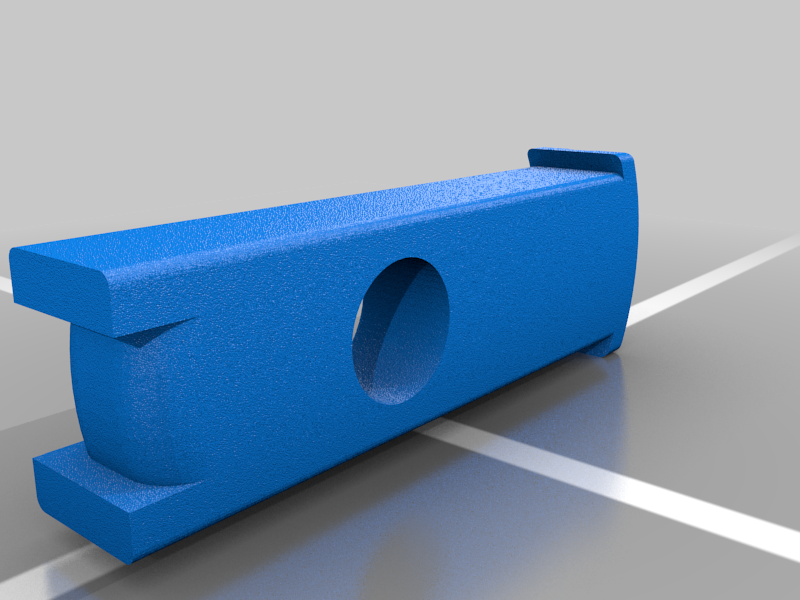

stlbb_slider.stl
105 Ko · 10 154 téléchargements
-

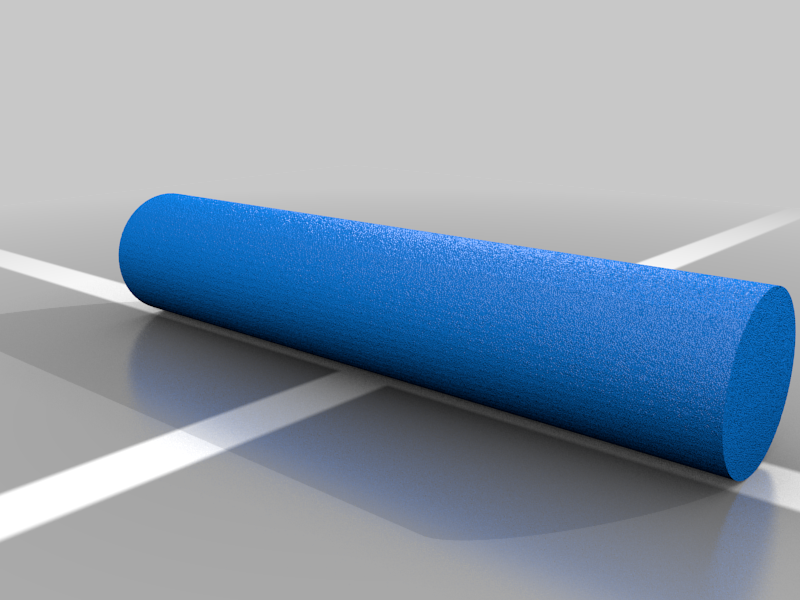

stlpin.stl
27 Ko · 10 161 téléchargements
-

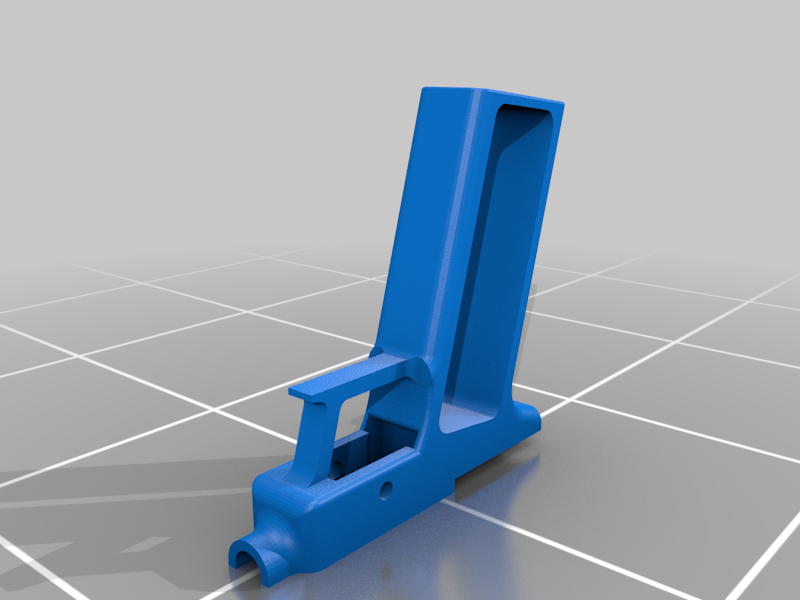

stlgun_body_V1.stl
244 Ko · 10 024 téléchargements
-

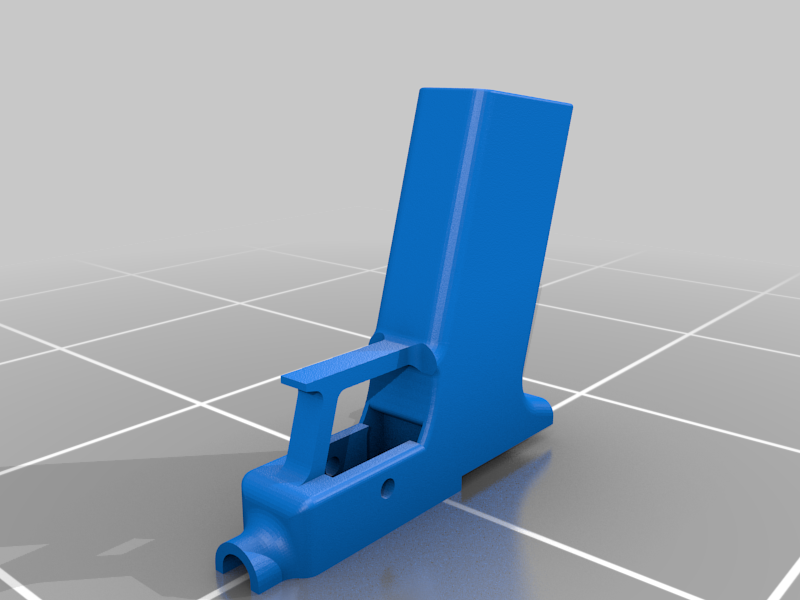

stlgun_body_V2.stl
243 Ko · 9 955 téléchargements
-

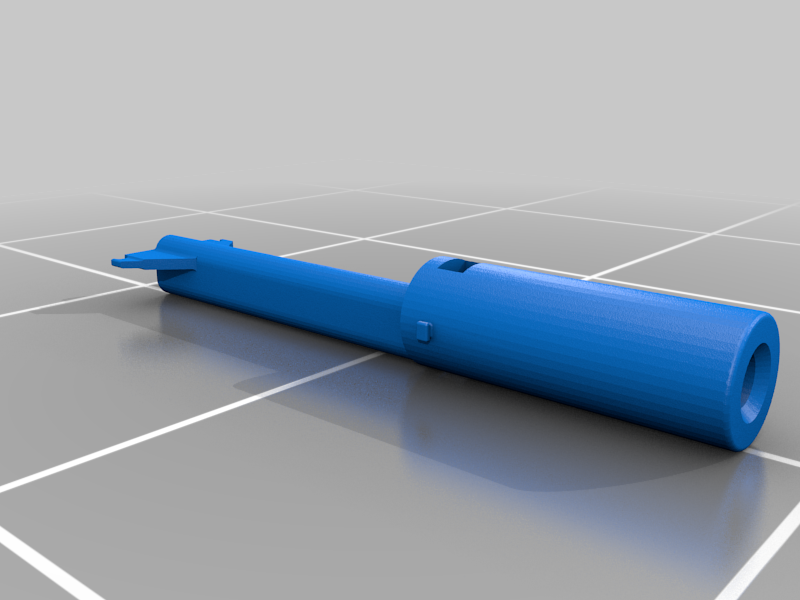

stlpiston.stl
390 Ko · 10 248 téléchargements
-

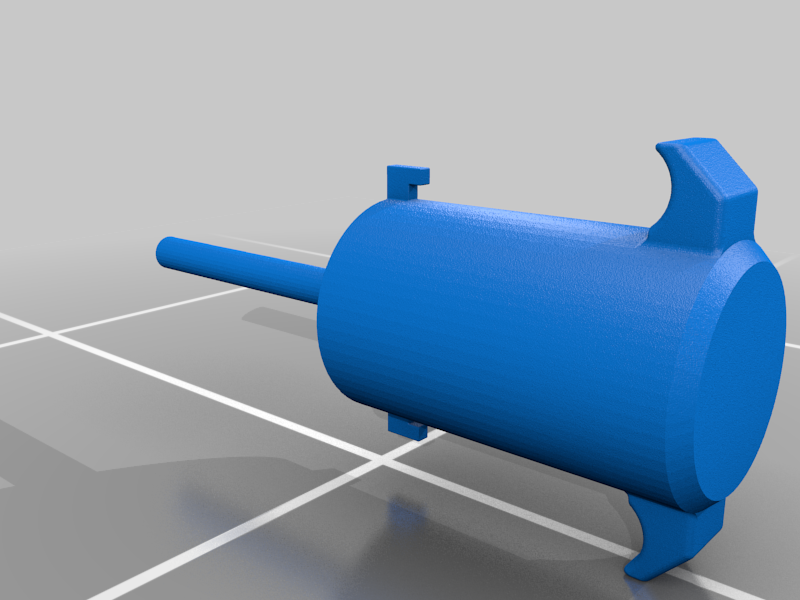

stlcylinder.stl
545 Ko · 9 961 téléchargements
Description
//DISCLAIMER//:
this thing is not for children. If used improperly it can cause injuries, therefore you and those around you must always wear eye protection and keep hands away from the cylinder while shooting. I’m not responsible for any damage to property, people or animals
This is my first prototype of a fully functional rubber band powered airsoft gun. Using the current setup it is capable of piercing through 2 sheets of paper with .12g bbs. Use universal lubricant for the internals and grease around the piston. The magazine holds up to 16 rounds. Parts must be scaled up to 1000%. Enjoy!
Here is the video https://youtu.be/giy1l_a3ZHk
