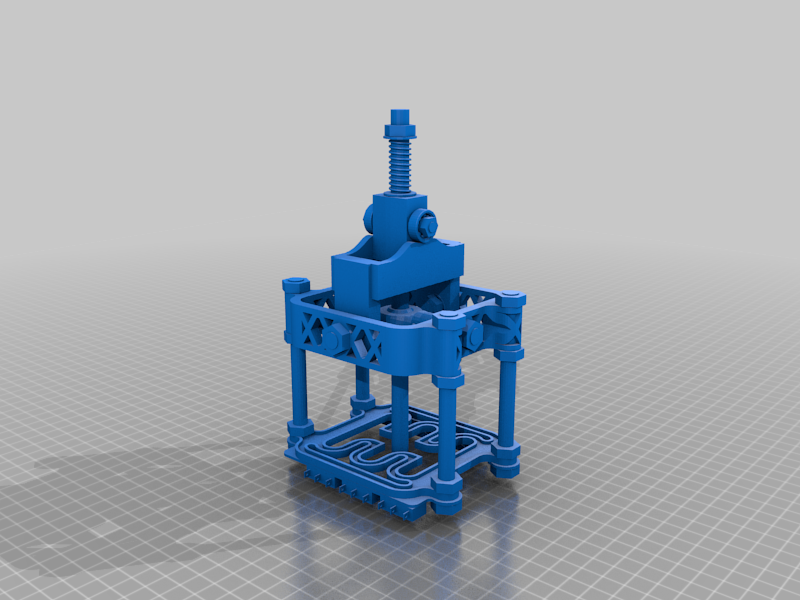

H pattern sim shifter

par Noctiluxx

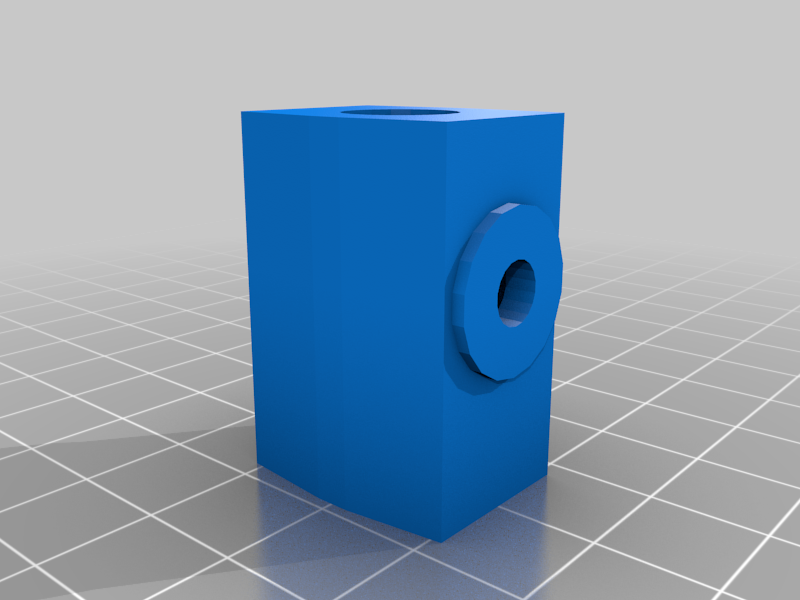

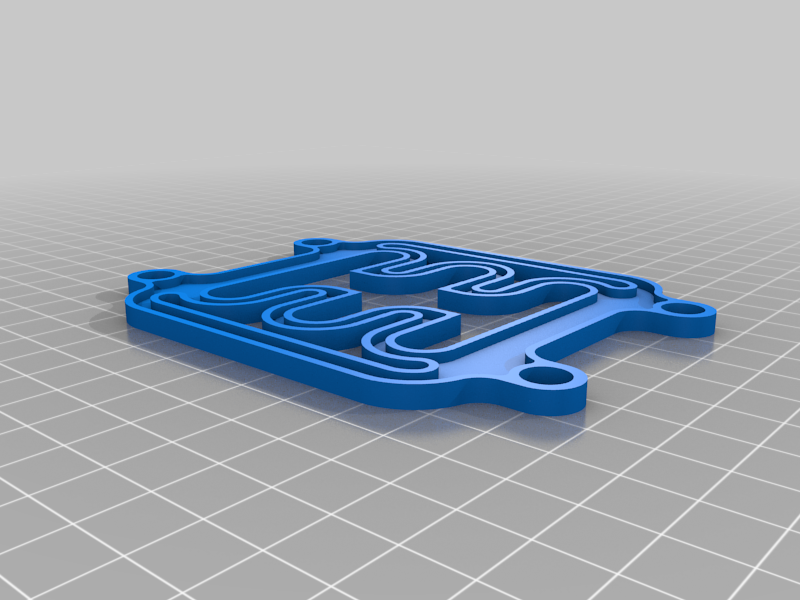

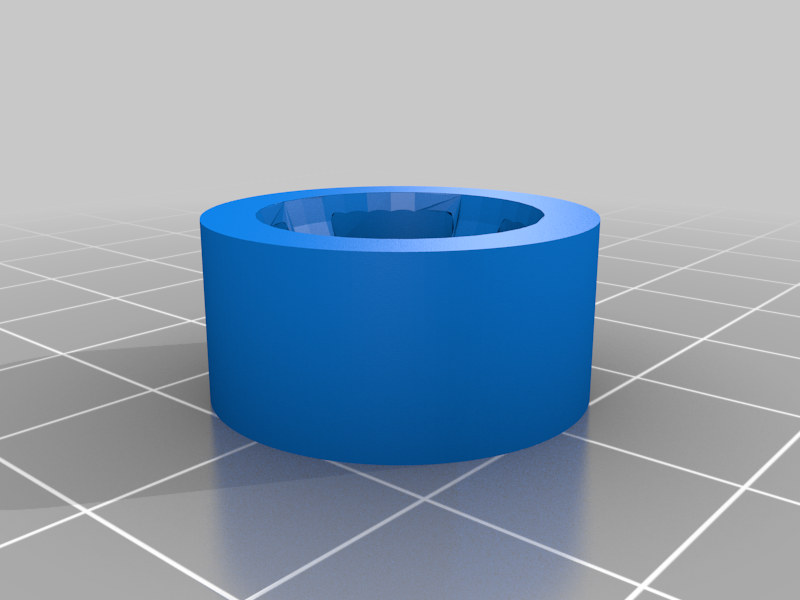

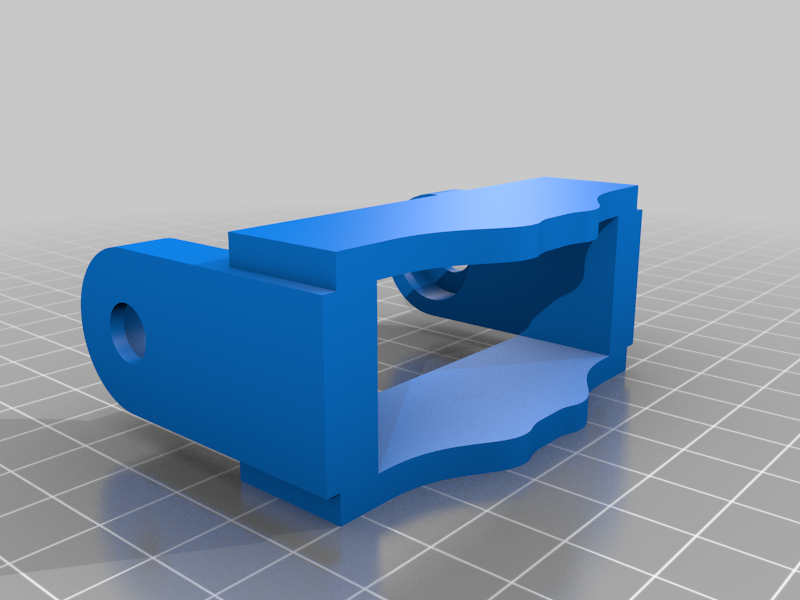

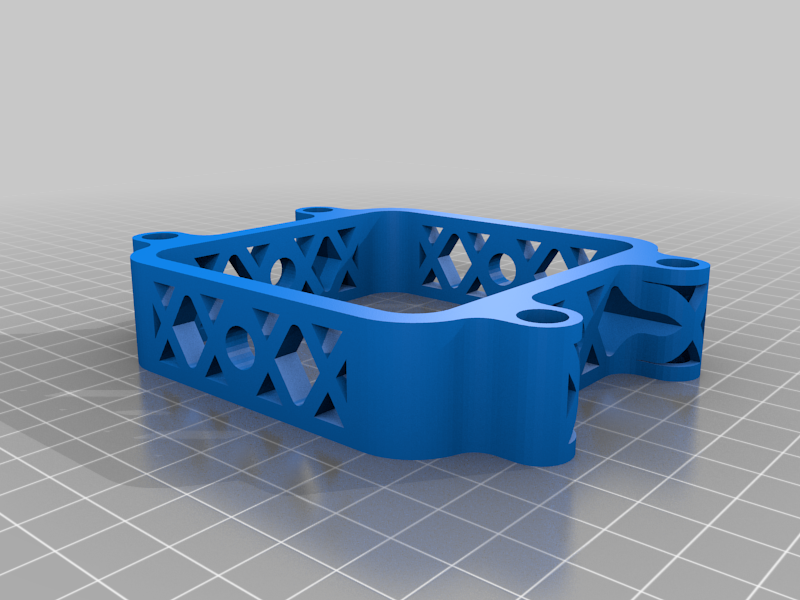

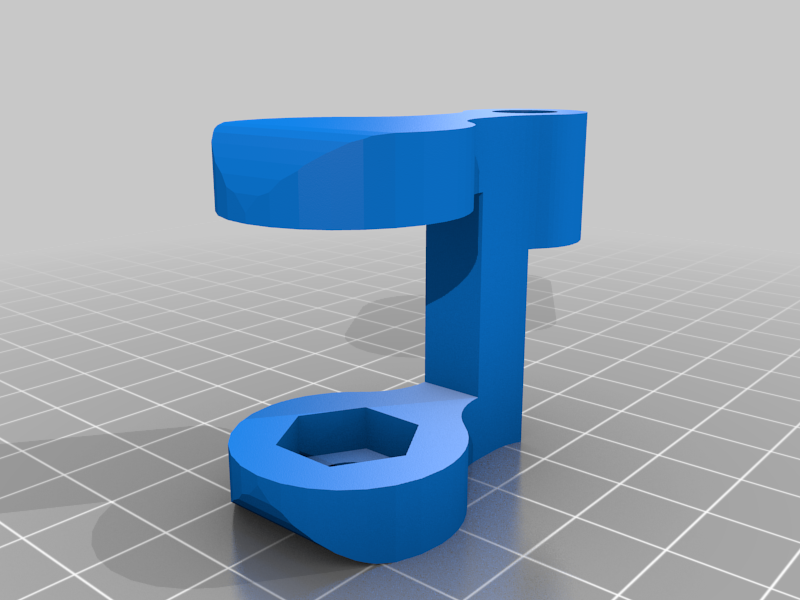

Fichiers imprimables (8)

Description

I've seen this design made from various materials, mostly from aluminum. This is my version. I made it from PLA, to make it strong enough, and removed any unneccesary material, to save some.

Parts i used:

M8 threaded rods, lock nuts and screws
688 bearing 2X
625 bearing 2x

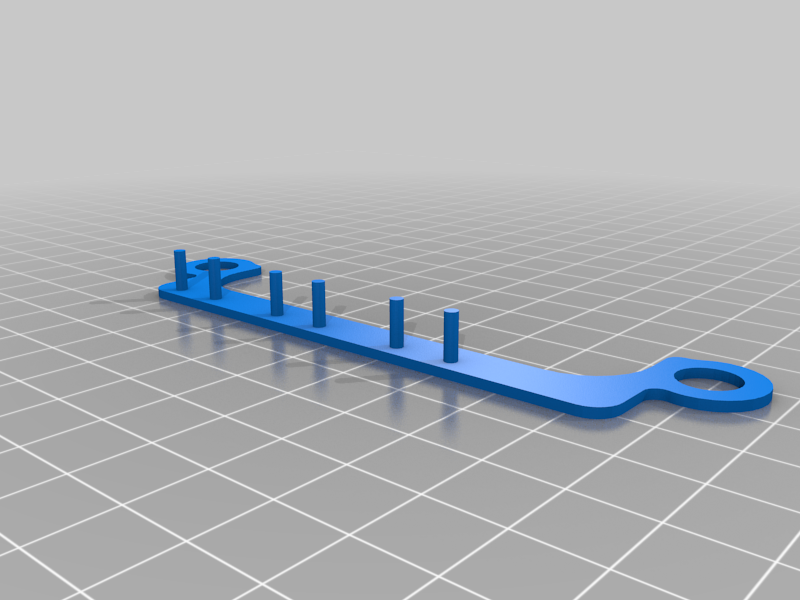

KW12-3 limit switch 6X
http://www.aliexpress.com/item/10-x-Roller-Lever-Arm-PCB-Terminals-Micro-Limit-Normal-Close-Open-Switch-KW12-3-FREE/1927323464.html

PHSA8 ball joint
http://www.aliexpress.com/item/1pcs-8mm-SI8T-K-PHSA8-Right-Hand-Thread-Female-metric-Rod-End-Joint-Bearing/1342766510.html

Any game controller to wire the switches to

I also made a video using and breaking the thing :D
