Thread Gauge Set
par iamjonlawrence
Fichiers imprimables (22)
-

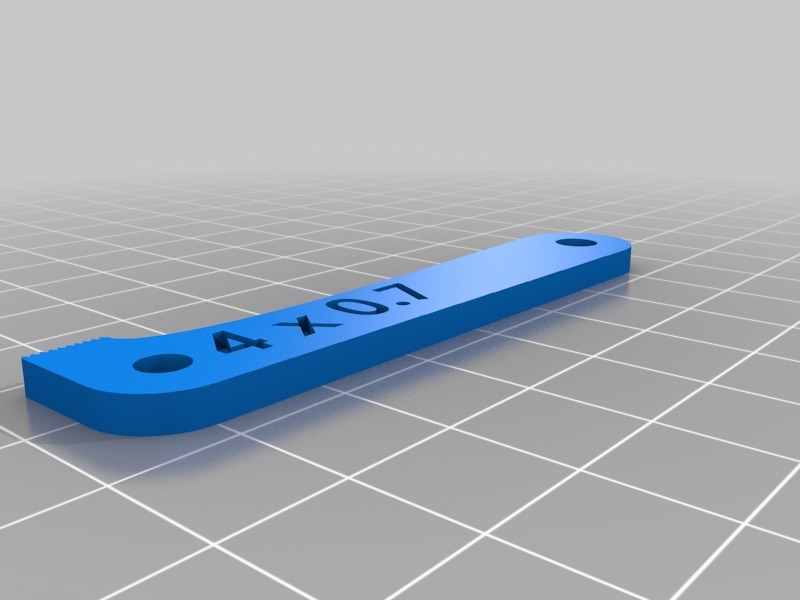

stlThreadGauge4x0.7mm.STL
69 Ko · 12 489 téléchargements
-

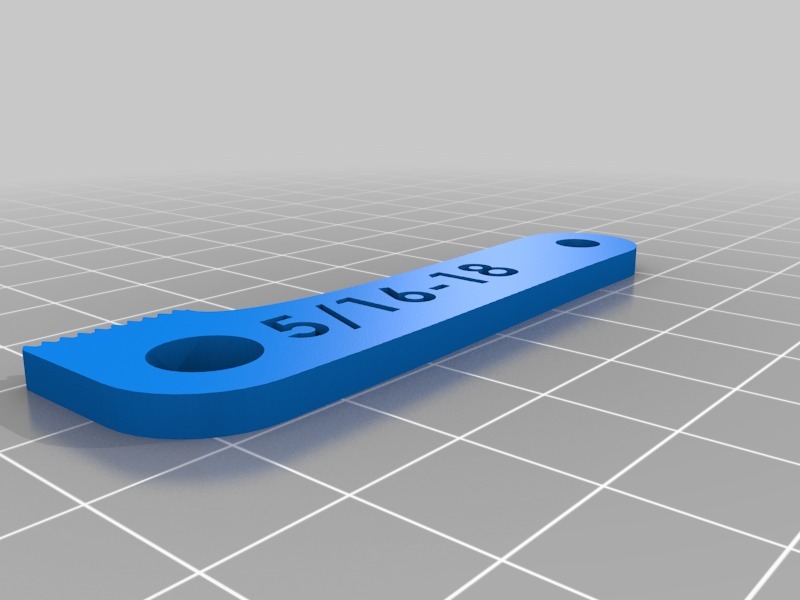

stlThreadGauge5_16-18in.STL
102 Ko · 12 490 téléchargements
-
stlThreadGauge7_16-14in.STL
63 Ko · 12 345 téléchargements
-

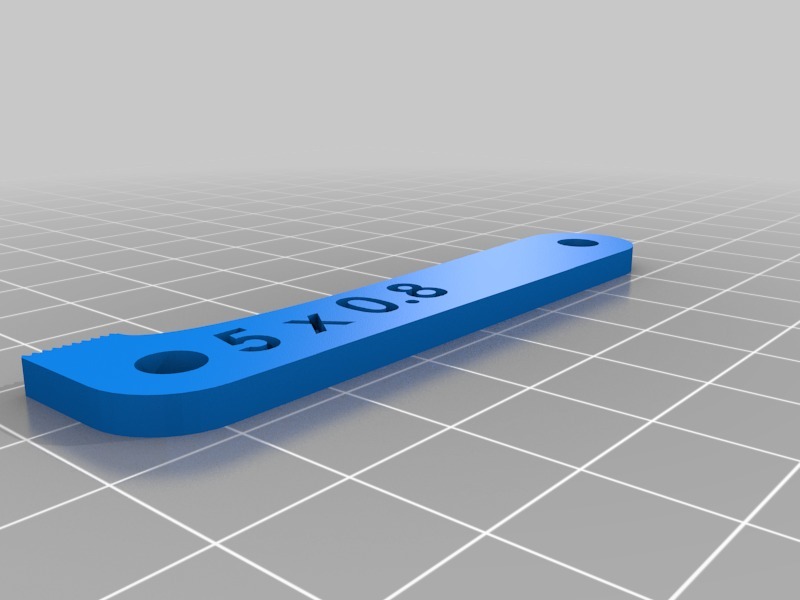

stlThreadGauge5x0.8mm.STL
106 Ko · 12 451 téléchargements
-
stlThreadGauge6x1.0mm.STL
81 Ko · 12 446 téléchargements
-
stlThreadGauge8x1.25mm.STL
106 Ko · 12 435 téléchargements
-

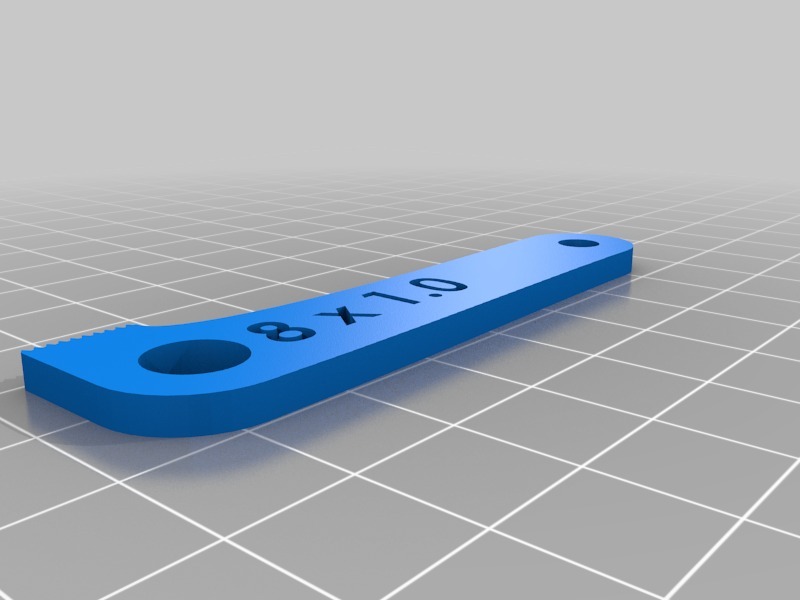

stlThreadGauge8x1.0mm.STL
95 Ko · 12 406 téléchargements
-
stlThreadGauge10x1.5mm.STL
84 Ko · 12 459 téléchargements
-

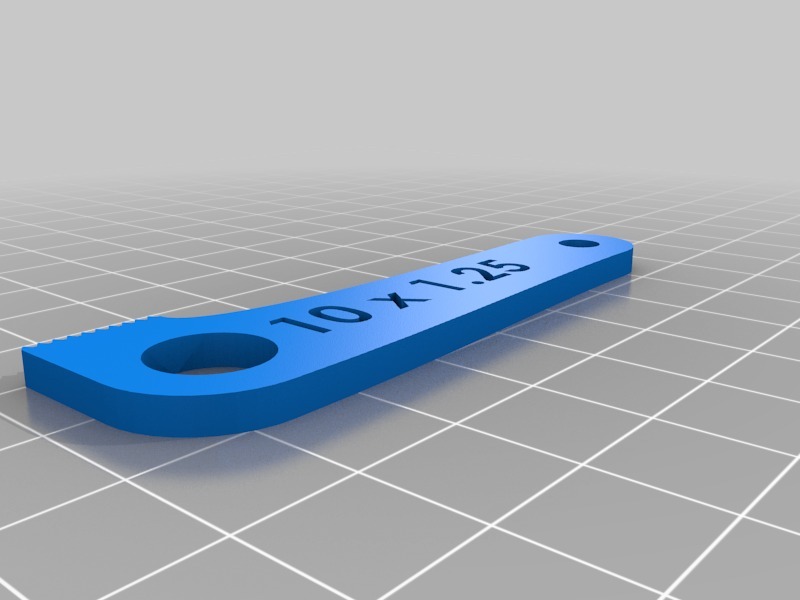

stlThreadGauge10x1.25mm.STL
97 Ko · 12 389 téléchargements
-

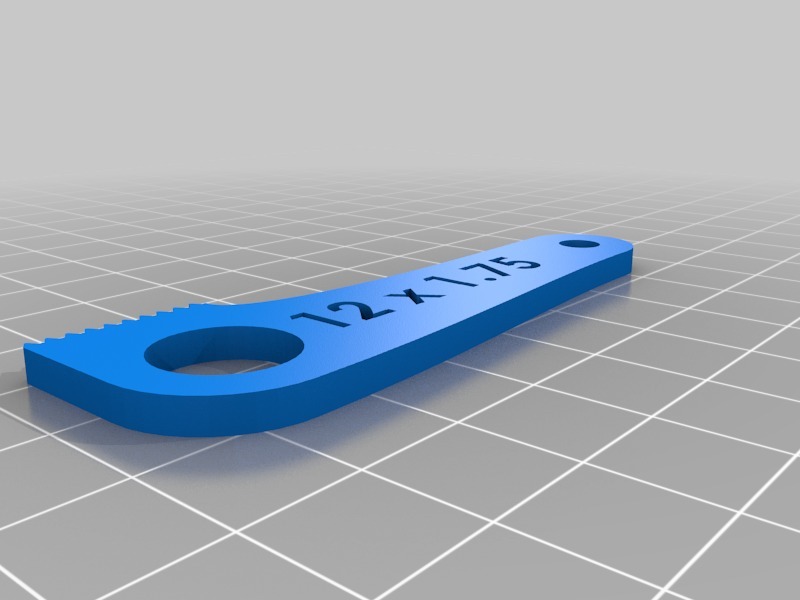

stlThreadGauge12x1.75.STL
81 Ko · 12 456 téléchargements
-

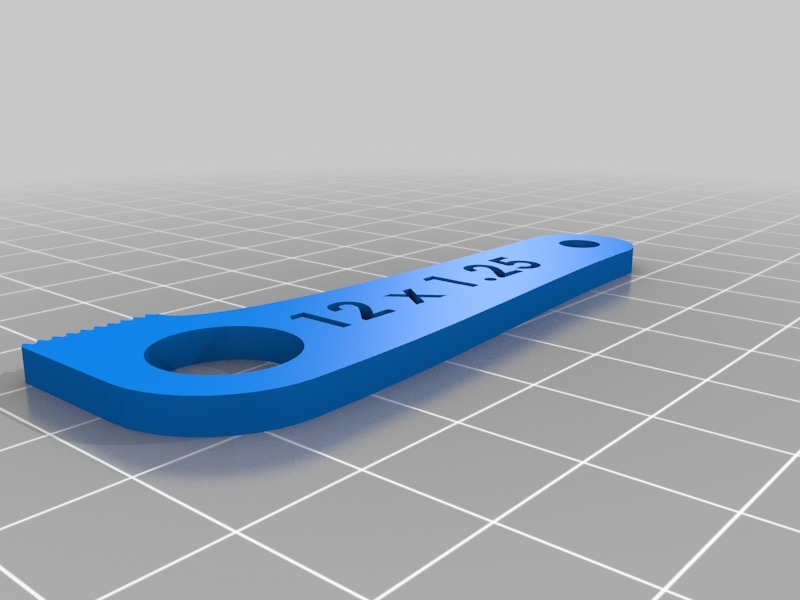

stlThreadGauge12x1.25.STL
91 Ko · 12 378 téléchargements
-

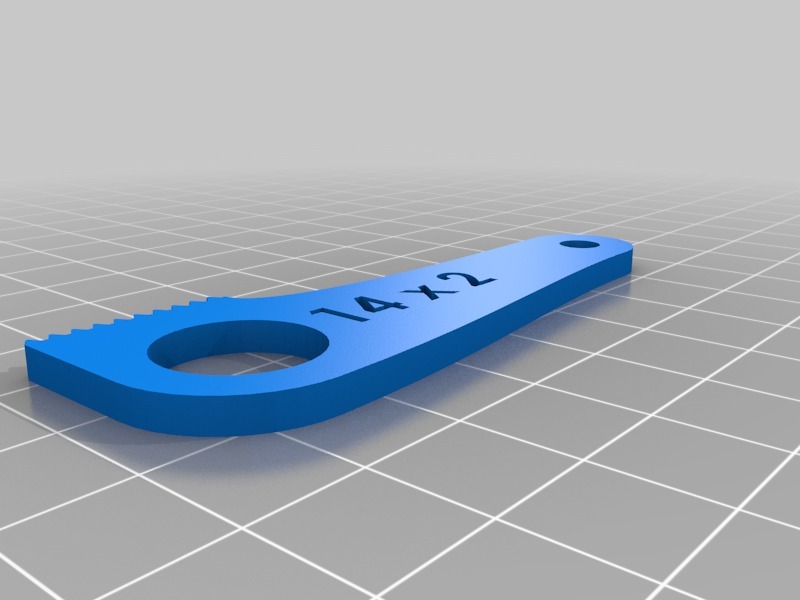

stlThreadGauge14x2mm.STL
56 Ko · 12 357 téléchargements
-

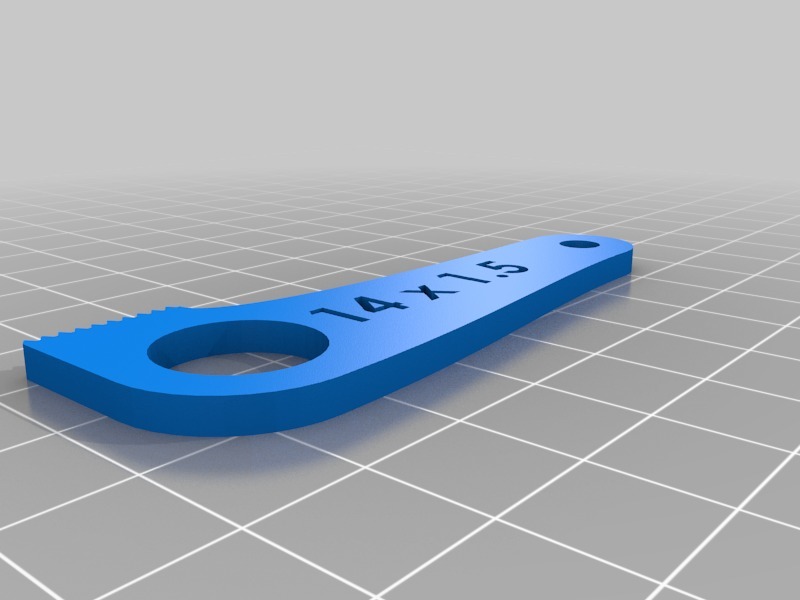

stlThreadGauge14x1.5mm.STL
70 Ko · 12 329 téléchargements
-

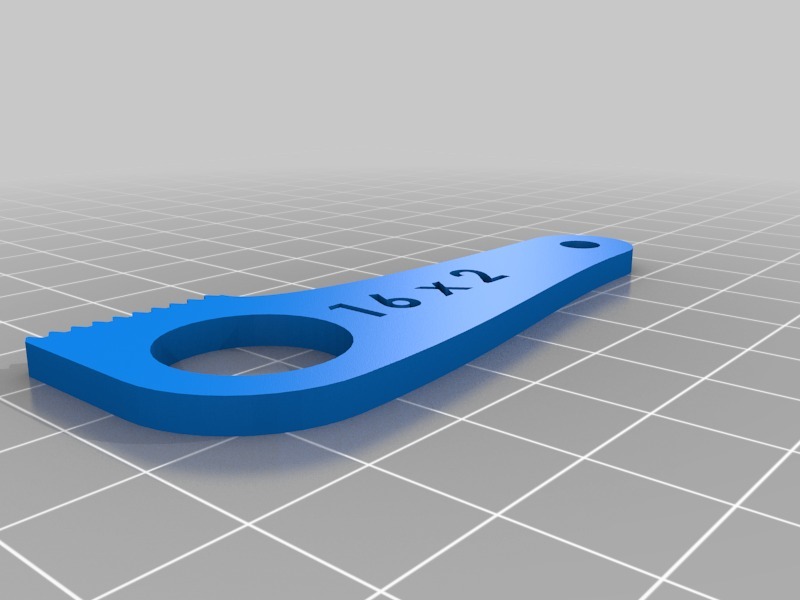

stlThreadGauge16x2mm.STL
69 Ko · 12 358 téléchargements
-
stlThreadGauge16x1.5mm.STL
83 Ko · 12 313 téléchargements
-
stlThreadGauge18x2.5mm.STL
107 Ko · 12 358 téléchargements
-

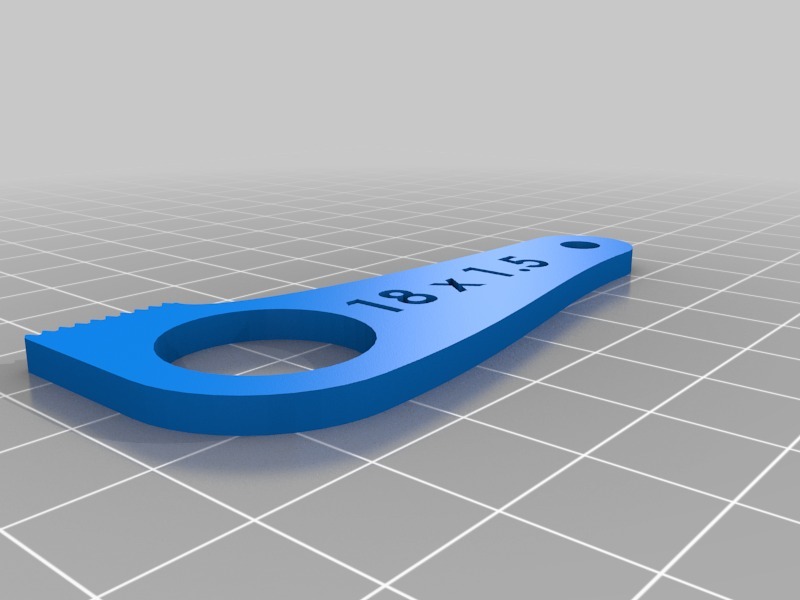

stlThreadGauge18x1.5mm.STL
97 Ko · 12 317 téléchargements
-

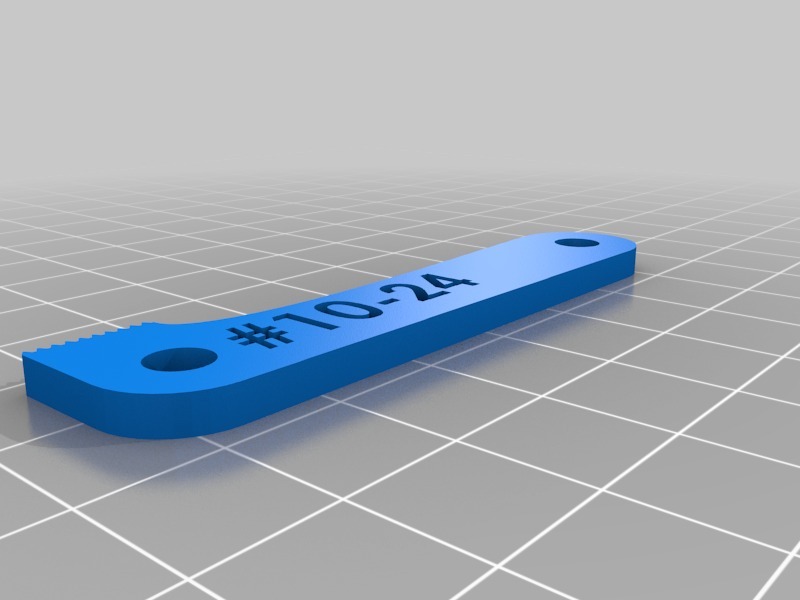

stlThreadGauge10-24in.STL
78 Ko · 12 284 téléchargements
-

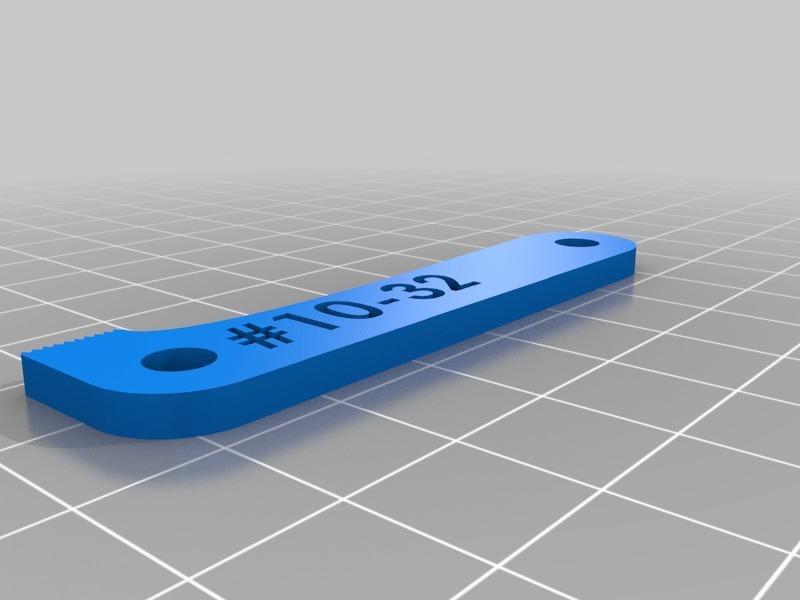

stlThreadGauge10-32in.STL
98 Ko · 12 275 téléchargements
-
stlThreadGauge1_2-13in.STL
79 Ko · 12 287 téléchargements
-
stlThreadGauge1_4-20in.STL
74 Ko · 12 345 téléchargements
-

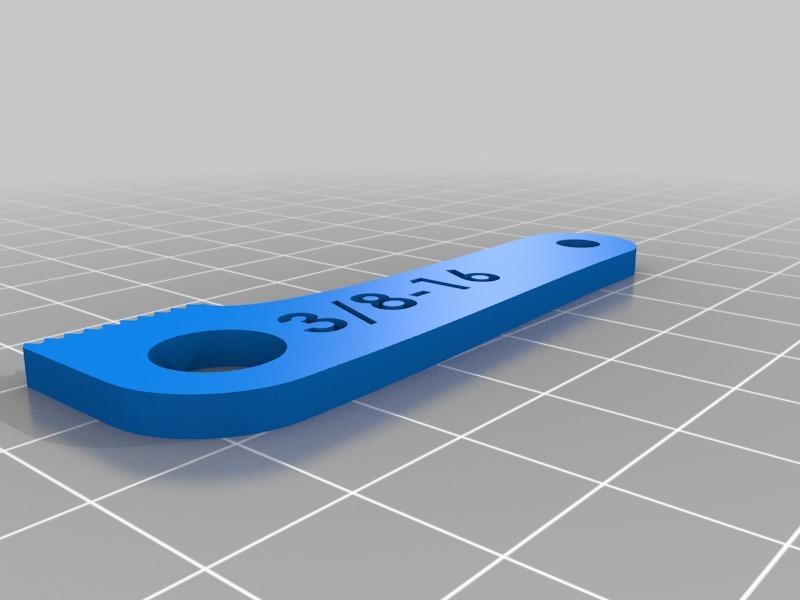

stlThreadGauge3_8-16in.STL
109 Ko · 12 331 téléchargements
Description
Set of thread gauges both inch and metric. Each part contains a thread pitch gauge, and a corresponding hole the diameter of the noted thread. Hole diameter is 0.25mm oversize to allow correct size bolt to pass thru. All have a 5mm hole for mounting.
NOTE The smaller thread pitches may not print correctly on a FDM printer, laser cutting is recomended for these parts. For a different take on a screw checker more compatiable with FDM printers please see Thread Gauge Cone: http://www.thingiverse.com/thing:153820
Credit where credit is due:
Mr. Smout (http://www.thingiverse.com/Smoutech/designs) put out the challenge to come up with a thread gauge and bolt checker so I am happy to oblige.
