Yet another Bluetooth module support

par Captain_sq

Fichiers imprimables (6)

  • stl

    Bluetooth_module_support_BASIC.stl

    18 Ko · 805 téléchargements

    Télécharger
  • stl

    Bluetooth_module_support_HMnt.stl

    165 Ko · 839 téléchargements

    Télécharger
  • stl

    Bluetooth_module_support_VMnt_SHORT.stl

    419 Ko · 794 téléchargements

    Télécharger
  • stl

    Bluetooth_module_support_VMnt.stl

    416 Ko · 797 téléchargements

    Télécharger
  • stl

    Bluetooth_module_support_VMnt_SHORT_FeetMirrored.stl

    909 Ko · 733 téléchargements

    Télécharger
  • stl

    Bluetooth_module_support_VMnt_FeetMirrored.stl

    912 Ko · 738 téléchargements

    Télécharger

Description

Yet another BT module support bracket.

Update July 20 2016:

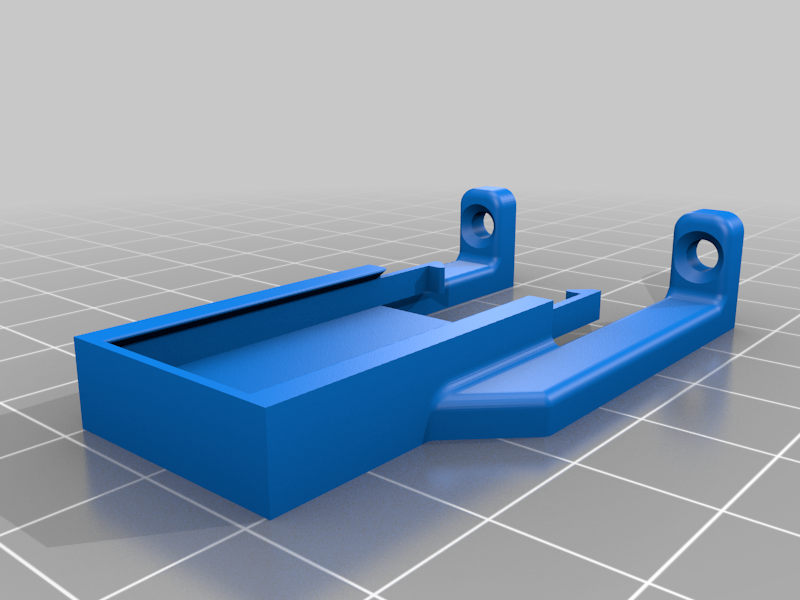

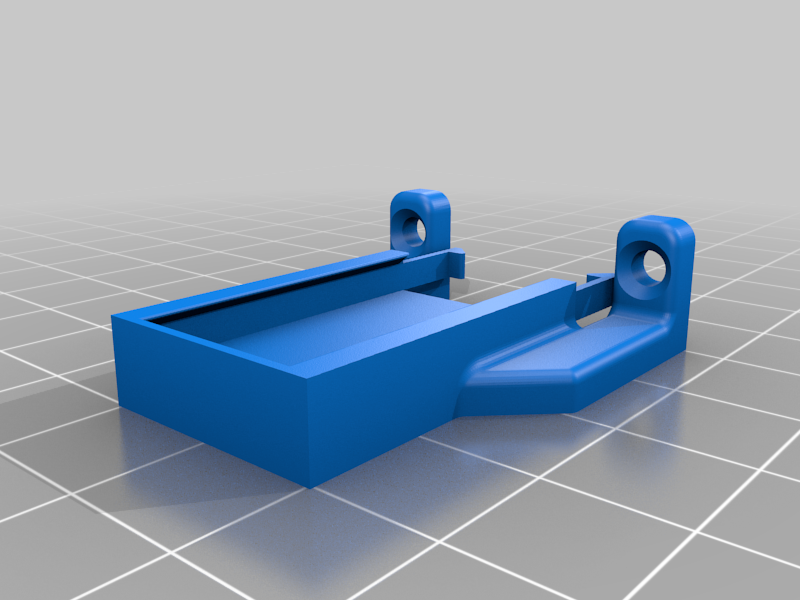

Two more configuations added. These are almost identical to the Vertical mount types but the "feet" is mirrored and points in the opposite direction. These are useful if you want to mount the bracket on the edge of the mounting surface and save a little space and make removal of the module and connectors at bit easier. The PDF drawing is also updated.

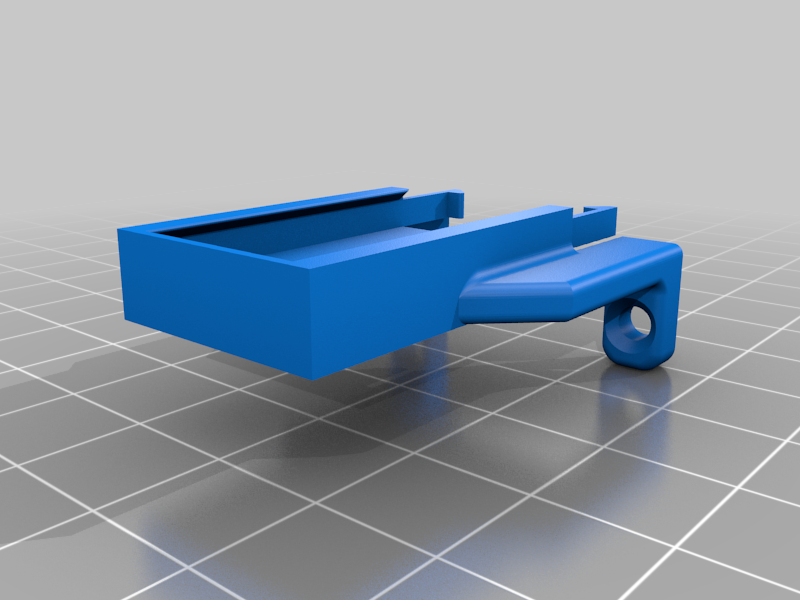

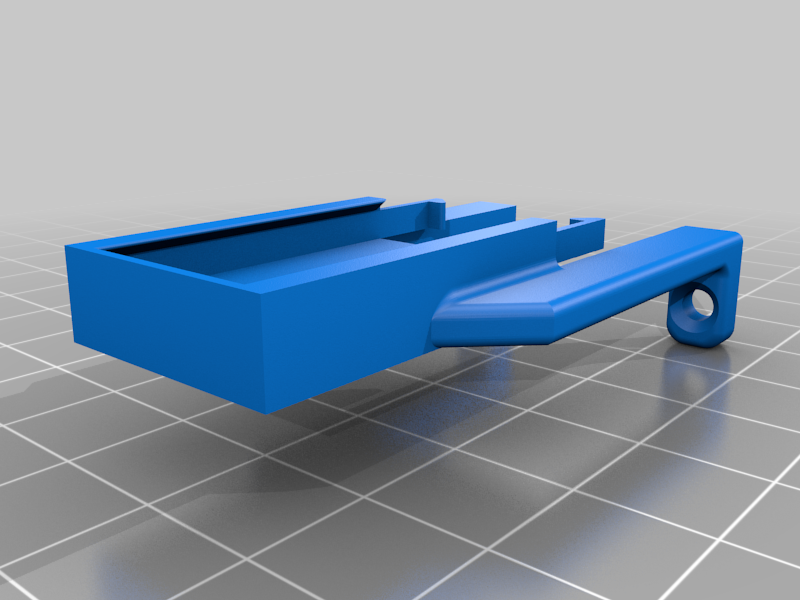

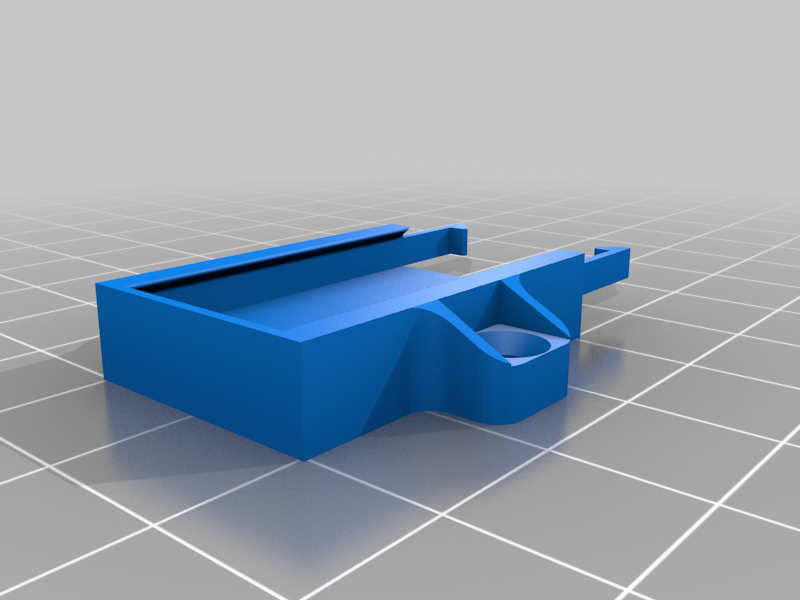

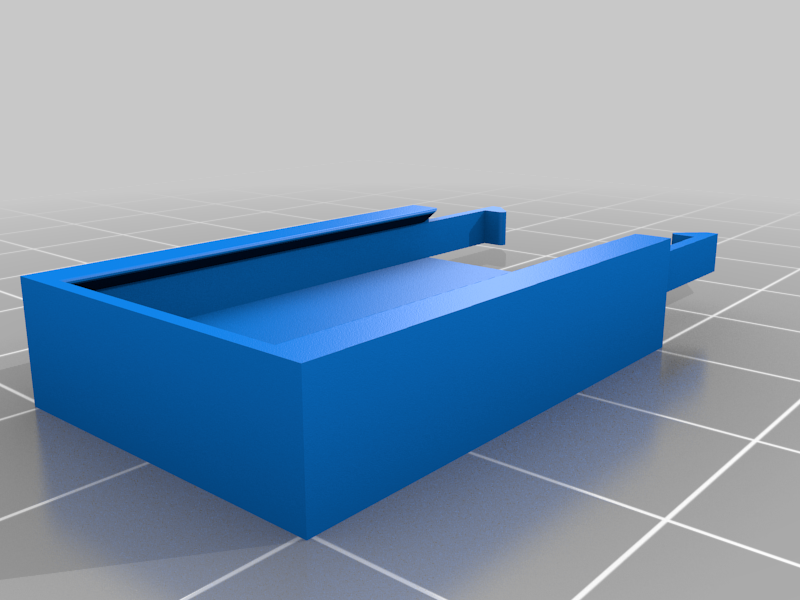

This BT module support bracket comes in six different configurations. One very basic, one for horizontal mounting, And four for vertical mounting with two different length for the screw mount legs allowing for both vertical and horizontal style connector header for the BT module. This is not a remix but the ideas are fetched from this site and foremost this design:
http://www.thingiverse.com/thing:714004
which was the first object I found when looking for this kind of thing.

The screw holes are 3.2 mm in diameter and countersunk for a 5-6 mm head.
