Thrust bench

par Tiktiki

Fichiers imprimables (5)

  • stl

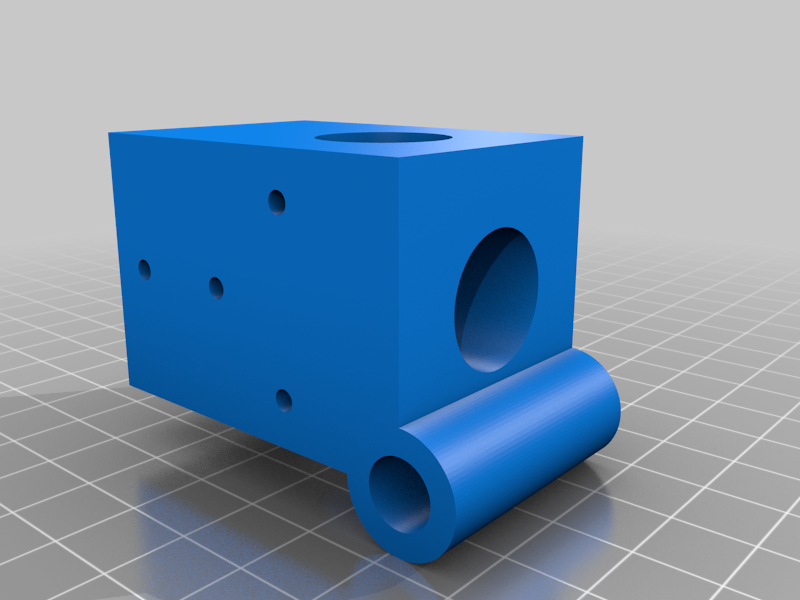

    bench_upgrade_2.stl

    286 Ko · 1 324 téléchargements

    Télécharger
  • stl

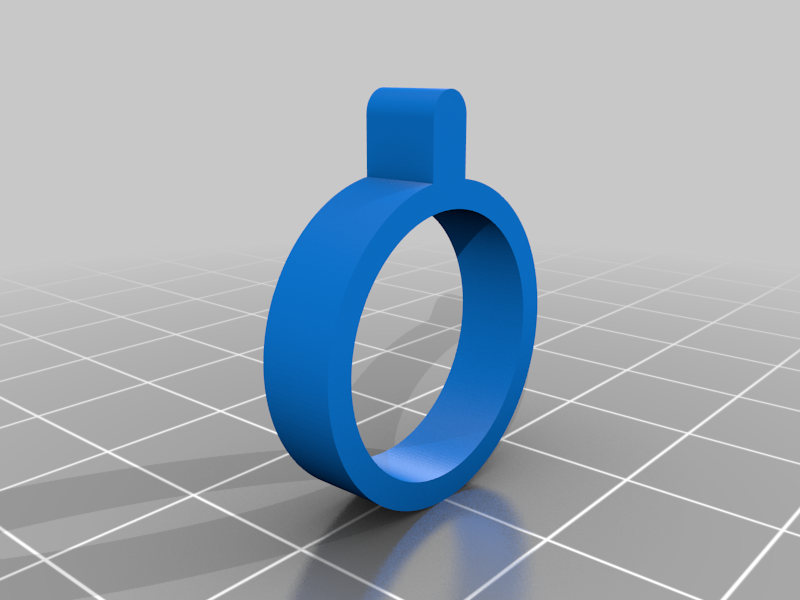

    bench_upgrade_3.stl

    134 Ko · 1 324 téléchargements

    Télécharger
  • stl

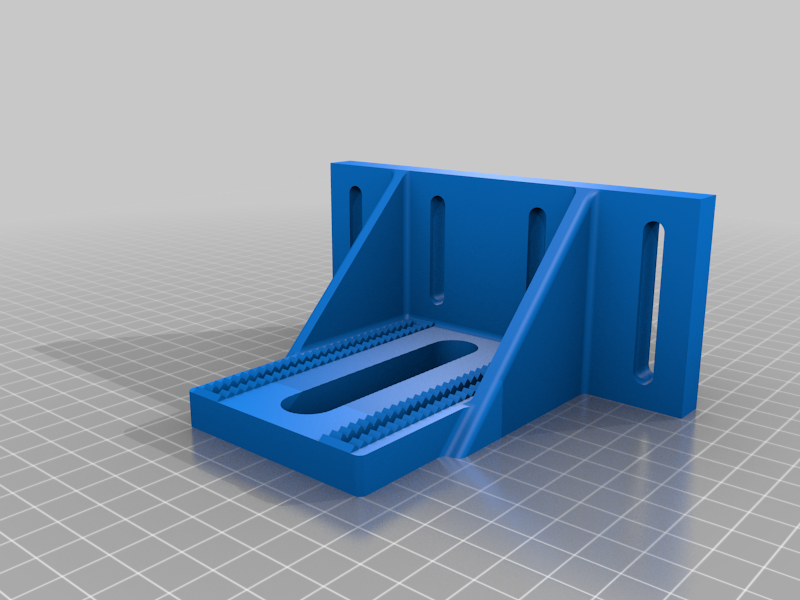

    bench_upgrade.stl

    329 Ko · 1 319 téléchargements

    Télécharger
  • stl

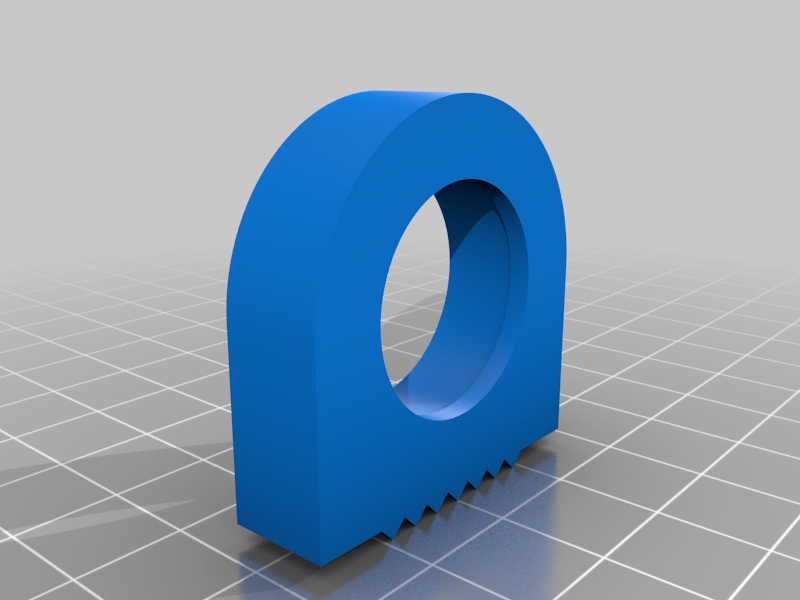

    bench_upgrade_4.stl

    89 Ko · 1 311 téléchargements

    Télécharger
  • stl

    bench_upgrade_assembly.stl

    4.3 Mo · 1 316 téléchargements

    Télécharger

Description

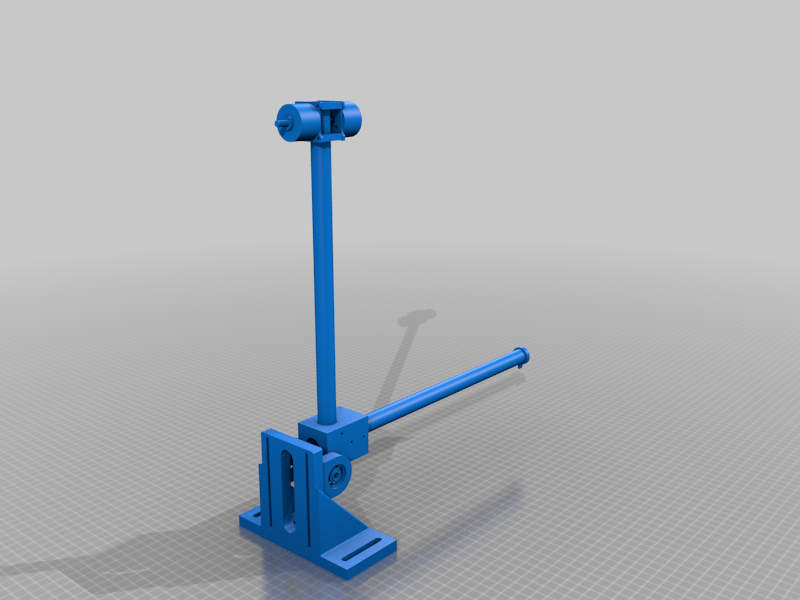

I needed to bench some coaxial motor setups, so I built this thing.

All you need is some M3x10mm screws, a 8mm shaft (can be a wood dowel or carbon tube), 16mm carbon tubes, Z608 bearings (2) and motor mount.
I use some TAROT RC 16mm clamps and custom carbon plates, but you can use any motor mounts that fits on 16mm tubes.
Drill the carbon tubes with 2.5 or 3/32 bit when in place (screws will lock in there).
This bench is made to be used on any scale that is 5 to 10cm high. The main mount is adjustable to height to get a good reading.

Printable motor mounts:
http://www.thingiverse.com/thing:723234
http://www.thingiverse.com/thing:1459883
