C-bot proximity sensor bracket
par AK_Eric
Fichiers imprimables (2)
-
stlcbot_proximitySensorBracket_A02.stl
37 Ko · 354 téléchargements
-
stlcbot_proximitySensorBracket_big_A03.stl
36 Ko · 337 téléchargements
Description

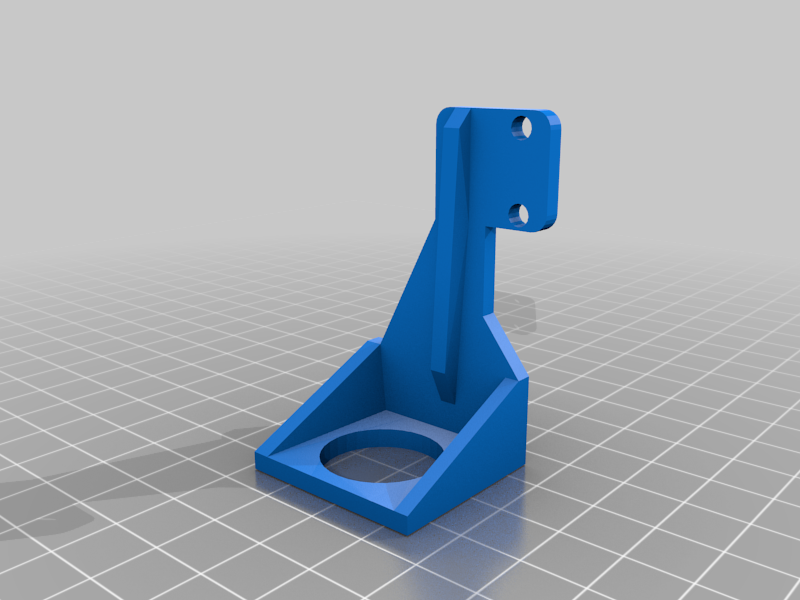

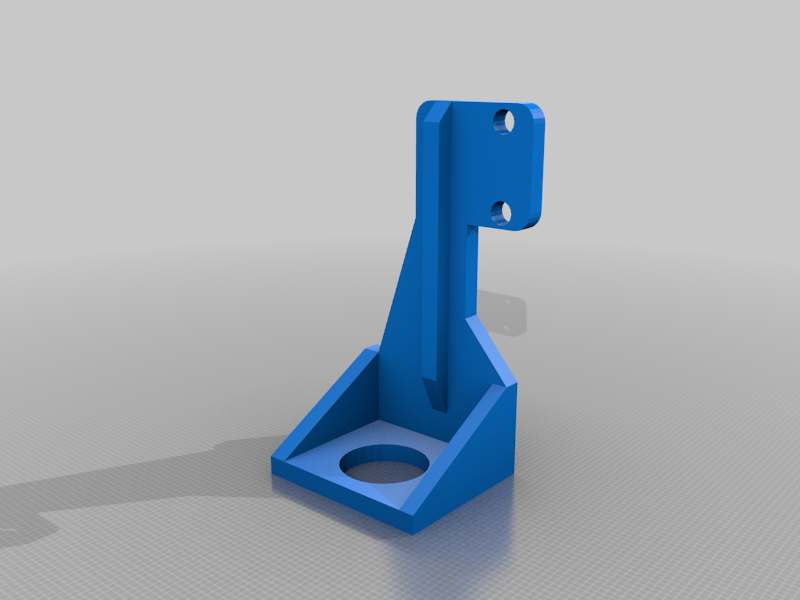

This is a simple bracket to hold a LJ12A3-4-Z/BY proximity sensor to the back of the C-Bot's direct-drive plate. The "normal" hole has a 14mm diameter. The "big" file has a 20mm diameter.
Full blog post describing how to hook up every facet of this sensor with RepRap Firmware and RADDS:
http://www.akeric.com/blog/?p=4062
