Parametric Encoder Wheel
par CodeCreations
Fichiers imprimables (12)
-
stlEncoderWheel-0.5in.stl
176 Ko · 1 639 téléchargements
-
stlEncoderWheel-0.25in.stl
203 Ko · 1 599 téléchargements
-
stlEncoderWheel-0.125in.stl
235 Ko · 1 609 téléchargements
-

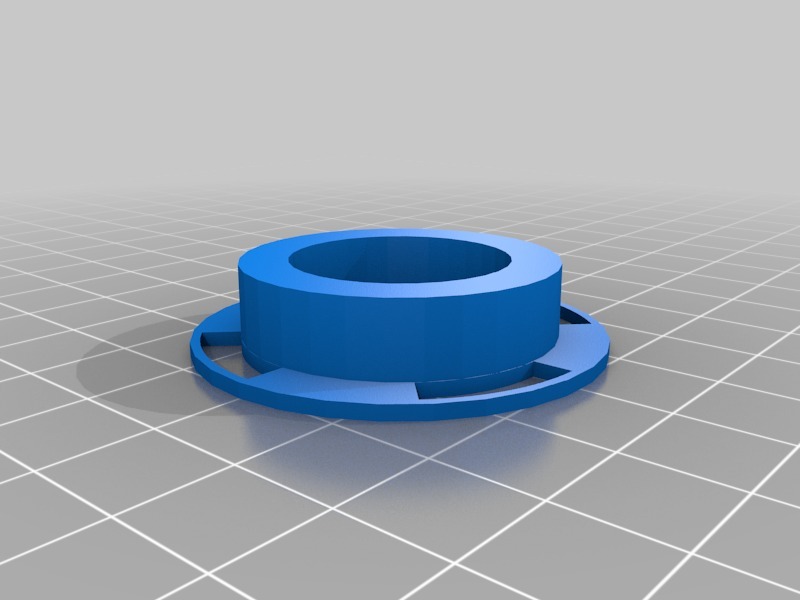

stlEncoderWheel-1in.stl
163 Ko · 1 619 téléchargements
-
stlEncoderWheel-1mm.stl
424 Ko · 1 608 téléchargements
-
stlEncoderWheel-4mm.stl
203 Ko · 1 602 téléchargements
-
stlEncoderWheel-5mm.stl
209 Ko · 1 627 téléchargements
-
stlEncoderWheel-10mm.stl
179 Ko · 1 599 téléchargements
-
stlEncoderWheel-20mm.stl
161 Ko · 1 606 téléchargements
-

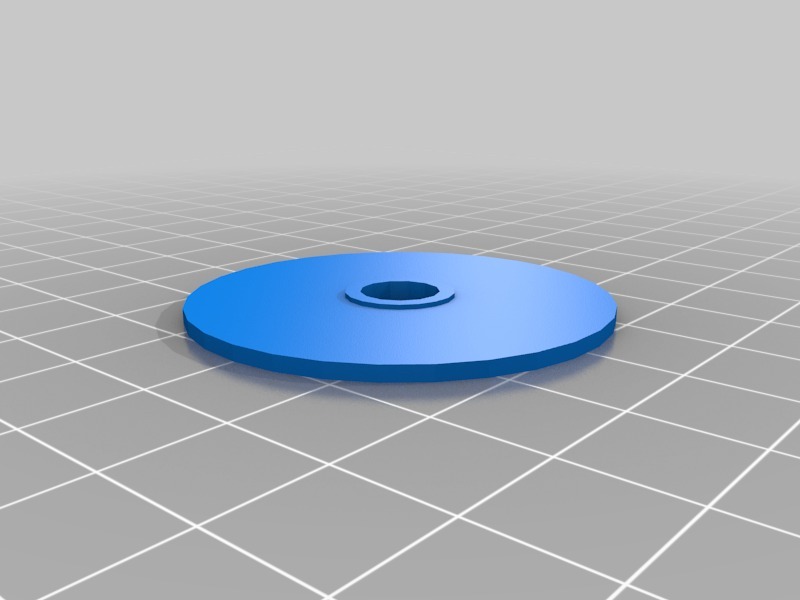

stlEncoderWheel-cap.stl
40 Ko · 1 597 téléchargements
-
stlEncoderWheel-8mm-5mm.stl
295 Ko · 1 620 téléchargements
-
stlEncoderWheel-2.5mm.stl
329 Ko · 1 602 téléchargements
Description

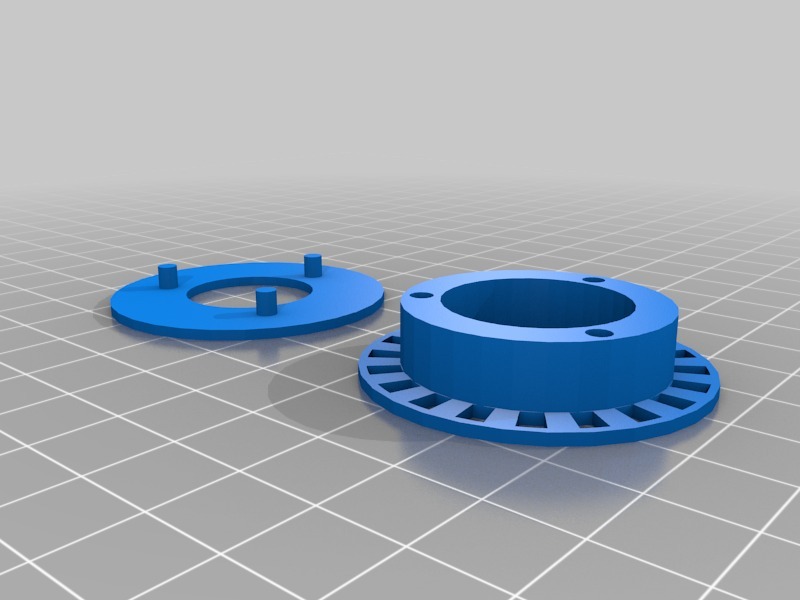

This is a parametric encoder wheel that allows you to set circumference, internal width, shoulder height/width, mounting hole diameter, number of timing holes, as well as several parameters for captive nuts, alignment/snap-together pins, bolt holes, and inset of those timing holes. Most of the renderings here are for a 608 bearing (for free rotation) and sized to fit another pinch bearing.

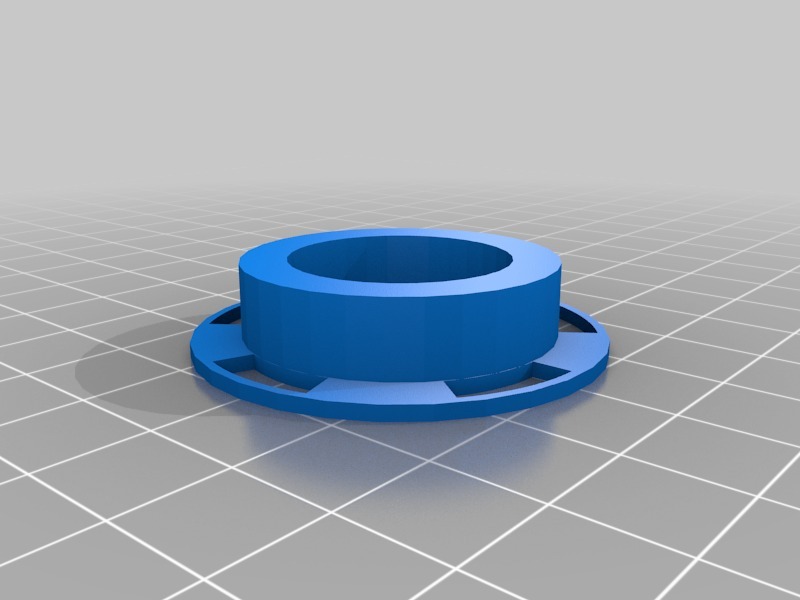

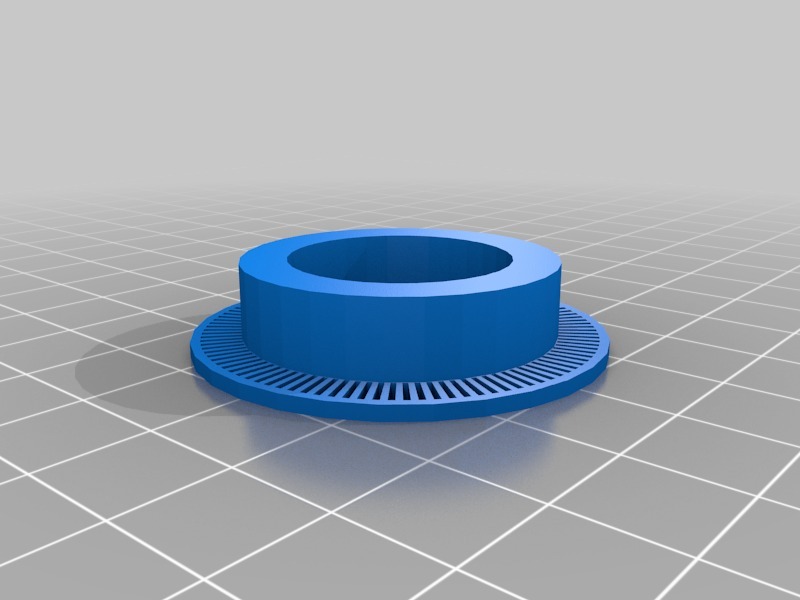

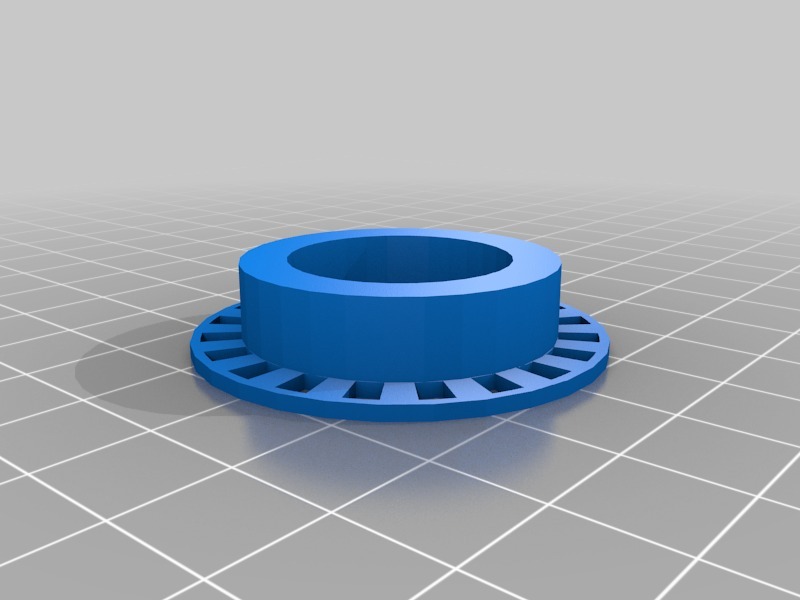

The wheel circumference (less shoulders) of the metric and SAE versions is slightly different, and the hole sizes/spacing is different depending upon what distance you want to measure between holes. The distances will be accurate at the surface of the wheel for these renderings.
