Float Level switch
par Volkvanmyn25
Fichiers imprimables (4)
-

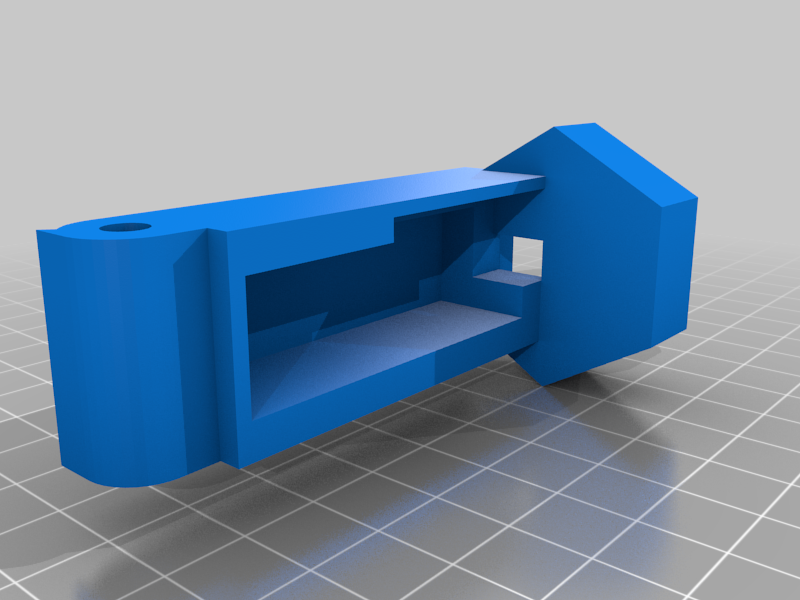

stlfloat_trigger.STL
39 Ko · 1 216 téléchargements
-

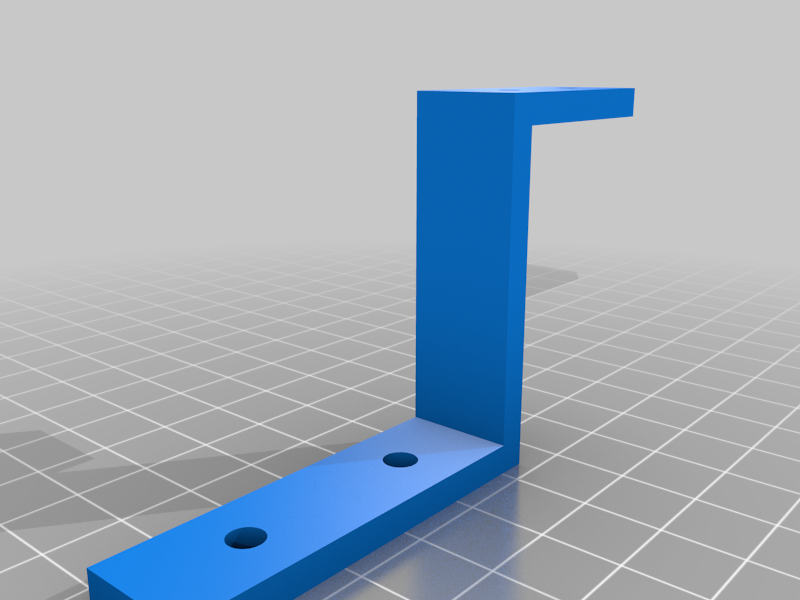

stlconnecting_bracket.STL
30 Ko · 1 212 téléchargements
-

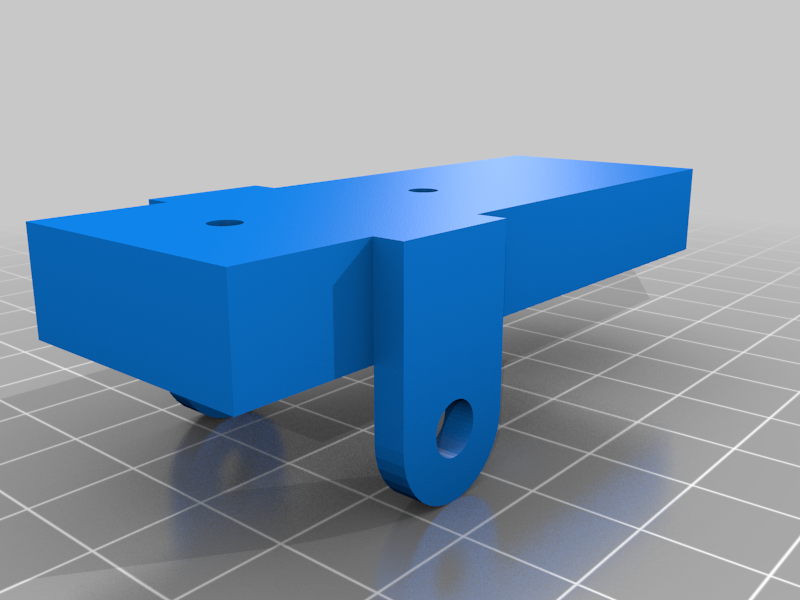

stlfloat_switch.STL
17 Ko · 1 210 téléchargements
-

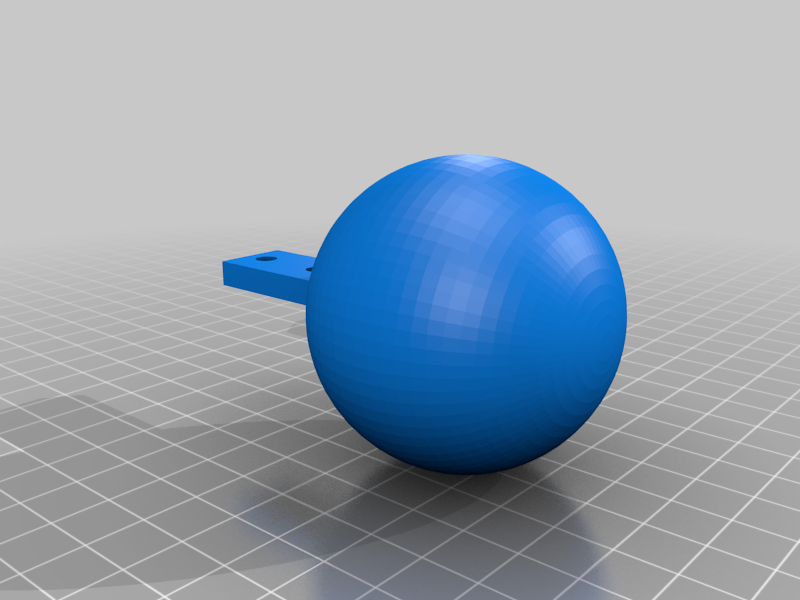

stlfloat_ball.STL
475 Ko · 1 230 téléchargements
Description
Due to the current drought in the Western Cape, South Africa, I was forced to convert my toilet to run from a greywater system instead of the local water supply. I designed a submersible pump controller with a float switch inside the toilet cistern to switch the pump on when required. The switch inside the housing is a standard reed switch from an alarm system. You need to use a small magnet inside the trigger arm to activate the reed sensor. The whole switch cavity can be sealed using either silicon or hot glue to prevent moisture entering. It needs a 1/2'' irrigation nylon nut that is glued onto the end for mounting purposes.
This float level switch can be used for many applications.
