Amscope Microscope collection - Raspberry Pi Camera V2
par Jahmez
Fichiers imprimables (8)
-
stlMicroscope-Pi_cam_AMSCOPE_collection.stl
1.9 Mo · 1 662 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_StageCover.stl
101 Ko · 1 667 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_Stage.stl
279 Ko · 1 663 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_overEyepiece_WF28mm.stl
211 Ko · 1 649 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_overEyepiece_38mm.stl
436 Ko · 1 663 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_Tube_30mm.stl
334 Ko · 1 657 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_Tube_23mm.stl
283 Ko · 1 659 téléchargements
-
stlMicroscope-Pi_cam_AMSCOPE_collection_overEyepiece_36mm.stl
343 Ko · 1 652 téléchargements
Description

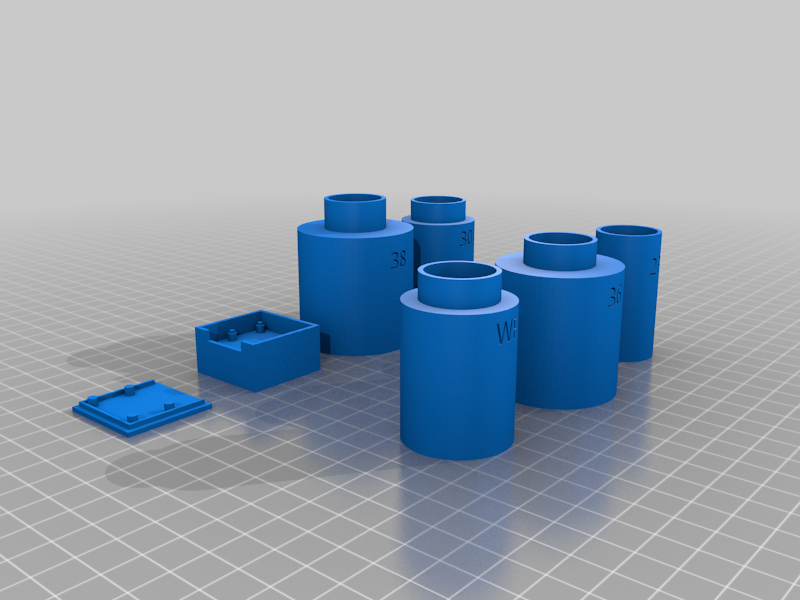

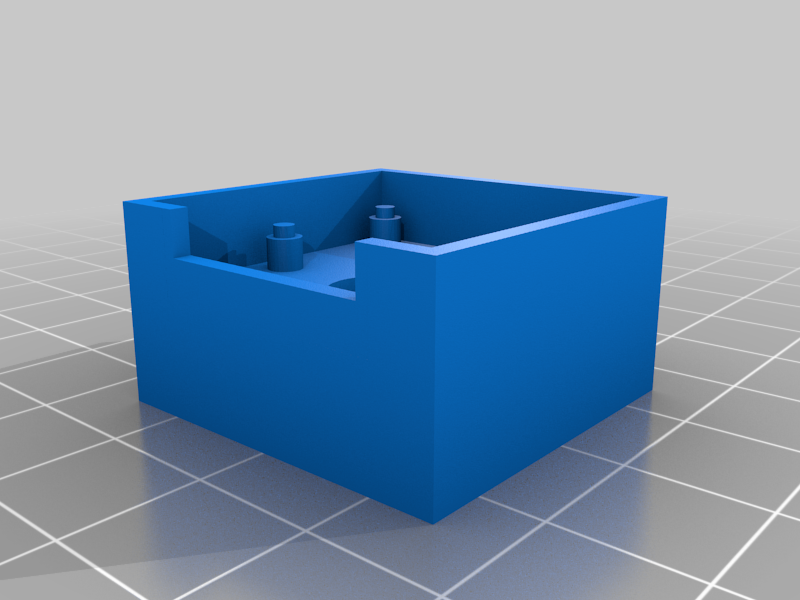

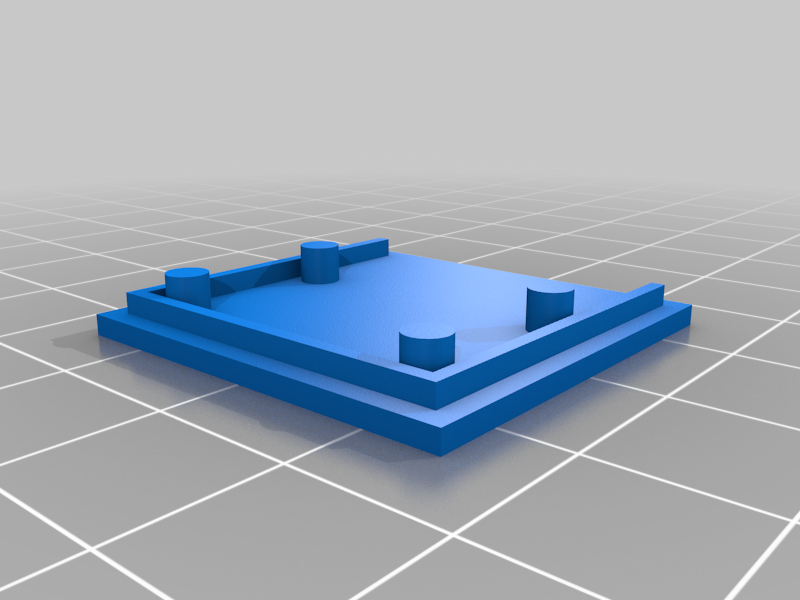

The goal was to build a center stage that would fit into different tubes for my two microscopes. That way I don't need to keep taking apart the closure for the pi camera. I could just switch the tubes based on what I needed.
Note: The stage is designed for pi camera v2.
I have two Amscope microscopes. For more info see the scope sections below. The model shouldn't be as important as the type of scope (IE stereo vs compound). If you have a different size you can use this link to edit the pieces with tinkercad: https://www.tinkercad.com/things/45eKlY8O41k

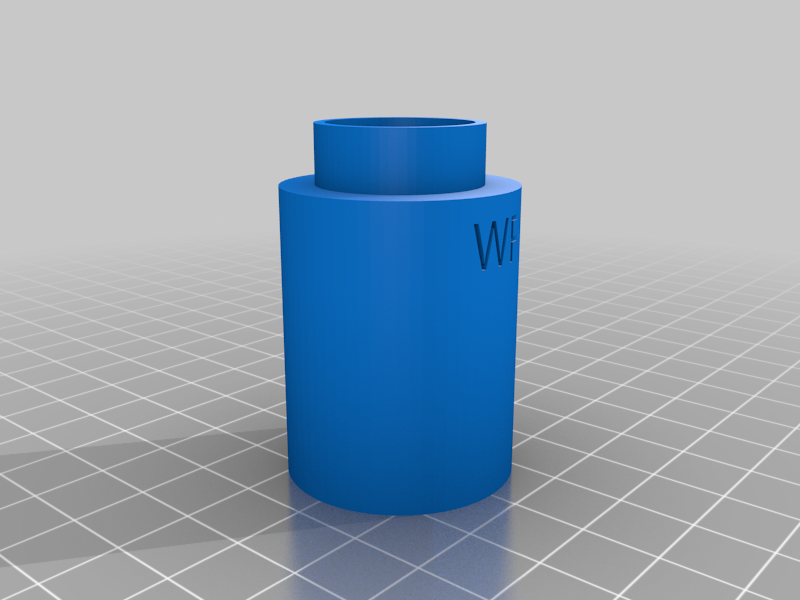

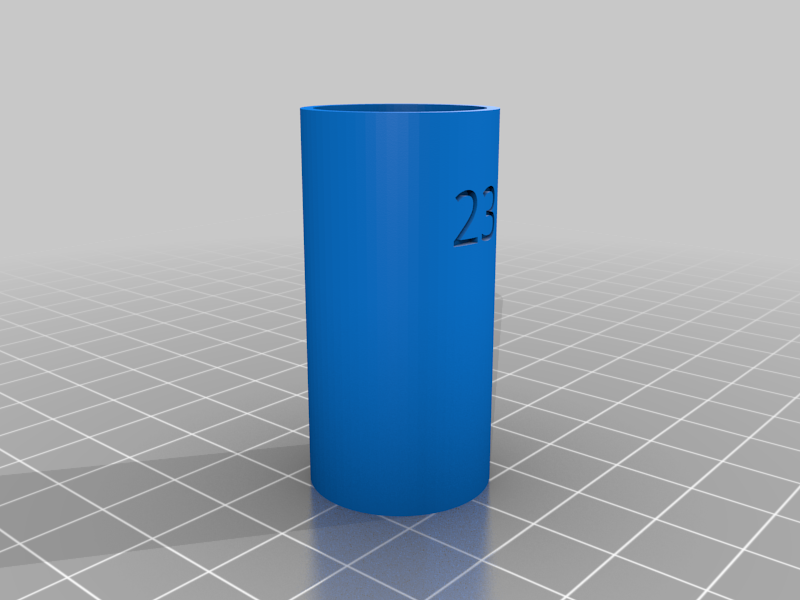

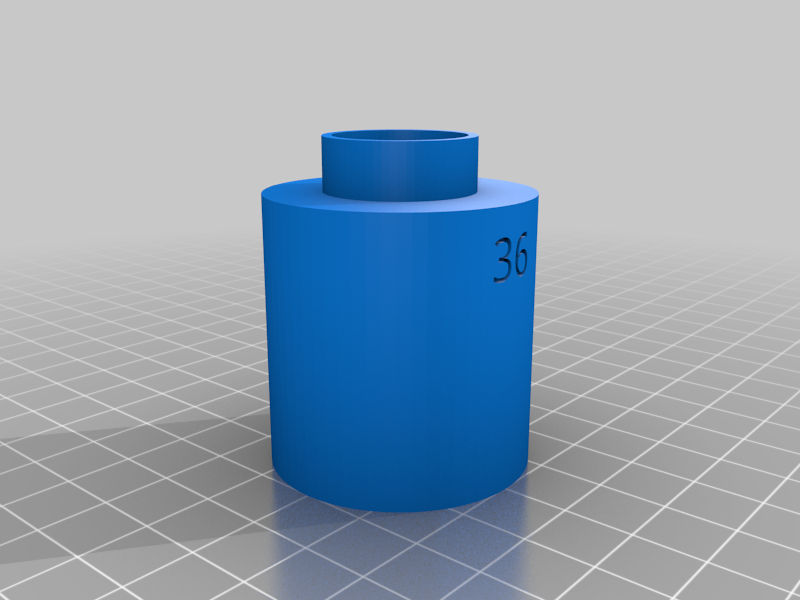

Compound: wf28mm - over eyepiece, 36mm - over eyepiece , and 23mm tube

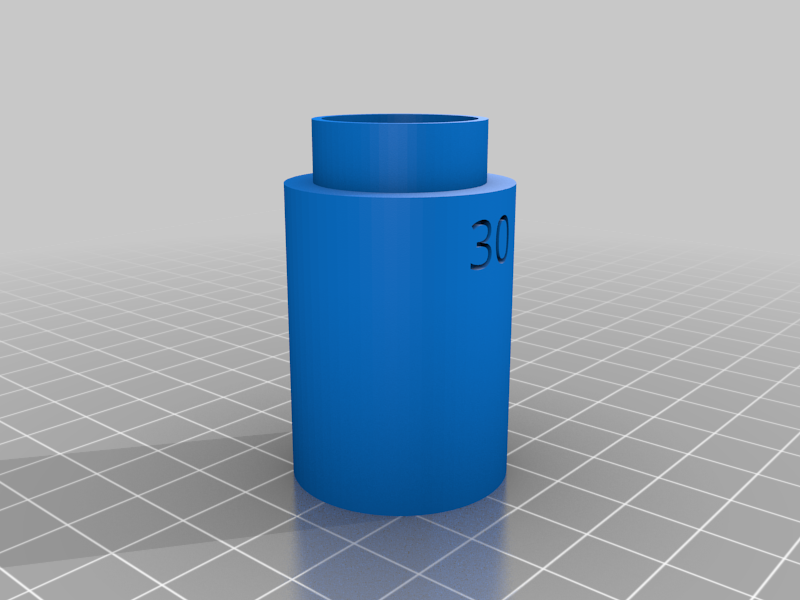

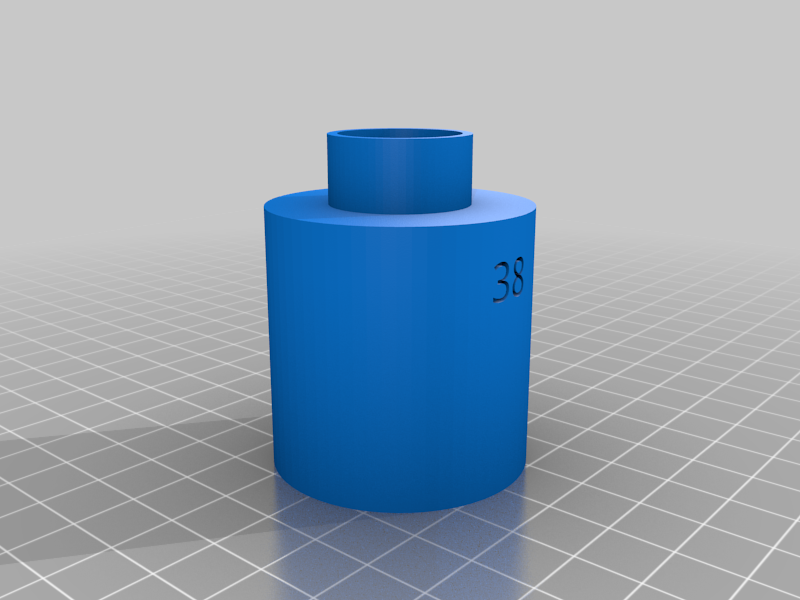

Stereo: 38mm - over eyepiece and 30mm tube
Note: All the pieces are designed with .5mm or larger tolerance for printing. If your printer has better tolerance some of these pieces may be off. You can correct them in the tinkercad link I provided.
I'll be updating this with photos of each eyepiece once I fix issues with my raspberry pi.
