Basic Trailer Project: Leaf Spring Parts
par rcmodeler
Fichiers imprimables (17)
-

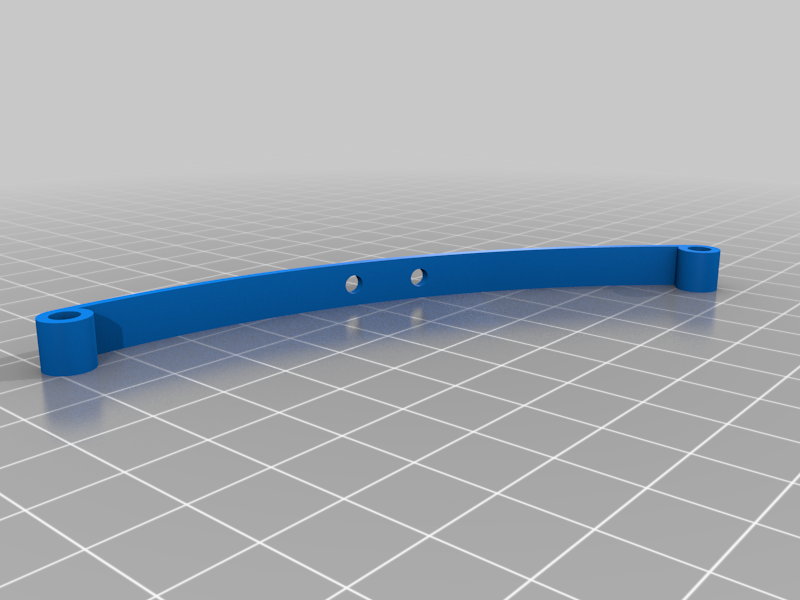

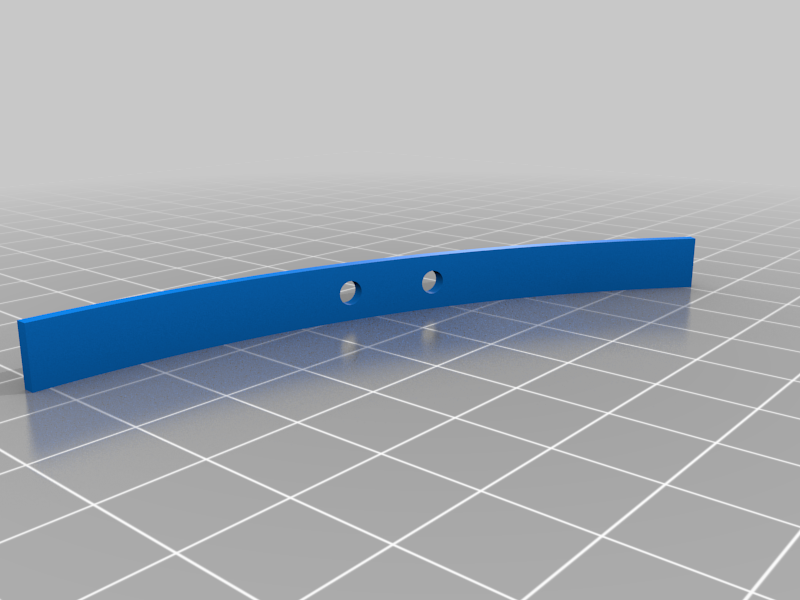

stlLeaf_Spring_1.stl
505 Ko · 4 240 téléchargements
-

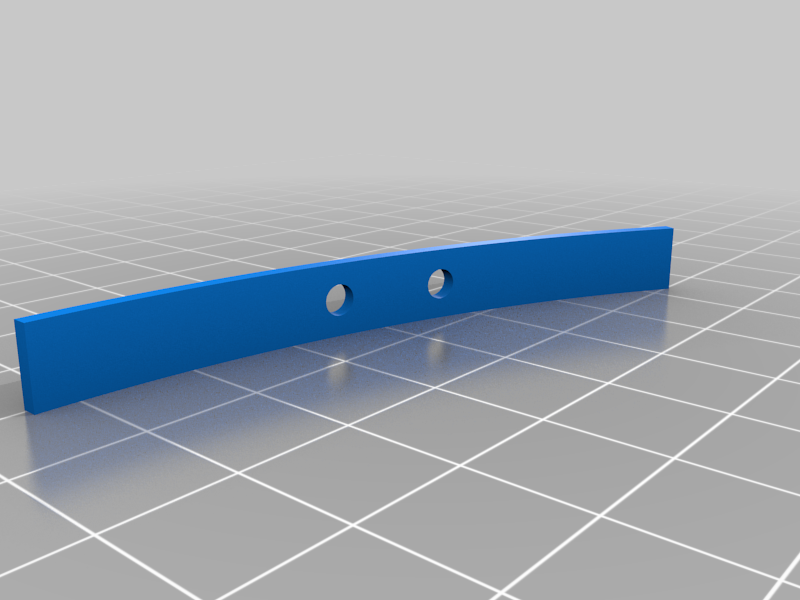

stlLeaf_Spring_2.stl
338 Ko · 4 238 téléchargements
-
stlLeaf_Spring_3.stl
342 Ko · 4 230 téléchargements
-

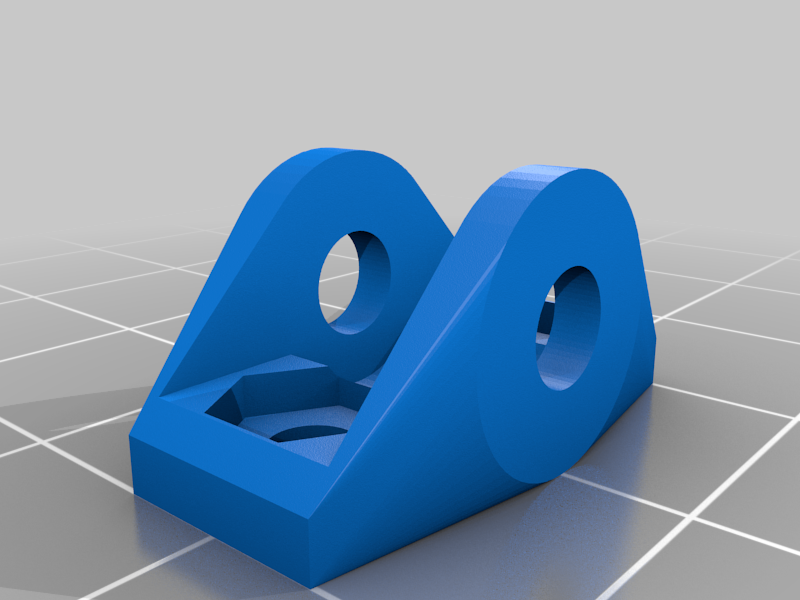

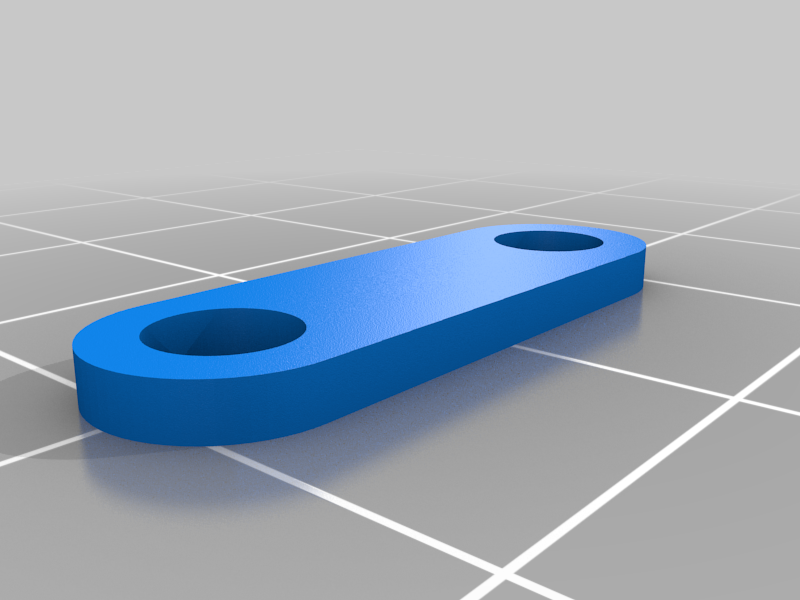

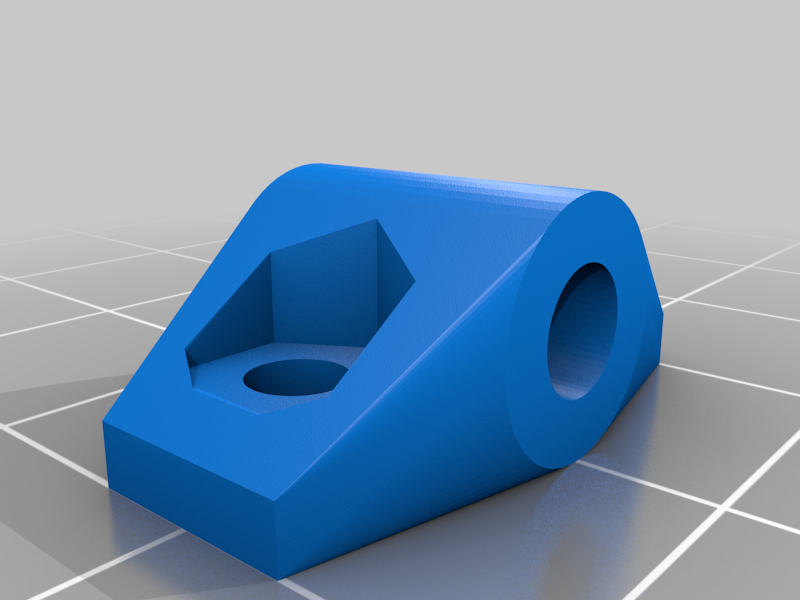

stlSpring_Mount_1.stl
263 Ko · 4 238 téléchargements
-
stlSpring_Mount_2.stl
160 Ko · 4 239 téléchargements
-

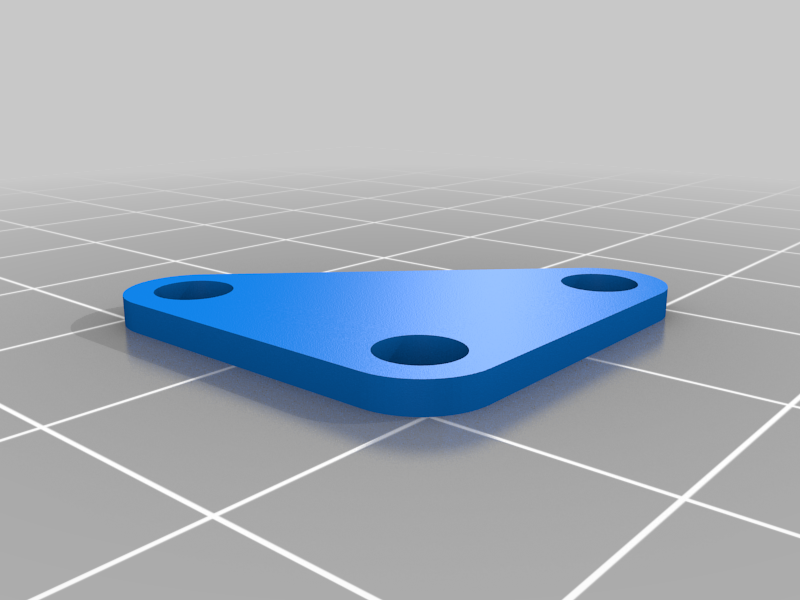

stlSpring_Mount_3.stl
120 Ko · 4 237 téléchargements
-

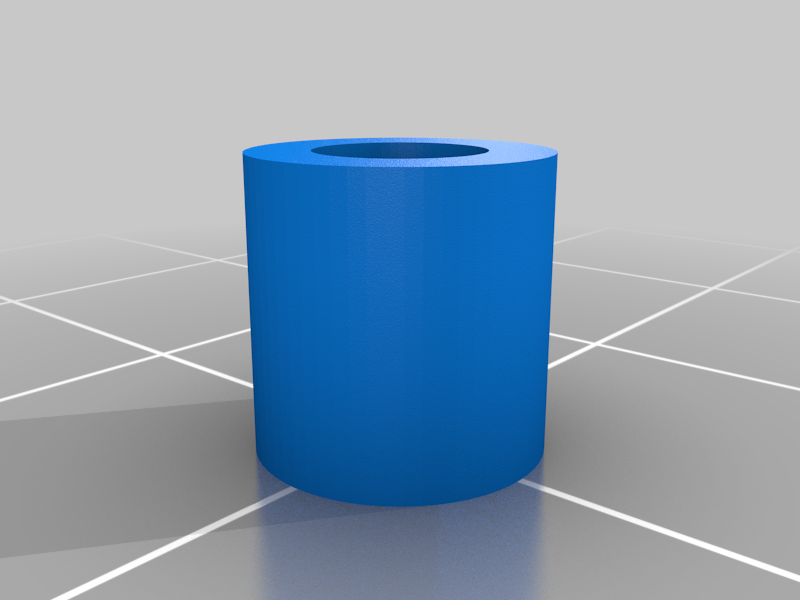

stlBushing.stl
78 Ko · 4 230 téléchargements
-

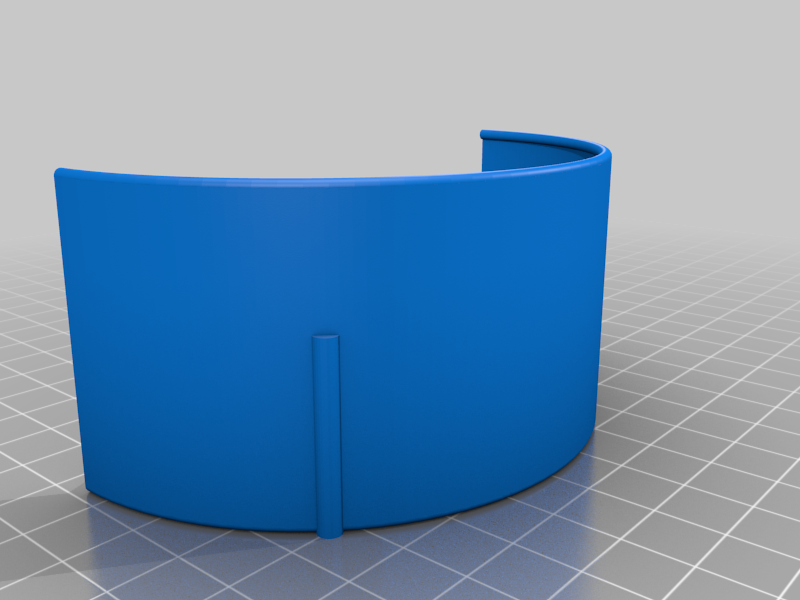

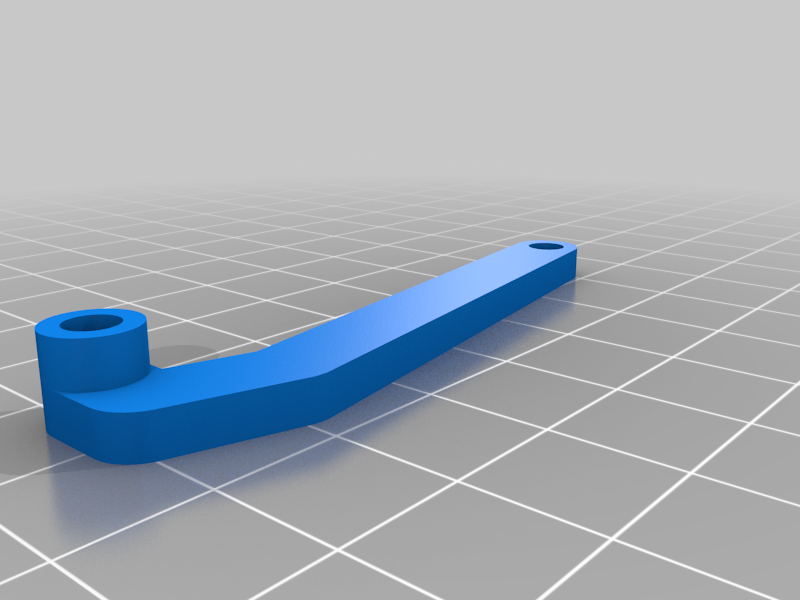

stlFender_Dual_Mount.stl
3.7 Mo · 4 238 téléchargements
-

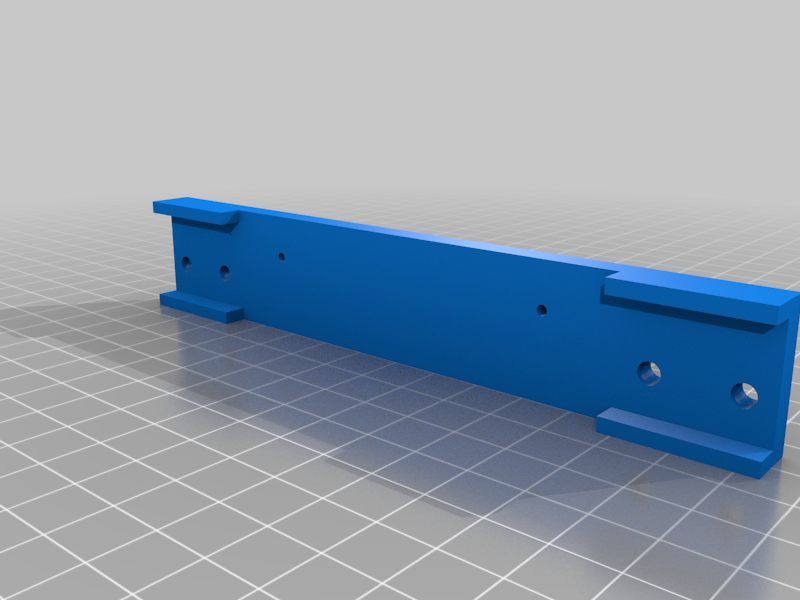

stlDrill_Template_Spring_Fender_Lower.stl
183 Ko · 4 169 téléchargements
-
stlDrill_Template_Spring_Fender_Double.stl
164 Ko · 4 174 téléchargements
-
stlLeaf_Spring_Complete_15.stl
1.2 Mo · 4 172 téléchargements
-
stlLeaf_Spring_Complete_18.stl
1.2 Mo · 4 167 téléchargements
-
stlLeaf_Spring_Complete_20.stl
1.2 Mo · 4 204 téléchargements
-
stlSpring_Mount_10.stl
169 Ko · 4 204 téléchargements
-
stlSpring_Mount_11.stl
251 Ko · 4 201 téléchargements
-
stlSpring_Mount_12.stl
153 Ko · 4 188 téléchargements
-

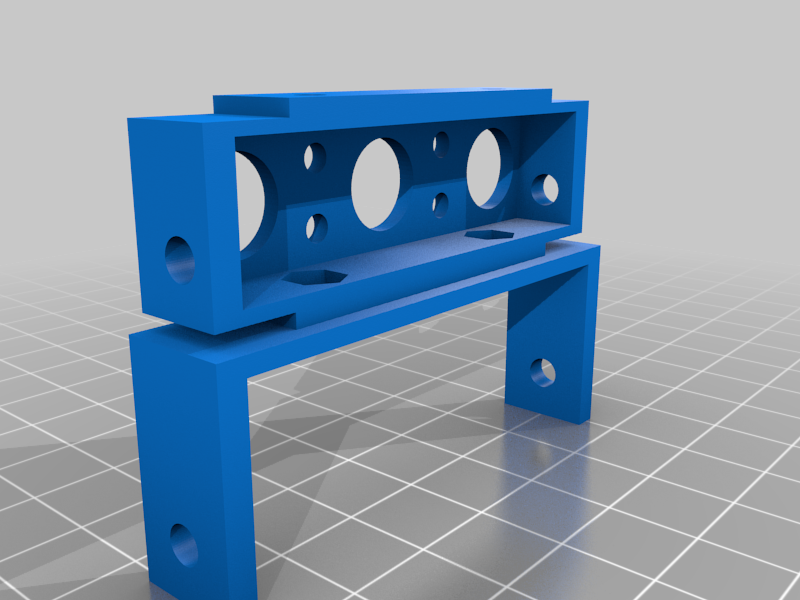

stlCrossmember_Axle_w_Lower_Mount_1.stl
704 Ko · 4 169 téléchargements
Description
The idea with Basic Trailer Project is that you can combine standard parts to make your
own trailer design. It is built with screws and nuts so you can change, upgrade, repair
or take it apart and build something else.
Twist and turn the objects so that the print fits you and your printer.
Here we have one type of suspension, leaf spring.
You can have one or several axles.

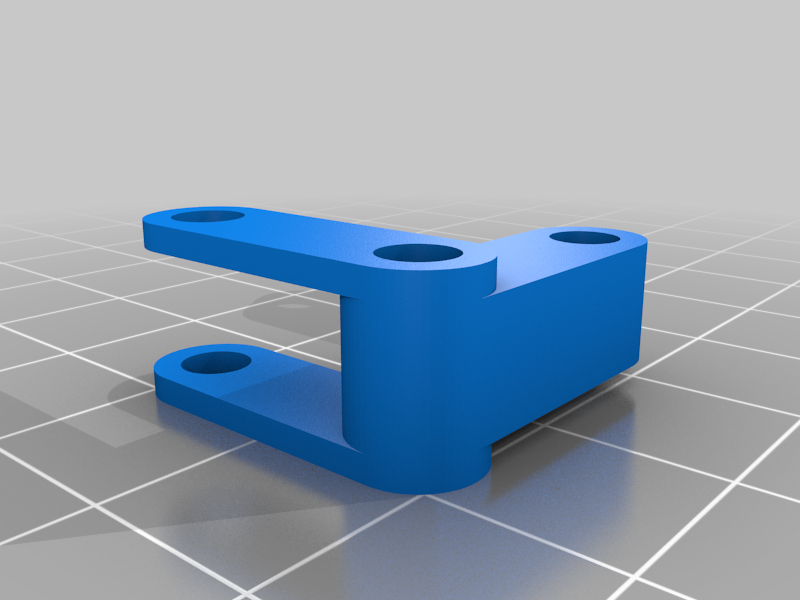

For one axle use front and rear spring mount.
For two or more axles add middle spring mount.

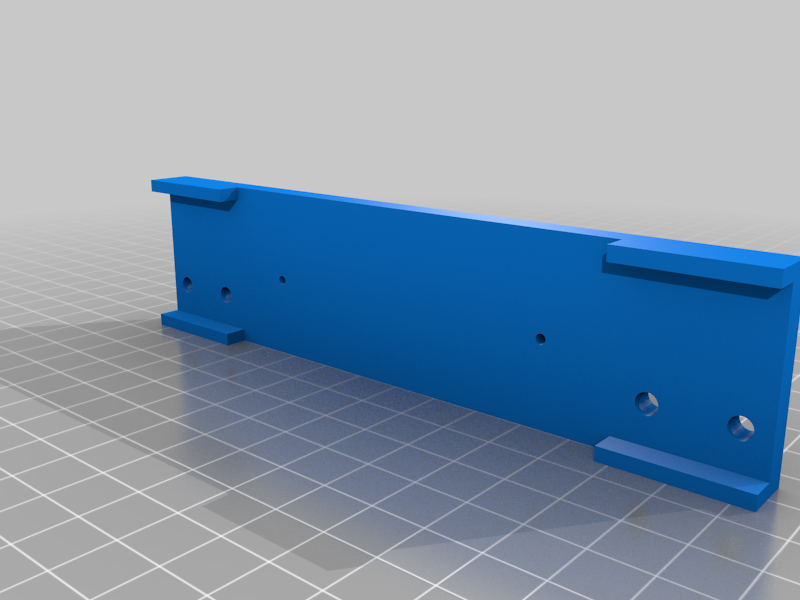

Drill template also has holes for fenders.
Watch video for details:
https://www.youtube.com/watch?v=RwmbYtY6y9Q
https://youtu.be/xuACkvaG3eU
Parts needed:
M2 threaded rod, washers and nuts (for fender).
M3 assortment, screws in different length, washers and nuts (axle mounting).
M4 assortment, screws in different length, washers and nuts.
Update 20170927:
Another type of suspension using the same leafspring,
mounted upside down
Going to use this on my containertrailer.
Update 20170919:
new drill templates with correct hole diameter

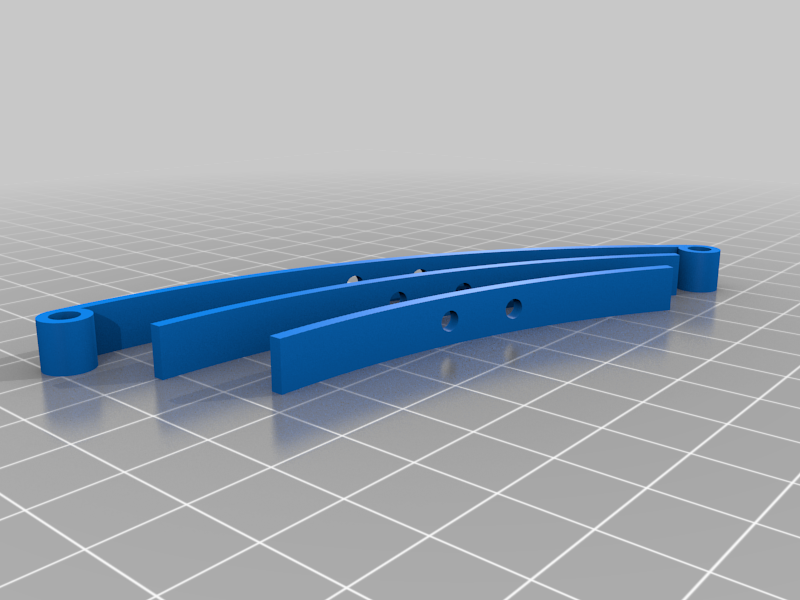

3 different complete sets of leaf springs:
15: blades are 1,5mm thick
18: blades are 1,8mm thick
20: blades are 2,0mm thick
new video
