C-Mount Adjustable Microscope Stand
par Deacon1982
Fichiers imprimables (21)
-
stlGear_Rack_Housing.stl
1.9 Mo · 1 439 téléchargements
-

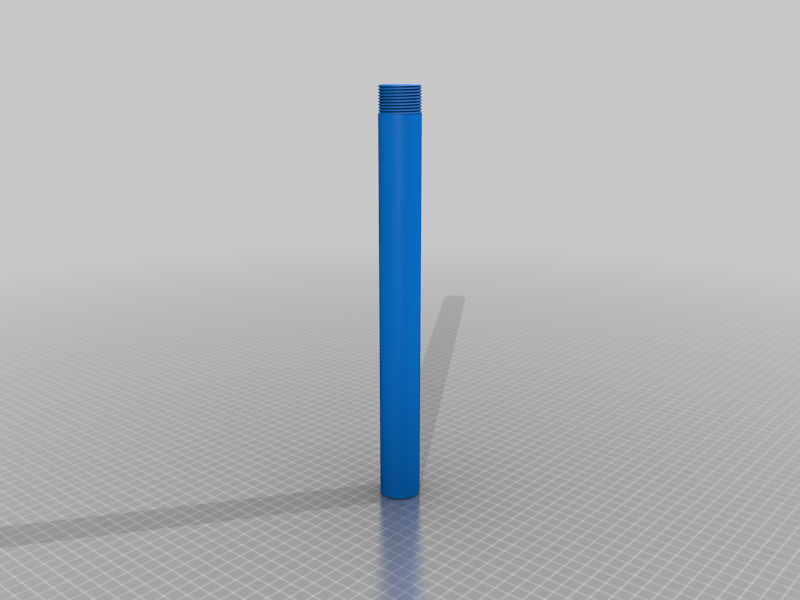

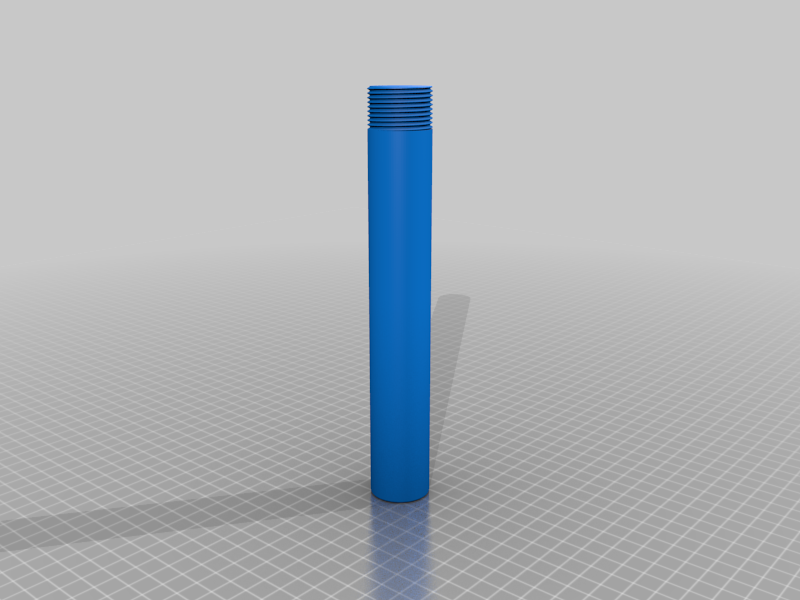

stl30x300mm_Rod.stl
3.1 Mo · 1 424 téléchargements
-

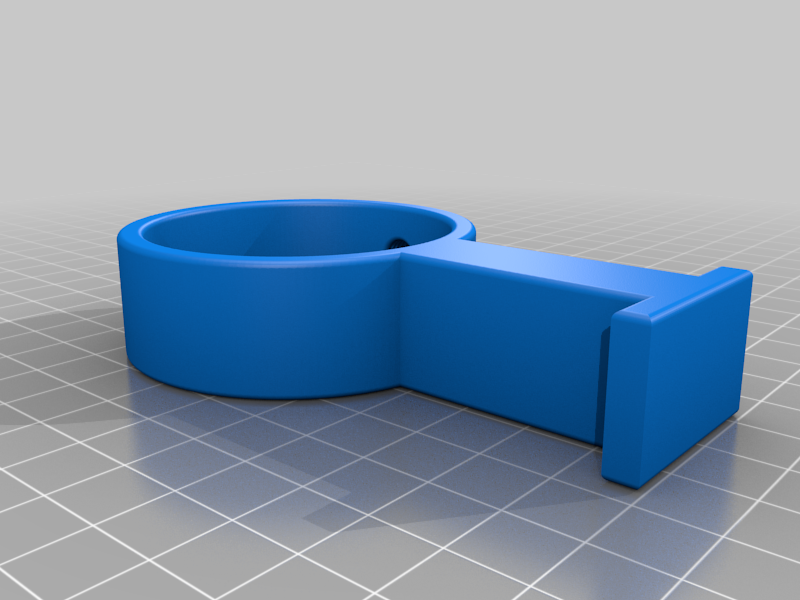

stl2MP_USB_Microscope_Adapter.stl
3 Mo · 1 413 téléchargements
-

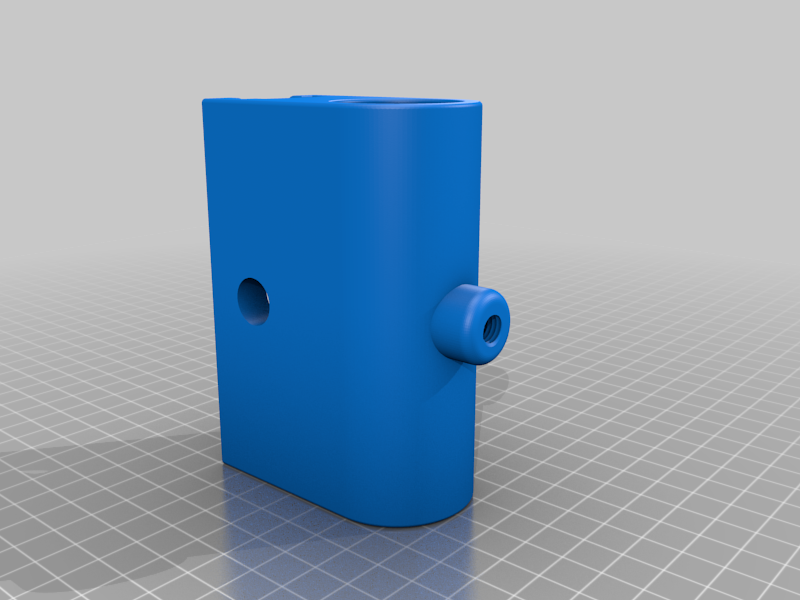

stlMain_Housing.stl
4.9 Mo · 1 417 téléchargements
-

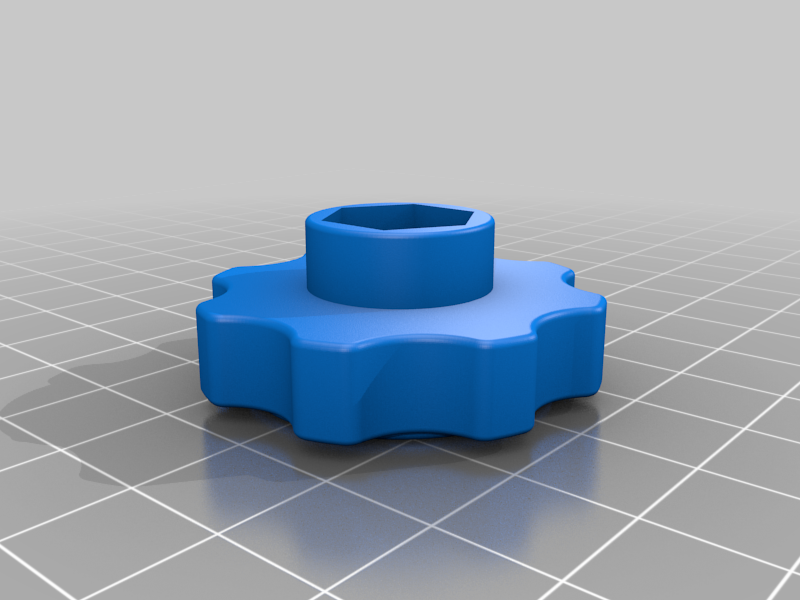

stlKnob_for_8x1.25mm_Bolt_Optional.stl
6.1 Mo · 1 414 téléchargements
-

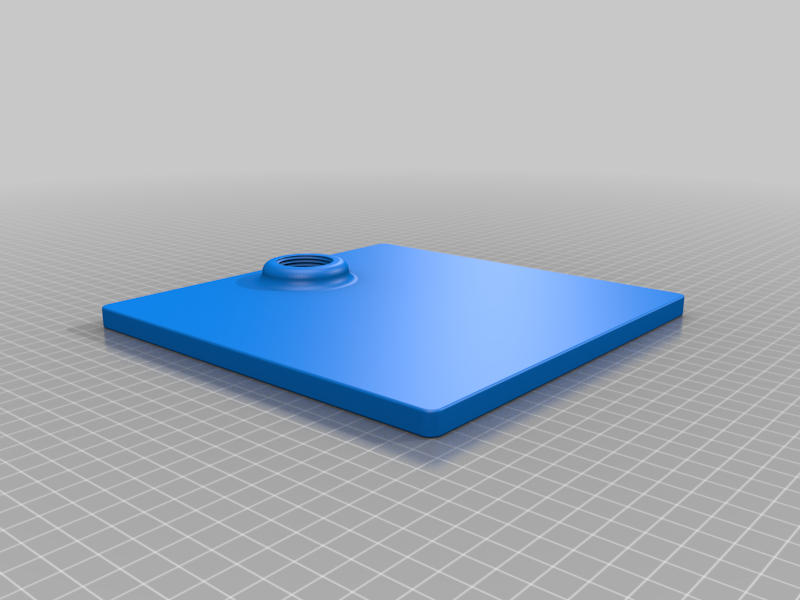

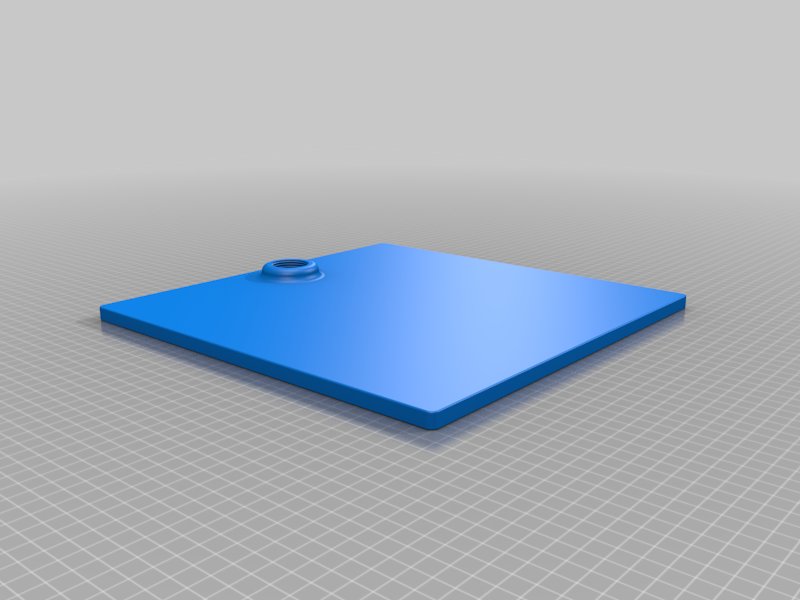

stl200x200mm_Base_Optional.stl
6 Mo · 1 422 téléchargements
-
stlNarrow_Top_Bottom_Gear_Rack_Housing.stl
304 Ko · 1 456 téléchargements
-
stl30x200mm_Rod.stl
3.3 Mo · 1 426 téléchargements
-

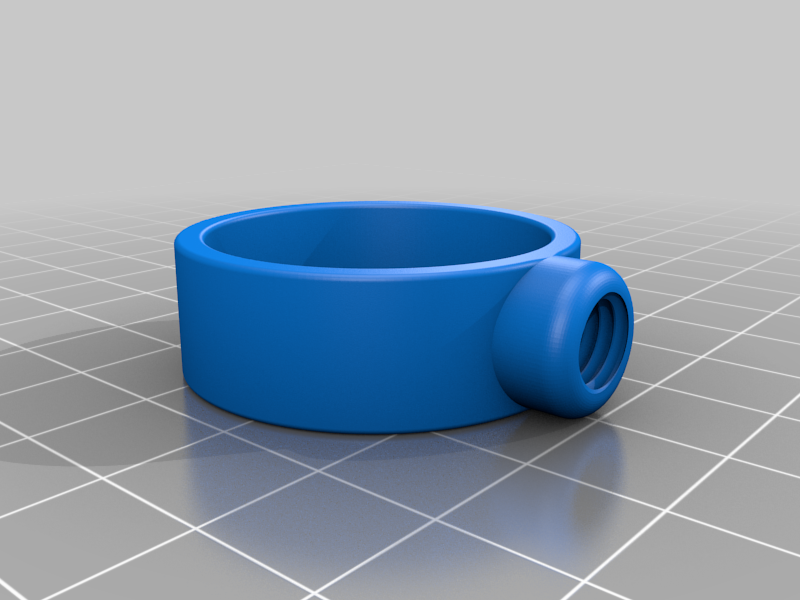

stlHeight_Adjustment_Ring.stl
6.8 Mo · 1 415 téléchargements
-

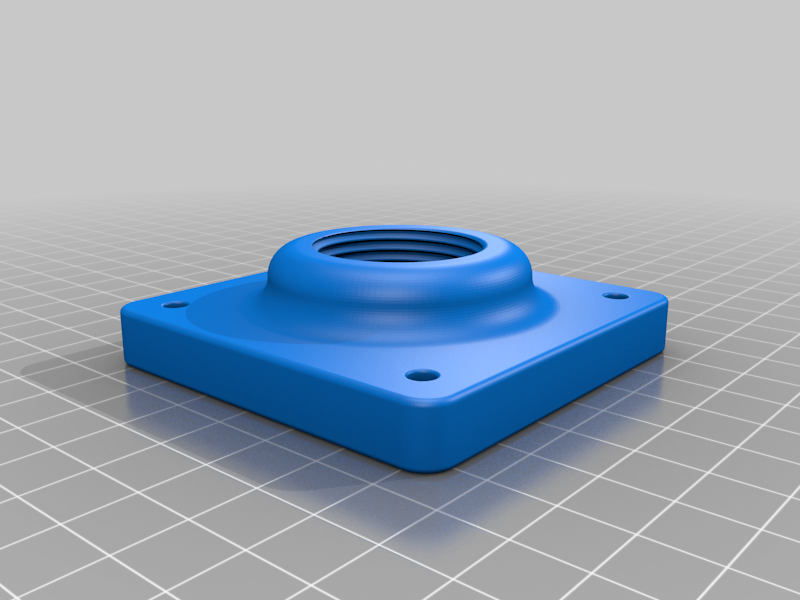

stlMicroscope_Stand_Base.stl
11.7 Mo · 1 412 téléchargements
-
stl300x300mm_Base_Optional.stl
6.4 Mo · 1 413 téléchargements
-

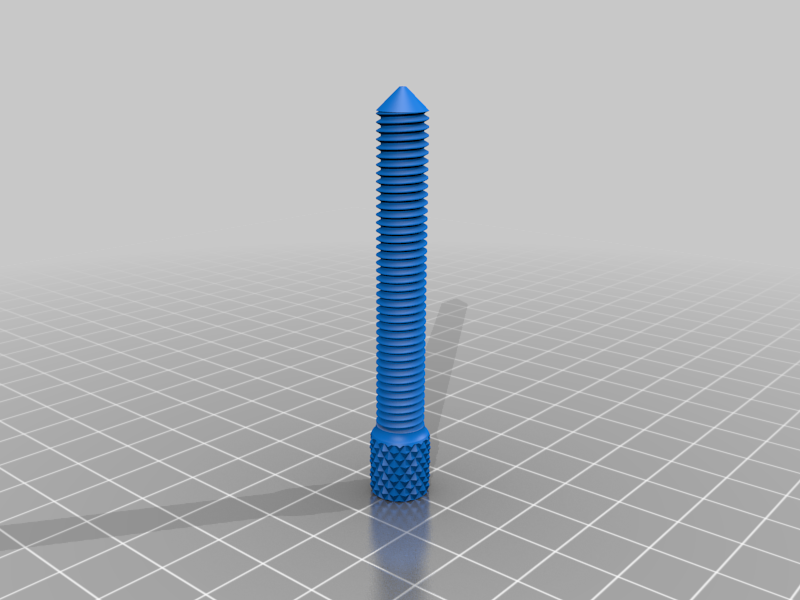

stlLED_Ring_Light_Mount_Adjustment_Screw.stl
19.3 Mo · 1 417 téléchargements
-
stlNarrow_Gear_Rack_Housing.stl
257 Ko · 1 456 téléchargements
-

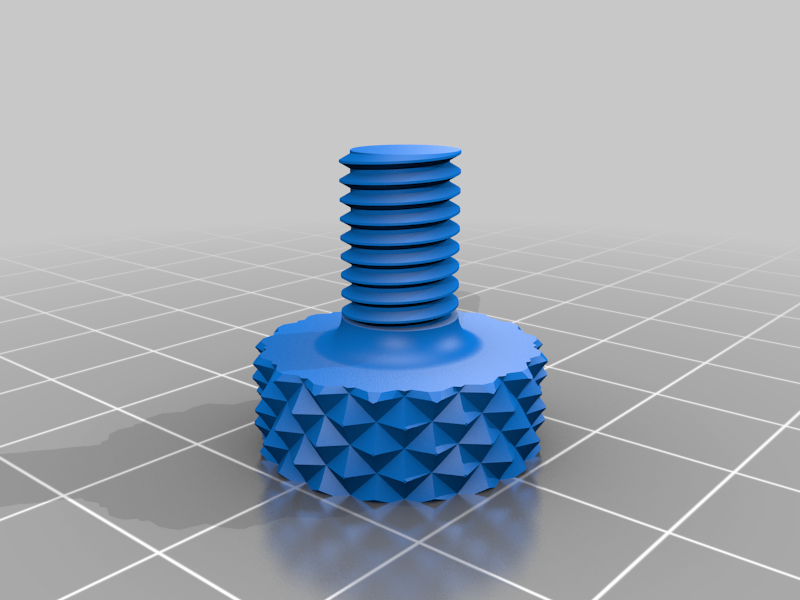

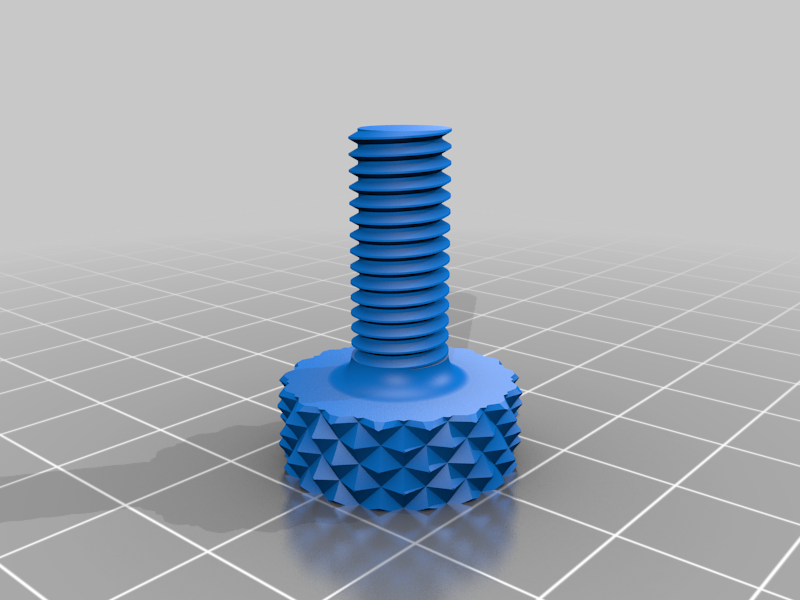

stlStopper_Scew_M8x1.25_11mm_Length.stl
18.6 Mo · 1 406 téléchargements
-
stlStopper_Scew_M8x1.25_18mm_Length.stl
16.9 Mo · 1 450 téléchargements
-

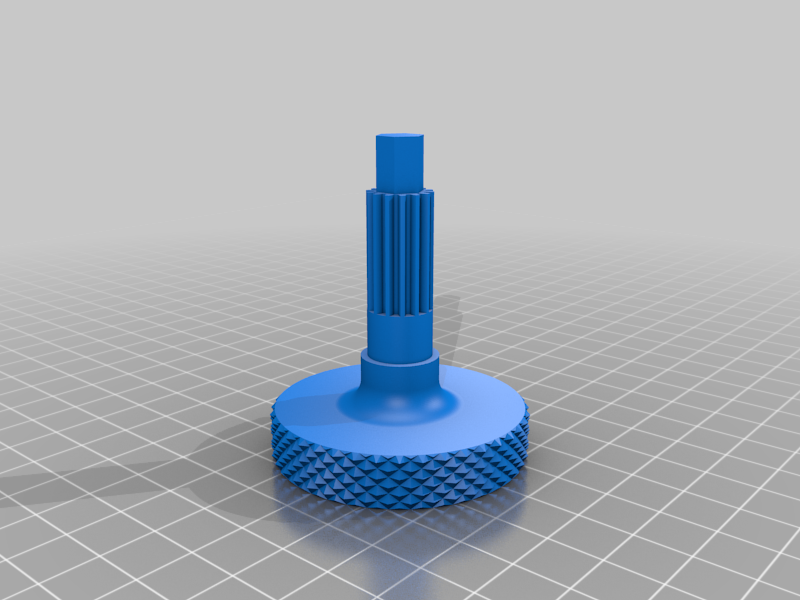

stlLeft_Height_Adjustment_Knob.stl
8.4 Mo · 1 413 téléchargements
-

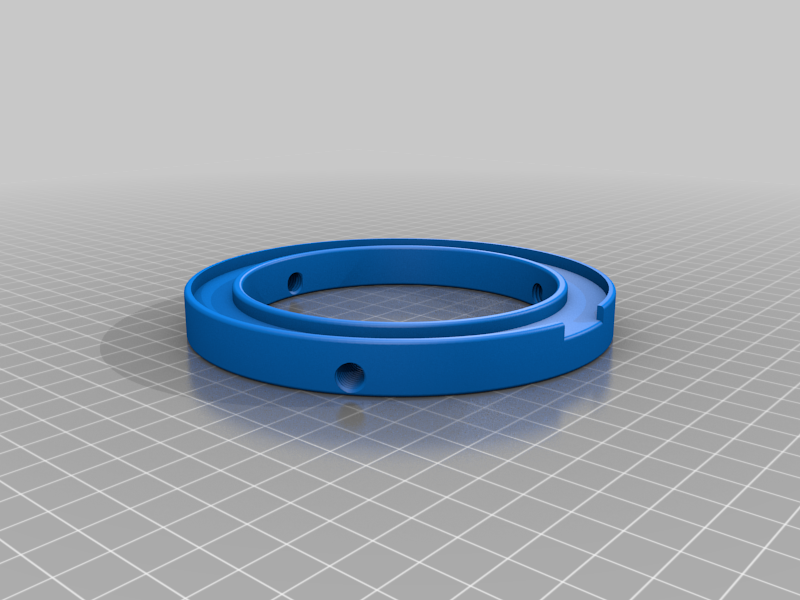

stlLED_Ring_Light_Mount.stl
11.4 Mo · 1 414 téléchargements
-
stlRing_Adapter_For_C-Mount_Lense.stl
7.5 Mo · 1 421 téléchargements
-

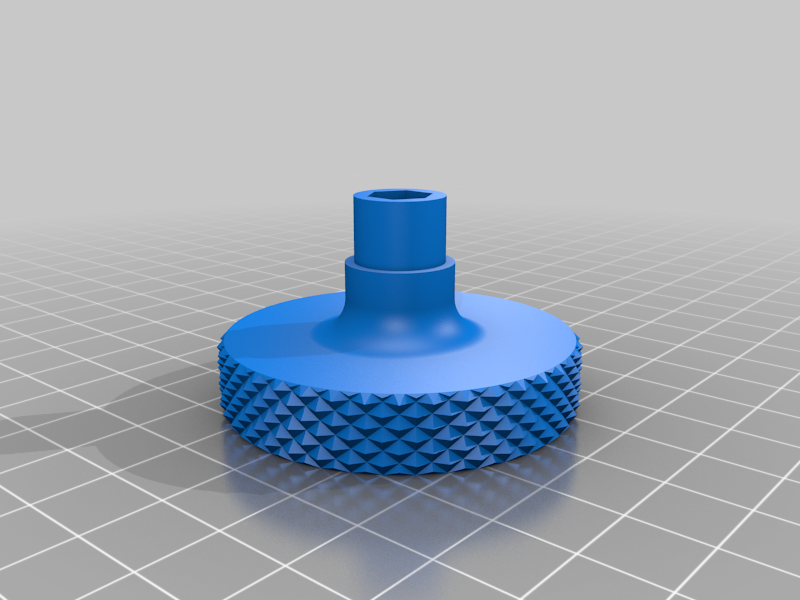

stlRight_Height_Adjustment_Knob.stl
11.1 Mo · 1 417 téléchargements
-

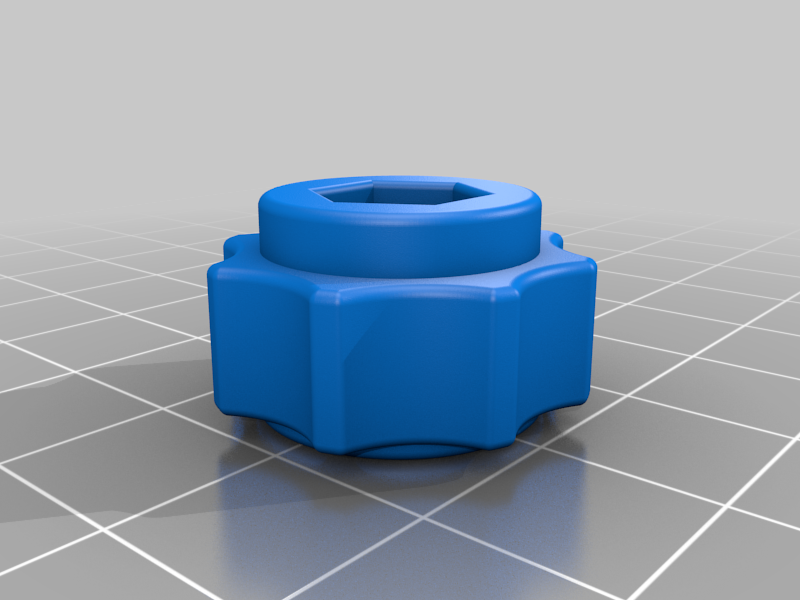

stlKnob_for_8-32_Macine_Screw_Nut.stl
15.6 Mo · 1 409 téléchargements
-
stlCustom_Adapter.stl
712 Ko · 1 450 téléchargements
Description
If you need the ideal settings for printing visit the original that i remixed this from as i used his settings.

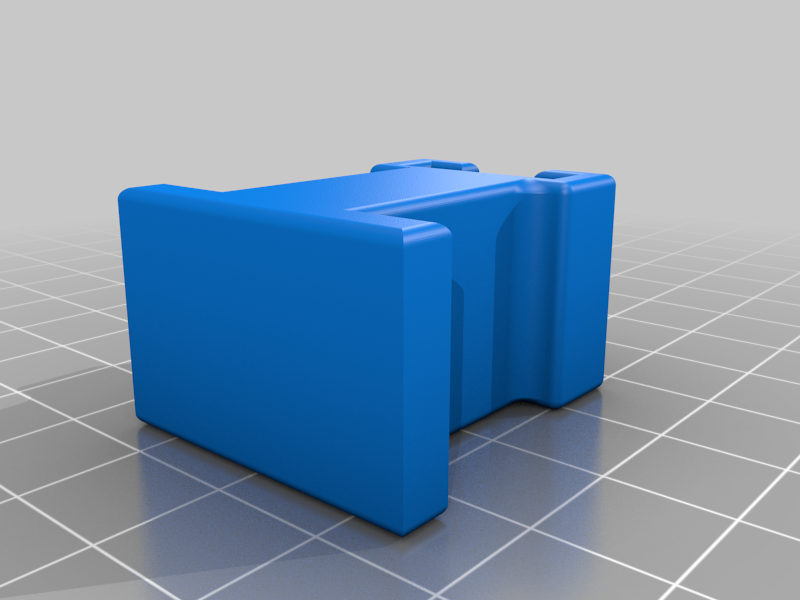

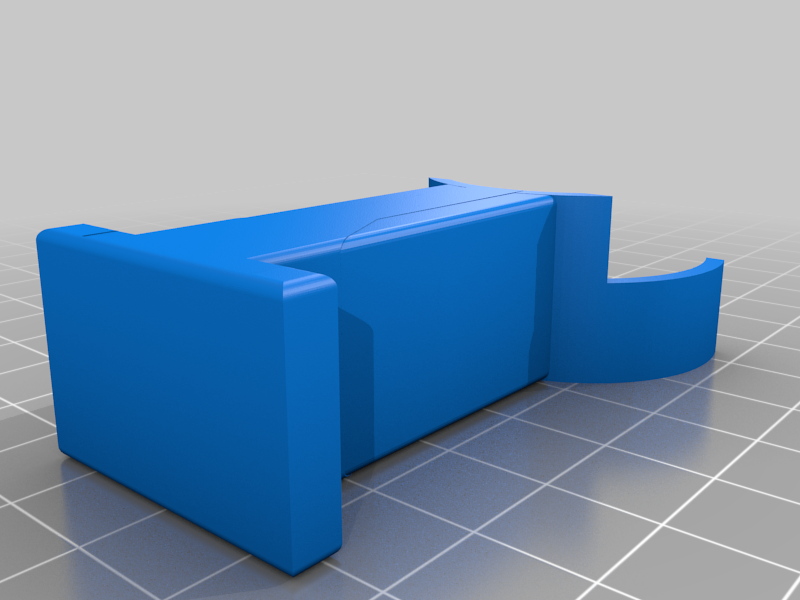

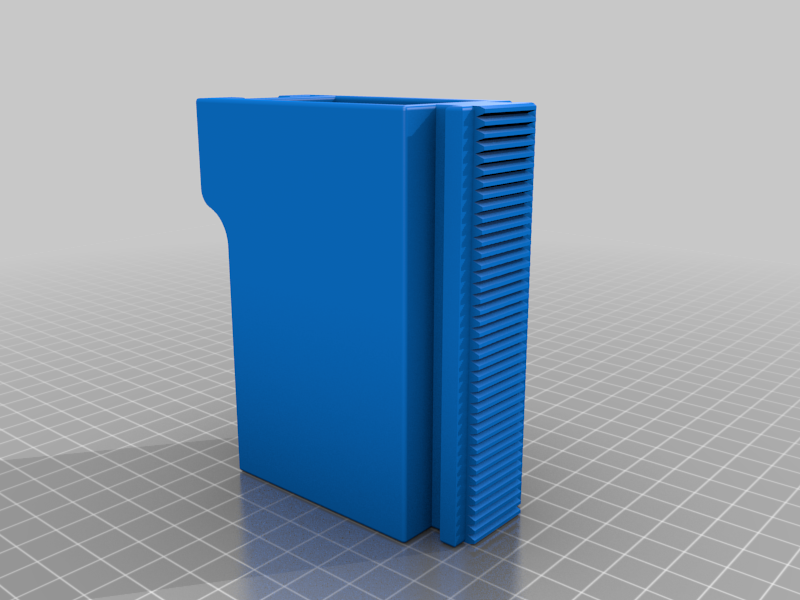

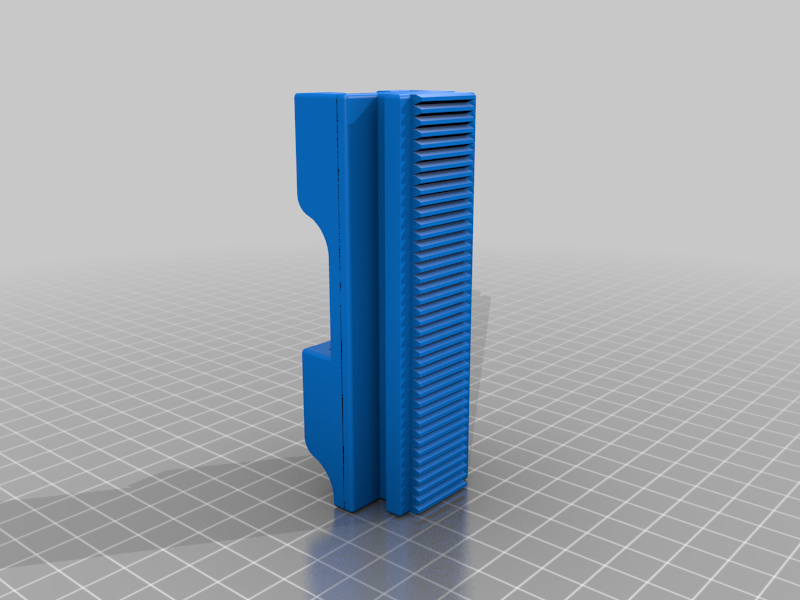

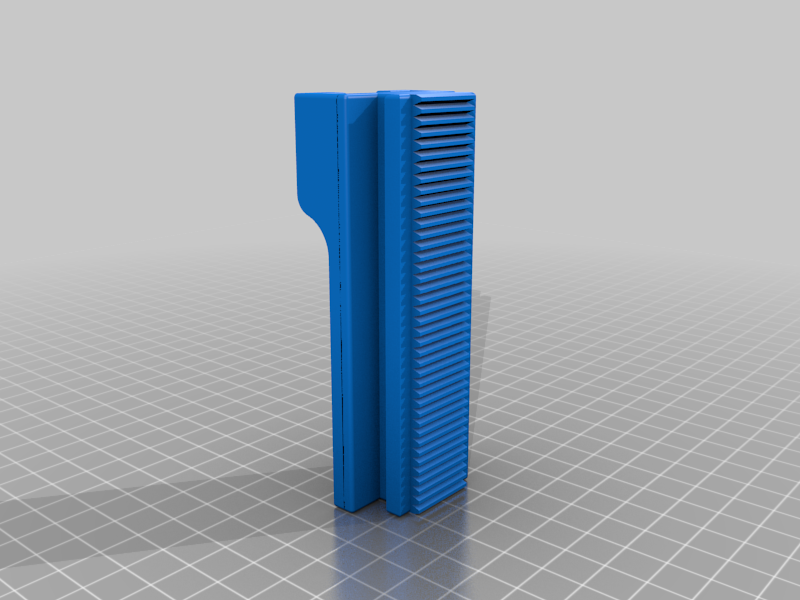

I have a cheap x1000 digital microscope off eBay but needed a modified adaptor to use it. I then realised i wanted it to be more over the base plate so i basically cut out the middle part of :- Gear_Rack_Housing.stl and made :- Narrow_Gear_Rack_Housing.stl but it still was not quite right i am using it for SMD electronics so i adapted and added a lower bracket to hold the adaptor making :- Narrow_Top_Bottom_Gear_Rack_Housing.stl, so i can now use it close up or far away without having to change the part all i have to do is move the adaptor.I am at some point going to cut :- Gear_Rack_Housing.stl at a diagonal so i still have the full length but without it interfering with the circuit boards when lowered down, But thats a future project for not i have to crack on with what i have
