Bath Interferometer version 2

par makerdoe

Fichiers imprimables (7)

Description

Update:

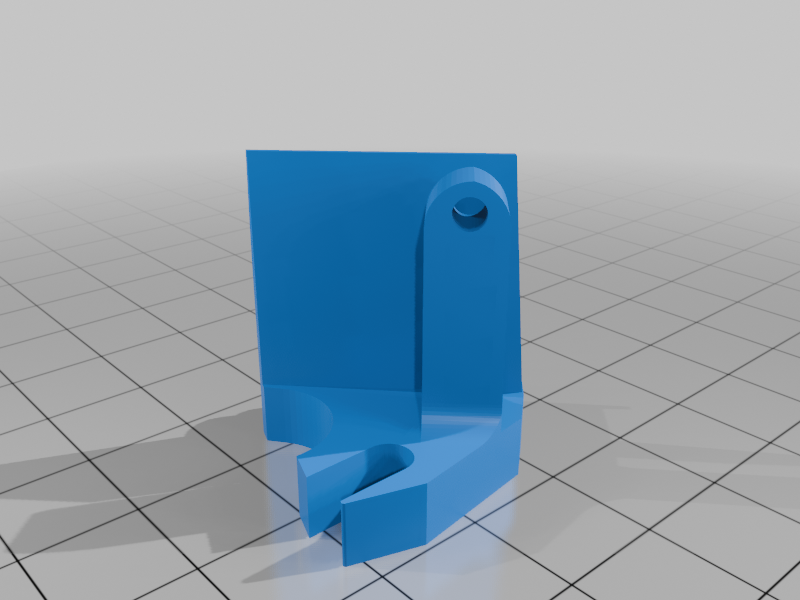

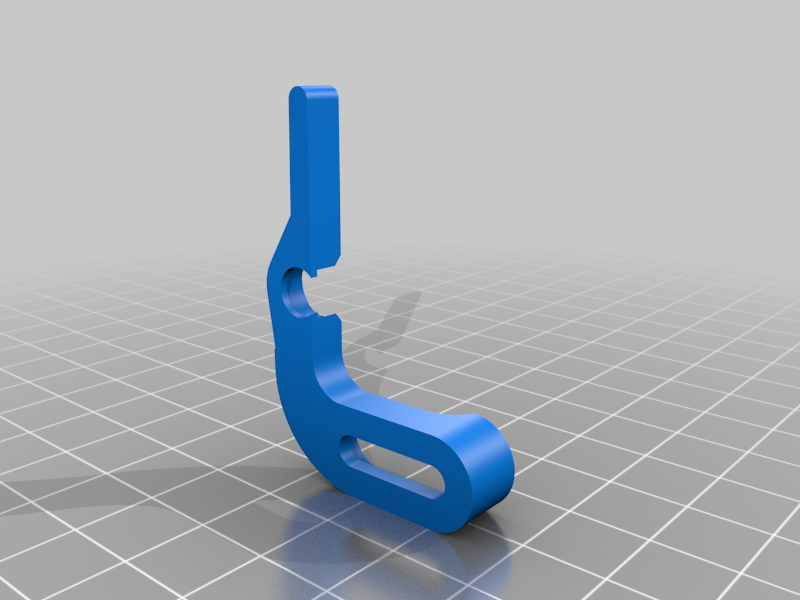

added new side mirror holder. Hole at top of pillar should be threaded for 6-32 adjustment screw.

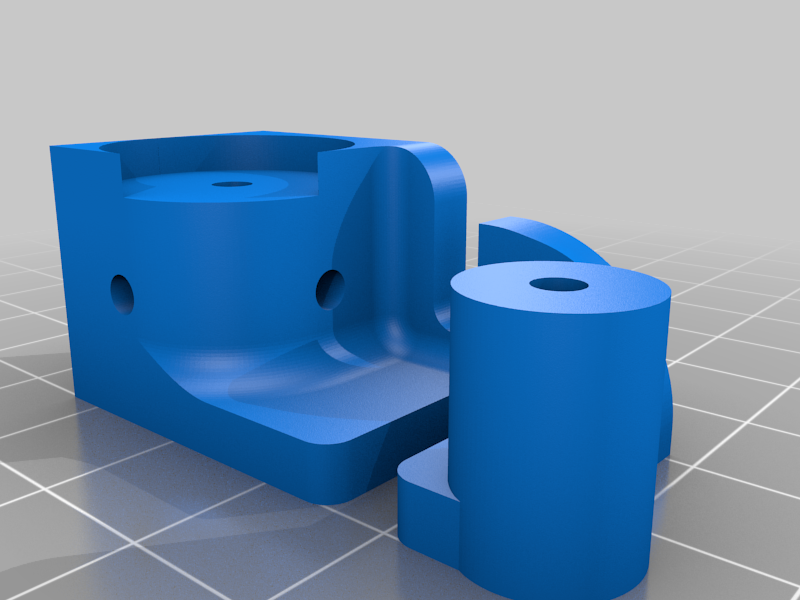

Modification to the original Bath. The Fusion360 File has been parameterised to make different size for:

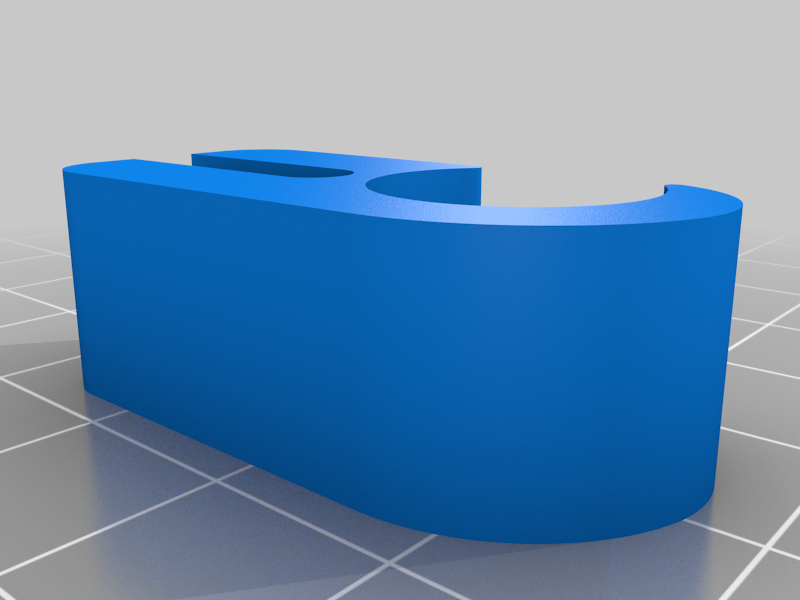

Side Mirror, Lens holder, Cube beam splitter, and Laser holder.
Added hole at back of base to allow laser to be mounted there as well as on the side.
Optimized to be placed on the 3D Printed stage with the Y flex stage.

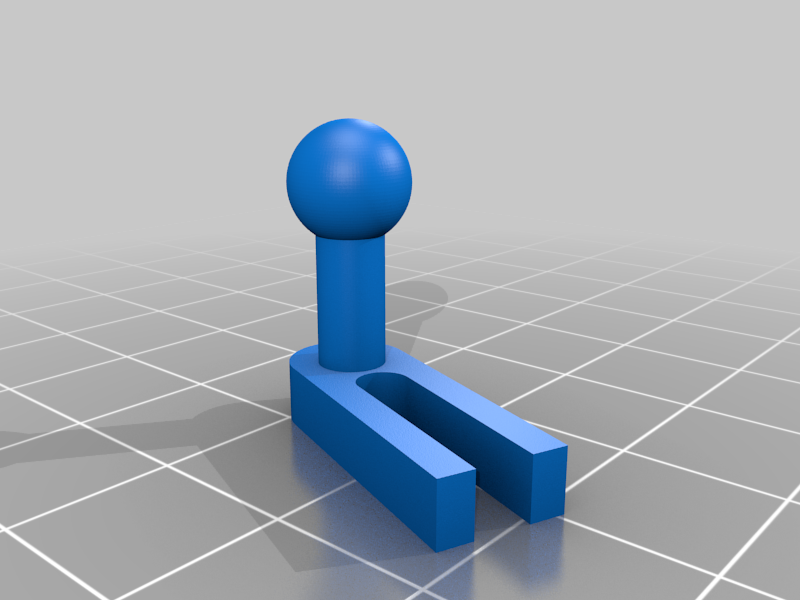

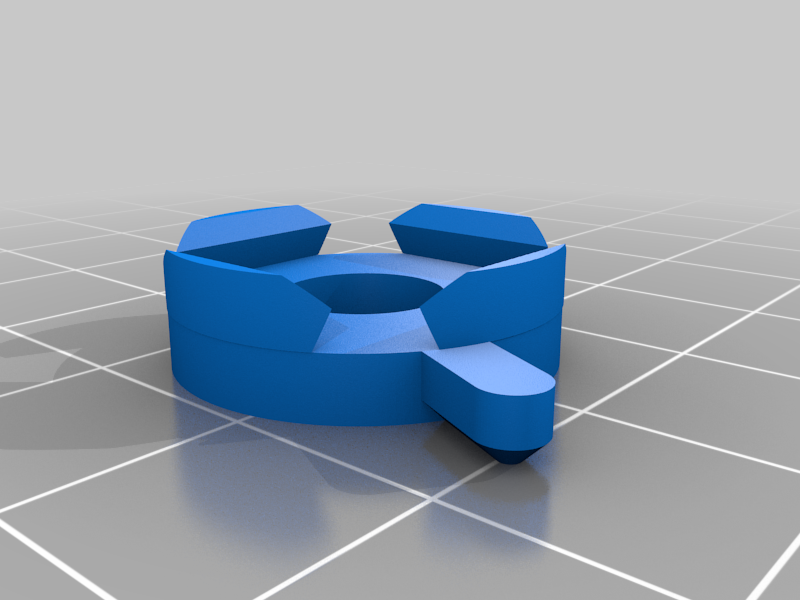

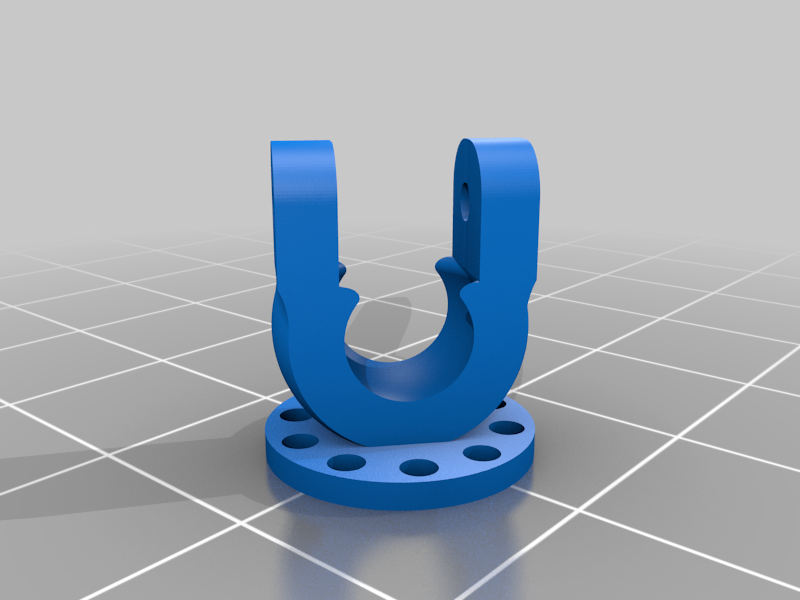

Side mirror support and mirror ball have been modified for easier adjustment of smaller side mirror.

All parts have been slightly modified from version one.

Screws needed are:
1 - 2-56 1/2 inch for the mirror holder.
2 - 6-32 1/2 inch. For the lens holder and laser holder.
1 6-32 hex nut for lens holder.

Tap the holes for these using taps.
