7 Segment LED Clock
par leonardlee
Fichiers imprimables (9)
-

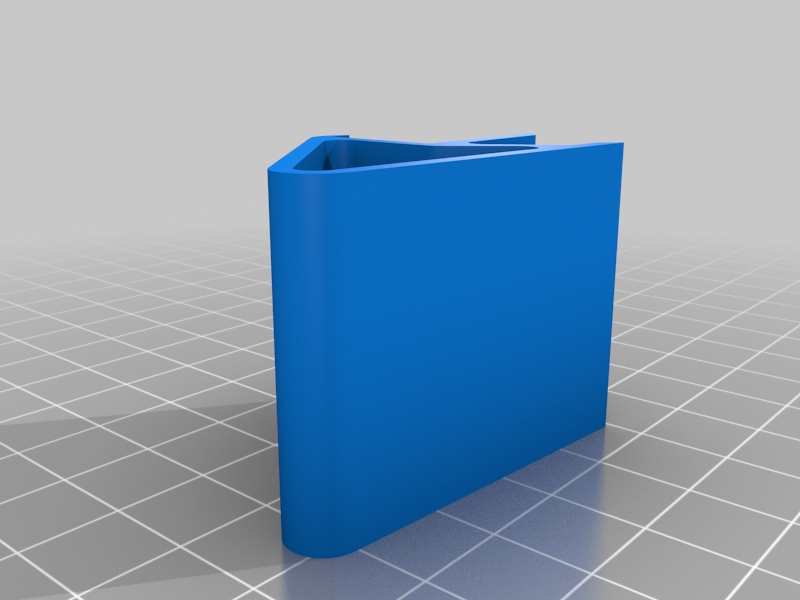

stlstand.stl
105 Ko · 41 925 téléchargements
-

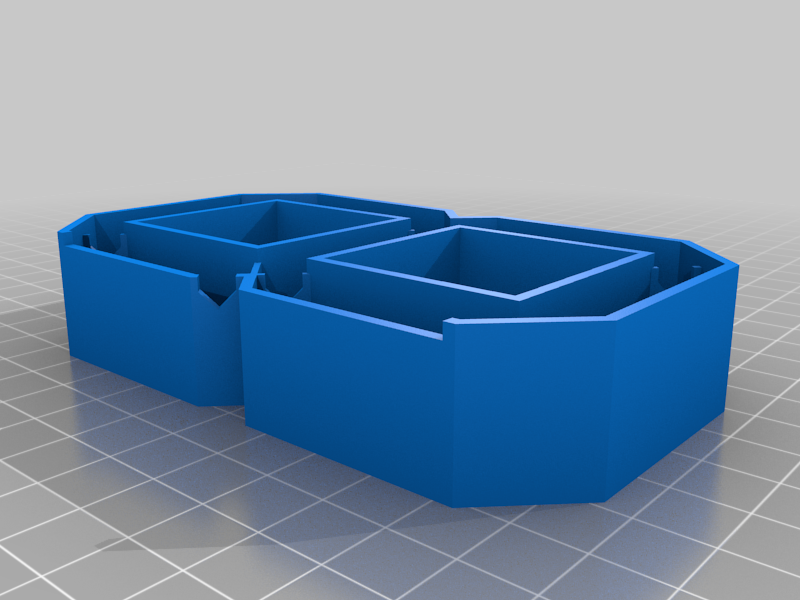

stldigit_side.stl
23 Ko · 42 120 téléchargements
-
stldigit_middle.stl
24 Ko · 41 929 téléchargements
-
stlcover_side.stl
51 Ko · 41 844 téléchargements
-
stlcover_colon_hour_minute.stl
175 Ko · 41 891 téléchargements
-
stlcover_colon_minute_second.stl
172 Ko · 41 757 téléchargements
-

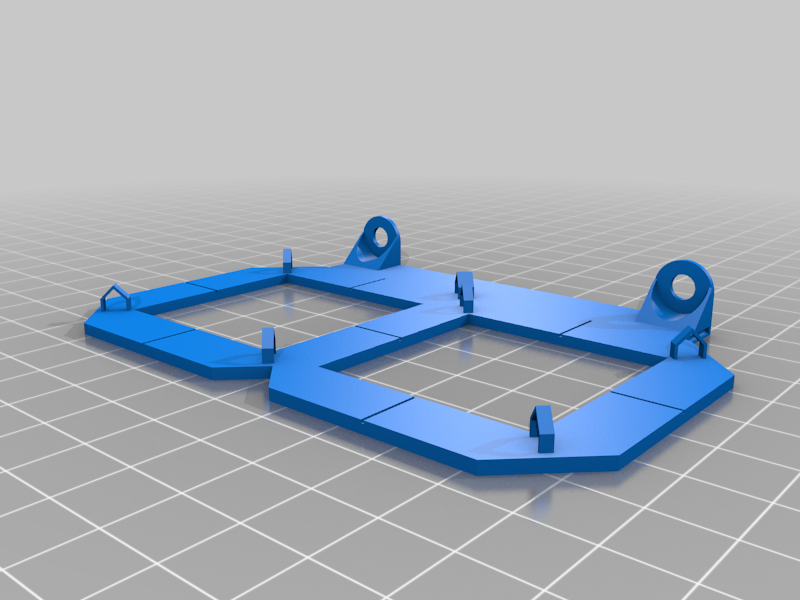

stlback_side.stl
93 Ko · 41 846 téléchargements
-
stlback_minute_second.stl
386 Ko · 41 787 téléchargements
-
stlback_hour_minute.stl
482 Ko · 41 855 téléchargements
Description
Featured on All3DP!
This 7 Segment LED clock was designed to be almost entirely 3D printed, with the exception of a few fasteners... and of course, the electronic components, which are all neatly encased inside of the clock itself. It relies on the translucent properties of thin layers of white PLA to achieve the light diffusing necessary to light up individual segments. I created this project to get more experience in modelling for 3D printing using Fusion 360, practice my soldering skills, and get a chance to do a little ESP8266/Arduino programming.
Features
- hang it from the wall using the built in hole(s) or print 2 optional stand pieces for a desktop configuration
- avoids clock drift by syncing with NTP periodically
- automatic time zone detection (uses IP to approximate your location, which should work for most scenarios; this can be overridden with a more accurate location if this is getting the wrong location)
- automatic daylight saving time adjustment - no need to spring forward or fall back manually
- 12-hour or 24-hour format
- custom LED colors - over 16 million colors possible
- choose from hour:minute (HH:MM) or hour:minute:second (HH:MM:SS)
- over-the-air firmware updates
