Printable Quick Grip Trigger Clamp (Functional)

par Arron_mollet22

Fichiers imprimables (7)

  • stl

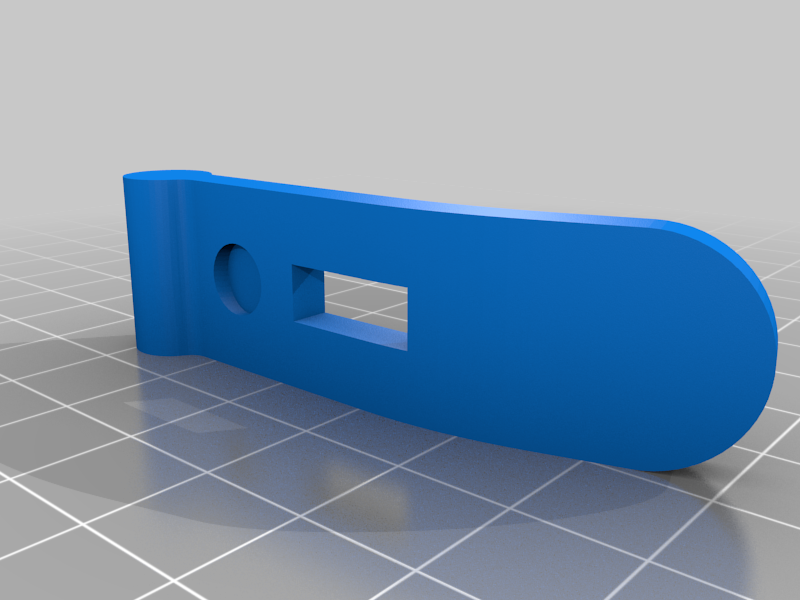

    Release_Trigger.stl

    33 Ko · 102 181 téléchargements

    Télécharger
  • stl

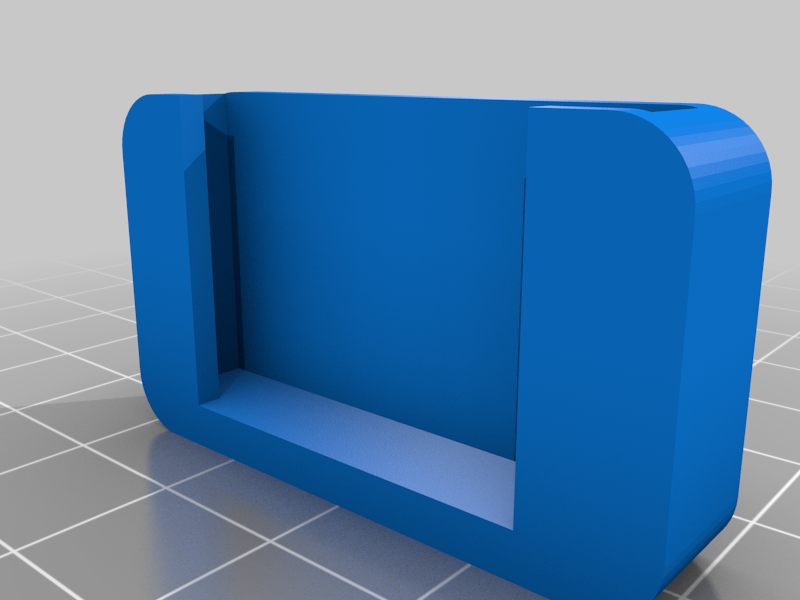

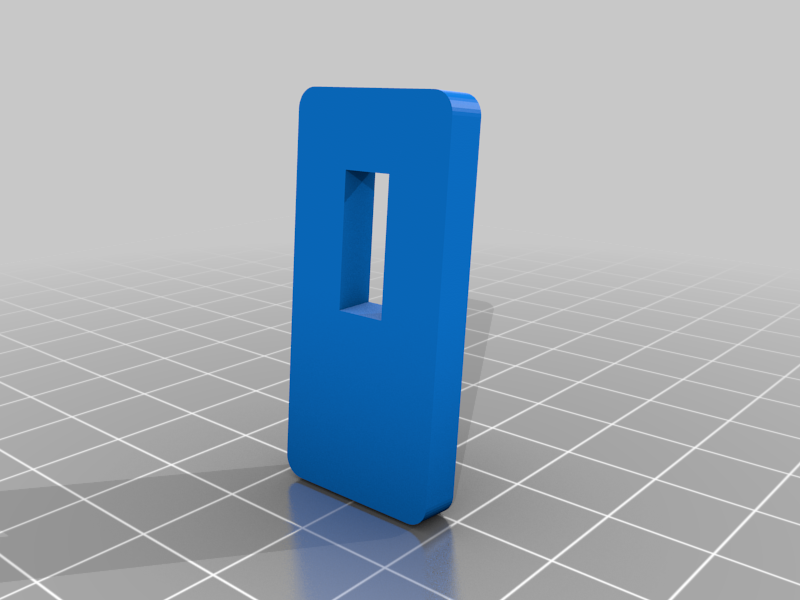

    Clamp_Bracket.stl

    9 Ko · 102 015 téléchargements

    Télécharger
  • stl

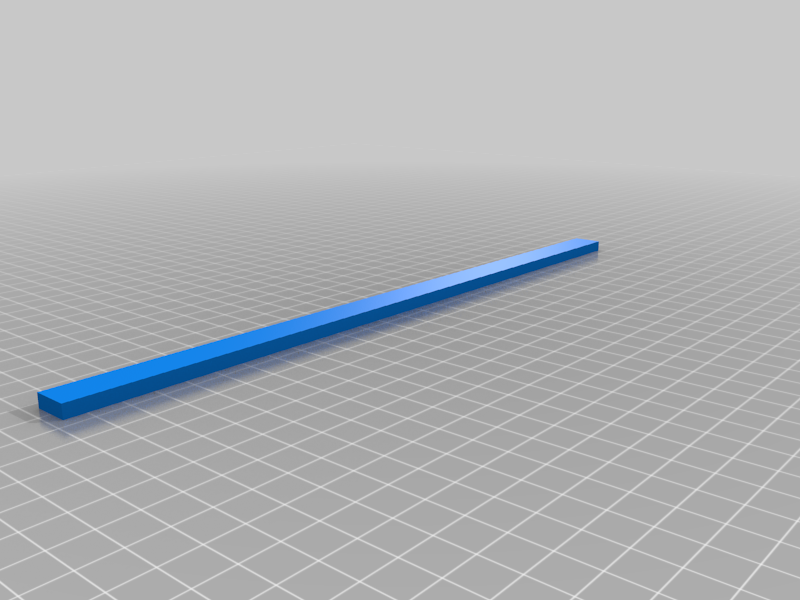

    Shaft.stl

    684 o · 102 092 téléchargements

    Télécharger
  • stl

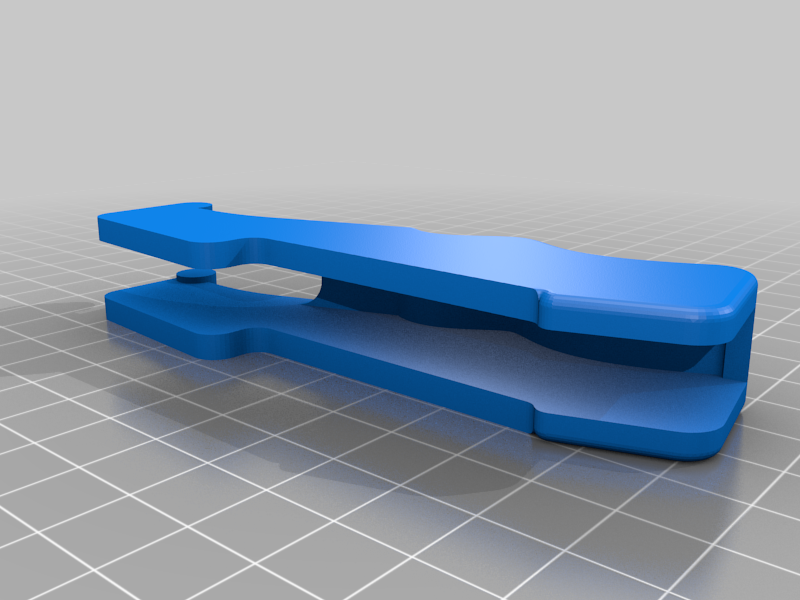

    Grip.stl

    14 Ko · 101 873 téléchargements

    Télécharger
  • stl

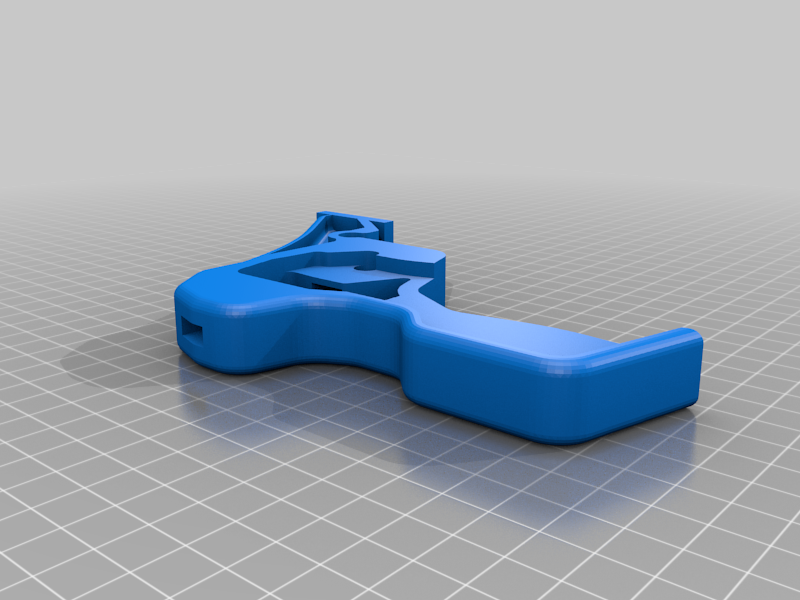

    Pump_Handle.stl

    226 Ko · 101 877 téléchargements

    Télécharger
  • stl

    Clamp_Body.stl

    274 Ko · 101 918 téléchargements

    Télécharger
  • stl

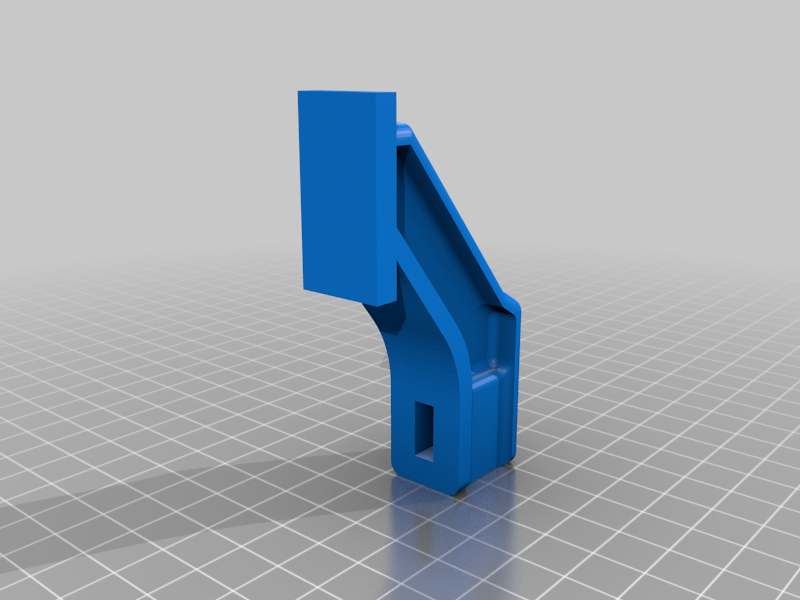

    Clamp_End.stl

    217 Ko · 101 800 téléchargements

    Télécharger

Description

Quick Grip Trigger Clamp

This is a fully functional Quick Grip Trigger Clamp. C-Clamps have become very popular prints but the clamp allows quick single hand adjustments. This design was created with fusion 360 and printed on a Prusa i3 MK3.

Everything on this clamp is printed with exception to the springs which make it functional.

Springs can be found in this great spring assortment on amazon:

https://amzn.to/2DAFIbd

Springs needed are:

0.035"x0.25"x0.5" for the release trigger

0.041"x0.437"x1.062" for the clamp trigger

The kit has enough springs to make 6+ clamps.

Filament

The printed version shown in pictures is printed in three different filaments:

Black parts: https://amzn.to/2Dt6xho
Ziro Carbon Fiber PLA (One of my favorites to use)

Grey parts: https://amzn.to/2DqNS5J
Prusament Galaxy Silver PLA

Orange parts: https://amzn.to/2VXMHSm
Amazon Basics PETG
