Switchable Magnet
par larsch
Fichiers imprimables (3)
-

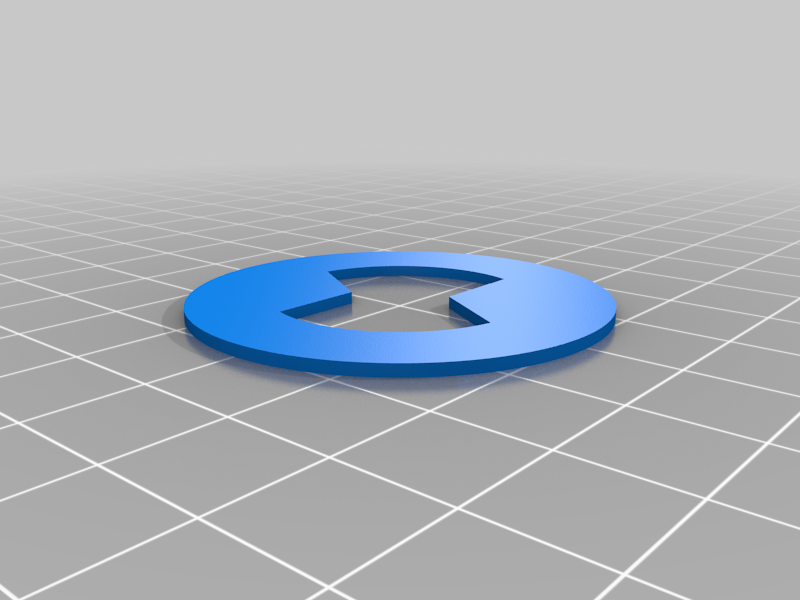

stllid.stl
30 Ko · 1 652 téléchargements
-

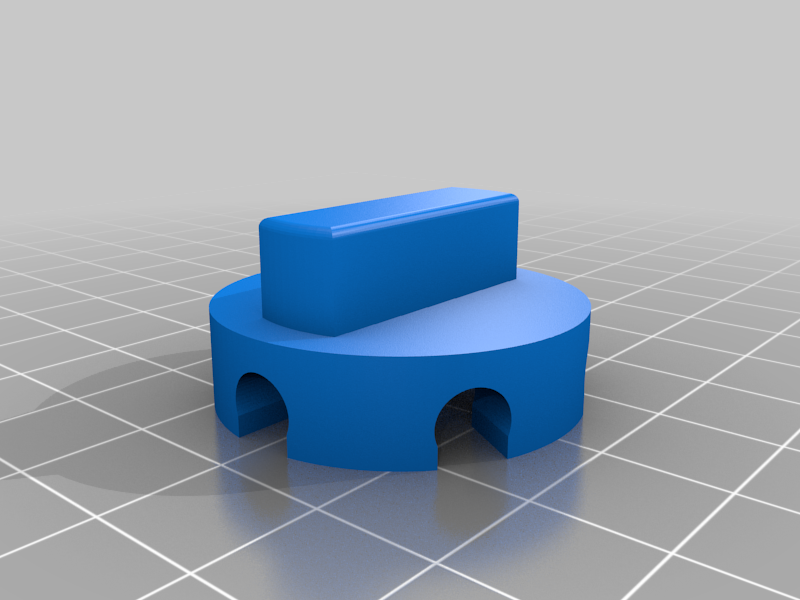

stlinner.stl
94 Ko · 1 663 téléchargements
-
stlouter.stl
363 Ko · 1 665 téléchargements
Description
Switchable magnet toy/tool, similar to Magswitch. It isn't particularly strong (easily removable with hand), but it does work.
Requires 12 pcs. 6x6m cylinder magnets and 12 pcs. 5x15mm cylinder rods (steel/iron).
Insert magnets alternating north/south in both parts. When magnets are aligned, i.e. each rod has 2 north or 2 south facing it the device is on. When they are unaligned, i.e. when a iron rod has both north and south magnet facing it, the device is off.
Fairly easy to print without any supports. If slicing with Cura: disable "Fill gaps between wall".
