Joints for Binary Load Lifter droid
par Tse_Tso
Fichiers imprimables (7)
-
3mfrobot_shoulder_all.3mf
629 Ko · 515 téléchargements
-
stlrobot_shoulder_pivot_x4.stl
44 Ko · 544 téléchargements
-
stlrobot_shoulder_pin.stl
19 Ko · 547 téléchargements
-
stlrobot_shoulder_2.stl
704 Ko · 553 téléchargements
-
stlrobot_shoulder.stl
166 Ko · 549 téléchargements
-
stlrobot_shoulder_motor_2.stl
1.9 Mo · 546 téléchargements
-
stlrobot_shoulder_motor.stl
388 Ko · 548 téléchargements
Description
This is an attempt the create joints for the Binary Load Lifter droid by Merrick Schoellig aka Avioza.

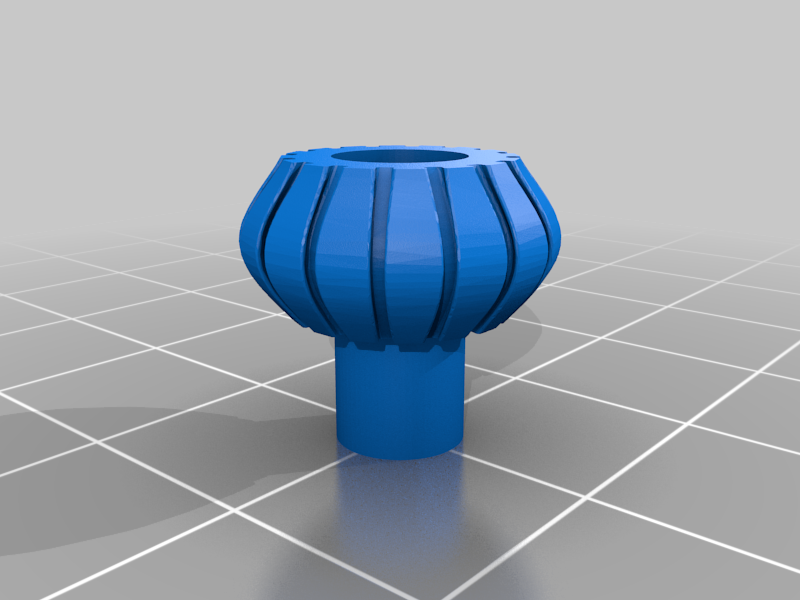

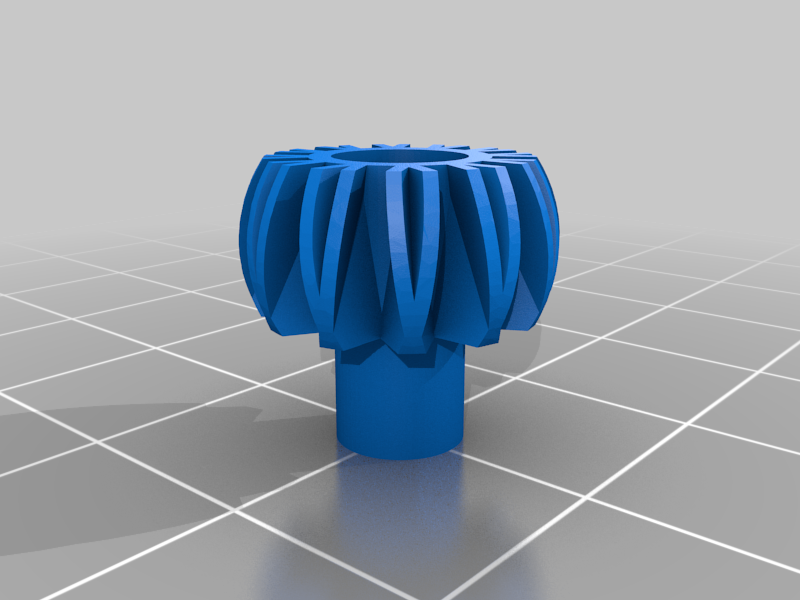

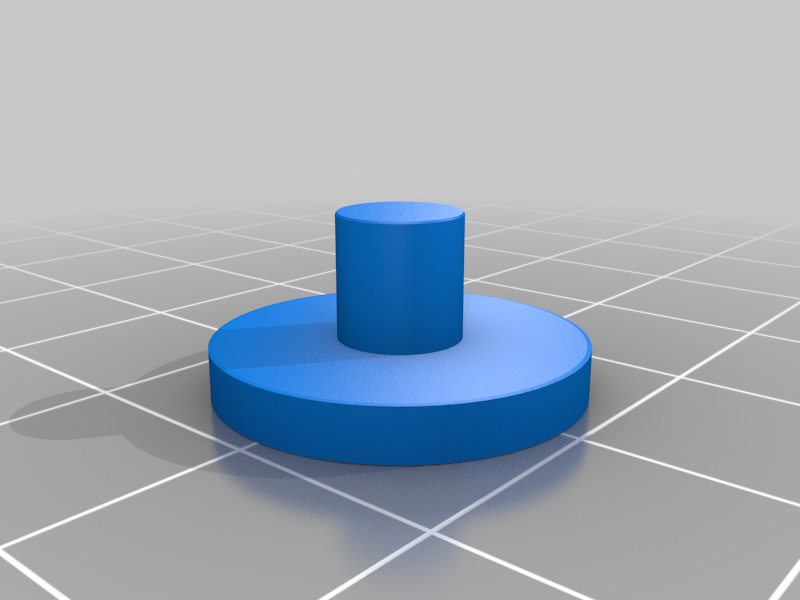

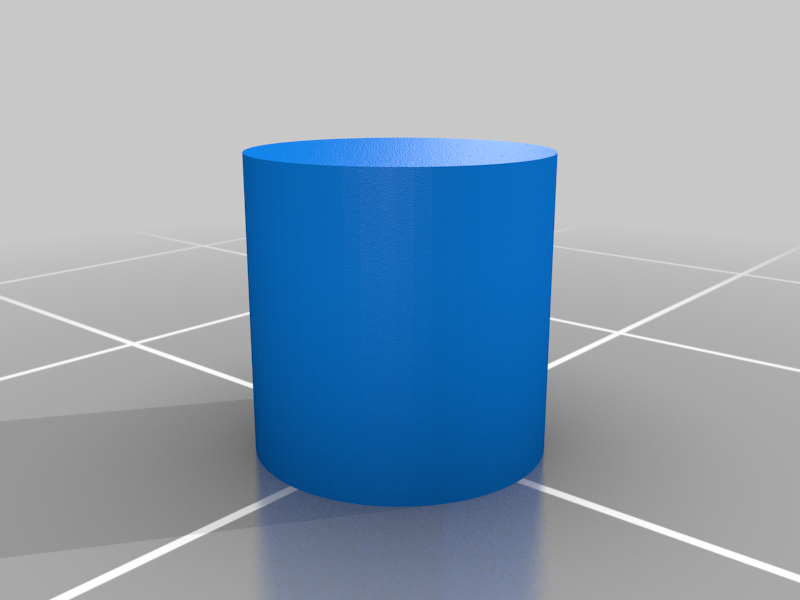

You need to print 4x pivots and 2x shoulders. Choose where you want to mount the legs and the arms and drill 6mm holes (in the body of the droid). Glue pivots to the legs and arms. Push the shoulders in the holes for the arms and the arms in the shoulders.
There are two variants for the shoulders, you can choose the one you like.

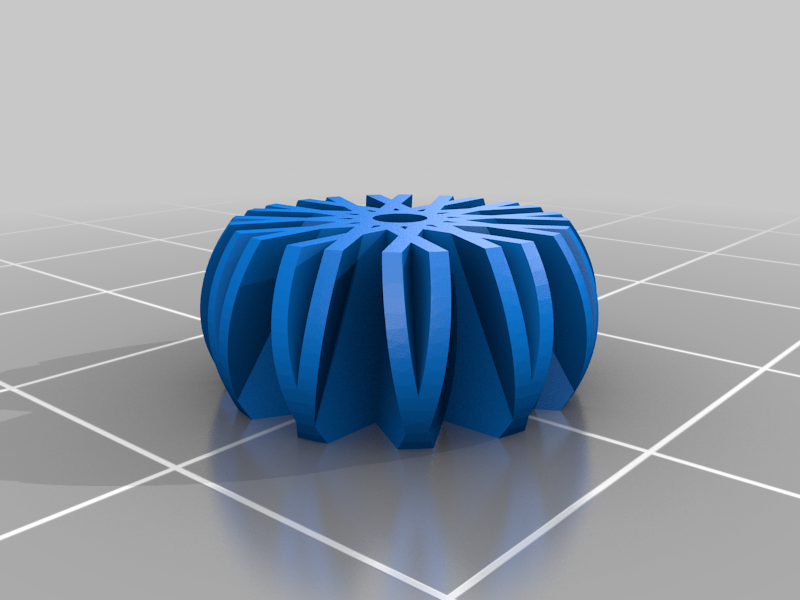

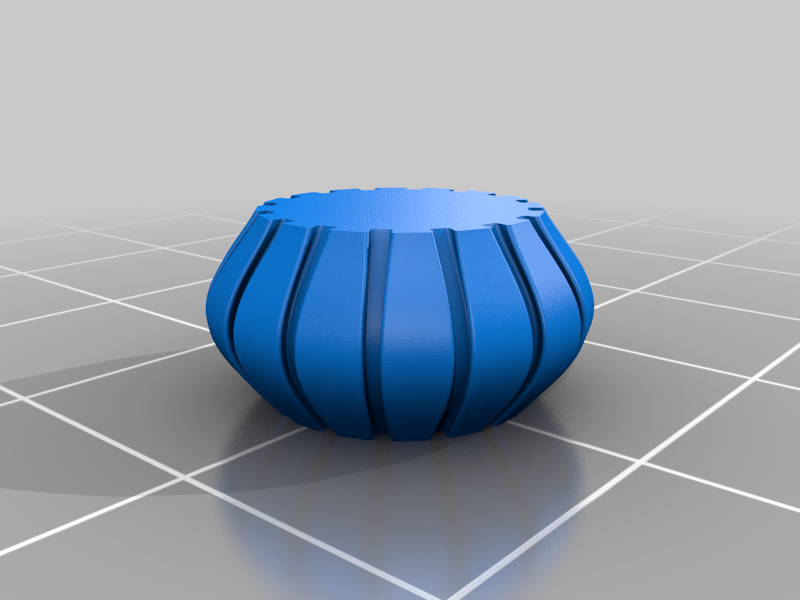

I have included also all the parts, please do not print them, normally you don't need them to assemble the droid.
You can print all robot parts in grey or silver and all pivots and shoulders in red. This color combination worked good for me. On the droid body, I plan to paint the sensor in red and the photo receptor in black or red.
The droid can be found here: https://www.thingiverse.com/thing:1102117
