Retention frames for Socket8
par PolAndreMariaDirak
Fichiers imprimables (3)
-
stlToothToTooth.STL
369 Ko · 225 téléchargements
-
stlCK8.STL
474 Ko · 219 téléchargements
-
stlCpi478.STL
328 Ko · 219 téléchargements
Description
Retention frame for Socket8 (Pentium Pro, PGA387).
Mount at small six toothes of Socket8.
Features:

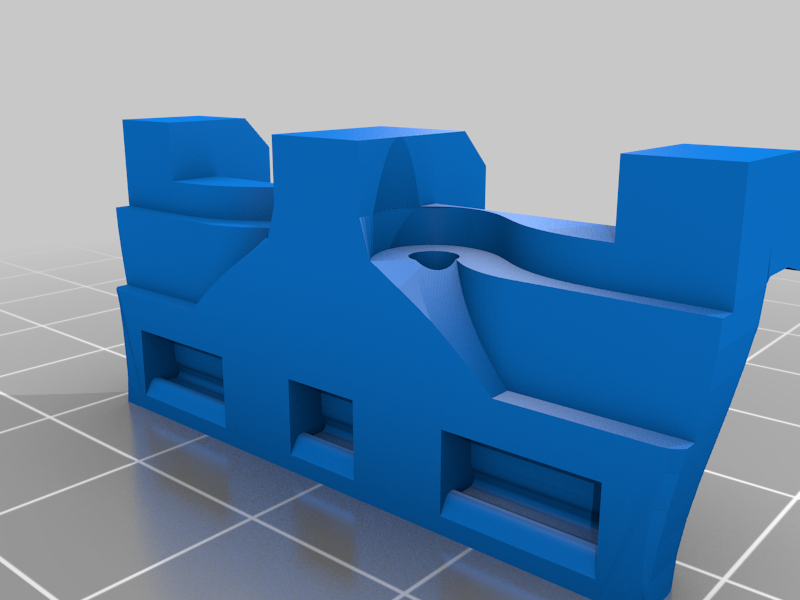

- 939-style M3 thread @ (+/-) 6.75 degree. (Two ToothToTooth detail + two M3x?? screw).

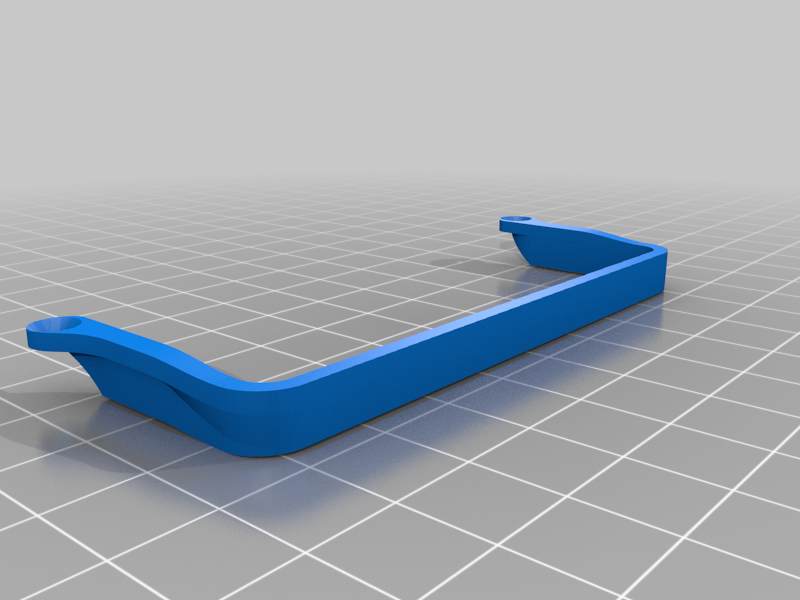

- 939/754/AM2 frame with six big (K8) toothes (Two ToothToTooth detail + four M3x15 flat head screw+ two CK8 detail).

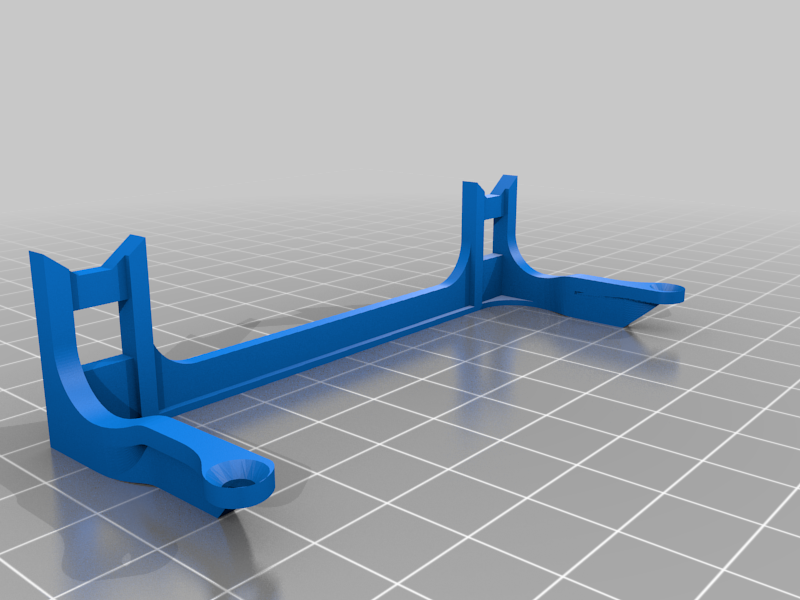

- 478 frame (Two ToothToTooth detail + four M3x15 flat head screw + two Cpi478 detail).
