Mount for type 2 plug
par TexMech
Fichiers imprimables (7)
-
stlmount_for_type_2_plug.stl
2.8 Mo · 572 téléchargements
-
stlwall_holder_type_2.stl
6.1 Mo · 497 téléchargements
-
stlplug_connector.stl
363 Ko · 491 téléchargements
-
stlfront_protection.stl
452 Ko · 480 téléchargements
-
stllock_bar.stl
39 Ko · 465 téléchargements
-
stllever.stl
182 Ko · 471 téléchargements
-
stlcable_mount_stand_alone.stl
110 Ko · 399 téléchargements
Description
Remix of Halter für Typ 2 Stecker - Holder for type 2 plug
I liked the idea of the original with the lock mechanism and cable storage, but wanted to have a straight handle of the plug
Changes:
Halter_Typ2 -(splitted into 2 parts)-> wall holder type 2 and plug connector
wall holder type 2 (res 0.3, without support):
wider and longer surface for longer cables, angled connection for the plug connector, so it points straight down, adjusted the holes for M8 screws

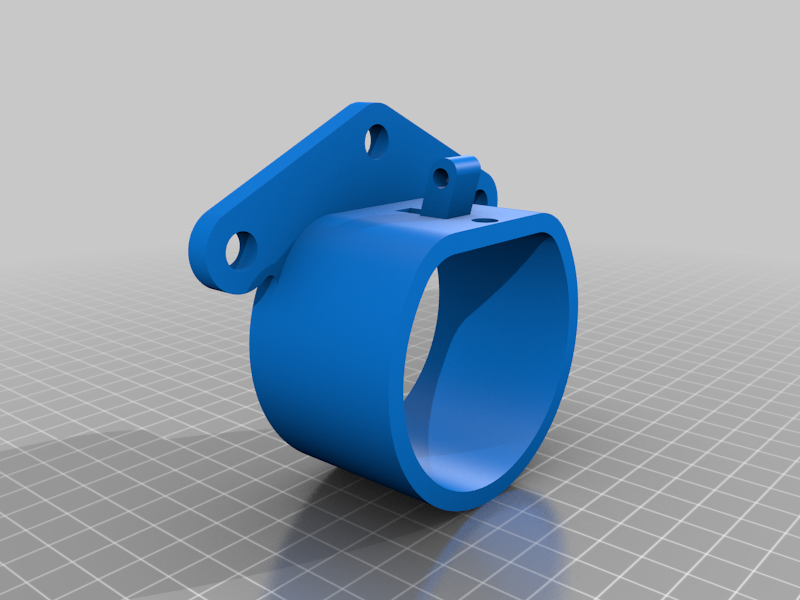

plug connector (res 0.3, with support):
widened the whole a little bit, added Riegelaufnahme into the part, widened the 2mm hole for 4mm screws, because 2mm screws are hard to get, changed the guidance of the magnet for a spring (I used a spring from a pen and halved it), adjusted the holes for M8 screws

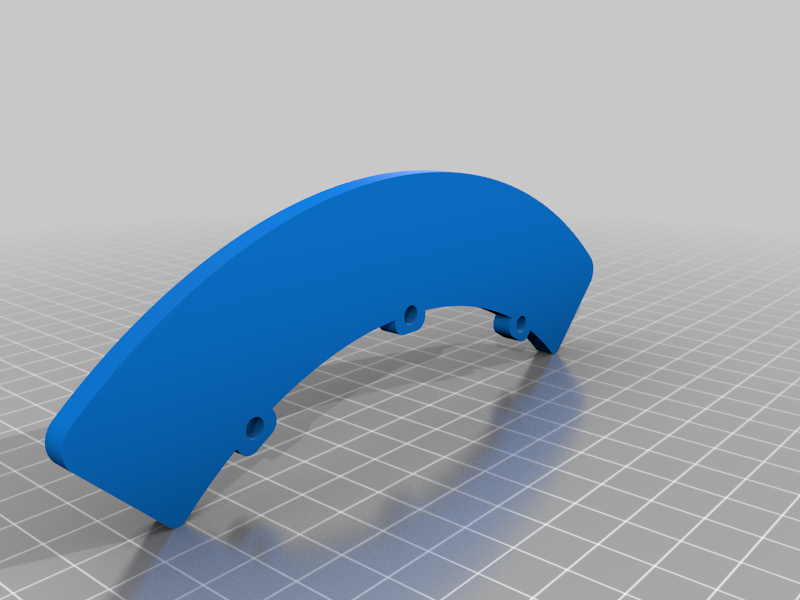

Kabelauflage_Rand --> front protection (res 0.3, without support):
adapted to the new holder

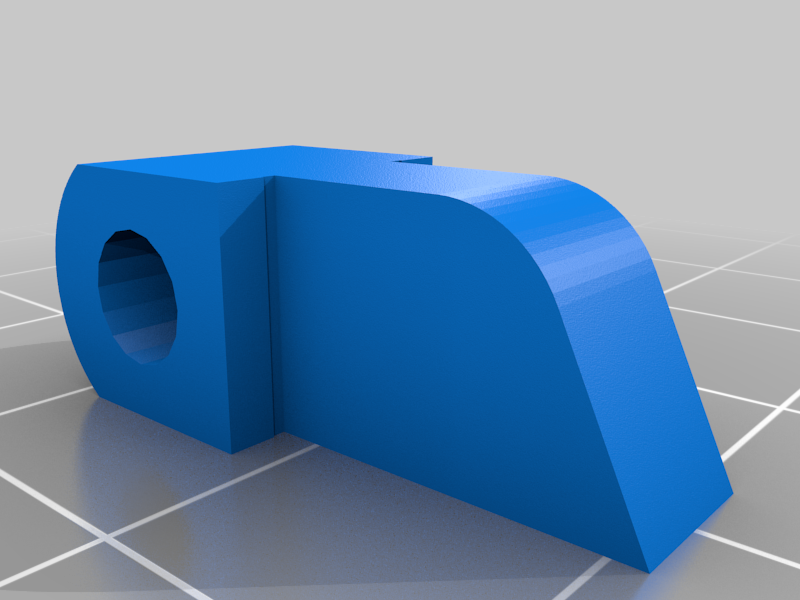

Riegel --> lock bar (res 0.1, without support):
narrowed the lock bar for an easier tilting
Riegelaufnahme --> integrated in plug connector

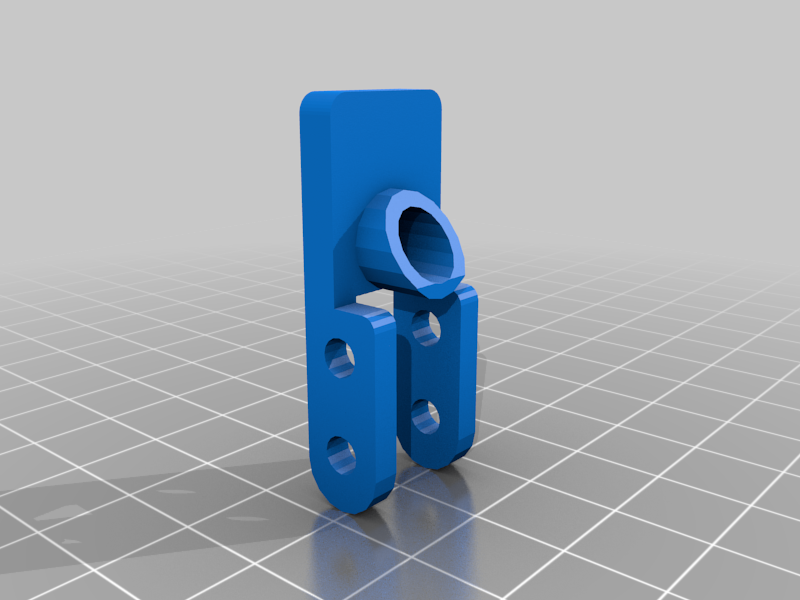

Kipphebel --> lever (res 0.1, without support):
adjusted the holes for 4mm bolts and strengthened the outline, added a guidance for the spring that replaces the magnets which are also hard to get
assembly:
just like the original but instead of M2 screws and magnets you need M4 and M8 screws and nuts and a small spring for example from a pen
Edit:

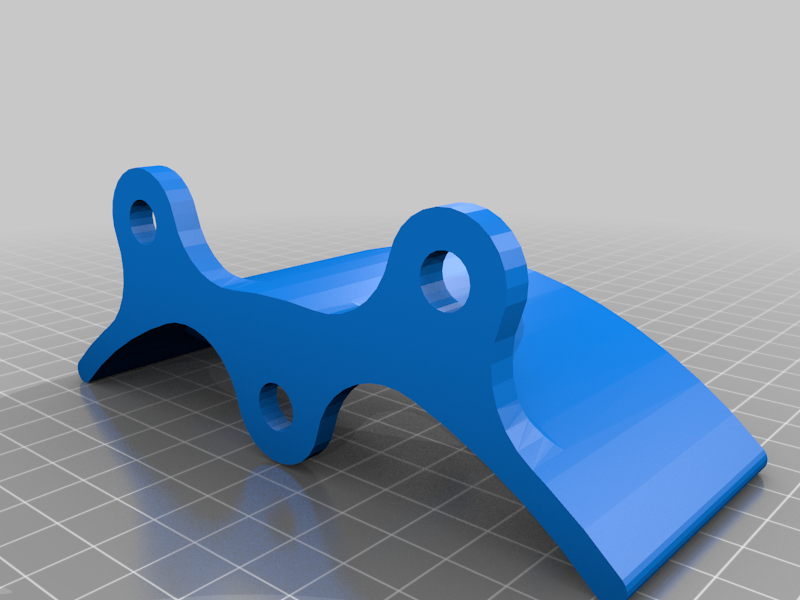

After a request there is now a stand alone model for another cable. Thanks to @Stormi8.
