Ejection seat handle
par antares190
Fichiers imprimables (7)
-

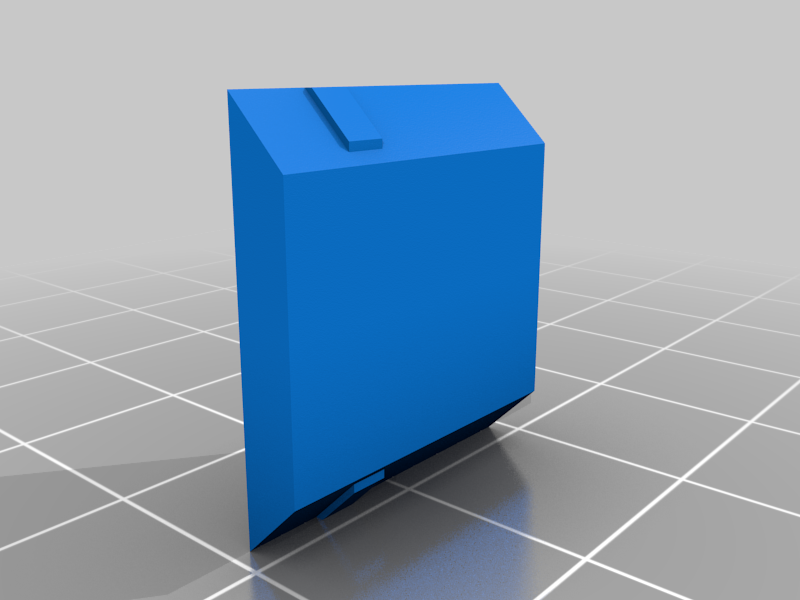

stlSpringStop.STL
2 Ko · 451 téléchargements
-

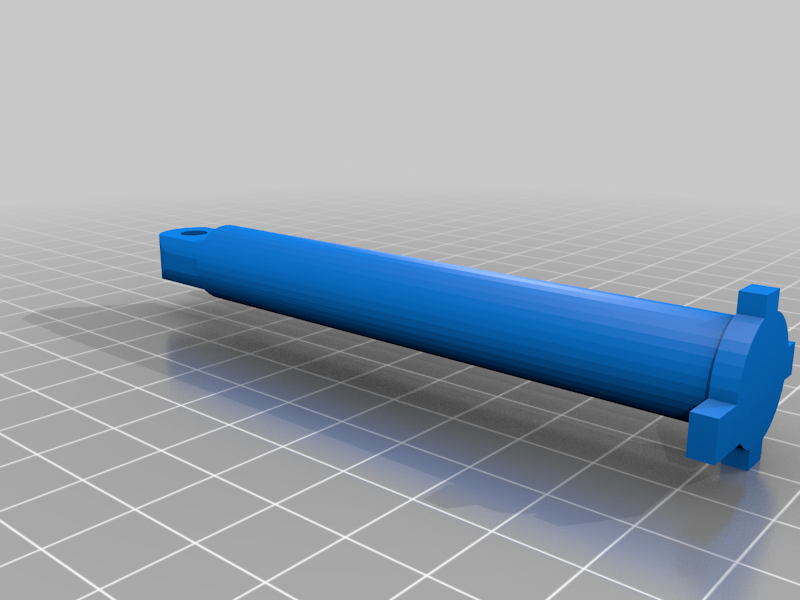

stlshaft_v4.STL
29 Ko · 456 téléchargements
-

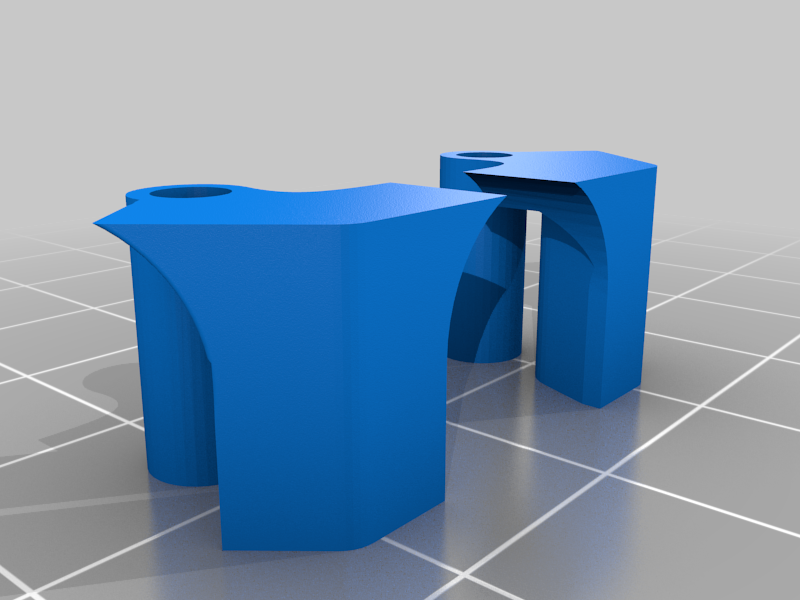

stlHandleHolder_inside.STL
98 Ko · 469 téléchargements
-

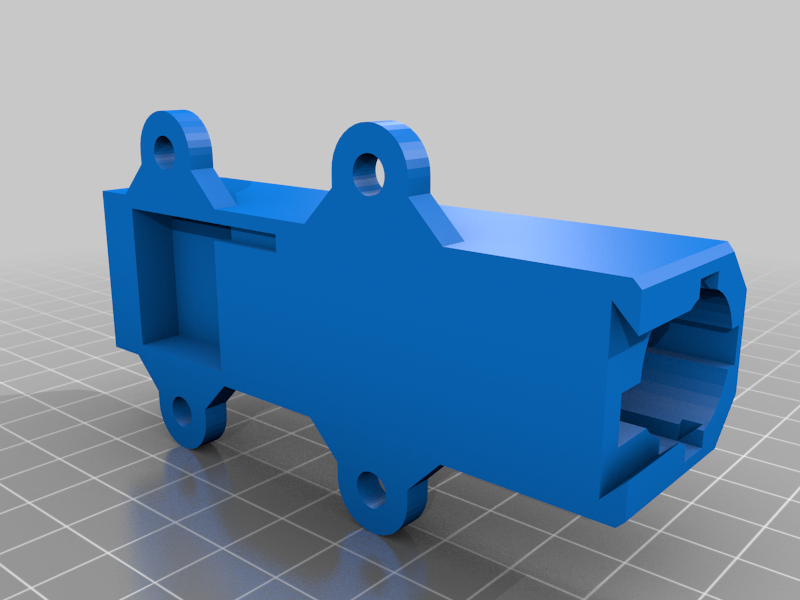

stlbody_v4.STL
72 Ko · 448 téléchargements
-

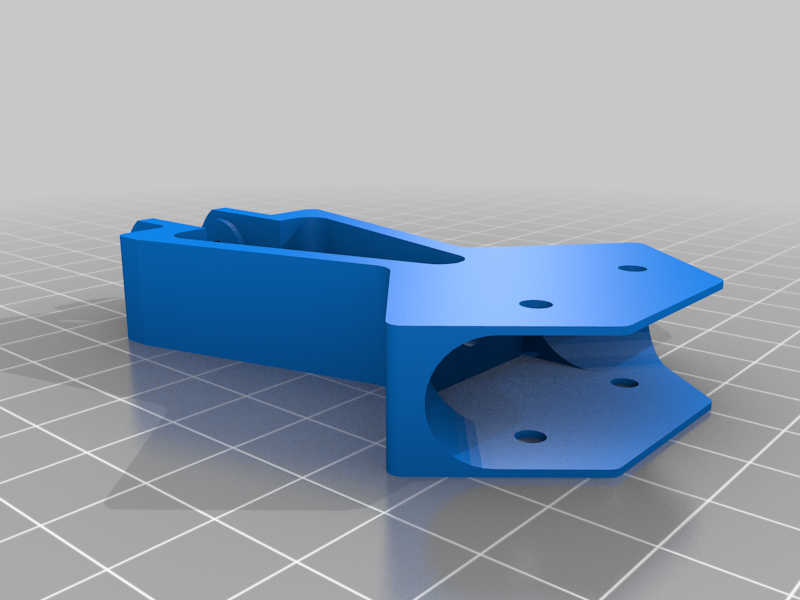

stlHandleHolder.STL
126 Ko · 461 téléchargements
-

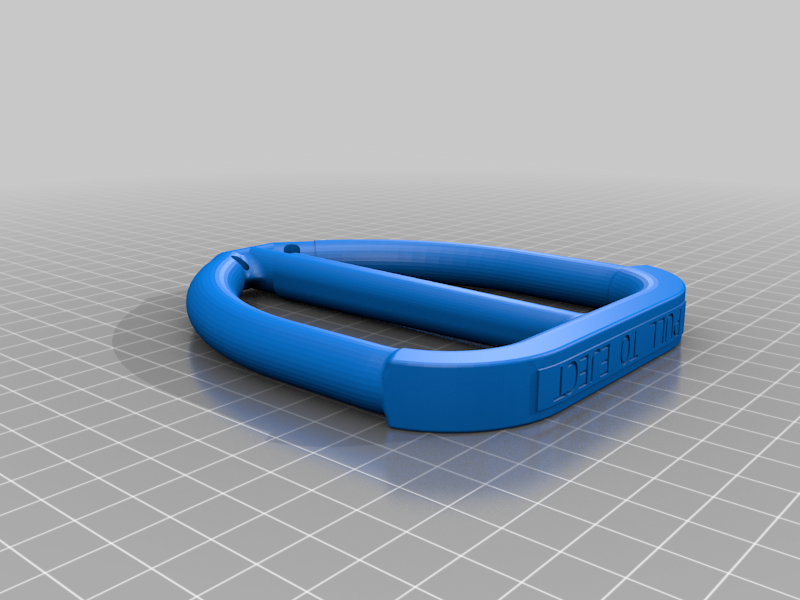

stlEjectionHandle.STL
809 Ko · 490 téléchargements
-

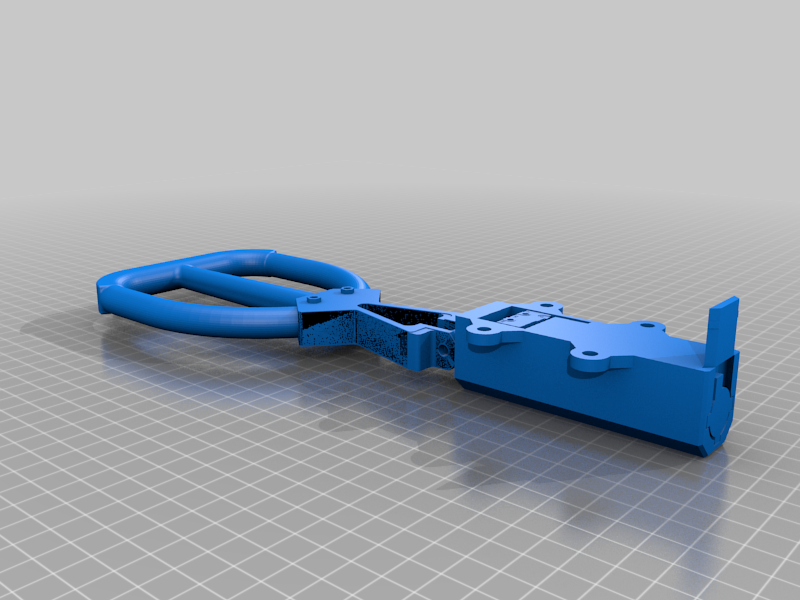

stlAssembly.STL
34.2 Mo · 460 téléchargements
Description
Custom made (3D printed, model), ejection handle spring mechanism. In this thing a limitswitch fits quite nicely, and can be easily interfaced to your favorite USB board (arduino, pscockpit and simialr).So to use it in your favorite flight simulator (Falcon BMS or DCS). The spring mechanism is quite simple, I'd suggest to print the handle with flexible filament.
Application examples:✓ Home cockpit ejection seat handle
Take a look to the video of the printed components.https://youtube.com/shorts/GgRN8MxqUi0?feature=share
More info on the projecthttps://giovannimedici.wordpress.com/2021/03/25/ejection-seat-handle-and-mechanism/
