AMD/Intel CPU Holders
par BenjiHoggi
Fichiers imprimables (16)
-
stlAMX-FMX_bottom_shell.stl
49 Ko · 497 téléchargements
-
stepAMX-FMX_top_shell.step
200 Ko · 375 téléchargements
-
stlAMX-FMX_top_shell.stl
49 Ko · 486 téléchargements
-
step
AMX-FMX_bottom_shell.step
208 Ko · 372 téléchargements
-
stlLGA775-LGA115X_top_shell.stl
76 Ko · 588 téléchargements
-
stlLGA775-LGA115X_bottom_shell.stl
73 Ko · 595 téléchargements
-
step
LGA775-LGA115X_top_shell.step
297 Ko · 377 téléchargements
-
step
LGA775-LGA115X_bottom_shell.step
293 Ko · 379 téléchargements
-
stlLGA1366_bottom_shell.stl
103 Ko · 474 téléchargements
-
stlLGA1366_top_shell.stl
104 Ko · 469 téléchargements
-
step
LGA1366_bottom_shell.step
343 Ko · 370 téléchargements
-
step
LGA1366_top_shell.step
340 Ko · 371 téléchargements
-
stlLGA2011-3_bottom_shell.stl
83 Ko · 497 téléchargements
-
step
LGA2011-3_bottom_shell.step
317 Ko · 373 téléchargements
-
stlLGA2011-3_top_shell.stl
95 Ko · 495 téléchargements
-
step
LGA2011-3_top_shell.step
336 Ko · 374 téléchargements
Description

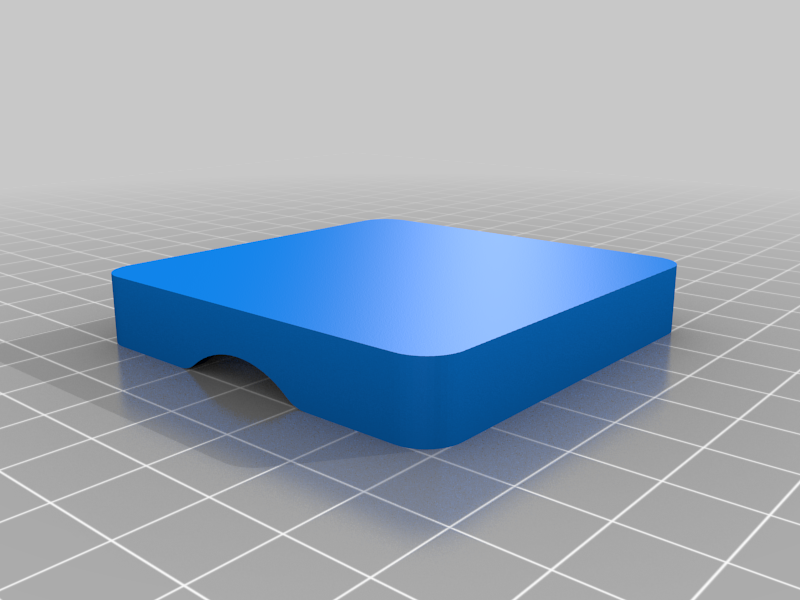

CPU Holders! Keep your CPUs organized by printing the appropriate shells for your CPUs! CPU socket name is printed into the inside of the top shell.
Modeling isn't top-notch but I did try to get a friction fit between the top and bottom shells so that they'd stay together but wouldn't be hard to open.
Currently supported sockets. Tested CPUs have been listed after. Will make/test more when I get them.

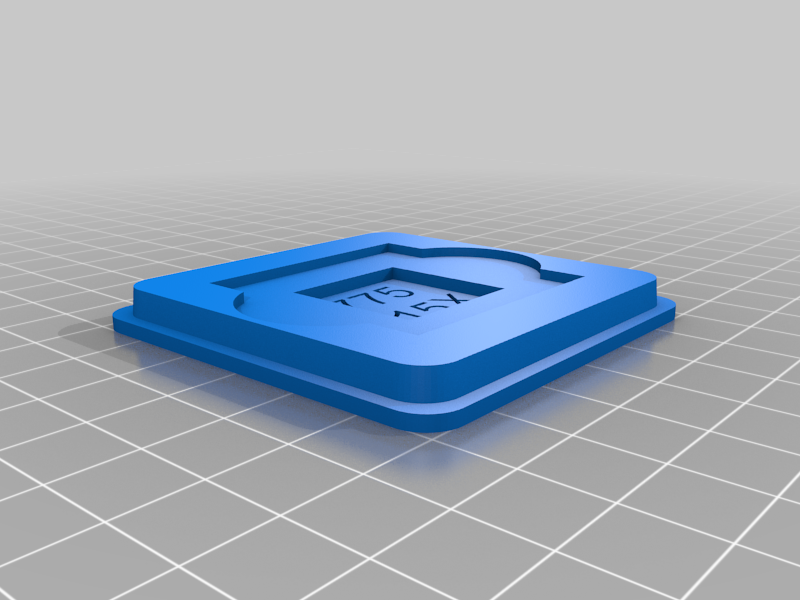

- LGA115X: 1150, 1151, 1155, 1156
- LGA77X: 775

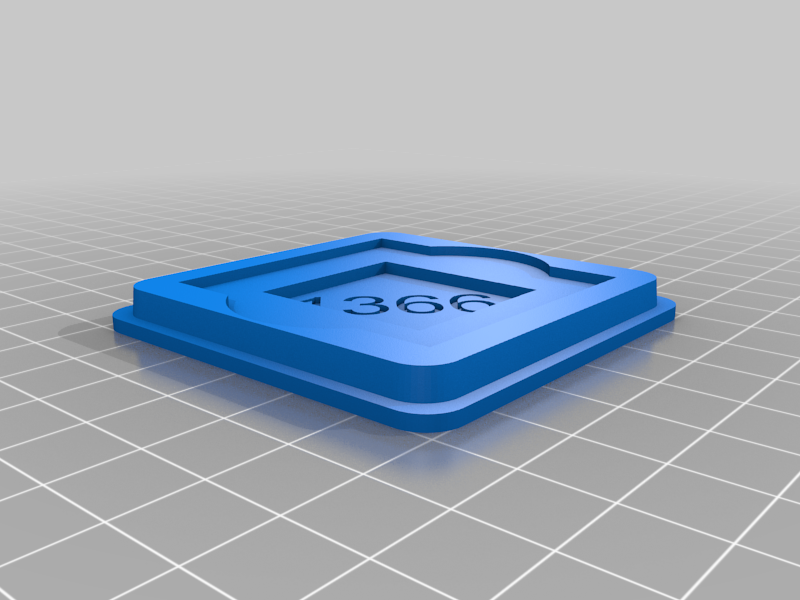

- LGA1366: 1366

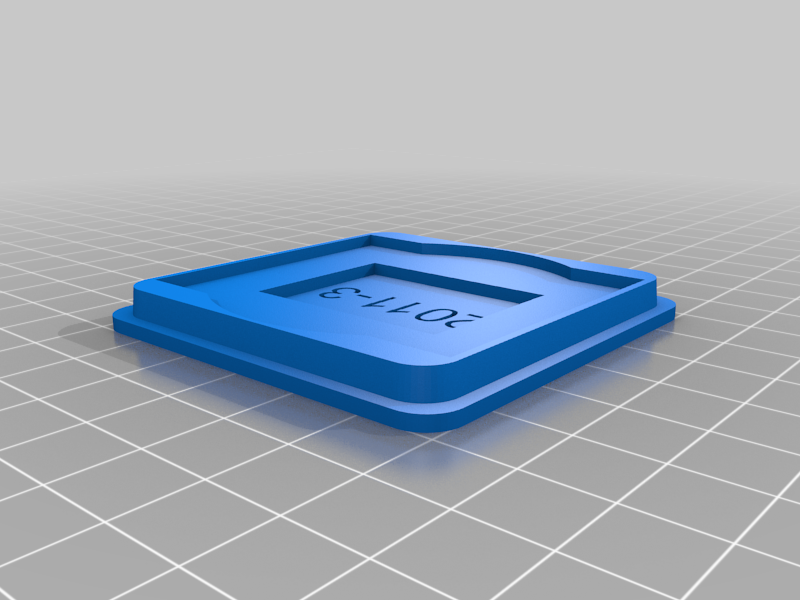

- LGA2011-X: LGA2011-3

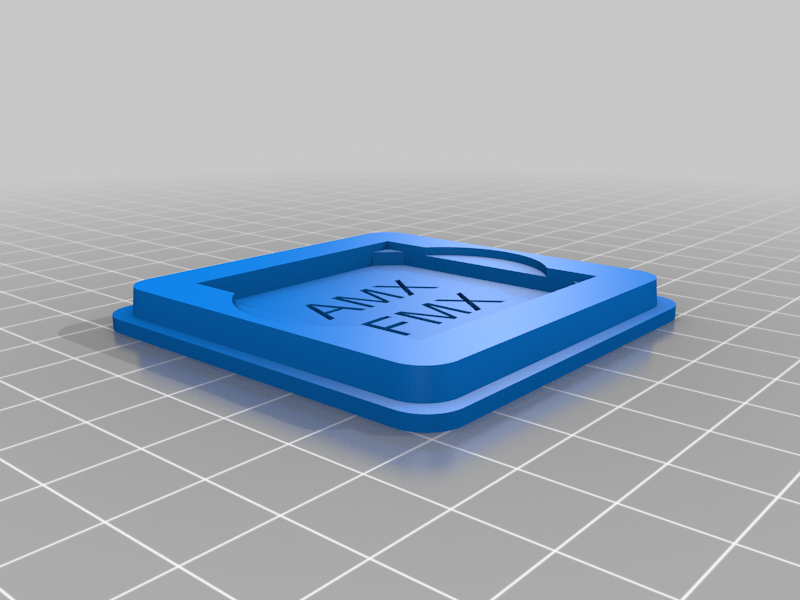

- AMX: AM2, AM2+, AM3, AM3+
- FMX: FM2, FM2+
Current in progress is a stackable holder tray for 9 of these shells. The part is designed but not printed so I don't know if it's good yet. Haven't printed because it's quite large.
if you would like to try to print the tray, send me a message and I'll give it a print and make adjustments as necessary...or I can just send you an STL if you want to risk it :)
