2DX3: Microprocessor and Hardware Case
par DSP_Printing
Fichiers imprimables (5)
-

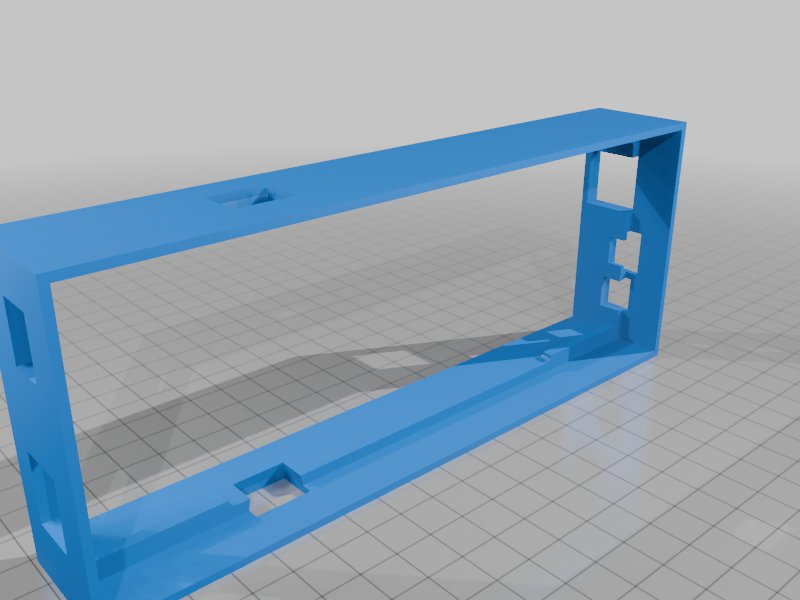

stlti_EXP432E401Y_top.stl
30 Ko · 3 téléchargements
-

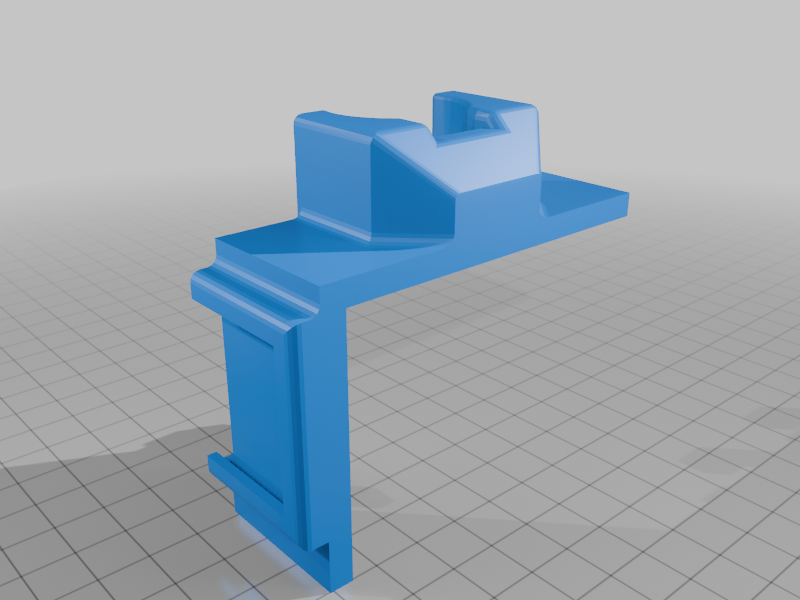

stlti_EXP432E401Y_steppermotor_v2.stl
48 Ko · 2 téléchargements
-

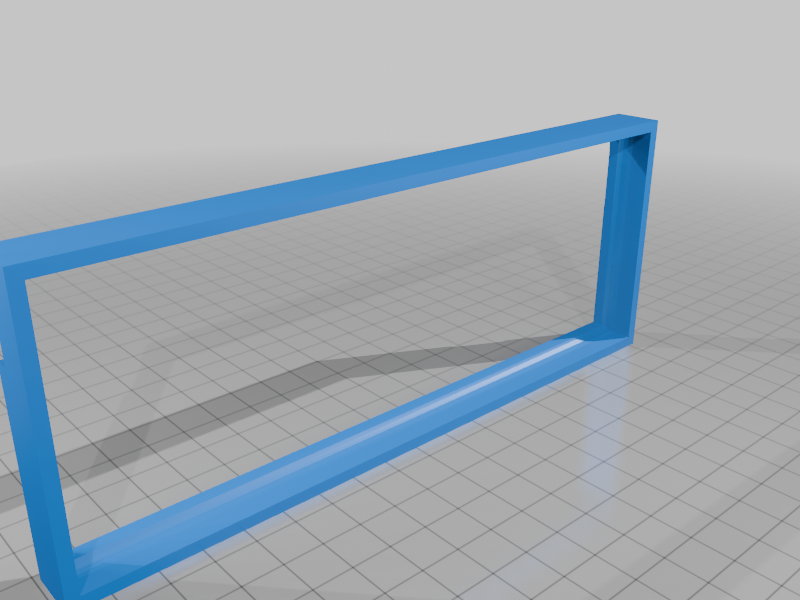

stlti_EXP432E401Y_bottom.stl
8 Ko · 2 téléchargements
-

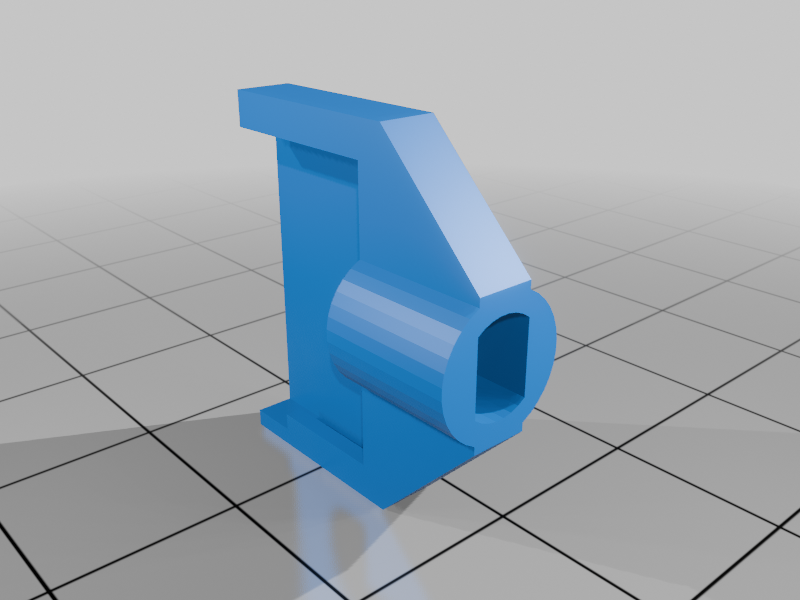

stl28byj_48_stepper_irs11a_0j9776_tof_key.stl
13 Ko · 2 téléchargements
-

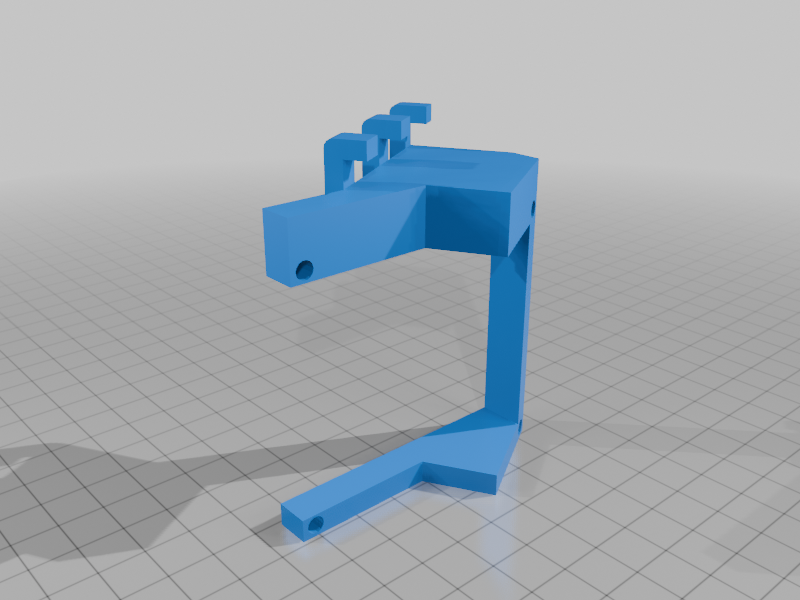

stlti_EXP432E401Y_keypad.stl
23 Ko · 2 téléchargements
Description
This case is designed for COMPENG 2DX3: Microprocessor Systems Project at McMaster University
Print with PLA plastic with no supports are needed fo most of the files
Only the stepper motor mount and keypad will need supports.
The keypad is a work in progress and optional.
ti_EXP432E401Y
