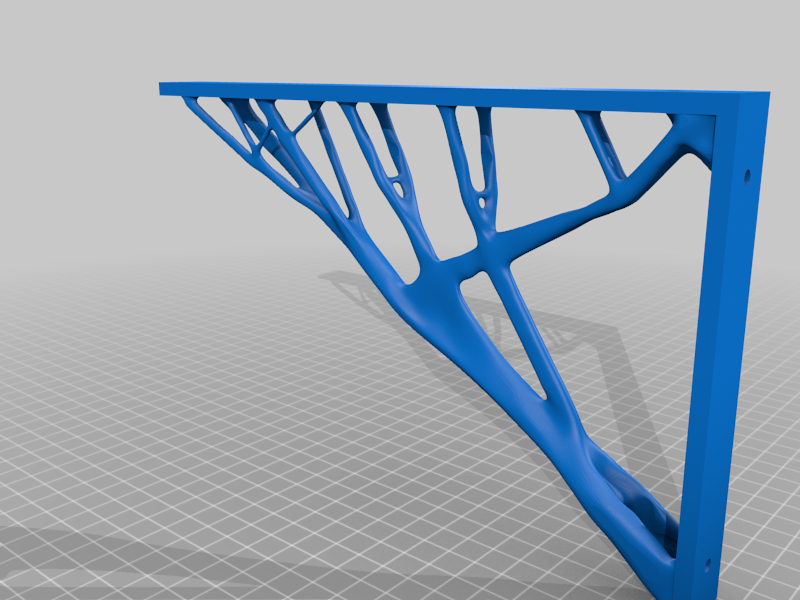

Generative Design Shelf Bracket

par PILED

Fichiers imprimables (22)

Description

I used Fusion 360 generative design to create these 21 generations.

See how it was designed and download 3 other sets of generations here https://piledltd.co.uk/generative-design-shelf-bracket-tutorial/

I have included the F3D file and every generation as an F3D and 3MF and details about each generation as a PDF and CSV.

Download more generative design: https://cults3d.com/en/design-collections/PILED/generative-design

See how it was designed in my tutorial
https://youtu.be/cBbt7UIjKvs

All of my functional 3D models are available on Thangs.com
https://thangs.com/designer/PILED
Visit https://piledltd.co.uk/ for more

Tags

#algorithm #angle bracket #Artificial Intel #bracket #element #FEA #finite #generative #generative design #mounting bracket #organic #Organic Modeling #procedural #shelf #shelf bracket #shelf support #Topology Optimization #Topology Optimized #tree
