Microstructures: Pattern0050 0.5mm cell

par qnzhou

Fichiers imprimables (2)

  • obj

    pattern0050_5mm.obj

    15.3 Mo · 1 528 téléchargements

    Télécharger
  • obj

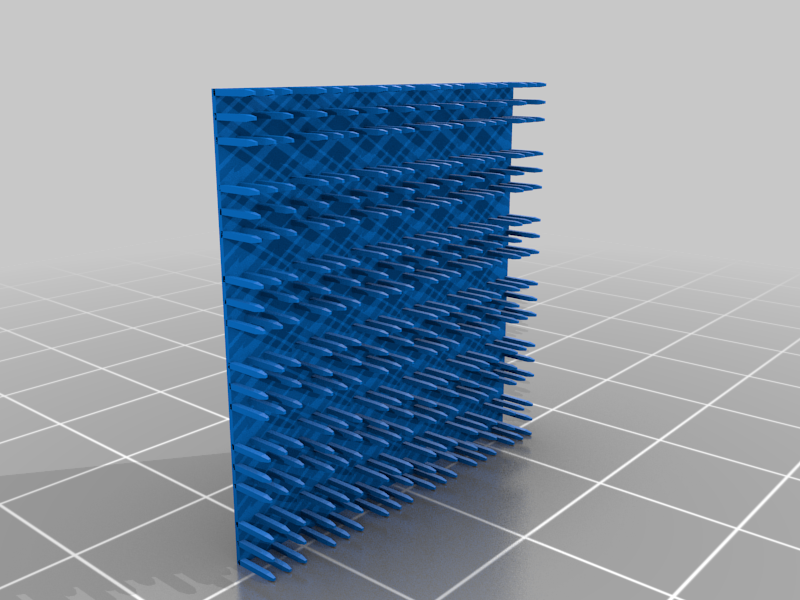

    pattern0050_5mm_support.obj

    708 Ko · 1 338 téléchargements

    Télécharger

Description

This is one of the patterns we found from our topological sweep algorithm. It does not have a name, so we call it using its index: pattern0050. It is quite soft. It is a 6x6x6 tiling with 5mm cells.

Video: https://youtu.be/OVwNiaZ6kt0

Clarification: This pattern is known to be anisotropic, and it is not one of the final selected 6 elastic textures we proposed on "Elastic Textures" paper published in Siggraph 2015. It is purely designed to test the printers' capability of printing microstructures.

Tags

#geometry #microstructures
