3D Scanner

door mithumor

Printbare bestanden (4)

  • stl

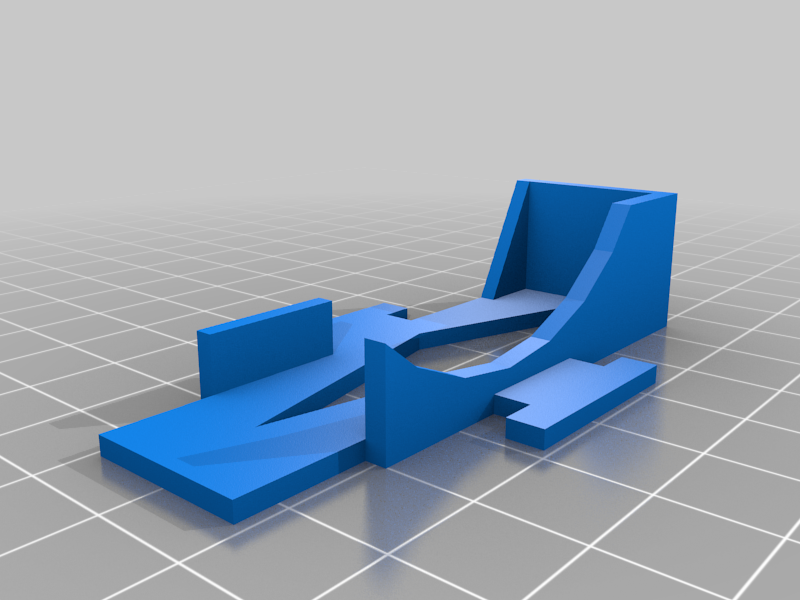

    3d-scanner-cam-holder-07_fixed.stl

    11 Ko · 1 076 downloads

    Downloaden
  • stl

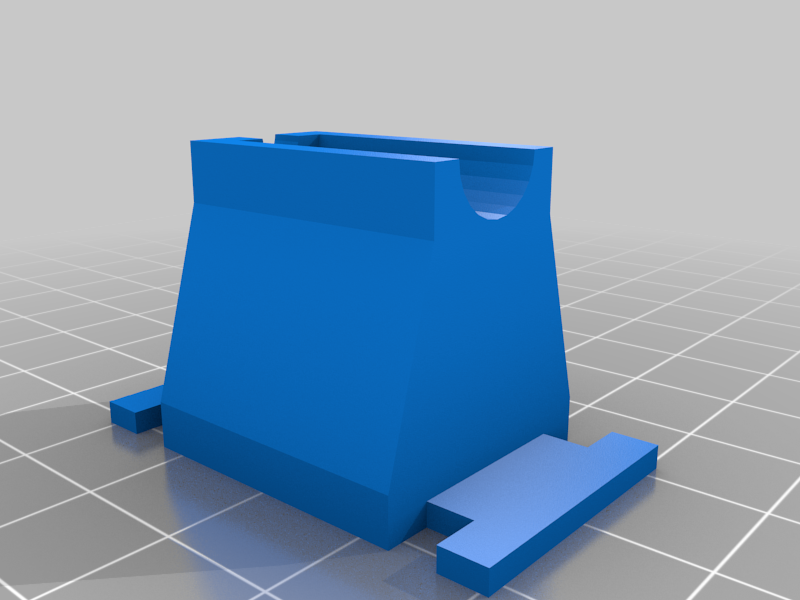

    3d-scanner-laser-holder-06_fixed.stl

    20 Ko · 1 079 downloads

    Downloaden
  • stl

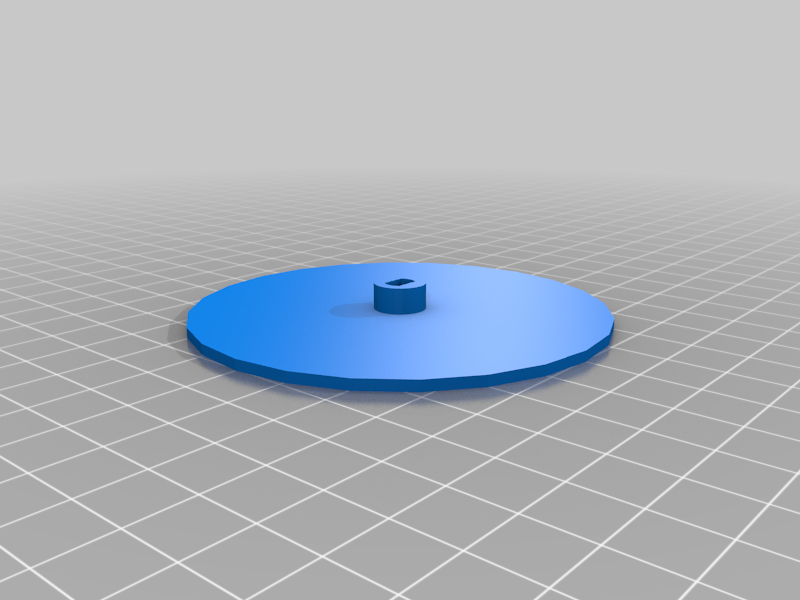

    3d-scanner-plate-05_fixed.stl

    32 Ko · 1 103 downloads

    Downloaden
  • stl

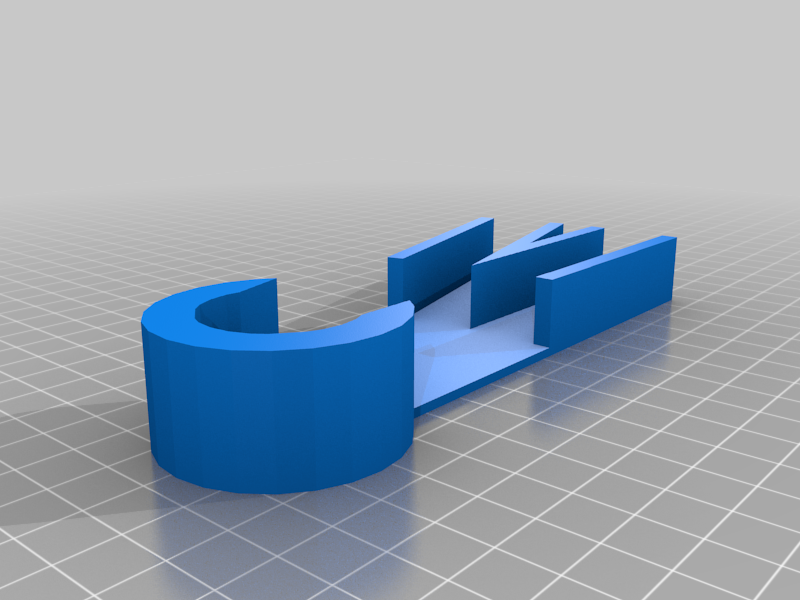

    3d-scanner03_fixed.stl

    16 Ko · 1 077 downloads

    Downloaden

Beschrijving

Goal of this little project is to create a little 3D Scanner based on Arduino for under 20 USD.

This project has been inspired by this project:
http://www.instructables.com/id/Lets-cook-3D-scanner-based-on-Arduino-and-Proces/?ALLSTEPS

Since I have a 3D Printer, I have made my own design for the turn table, the laser and camera holder.

See the ODT (Libre Office Document) for instructions. The Sketchup File, Arduino and Java Source Code is uploaded too.

Tags

#3D scanner #arduino
