Basic Parametric Button
door dablackwood
Printbare bestanden (3)
-
stlsmall_button.stl
45 Ko · 277 downloads
-
stlsmall_button_spaced_out.stl
59 Ko · 294 downloads
-
stlbig_button.stl
46 Ko · 281 downloads
Beschrijving
January 7
This is a basic Grasshopper definition for a four-hole button. (Easily modified for two holes by changing the rotation parameters.) Change the diameter, thickness, hole size, hole position, and face profile.

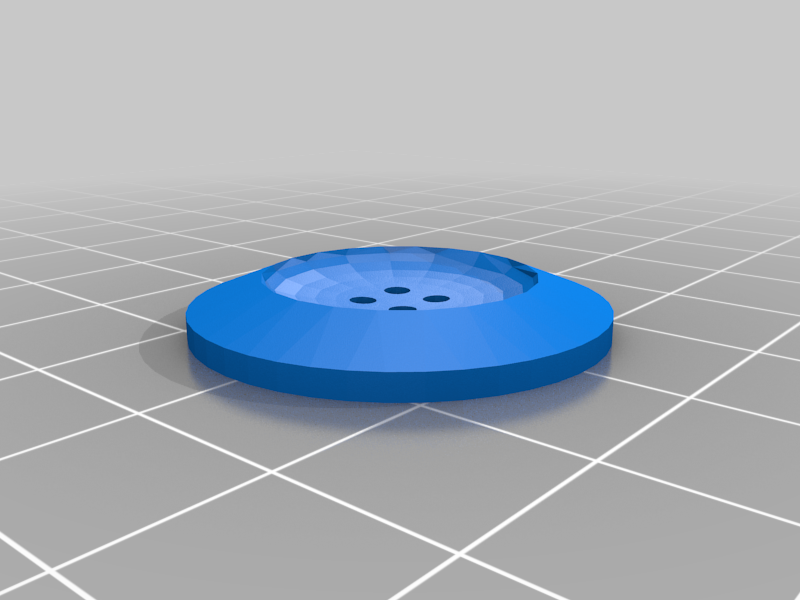

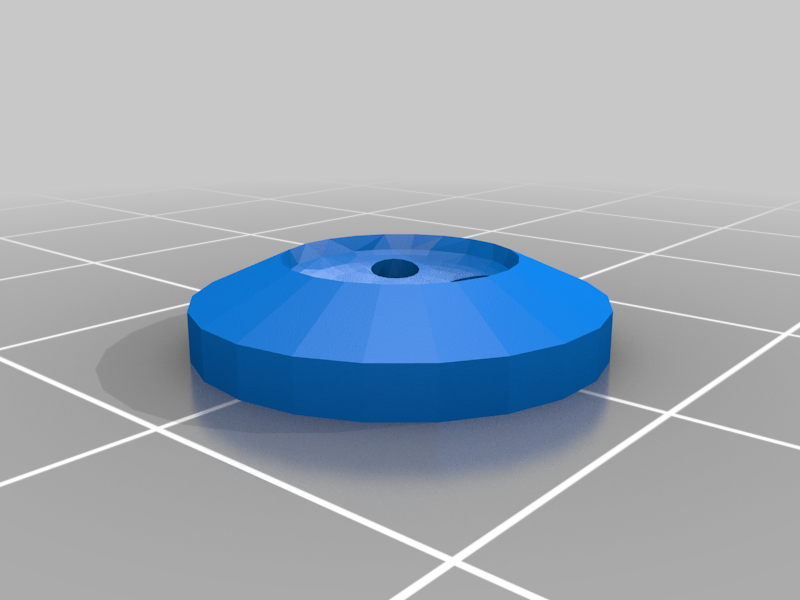

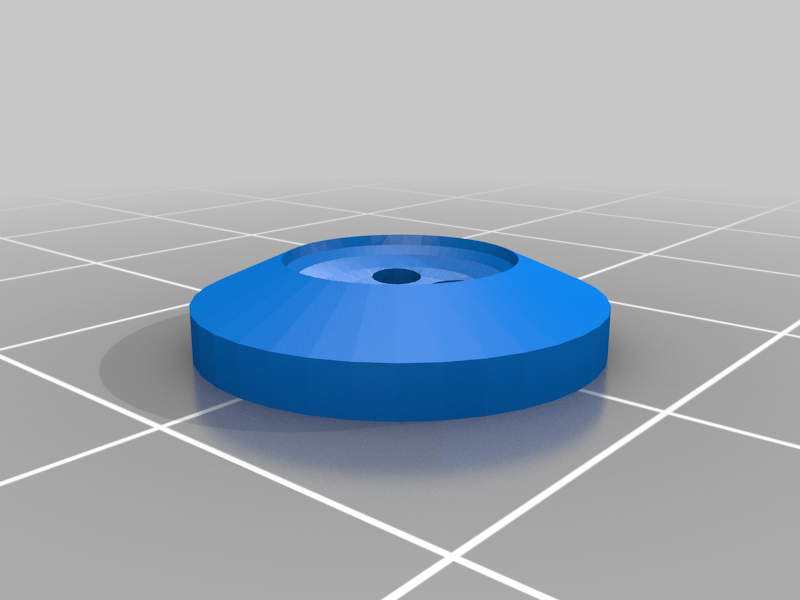

I've also included a few examples of buttons that can be made. Be sure to allow enough spacing between the holes to get a strong connection from inside to outside (this can be checked when slicing).
This is for Pittsburgh's Fun a Day, 2017.
