Educational Jet Engine Prototype
door brennanclark1213
Printbare bestanden (43)
-

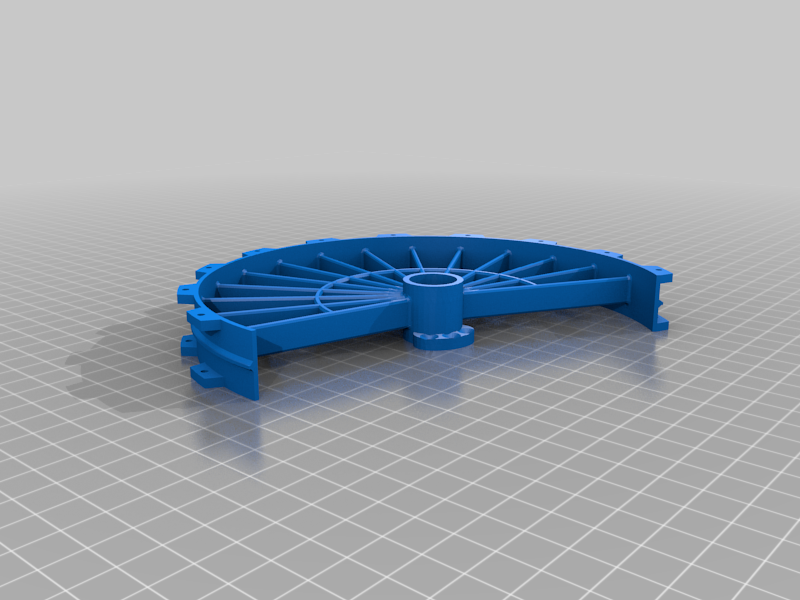

stl002_f_support_1.stl
2.2 Mo · 290 downloads
-

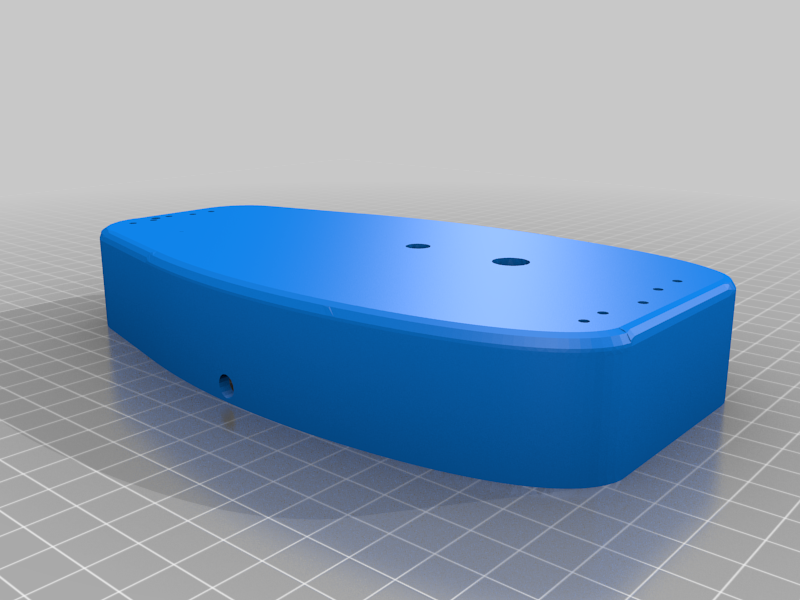

stl001_base_1.stl
1.6 Mo · 287 downloads
-
stl001_base_2.stl
1.6 Mo · 287 downloads
-

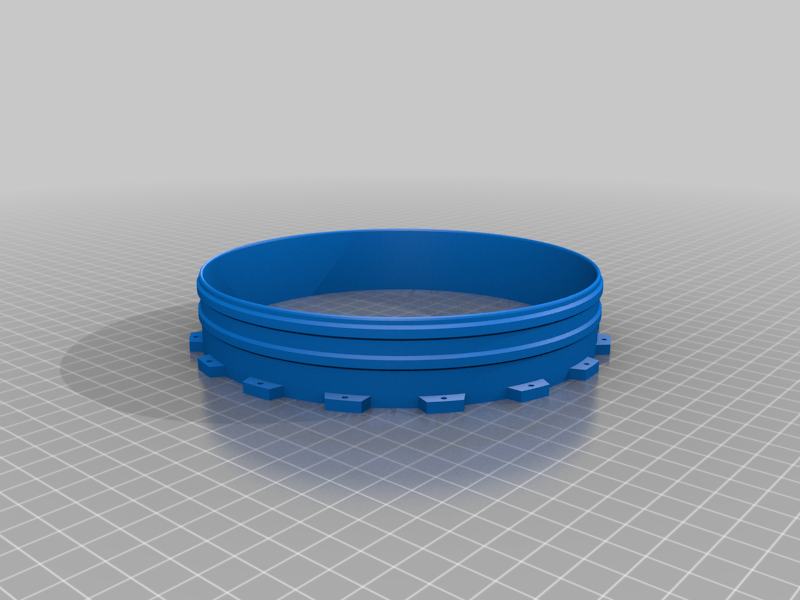

stl004_f_housing_1.stl
599 Ko · 285 downloads
-

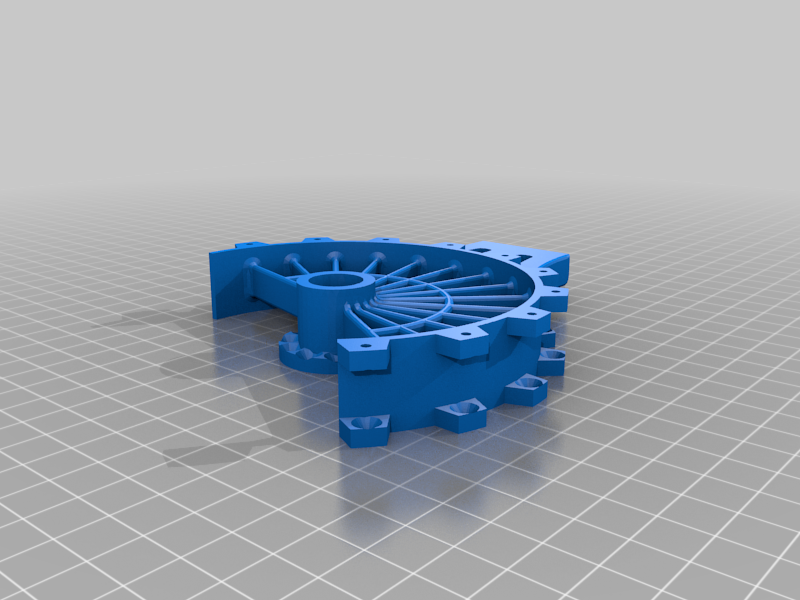

stl003_r_support_1.stl
1.6 Mo · 284 downloads
-

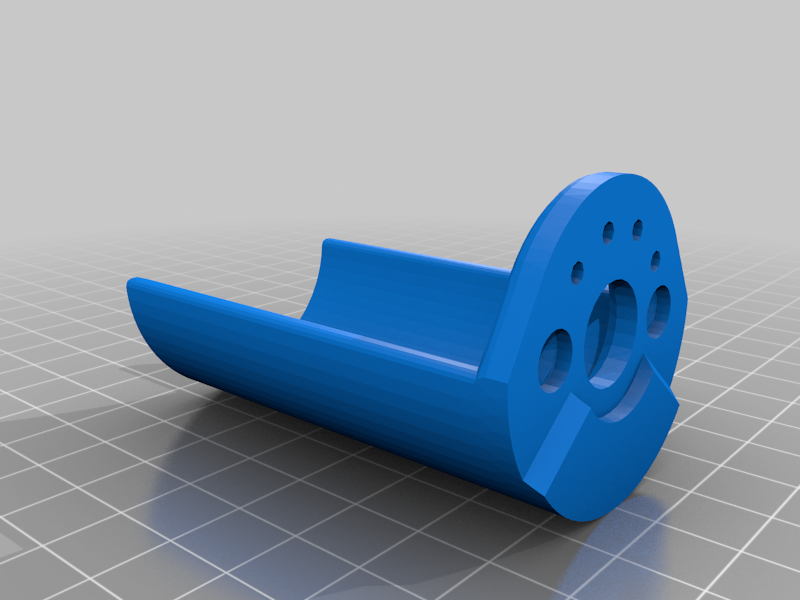

stl009_m_housing_1.stl
407 Ko · 285 downloads
-
stl005_compressor_housing_1.stl
922 Ko · 287 downloads
-

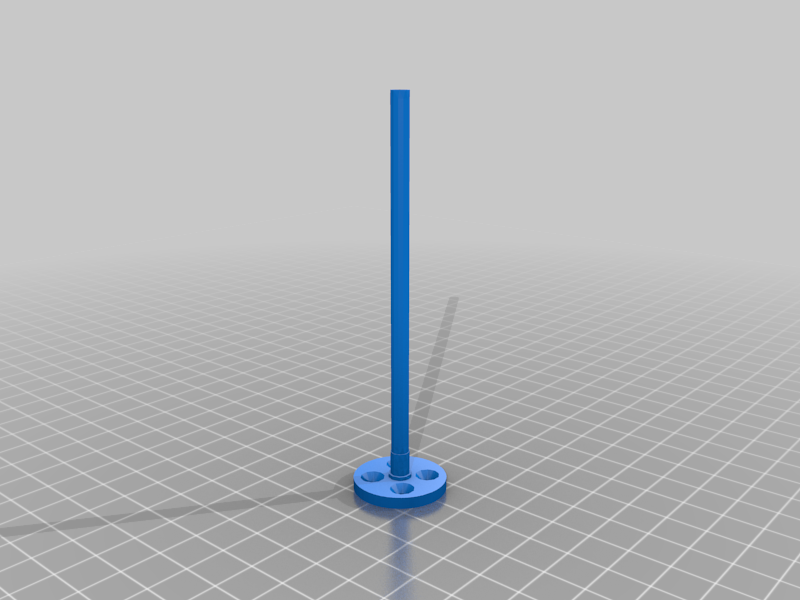

stl011_f_shaft_1.stl
112 Ko · 284 downloads
-

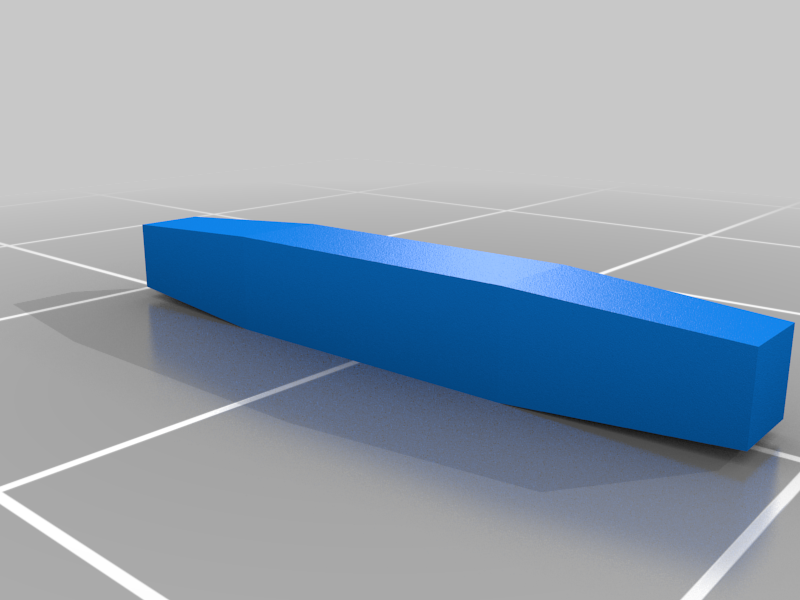

stl013_connector_1.stl
82 Ko · 283 downloads
-

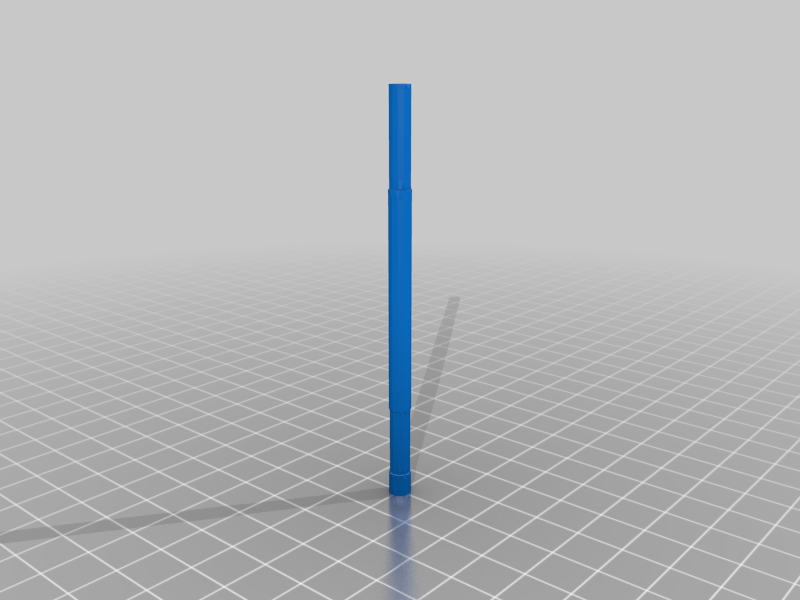

stl012_r_shaft_1.stl
72 Ko · 283 downloads
-
stl013_connector_2.stl
65 Ko · 284 downloads
-

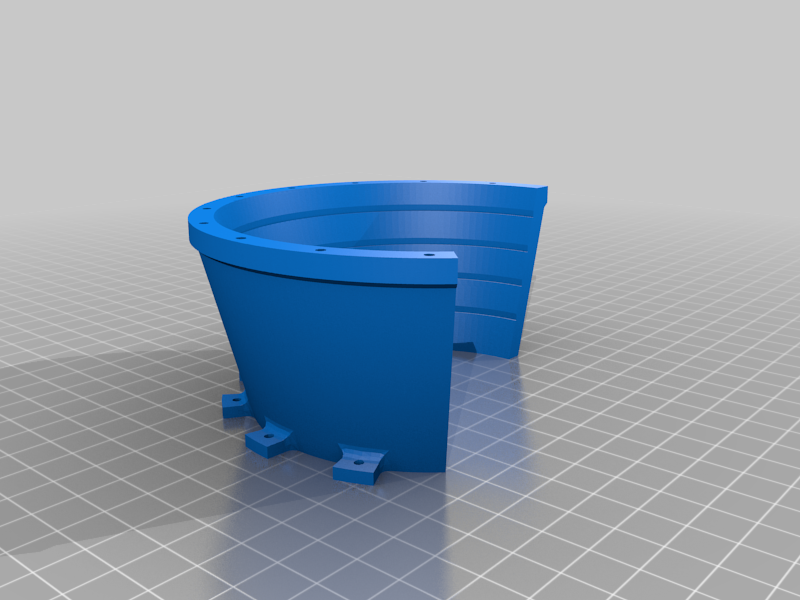

stl007_t_housing_1.stl
918 Ko · 286 downloads
-

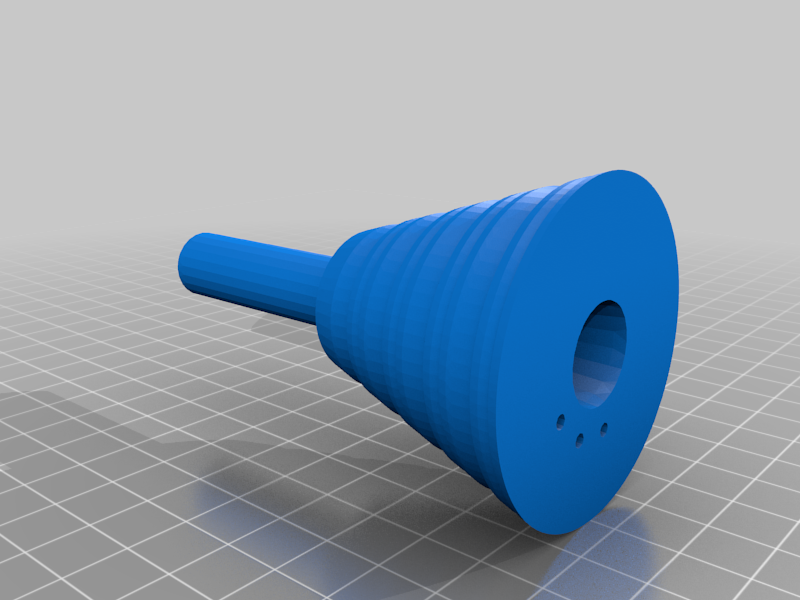

stl014_f_shaft_cover_1.stl
529 Ko · 283 downloads
-

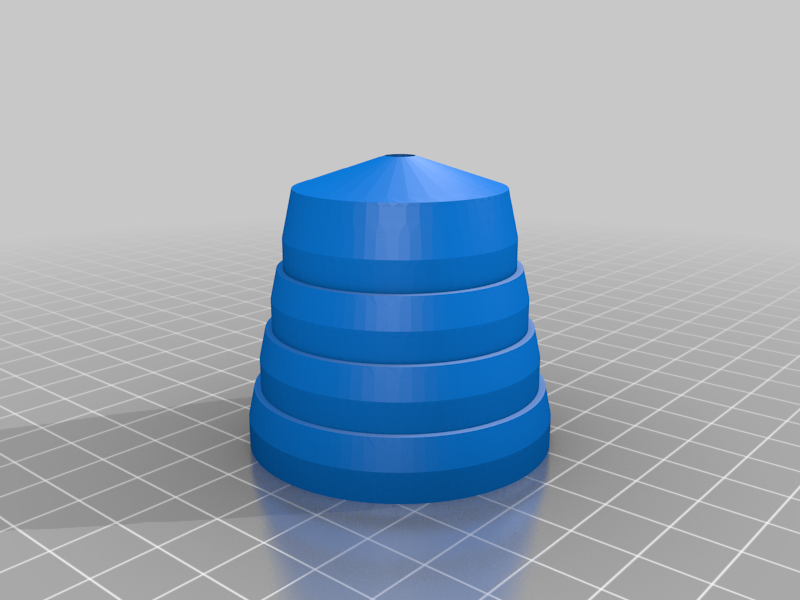

stl015_r_shaft_extension_1.stl
388 Ko · 284 downloads
-

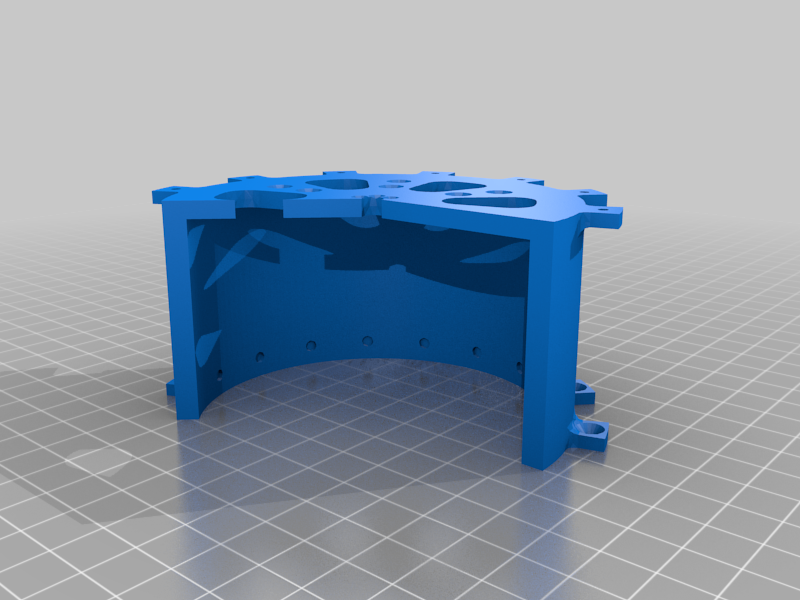

stl006_combustor_housing_1.stl
910 Ko · 283 downloads
-

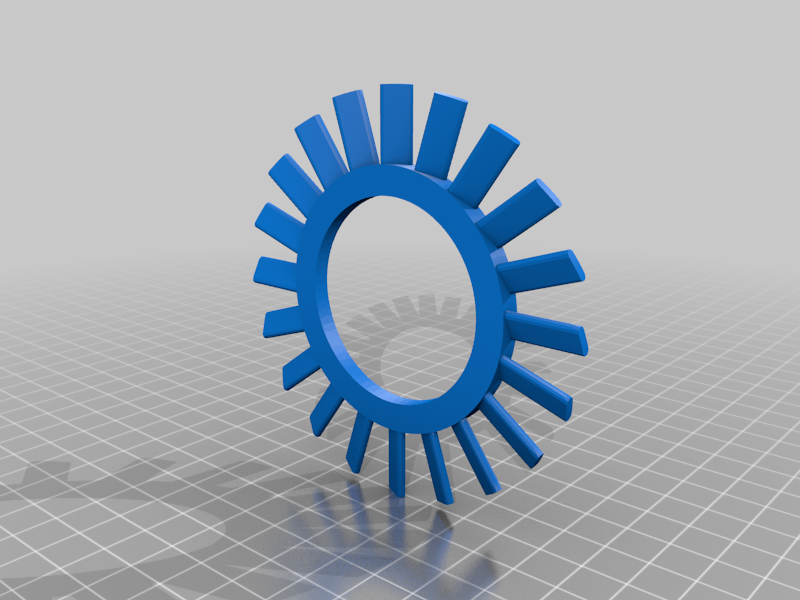

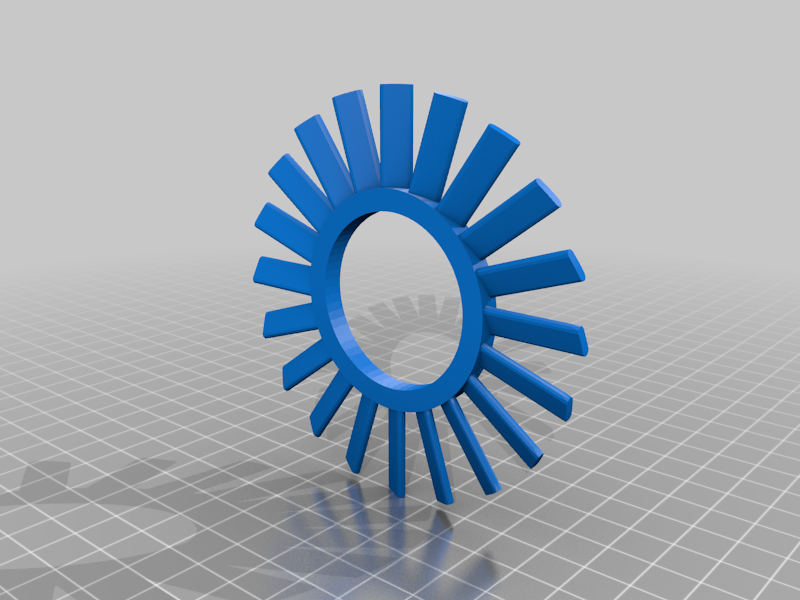

stl019_lc_fan_2_1.stl
583 Ko · 284 downloads
-

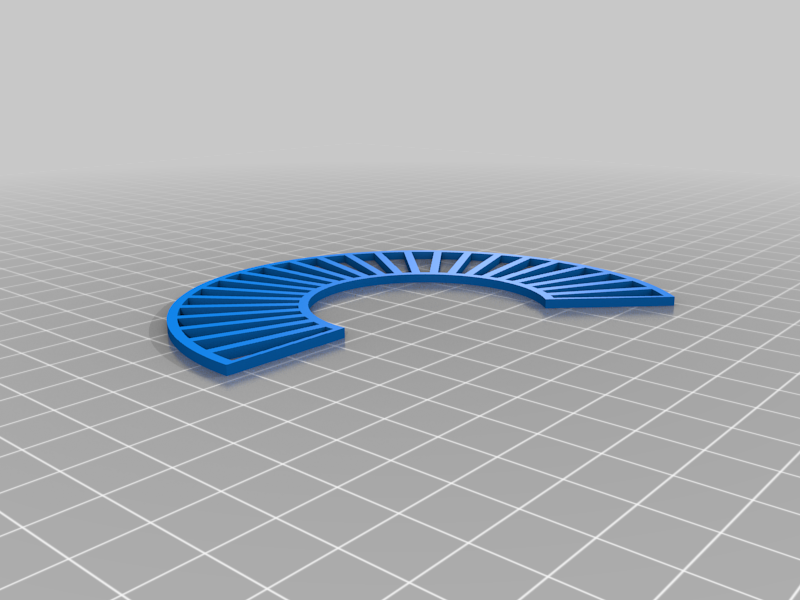

stl022_lowc_stator_2_2.stl
391 Ko · 286 downloads
-
stl027_highc_stator_1_2.stl
376 Ko · 284 downloads
-

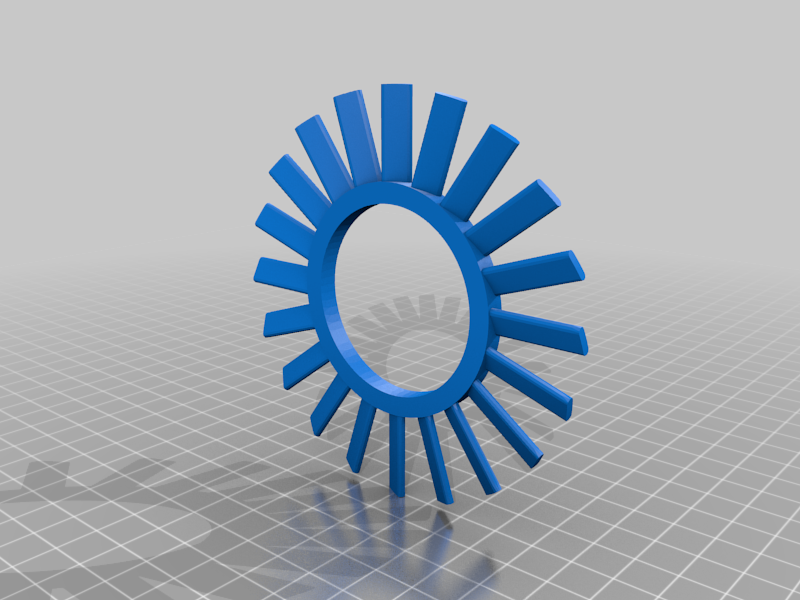

stl018_lc_fan_1_1.stl
613 Ko · 285 downloads
-

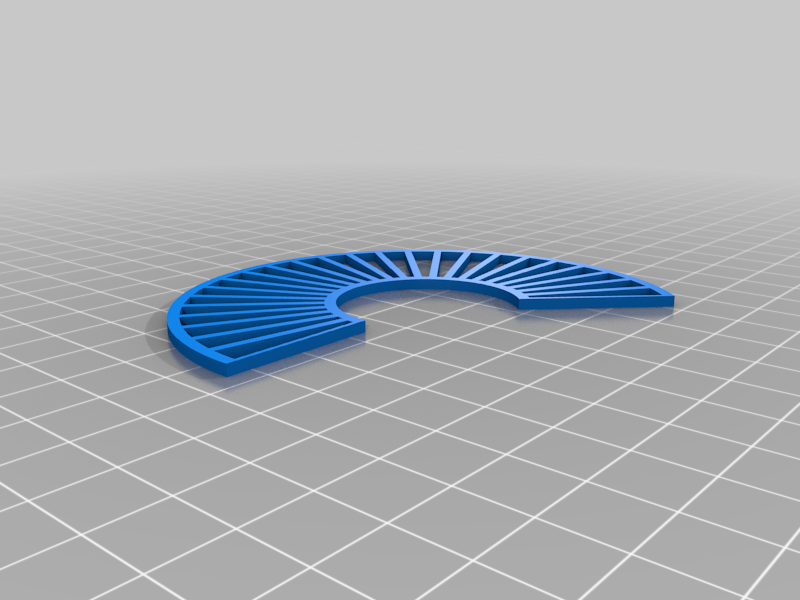

stl028_highc_stator_2_2.stl
363 Ko · 284 downloads
-
stl017_fan_1.stl
2.8 Mo · 296 downloads
-
stl021_lowc_stator_1_2.stl
412 Ko · 284 downloads
-

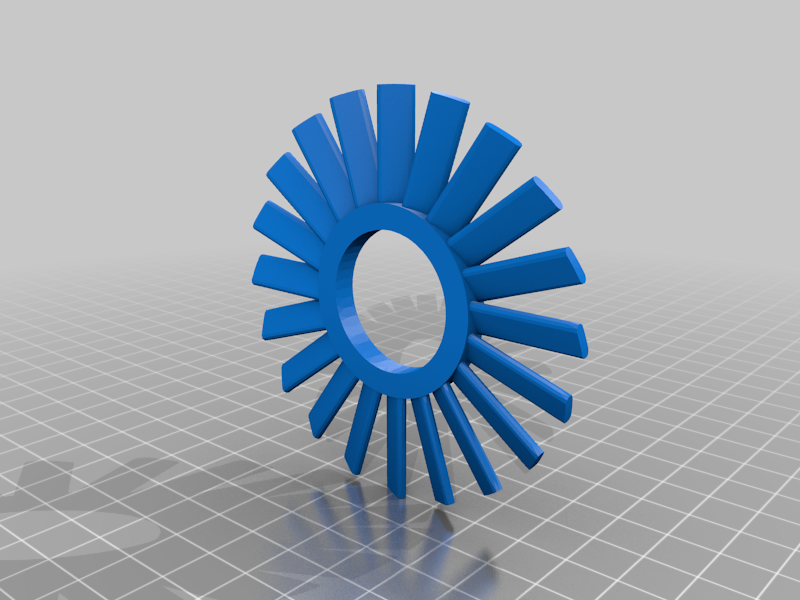

stl025_hc_fan_2_1.stl
555 Ko · 286 downloads
-

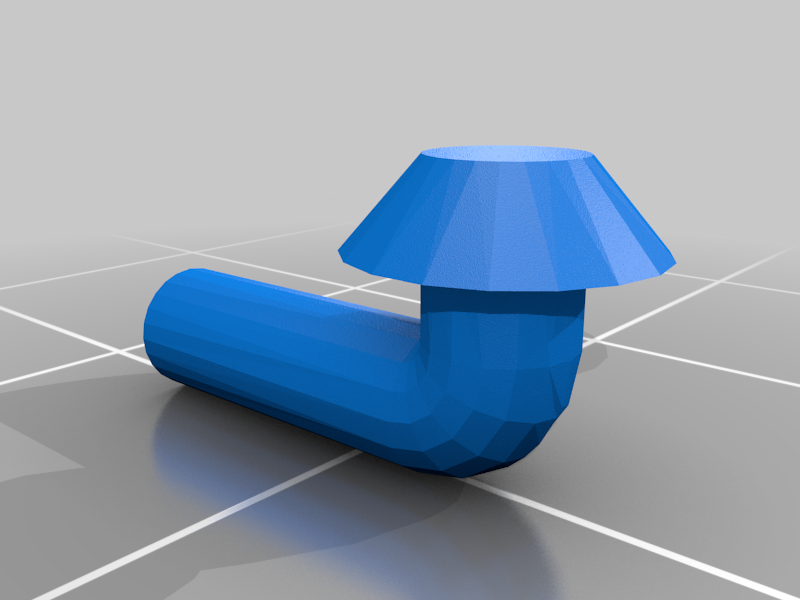

stl031_injector_2.stl
16 Ko · 283 downloads
-

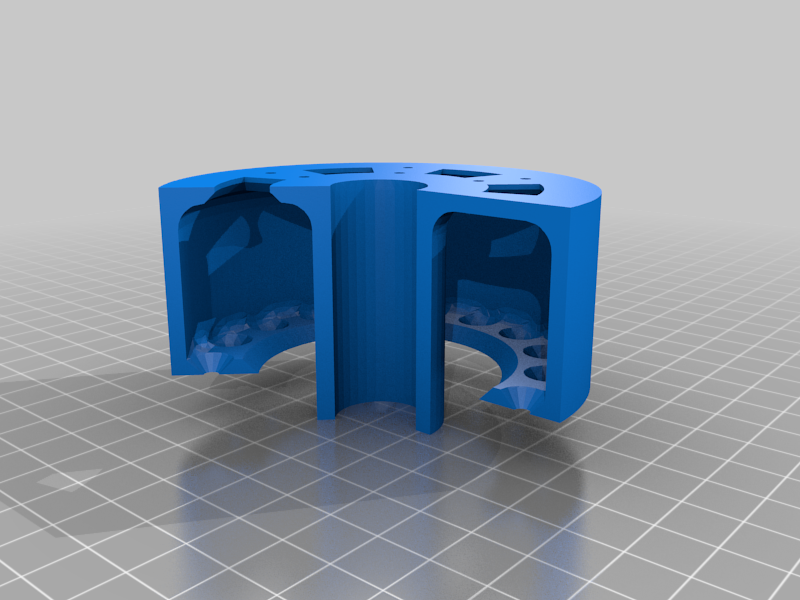

stl030_combustor_1.stl
746 Ko · 285 downloads
-

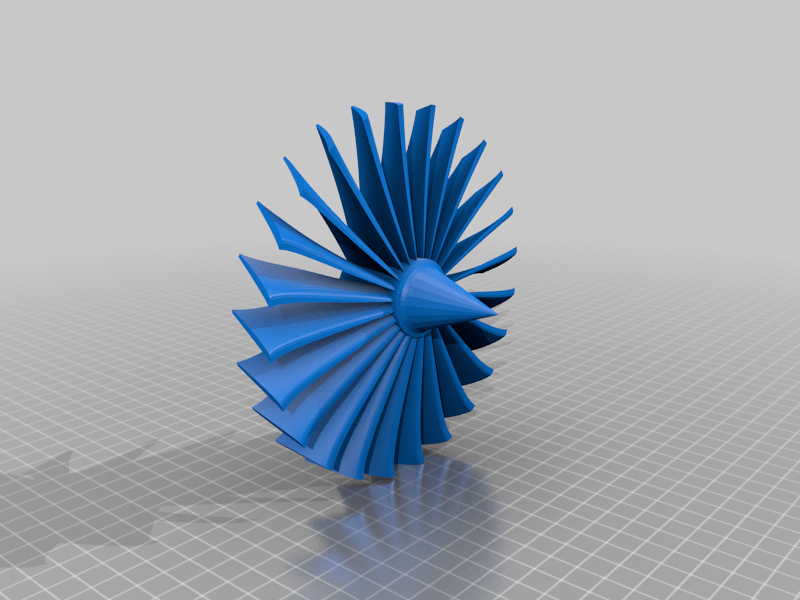

stl017_fan_2.stl
2.6 Mo · 286 downloads
-
stl024_hc_fan_1_1.stl
570 Ko · 283 downloads
-

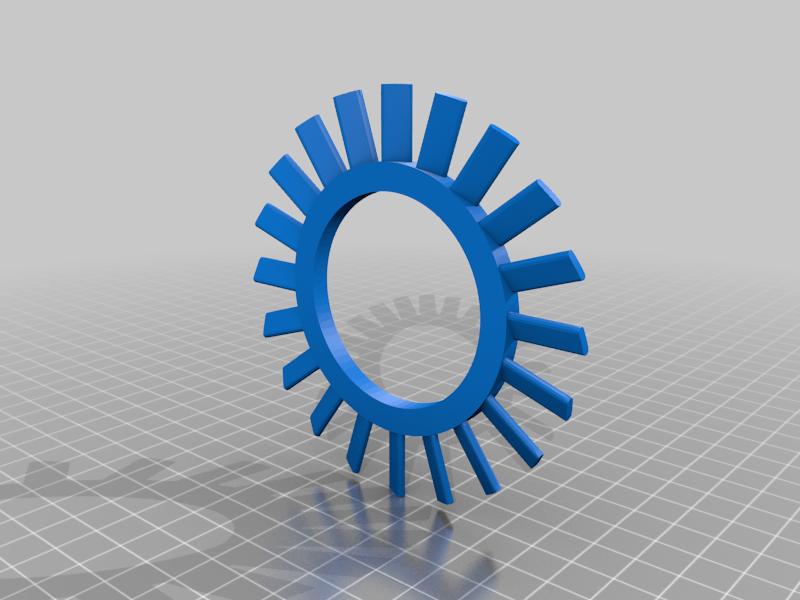

stl035_t_fan_4_1.stl
567 Ko · 283 downloads
-

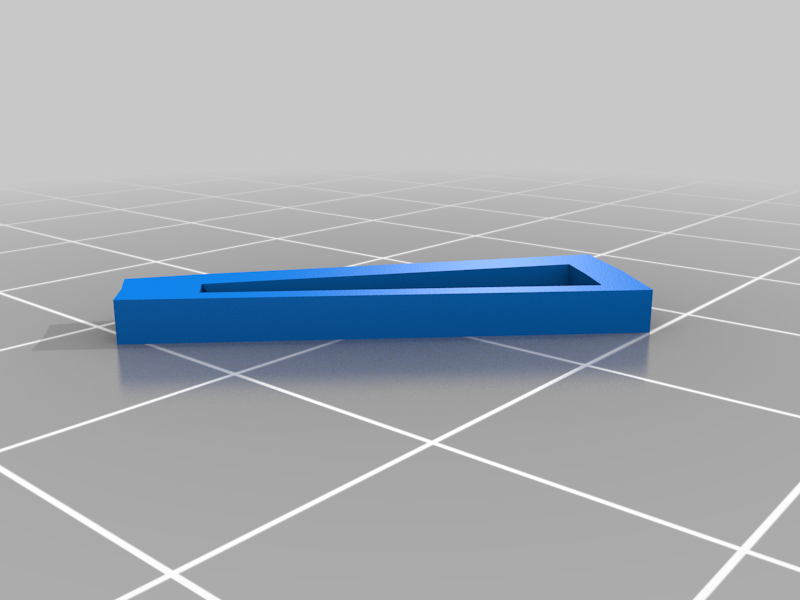

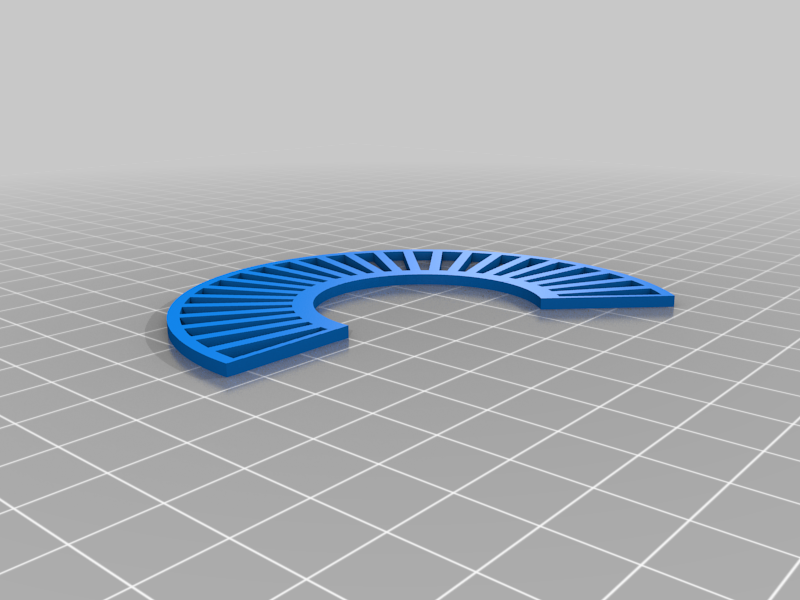

stl036_t_stator_1_2.stl
348 Ko · 285 downloads
-
stl036_t_stator_1_3.stl
3 Ko · 284 downloads
-
stl034_t_fan_3_1.stl
552 Ko · 284 downloads
-
stl037_t_stator_2_3.stl
3 Ko · 283 downloads
-
stl038_t_stator_3_3.stl
3 Ko · 286 downloads
-

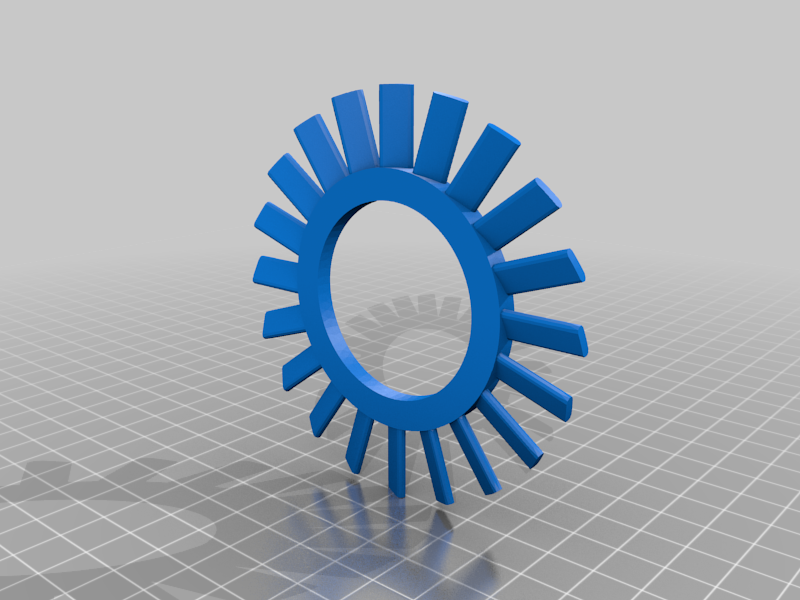

stl033_t_fan_2_1.stl
535 Ko · 286 downloads
-

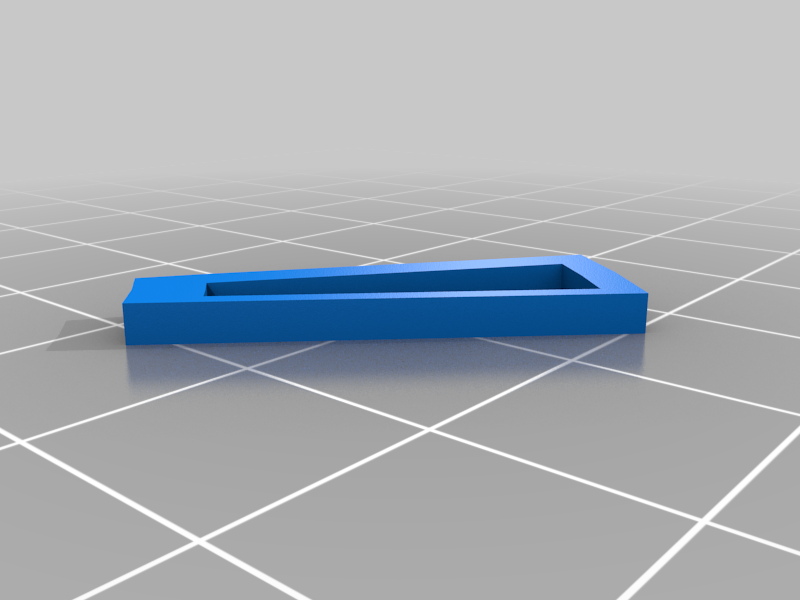

stl039_t_stator_4_3.stl
3 Ko · 289 downloads
-

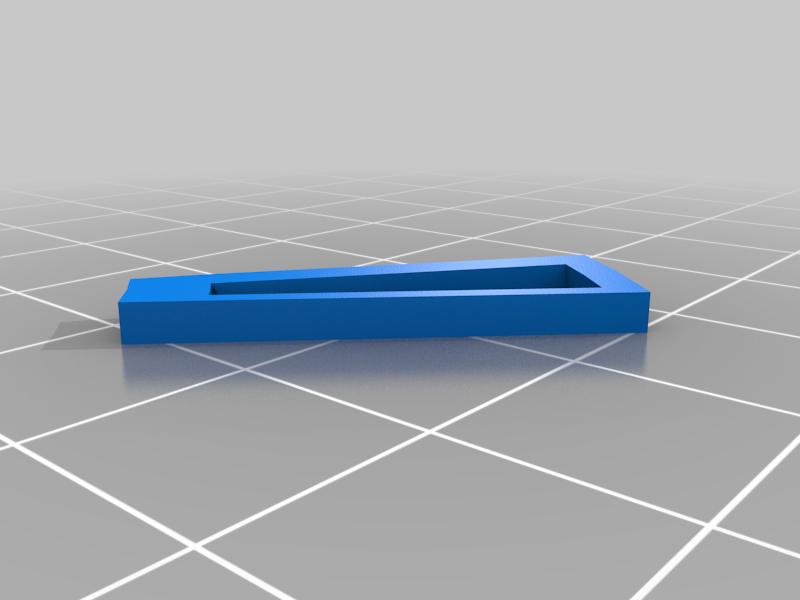

stl038_t_stator_3_2.stl
362 Ko · 285 downloads
-

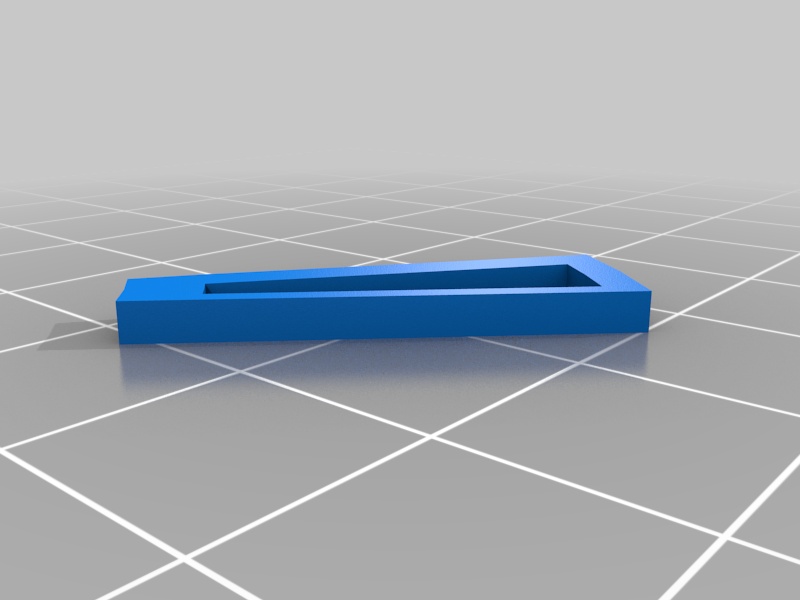

stl037_t_stator_2_2.stl
347 Ko · 285 downloads
-

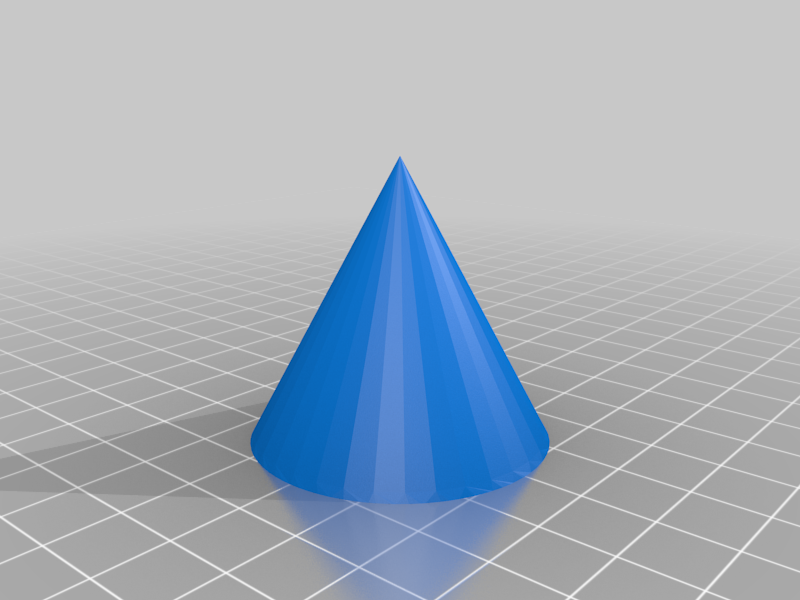

stl040_nozzle_1.stl
139 Ko · 283 downloads
-

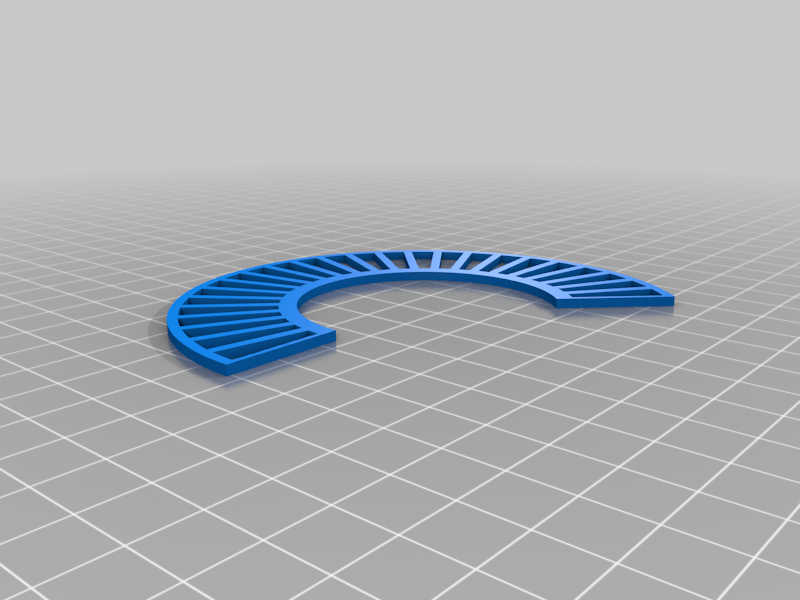

stl039_t_stator_4_2.stl
366 Ko · 284 downloads
-

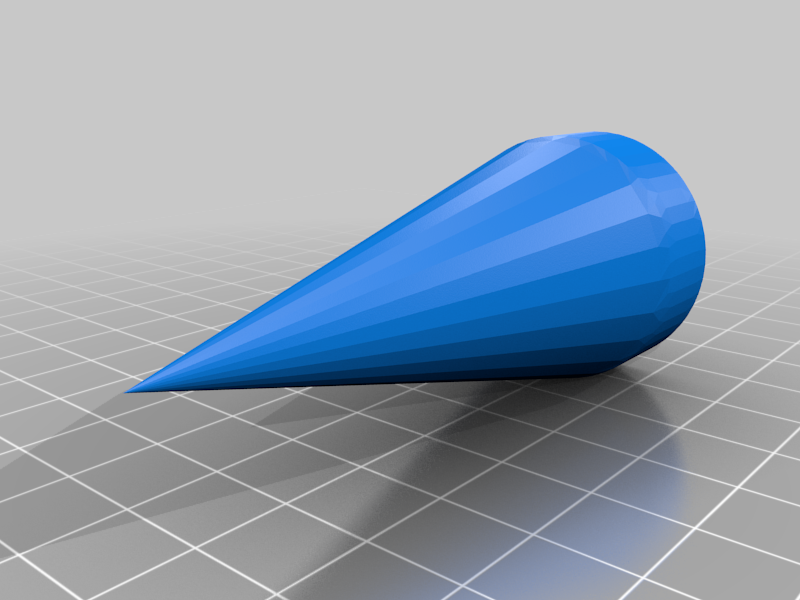

stl055_nozzle_2.stl
139 Ko · 284 downloads
-

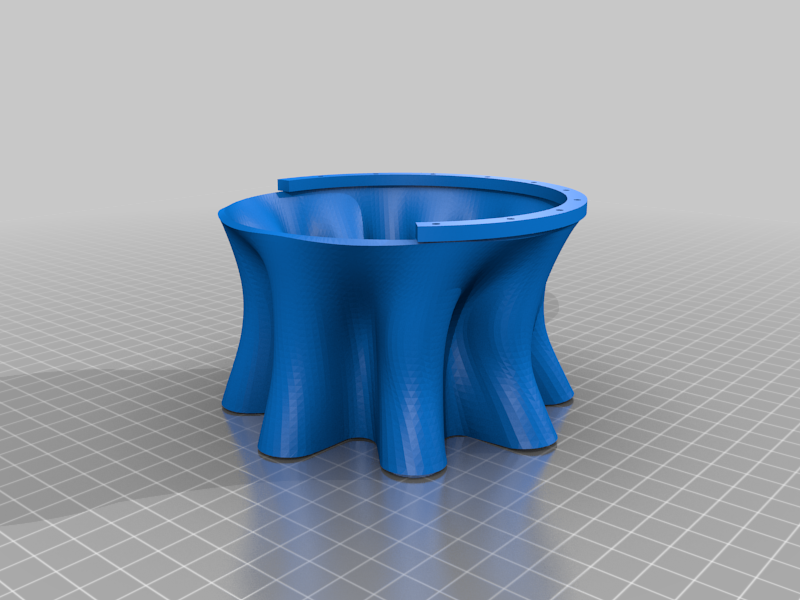

stl042_mixer_1.stl
1.9 Mo · 286 downloads
-

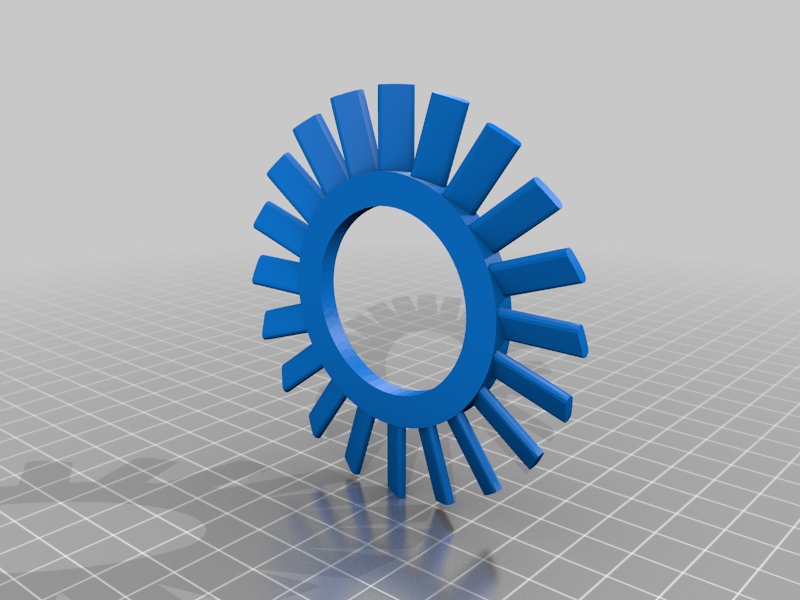

stl032_t_fan_1_1.stl
521 Ko · 283 downloads
-

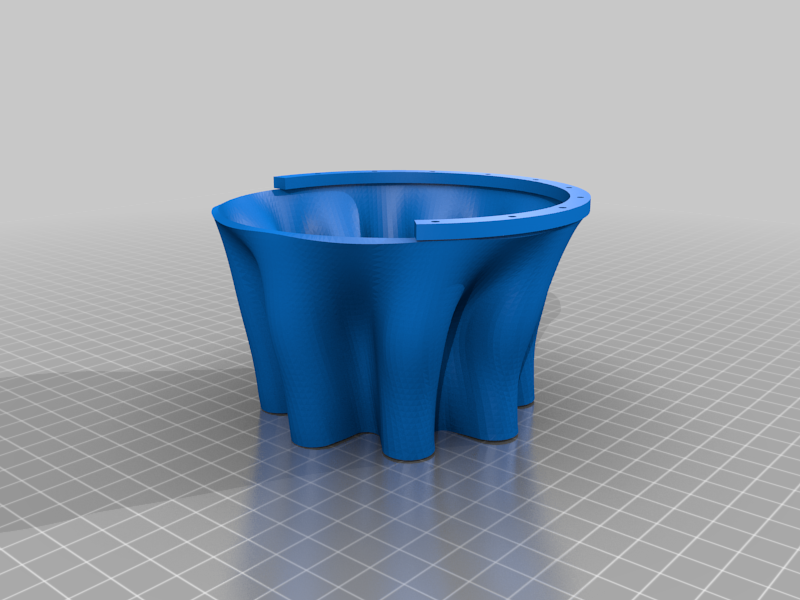

stl063_mixer_2.stl
1.9 Mo · 284 downloads
Beschrijving
Educational Jet Engine Prototype produced as part of my 3rd year University Project.
There is a variety of resources that have been produced as part of this project, with an aim to increase the accessibility of education in Jet Engines (Gas Turbine Engines).
All of which will be added to this page soon.
An assembly guide has been provided in the form of a PowerPoint.
Please refer to the BOM to check if you have the capability for printing some of the larger files.
These parts were printed mainly with a creator pro 2, as well as a FLSUN.
There are two versions either with or without a motor.
The details of the parts are required to purchase can be found in the BOM.
Initial design ideas were taken from Catiav5ftw:
https://www.thingiverse.com/thing:1327093
Operating Model:
https://youtu.be/QfqngTkKQww
Initial Run:
https://youtu.be/geDM-ofcbt8
(Please ignore the Fan alignment issue as the front bearing dried off-axis.)
Educational Animation:
https://youtu.be/4sZMAYpFGkc
