Box for Atomic Force Microscopy Samples

von BOKU_Nawaros

Druckbare Dateien (4)

  • obj

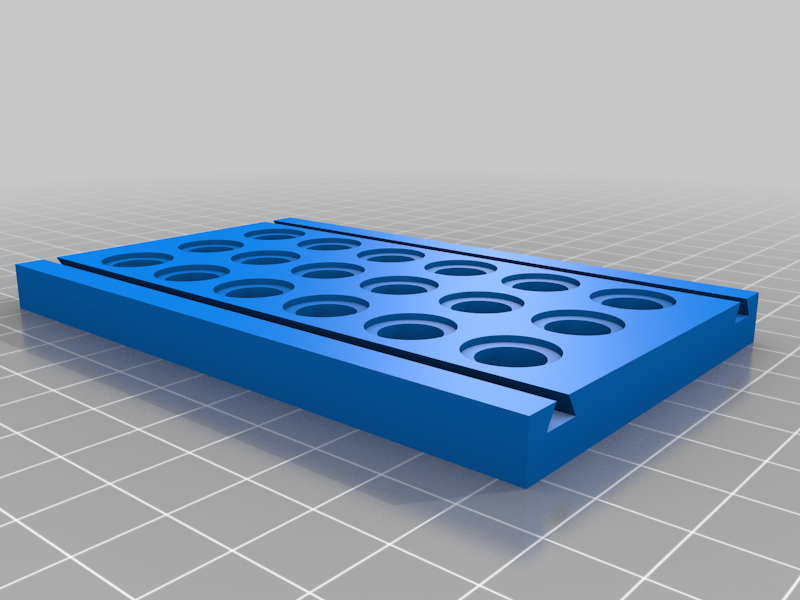

    3x6_microscopy_box.obj

    1.2 Mo · 266 Downloads

    Herunterladen
  • obj

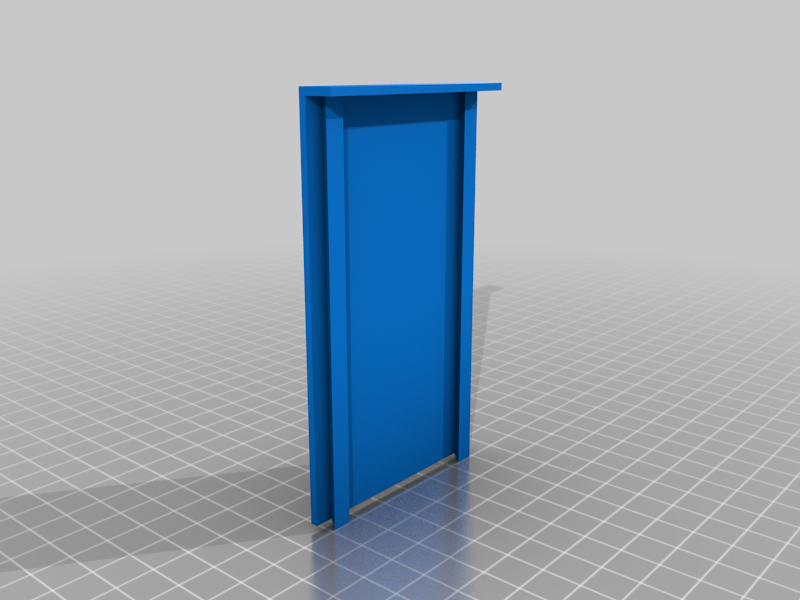

    3x6_closing_plate.obj

    8 Ko · 268 Downloads

    Herunterladen
  • obj

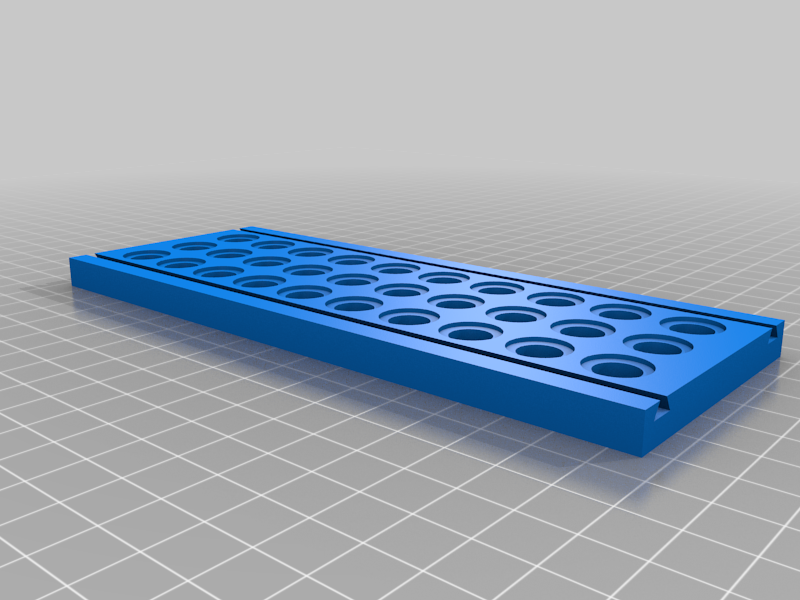

    3x10_microscopy_box.obj

    1.6 Mo · 266 Downloads

    Herunterladen
  • obj

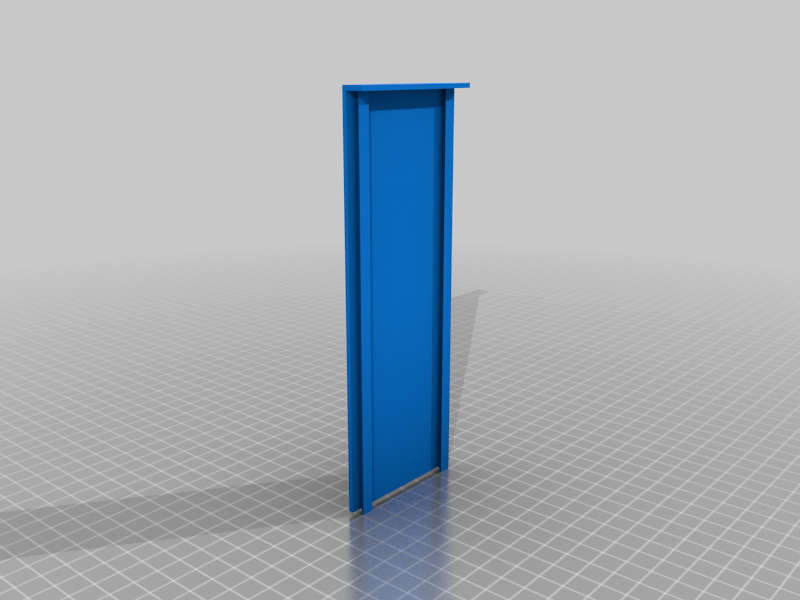

    3x10_closing_plate.obj

    8 Ko · 264 Downloads

    Herunterladen

Beschreibung

Travelling between labs with a lot of atomic force microscopy samples is complicated. Especially when we use small disks of 12 mm in diameter onto whcih the specimen is glued.

In consequence, we have designed several boxes to contain our samples upside down:

  • 3 x 6 samples
  • 3 x 10 samples

Once in the box, the samples cannot move nor touch any surface thanks to a closing plate inserted on one of the side.
