TSO Parallel Guide holder

von tbadger61

Druckbare Dateien (2)

  • stl

    TSO_Parallel_Guide_Holder.stl

    231 Ko · 245 Downloads

    Herunterladen
  • stl

    TSO_Holder_v2_Knob.stl

    61 Ko · 239 Downloads

    Herunterladen

Beschreibung

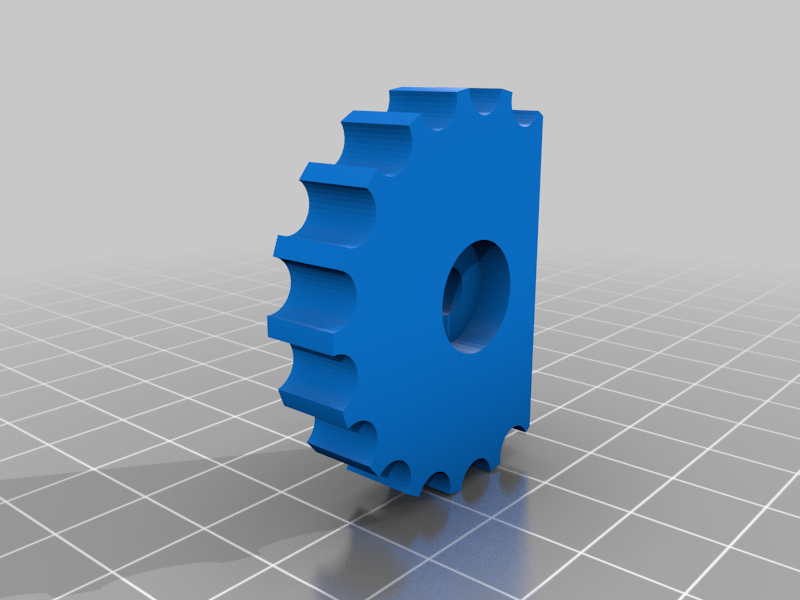

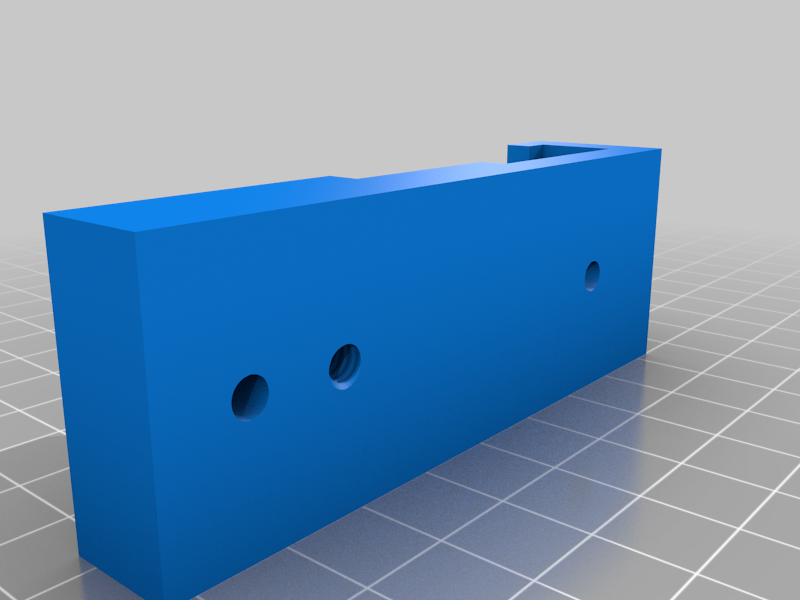

A holder for TSO Track Saw Parallel Guides - two required for each guide rail. Designed to be mounted on the wall. The red knob can be turned to remove or secure the guides. The hole for the knob is threaded at 10-24 UNC. Instead of using a machine screw, I used a similar sized sheet metal screw to fasten the knob so that it rotates, but does not rotate the sheet metal screw (the correct sized machine screw does rotate freely, so was a poor design choice).
