Atomstack Glass Roller Attachment

von ModelMark

Druckbare Dateien (3)

Beschreibung

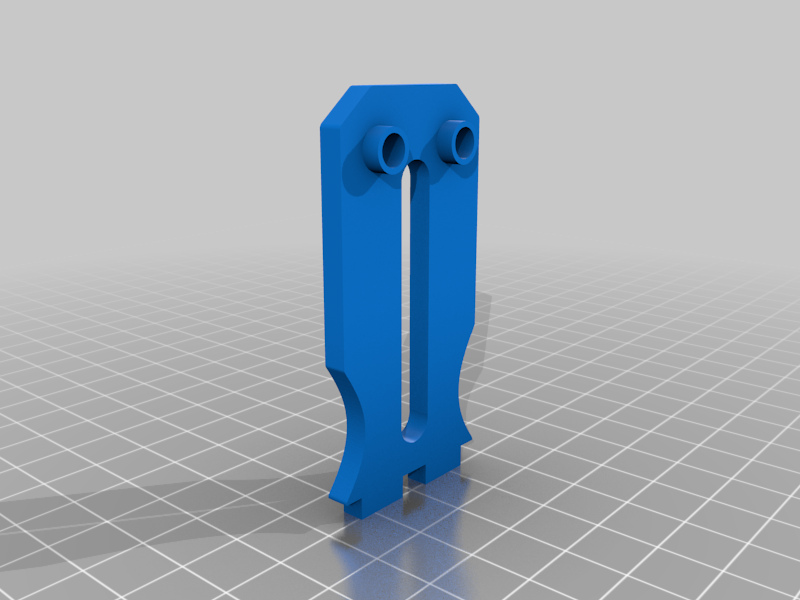

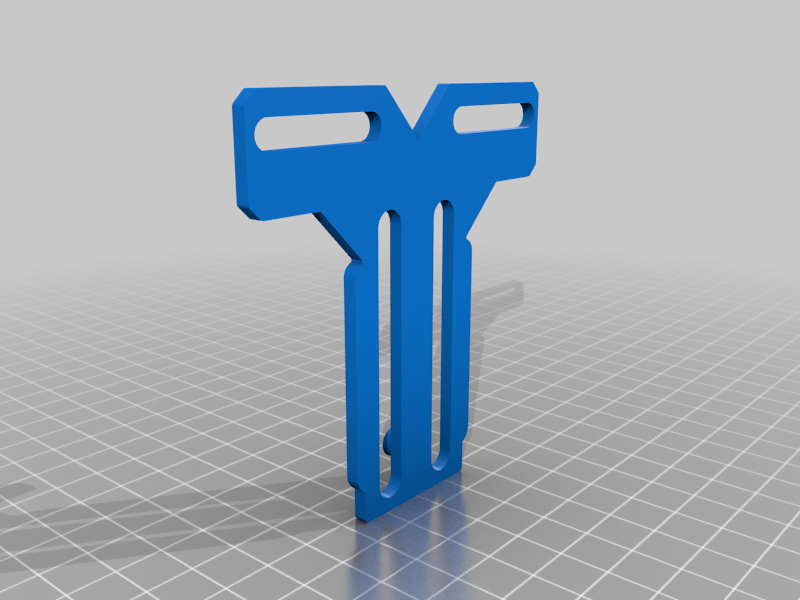

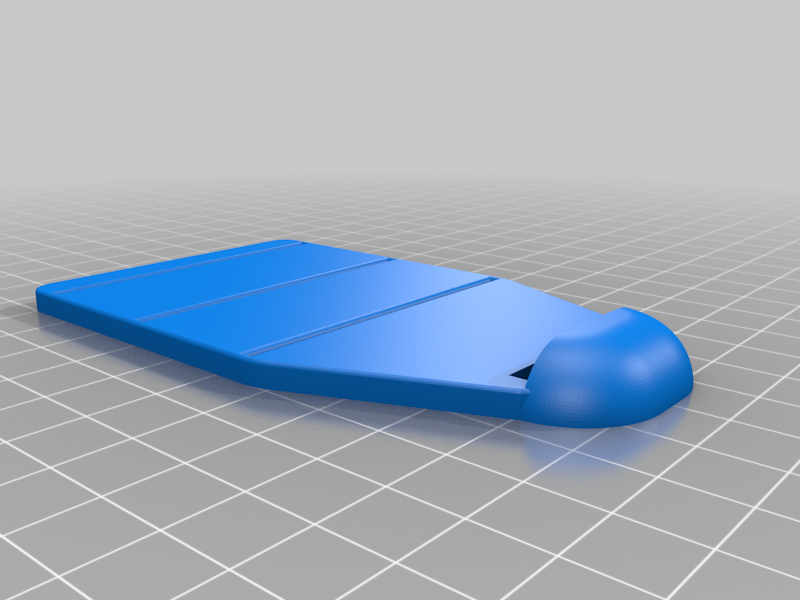

For anyone, like me, who bought the Atomstack roller without the glass rim holder attachment, here are the files I have designed for that purpose. These have been 3D printed using an FDM (FFF) printed and printed at 100% infill for strength. I have designed the bottom stand in 2 pieces for ease of printing. The two parts will need supergluing together. The other items you will need are listed below.

2x V Slot Wheels Plastic Pulley Linear Bearing, one you get with a Creality 3D printer.
2 x Black stainless steel penny washers (M5 x 15 mm).
2 x Aluminium stand-off spacers M5 x 5mm.
2 x M5-0.8 x 12mm Alloy steel button head socket cap bolt.
2 x M5-0.8 x 25mm Alloy steel button head socket cap bolt.
Rounded thumb nut connector lock adjusting nuts, M5 female threaded thin.
