meshtasic solar node
von turboprint3D
Druckbare Dateien (6)
-

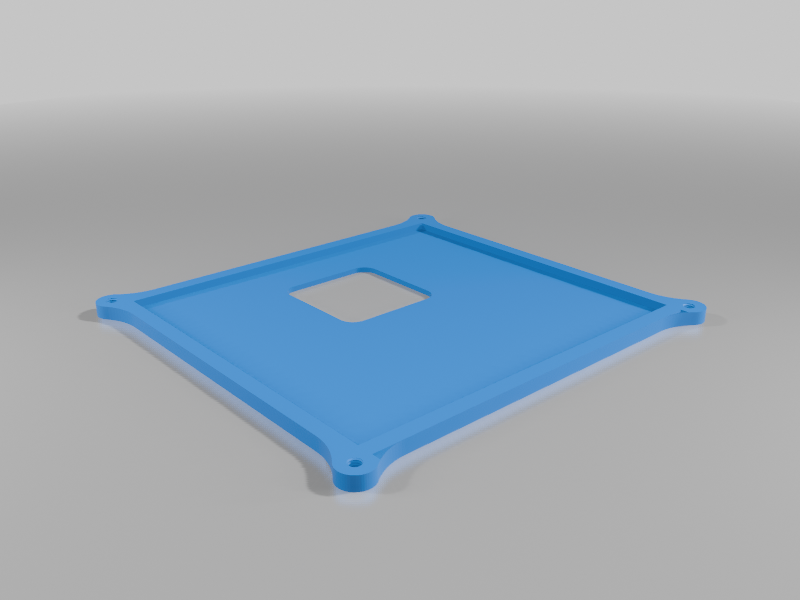

3mf2nd_panel_main_frame.3mf
284 Ko · 27 Downloads
-

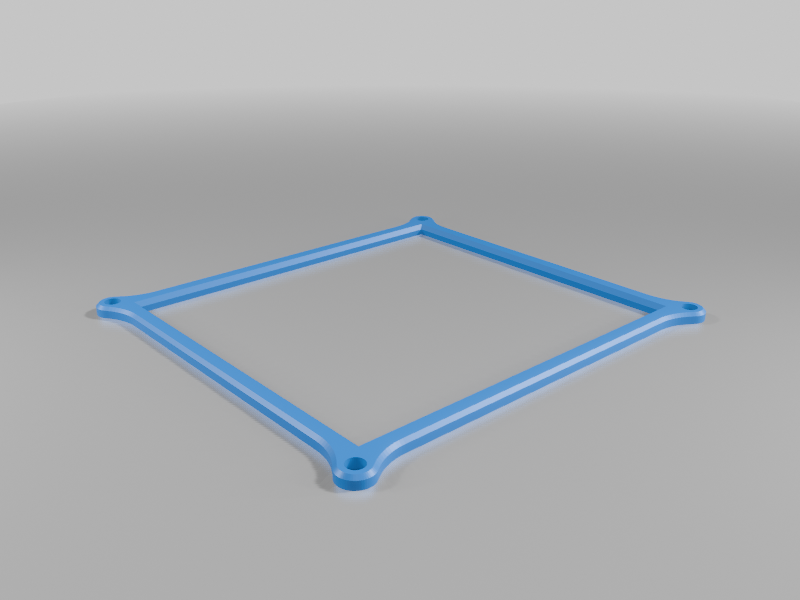

3mfsolar_panel_mounting_bezel.3mf
47 Ko · 22 Downloads
-
3mfmain_housing.3mf
26 Ko · 25 Downloads
-

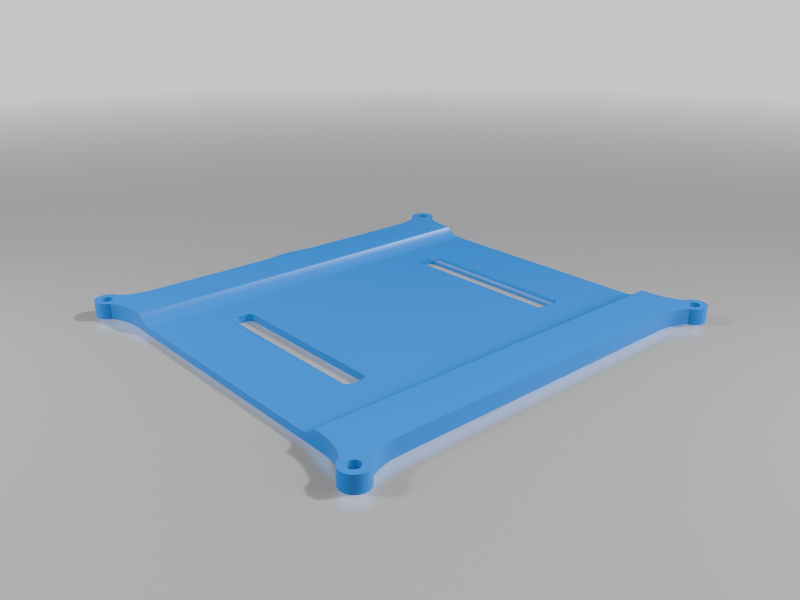

3mf2nd_panel_wire_cover.3mf
676 Ko · 25 Downloads
-

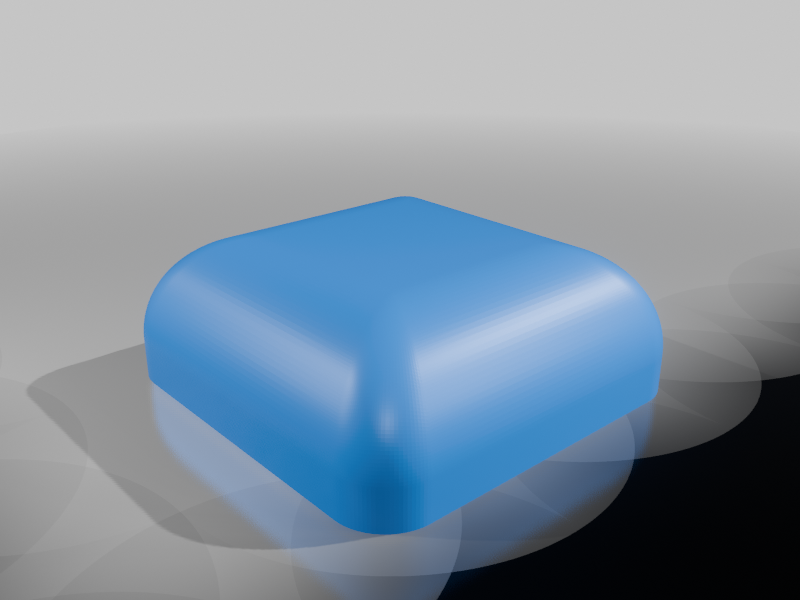

3mfTPU_secon_panel_flex_joint.3mf
45 Ko · 21 Downloads
-

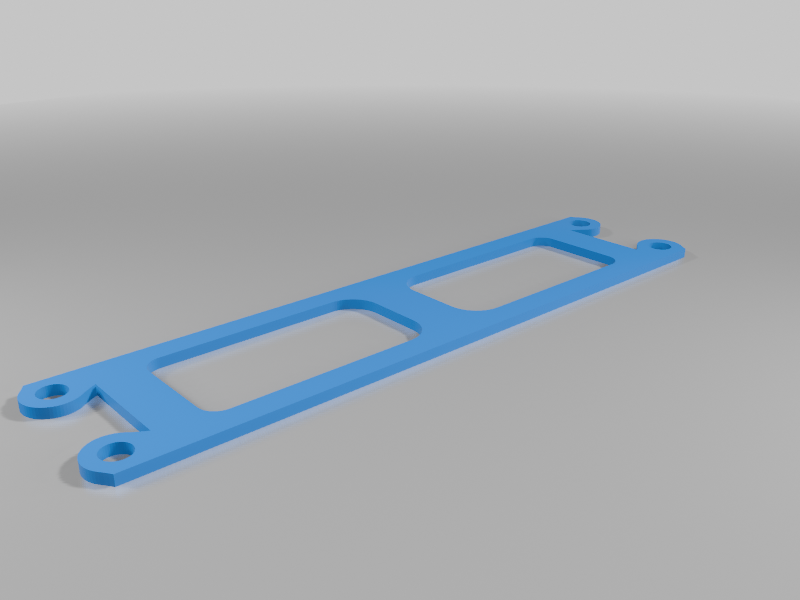

3mfstrap_mount.3mf
76 Ko · 21 Downloads
Beschreibung
A solar powered meshtastic router node , using 2 watt solar panels .
the case fits the panels and has a snap in mount for the lora 32 boards , heltec lora , the lilygo lora 32 ( non gps ) and any other board that has this board width .
required :
radio board :
usb boost converter
2pc 2watt 6v solar panels
2pc m4 x8
2pc m4x 10
4pc m4x 18
3pc aa nimh batteries wired in series to attain 4.5v
sma male to female exteantion may be needed depending on board
video : https://youtu.be/Hf7cblCzTqM
