Pre-Problem solving (flashforge creator pro)

por GenErik

Archivos imprimibles (4)

  • stl

    fan_duct_left.stl

    1.1 Mo · 1 465 descargas

    Descargar
  • stl

    fan_duct_right.stl

    1.1 Mo · 1 482 descargas

    Descargar
  • stl

    Wire_brace.stl

    3.7 Mo · 1 466 descargas

    Descargar
  • stl

    All_together.stl

    5.9 Mo · 1 462 descargas

    Descargar

Descripción

I've been doing some research into the creator pro, and as I wanted to design something that would really benefit me if I win (hopefully), my design had to solve some real problems that others are having. From what I've found out, the extruder's wire bundle needs bracing & the part cooling fan needs a complete overhaul. So with inspiration (and measurements) from the various designs online, I attempted to create a mod that solves both those issues.

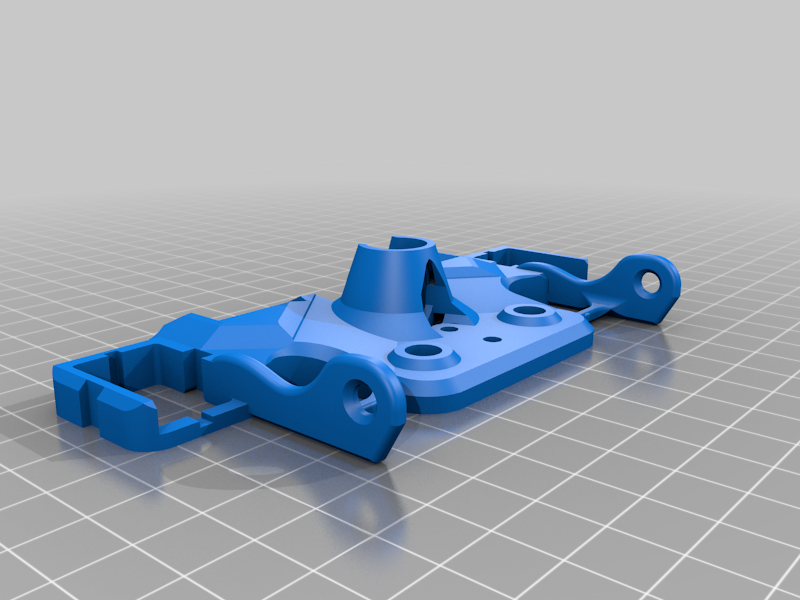

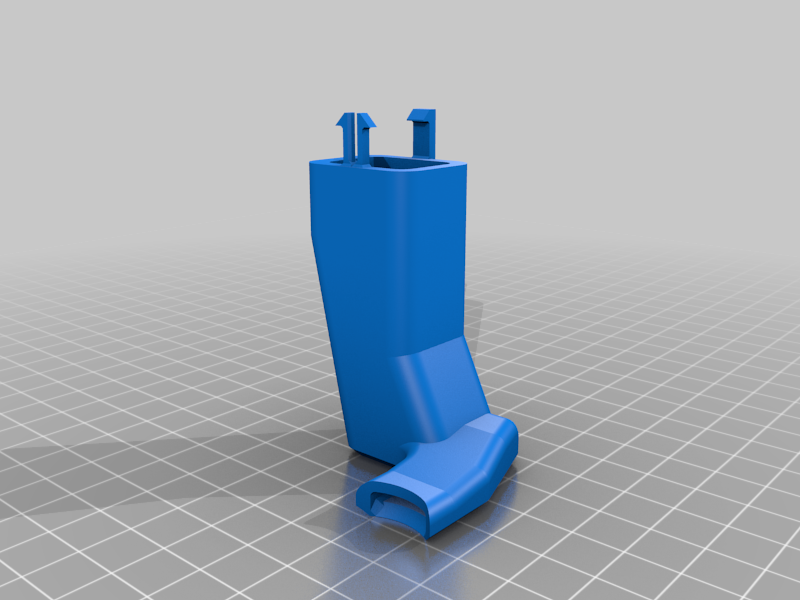

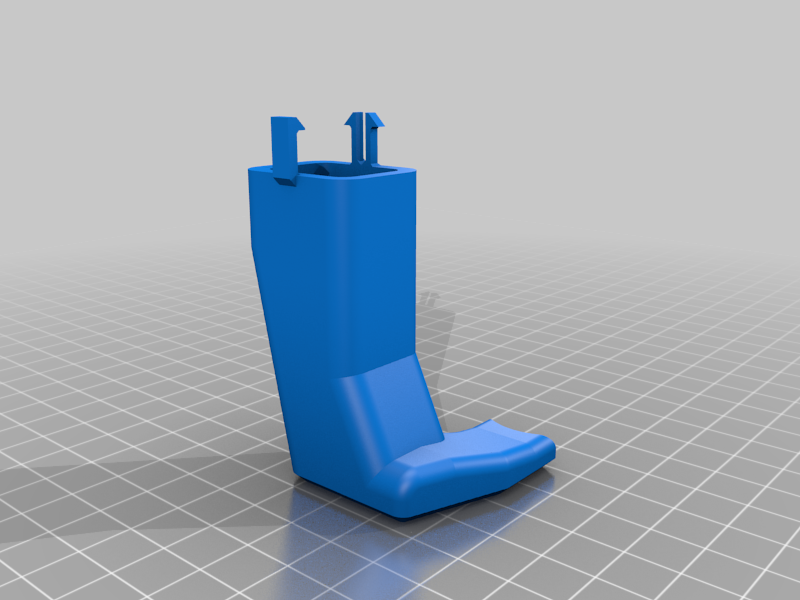

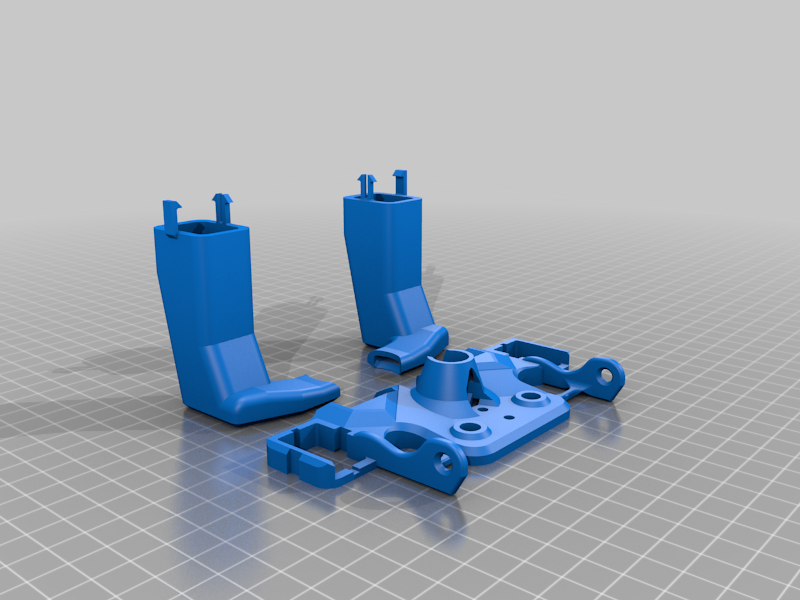

The assembly comes in three parts; the main cover, the left air duct, and the right air duct. The cover is designed to brace the wire bundle, but also to house a 50x50x15 blower fan on either side. They should slot into the cutouts tightly, but can be secured with a nut and bolt through the hole. The air ducts clip into the main cover, giving each extruder it's own part cooling fan.
Of course I have no way to test this design, or iterate and fix any of the issues it might have. But that's why I need the printer.

edit: feel free to vote for me here - https://www.bilby3d.com.au/Printober/ViewEntry.asp?ID=32
