Combustion Engine Model

di Mike_Wasowsky

File stampabili (8)

  • stl

    Connecting_rod.STL

    147 Ko · 1 372 download

    Scarica
  • stl

    Cylinder.STL

    89 Ko · 1 370 download

    Scarica
  • stl

    Piston_bolt.STL

    77 Ko · 1 362 download

    Scarica
  • stl

    Rear_cover.STL

    297 Ko · 1 348 download

    Scarica
  • stl

    Crankshaft.STL

    304 Ko · 1 351 download

    Scarica
  • stl

    Piston.STL

    60 Ko · 1 352 download

    Scarica
  • stl

    Engine_block.STL

    1.5 Mo · 1 358 download

    Scarica
  • stl

    Cylinder_head.STL

    1.7 Mo · 1 354 download

    Scarica

Descrizione

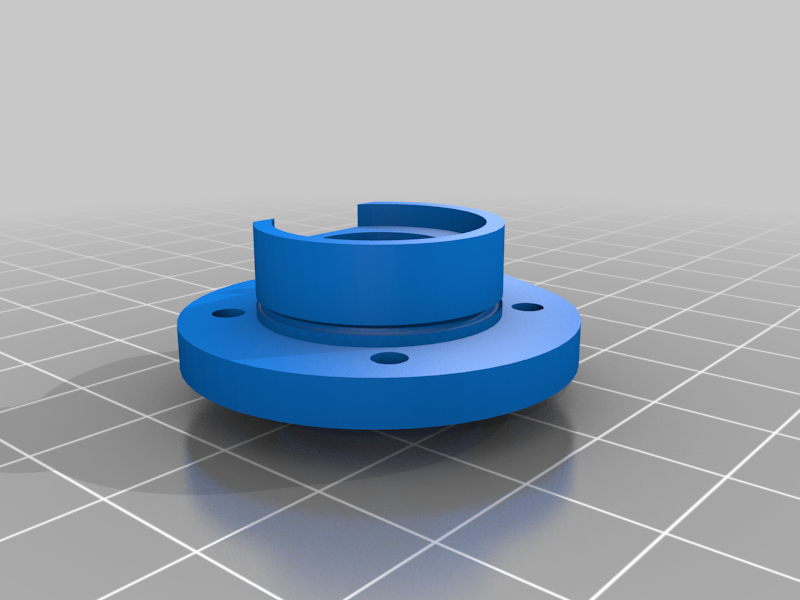

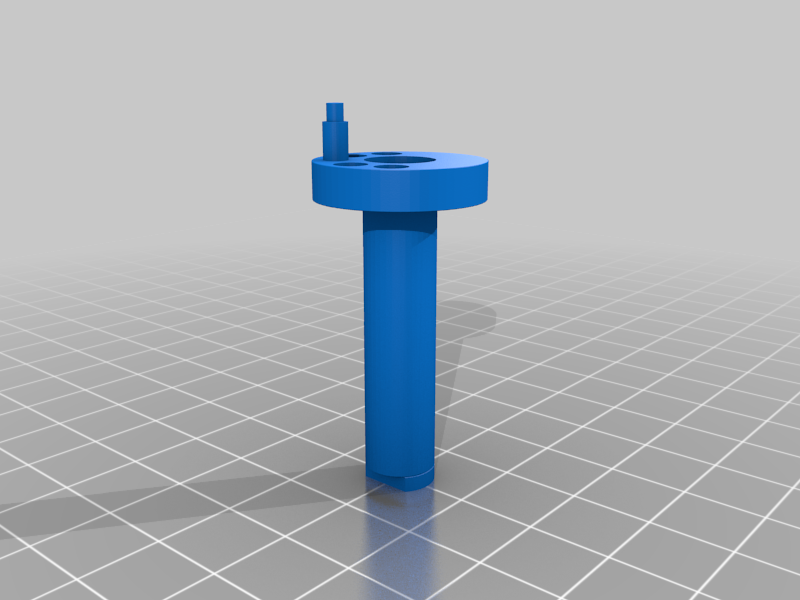

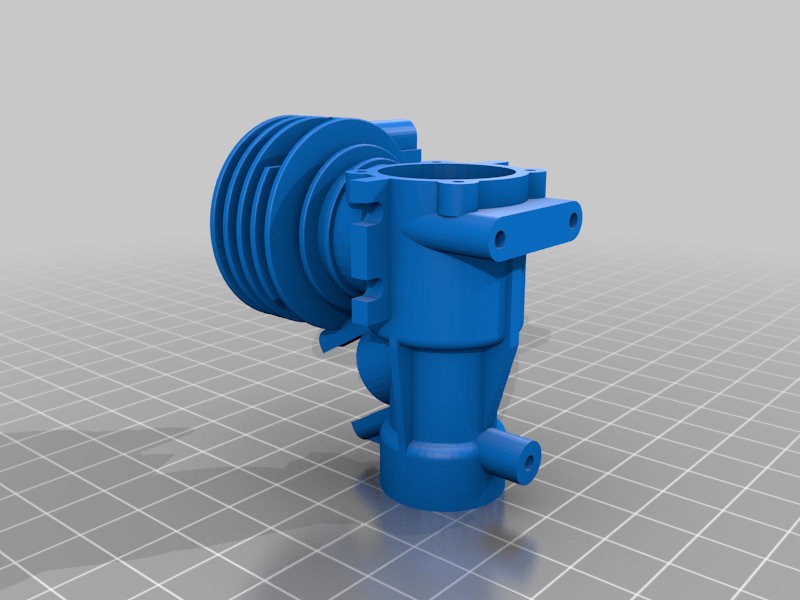

This is a printable model of a 2 stroke combustion engine. I made this project with Solidworks from a real Kiosho RC engine. It consists of 8 different pieces: the engine block, the cylinder, the cylinder head, the crankshaft, the piston bolt, the piston, the connecting rod and the rear cover. All parts are designed to be assembled, and with the help of some sandpaper and patience the whole set has correct moving. I post a photo of the exploded view of the motor in order to explain and simplify the assembly part.

This can be easily used to learn and explain how a combustion engine works, and also as a great miniature.

Resolution: 0.2
Infill: 15%
Supports: Yes
Speed: 30-40 mm/s
Material: PLA
