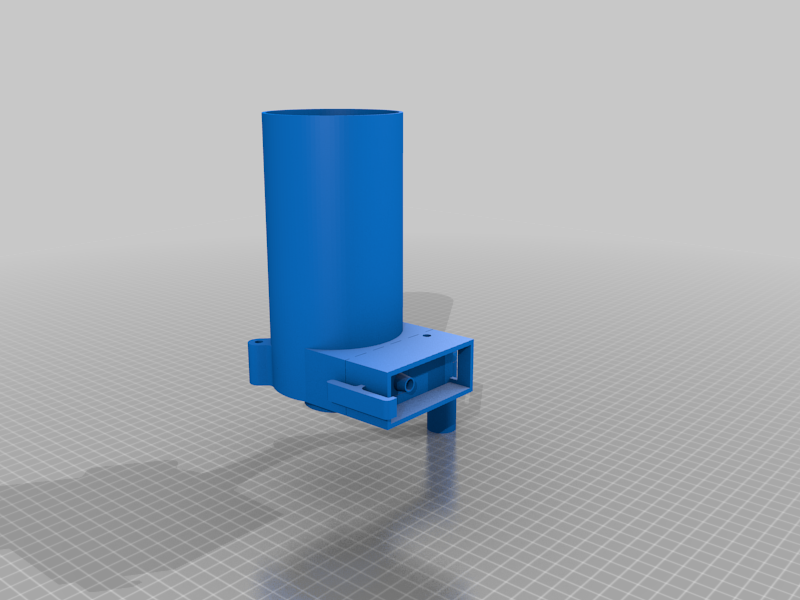

Speedloader

di LordApoth

File stampabili (9)

  • stl

    Speedloader_v2_v9.stl

    739 Ko · 535 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Boden_Speedloader_v2_v9.stl

    107 Ko · 560 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Rad_Speedloader_v2_v9.stl

    185 Ko · 524 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Lager_Speedloader_v2_v9.stl

    162 Ko · 528 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Griff_1_Speedloader_v2_v9.stl

    24 Ko · 558 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Mag_Halter_Speedloader_v2_v9.stl

    23 Ko · 561 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Griff_2_Speedloader_v2_v9.stl

    26 Ko · 556 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Kurbel_Speedloader_v2_v9.stl

    154 Ko · 514 download

    Scarica
  • stl

    Speedloader_v2_v9_Speedloader_v2_v9_Feed_Speedloader_v2_v9.stl

    60 Ko · 510 download

    Scarica

Descrizione

I wanted to 3d print a airsoft speed loader but couldn't find a design that i liked. So i designed my own heavily influenced by this YouTube video: https://youtu.be/61ylD9ctFaU

The speed loader works thanks to a gear that catches the BBs and pushes them into the mag. The gear can hold a total of 24 BBs.

I couldn't test my design so i don't know if it works. The design should work with my AK magazines. Maybe i should have designed it to work with m4 mags so the Odin adapters could be used.

Things to add:

  • a lid to keep the BBs in
  • m4 variant of Magholder

Tag

#airsoft #airsoft speed loader #speedloader
