Teaching Clock

di Rkimmell73

File stampabili (9)

  • stl

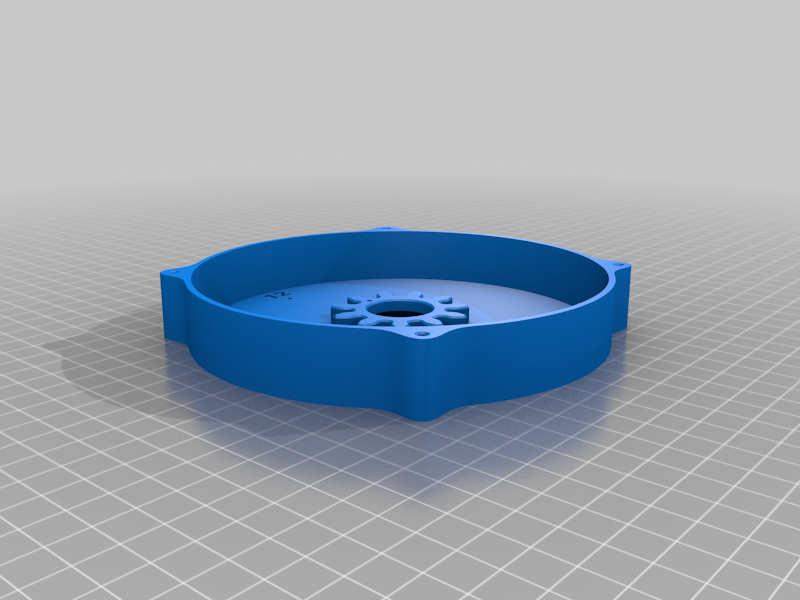

    case.stl

    840 Ko · 151 download

    Scarica
  • stl

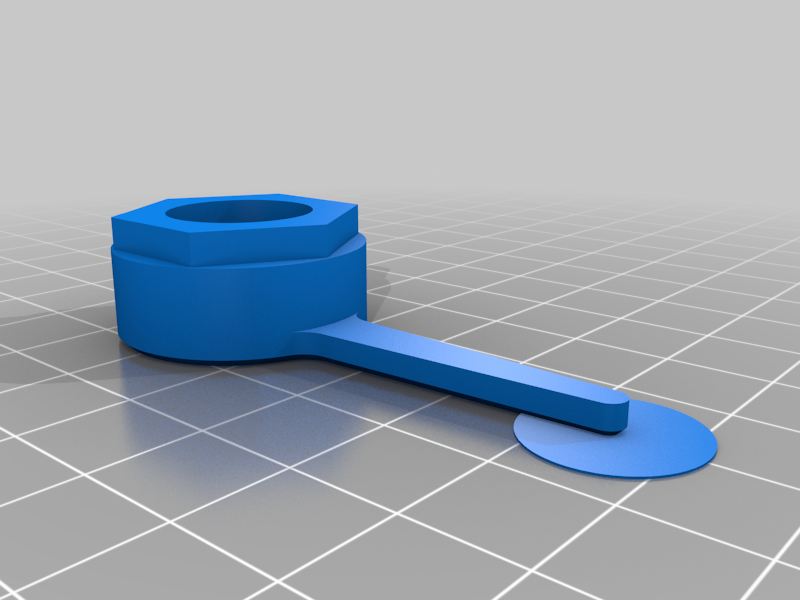

    hour_hand.stl

    124 Ko · 148 download

    Scarica
  • stl

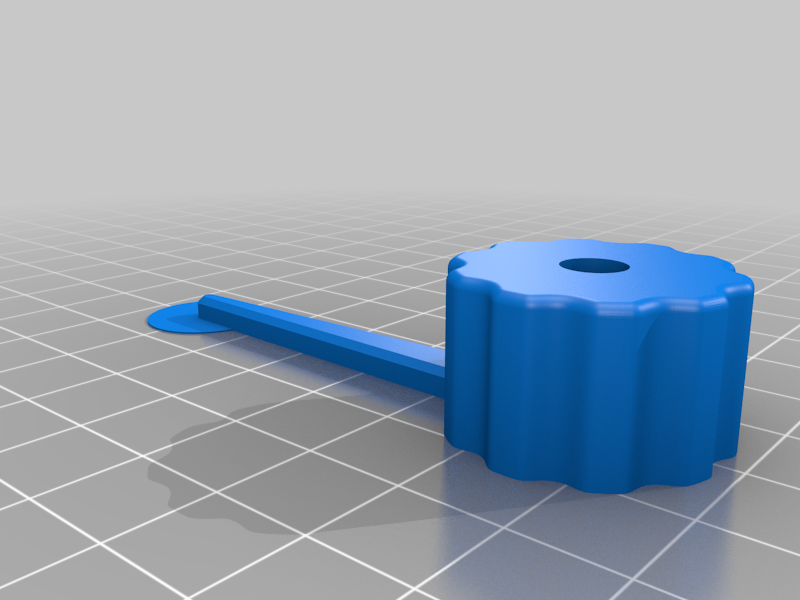

    minute_hand.stl

    1001 Ko · 145 download

    Scarica
  • stl

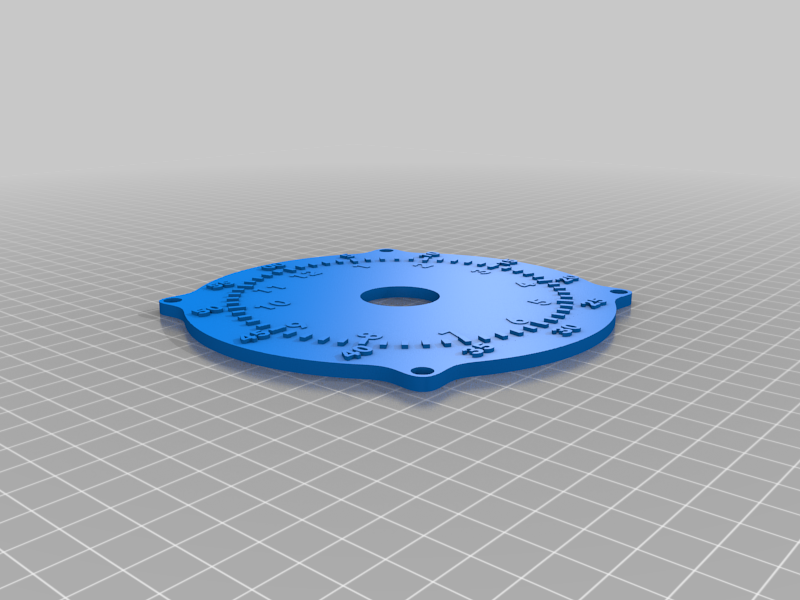

    face_with_debossed_markings.stl

    994 Ko · 150 download

    Scarica
  • stl

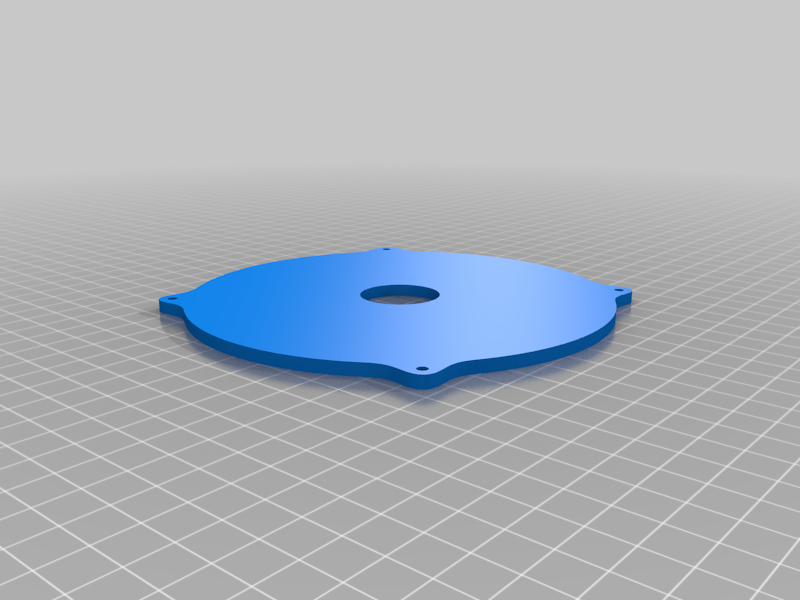

    face_with_inlaid_markings.stl

    884 Ko · 147 download

    Scarica
  • stl

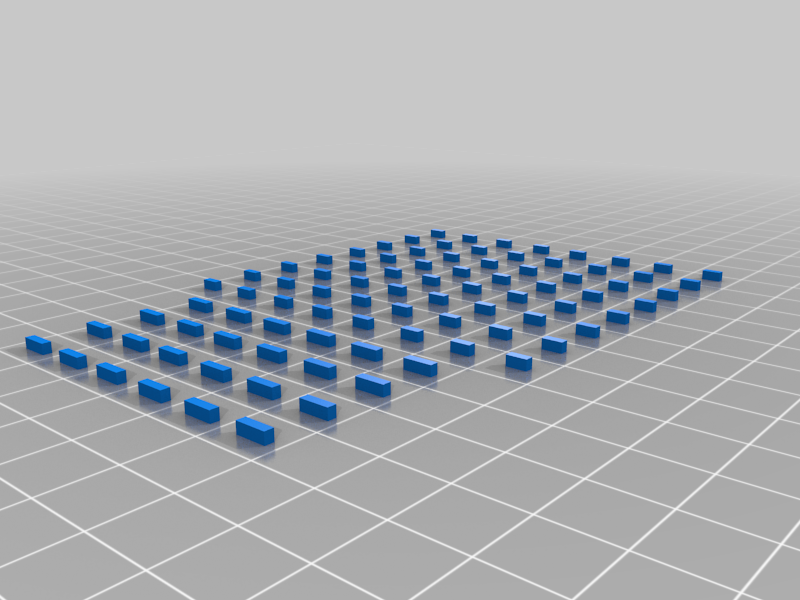

    inlaid_minute_marks.stl

    52 Ko · 141 download

    Scarica
  • stl

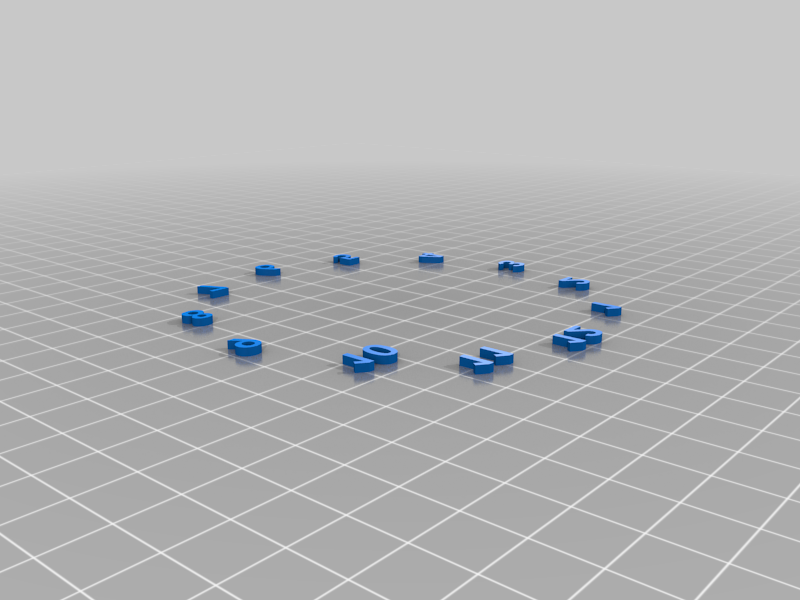

    inlaid_hour_numbers.stl

    680 Ko · 144 download

    Scarica
  • stl

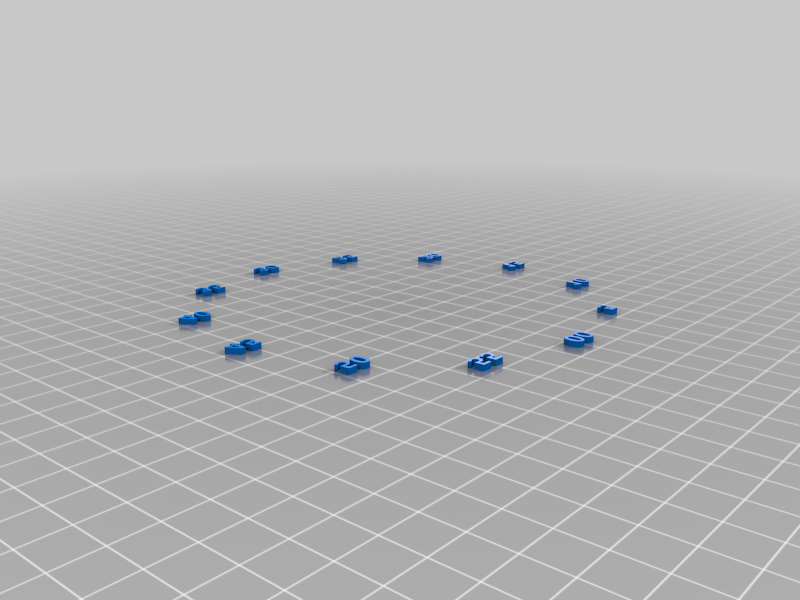

    inlaid_minute_numbers.stl

    2.2 Mo · 141 download

    Scarica
  • stl

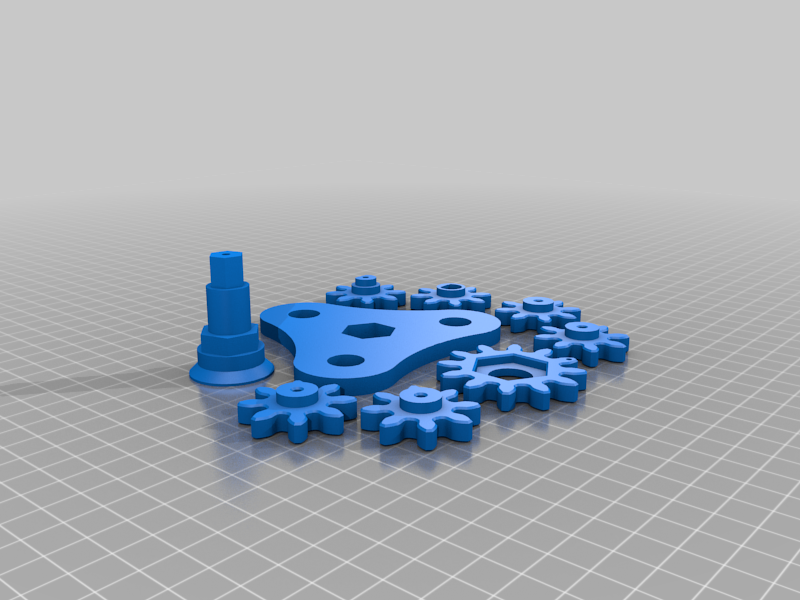

    gear_train.stl

    4.4 Mo · 151 download

    Scarica

Descrizione

Original Post:

  • This is a remix of the Robust Teaching Clock.
  • Gears were updated with spur gears generated by Fusion 360.
  • Face updated with two options: inlaid or raised markings.
  • Drive gears updated with “D” shaft to ensure proper assembly.
  • Assembly alignment dots added to ensure proper gear placement.
