CoreXY pen plotter

di Ondra89

File stampabili (14)

  • stl

    foot.stl

    25 Ko · 889 download

    Scarica
  • stl

    arduino_mount.stl

    35 Ko · 876 download

    Scarica
  • stl

    back_pulley_mount.stl

    46 Ko · 880 download

    Scarica
  • stl

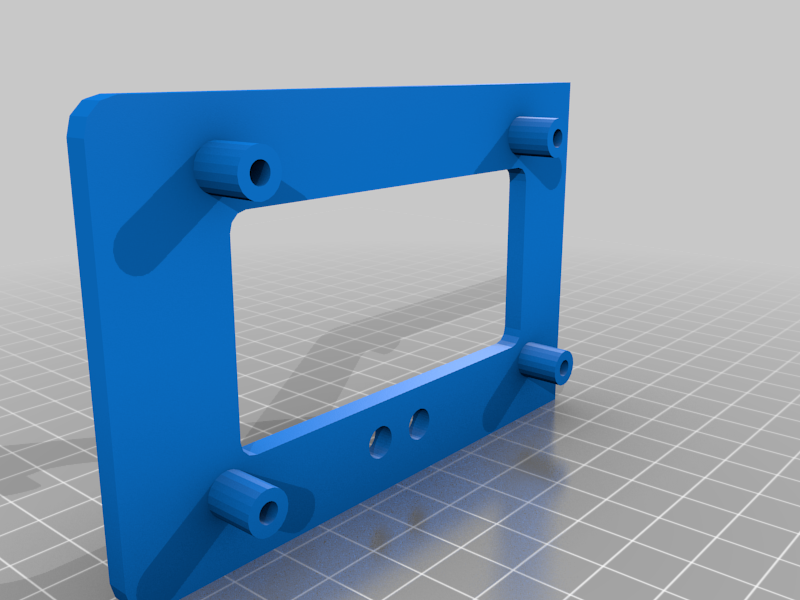

    arduino_holder.stl

    140 Ko · 854 download

    Scarica
  • stl

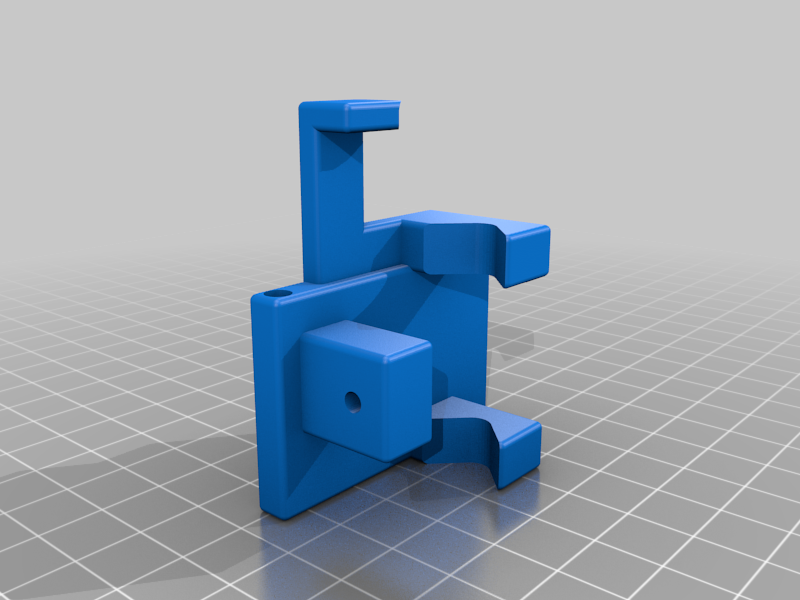

    pen_mount.stl

    230 Ko · 904 download

    Scarica
  • stl

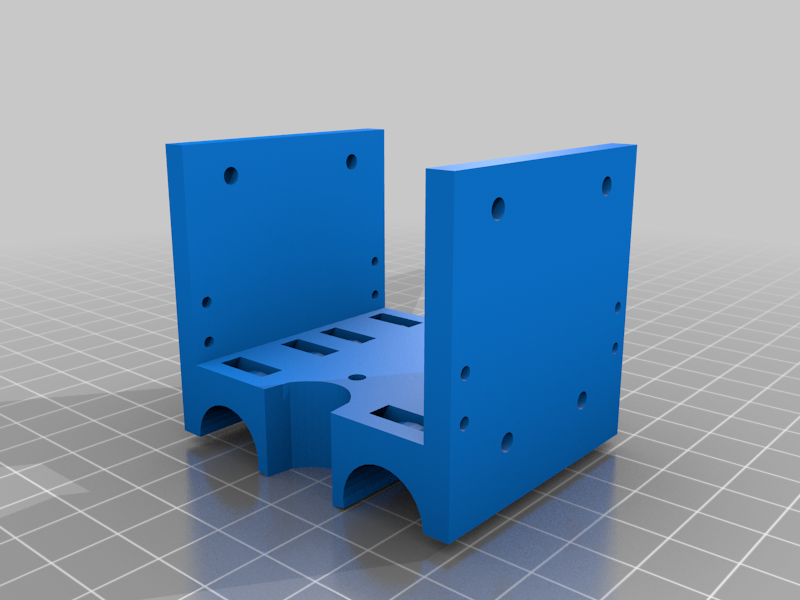

    carriage.stl

    250 Ko · 867 download

    Scarica
  • stl

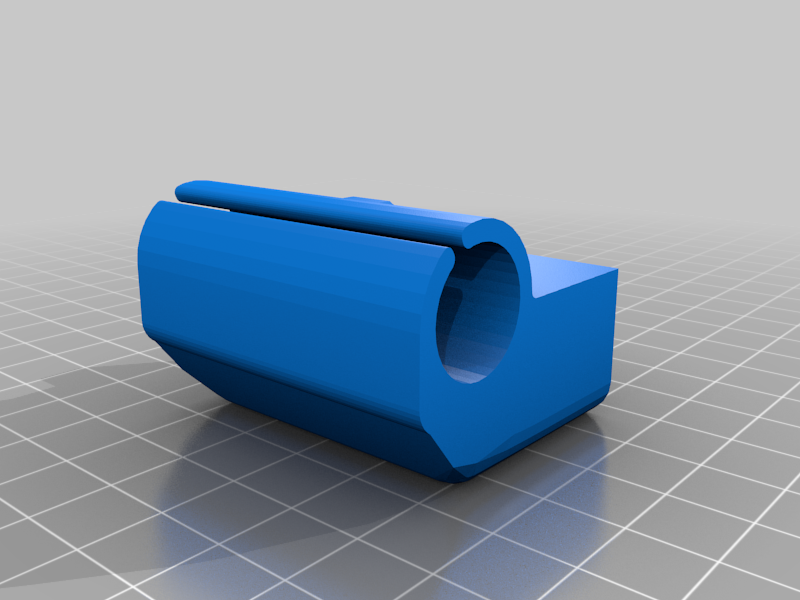

    left_slider.stl

    179 Ko · 881 download

    Scarica
  • stl

    stepper_motor_holder.stl

    99 Ko · 891 download

    Scarica
  • stl

    right_slider.stl

    188 Ko · 880 download

    Scarica
  • stl

    belt_tensioner.stl

    465 Ko · 878 download

    Scarica
  • stl

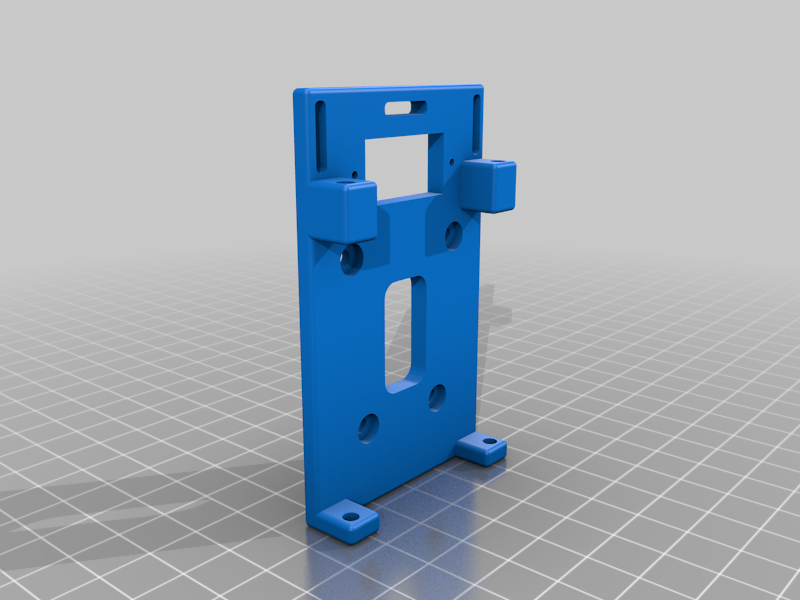

    servo_mount.stl

    310 Ko · 882 download

    Scarica
  • stl

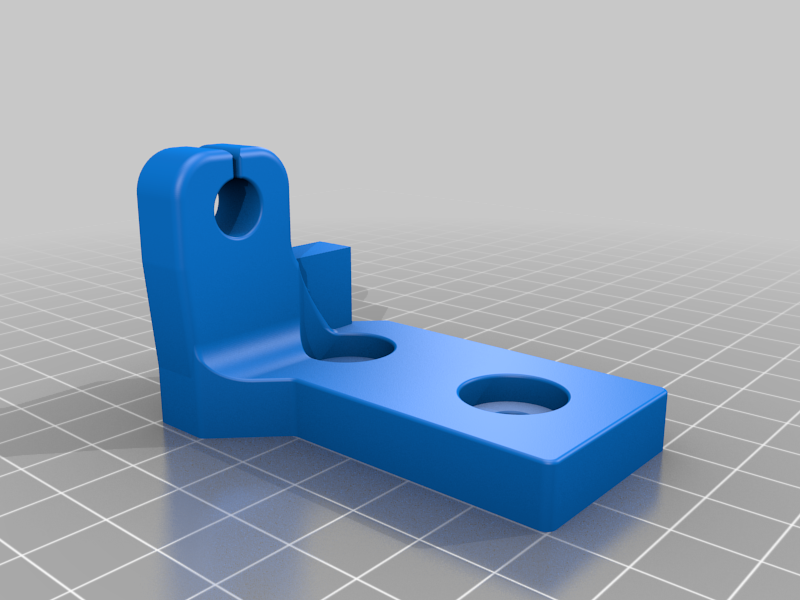

    left_rod_mount_with_endstop.stl

    4.7 Mo · 868 download

    Scarica
  • stl

    left_rod_mount.stl

    5 Mo · 878 download

    Scarica
  • stl

    right_rod_mount.stl

    5.5 Mo · 882 download

    Scarica

Descrizione

Recently I became interested in CoreXY and wanted to see how it works, so I designed simple pen plotter. I know there are many similar and maybe better designs already, but I wanted mine to use parts that I am familiar with and are also available to purchase for relatively cheap price. I ended up reusing various 3D printer parts, arduino and RAMPS board plus pre-cut aluminum profiles.

You can find blend file among files for download which contains whole design.

I also used some parts from other projects. Namely the servo actuated pen holder is from this project: https://www.thingiverse.com/thing:2374238

I am pretty sure all parts can be printed without support. I used ABS ,but PLA or PETG should work too.

List of used parts:

  • two Nema17 stepper motors
  • arduino + Ramps + two stepper drivers
  • two end-stop switches
  • four aluminum profiles I used two 360 mm and two 320 mm but any length should work
  • four 8 mm steel rods ( two 370 mm and two 290 mm)
  • GT2 6 mm belts approximately 4 meters
  • 16 F623zz ball bearings for pulleys
  • some m3x40 and m3x16 bolts for pulleys and motors
  • some m6x12 bolts for aluminum profiles
  • 8 LM8UU linear bearings
  • some thin zip ties to hold linear bearings in the carriage

I am sure I forgot something, if you find out then let me know in the comments

I used standard marlin as firmware for arduino. Of course you need to make some changes in Configuration.h to make it work with coreXY and some atoher tweaks.

To generate gcode I use inkscape, which is great open-source tool for creating vector graphics, together with this extension, that is able to save your drawing directly as gcode:
https://github.com/soukupak/inkscape-unicorn-for-marlin

I you need any help getting this thing to work, let me know in the comments and I'll be glad to help.
